Intel
IXF18103
10 Gigabit Ethernet LAN or WAN PHY
product brief
Product Overview
The Intel
IXF18103 is a highly integrated
solution for 10GbE Local Area Network (LAN)
and Wide Area Network (WAN) port applications
compliant as per IEEE802.3ae specifica-
tions. The IXF18103 supports 10GbE LAN
(10.3125Gbps) and WAN (9.953Gbps)
applications.
The 10 Gigabit MAC (per IEEE 802.3ae)
handles frame encapsulation, verification,
10GbE flow control, and Remote Monitor-
ing/Simple Network Management Protocol
(RMON/ SNMP) statistics management. The
IXF18103 also handles the 802.3ae Physical
Coding Sub-layer (PCS) and WAN Interface
Sub-layer (WIS) functions of the 10 Gigabit
Ethernet standard. The PCS hardware han-
dles the 64B/66B encoding/decoding to
provide the transition density and balance of
the 10.3125Gbps stream. The WAN Interface
Sub-layer provides the rate matching mecha-
nism for 9.953Gbps rate transport, as well as
the STS-192c/STM 64c framing structure
used in WAN PHY applications.
The system interface supports the industry-
standard System Parallel Interface Level 4
(SPI-4) Phase 2. This interface is 16 bits wide
with 622Mbps800Mbps Double Data Rate
(DDR) clocking. The SPI-4 Phase 2 interface
is Low Voltage Differential Signaling (LVDS),
which produces fewer connection concerns
than previous 64-bit High-Speed Transport
Layer (HSTL) interfaces.
On the line side, the IXF18103 supports
the IEEE 802.3ae XSBI interfaces. The 16 bit
LVDS interface can operate at 622Mbps to
support the 10GbE WAN rate of 9.953Gbps,
and at 644Mbps to support the 10GbE LAN
rate of 10.3125Gbps.
The IXF18103 also supports an integrated
Pseudo Random Bit Sequence (PRBS) packet
generator/analyzer for the PCS and WIS
blocks per IEEE 802.3ae clause 49 and 50.
Line remote, line local, system remote, and
system local loop backs are also supported,
as well as Synchronous Payload Envelope
(SPE) payload test loop back for general
development functionality test and debug.
16
16
bypass
16
16
Serial
Overhead/
Alarm
Interface
Framer
WIS
APS
Interface
IEEE 802.3ae
XSBI Line
Interface
PCS
10 Gigabit
MAC
Generic
P Interface
SPI-4
Phase 2
System
Interface
16
16
16
16-bit LVDS
622/644Mbps
Intel

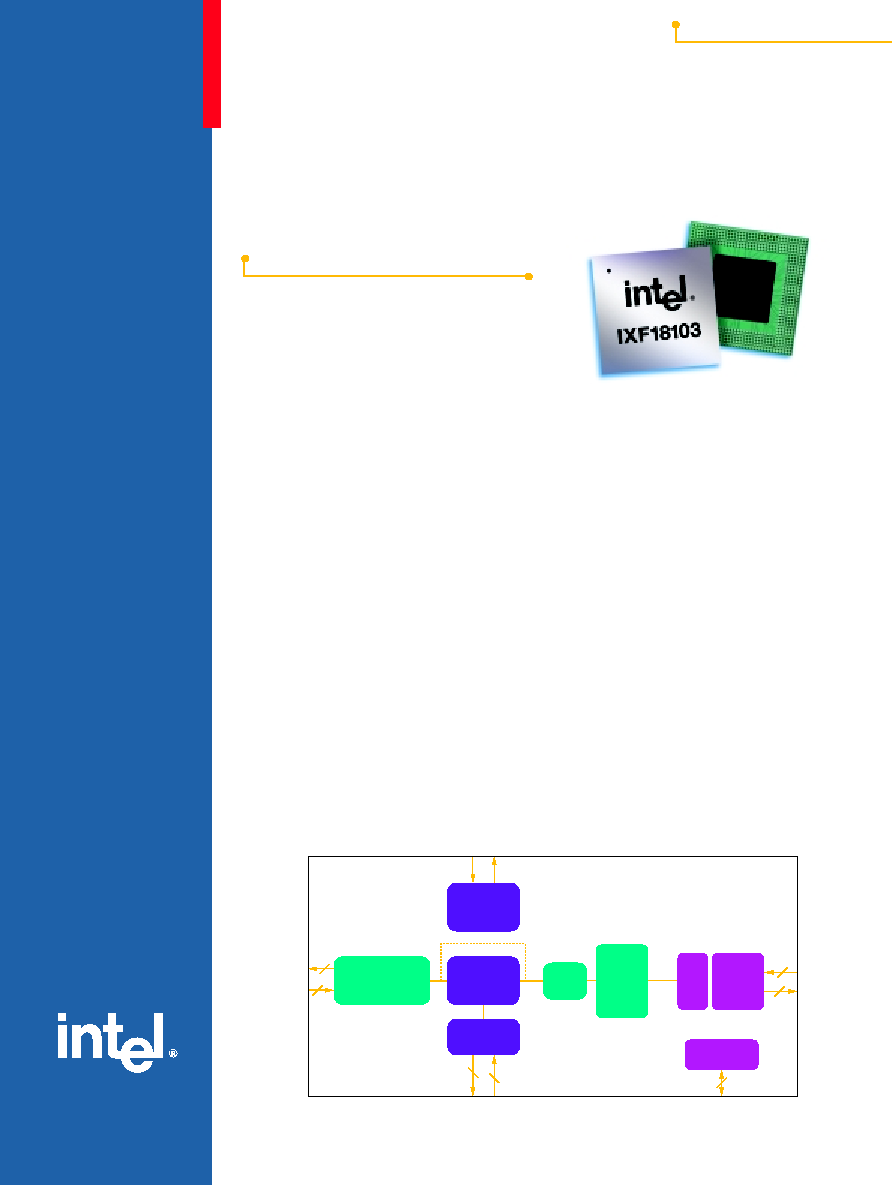

IXF18103 Block Diagram
16-bit LVDS
16-bit LVDS
622Mbps
800Mbps
DDR
FIFO
Features
s
Two modes of operation:
10GbE LAN
10GbE WAN
s
XSBI
s
SPI-4 Phase 2
s
Integrated 10GbE MAC, PCS, WIS
s
Multiple types of flow control:
Based on internal FIFO watermarks
External host control logic
Benefits
s
Device is optimized to support low cost and low
power requirements of 10GbE LAN and WAN
s
The XSBI interface comprised of 16-bit LVDS I/O runs
at 622Mbps for 10GbE WAN and at 644Mbps for
10GbE LAN
s
This accommodates both WAN and LAN rates in a
single module
s
Helps minimize pin count and allows interface archi-
tecture to be scaled beyond 10Gbps
s
LVDS I/O, which improves signal integrity versus HSTL
implementation
s
It is independent of the type of data protocol being
transferred
s
Highly integrated 10GbE solution
s
Enables flexible Line Card configurations for 10GbE
LAN or WAN PHY
s
Provides flexible loss less flow control which is very
important in asynchronous network applications
Intel
IXF1810x Family of 10Gbps Physical Layer Devices--High Level Overview
The Intel family of 10 Gigabit framer devices provide the broadest support for 10Gbps solutions. The protocols supported
are STS-192c POS, 10 Gigabit Ethernet WAN, 10 Gigabit Ethernet LAN, and GFP framing. The table below summarizes the
high-level feature set:
Part Number
Feature Set
IXF18101
IXF18102
IXF18103
IXF18104
s
STS-192c/STM 64c POS
s
SFI-4/XSBI line side interface
s
GFP
s
SPI-4 Phase 2 system-side interface
s
10 GbE LAN and WAN with
MAC, PCS, and WIS
s
STS-192c/STM 64c POS
s
SFI-4 line side interface
s
GFP
s
SPI-4 Phase 2 system-side interface
s
10 Gigabit Ethernet LAN and WAN
s
XSBI line side interface
PHY with MAC, PCS, WIS
s
SPI-4 Phase 2 system-side Interface
s
10 Gigabit Ethernet LAN PHY
s
XSBI line side interface
with MAC, and PCS
s
SPI-4 Phase 2 system-side Interface
All these devices are pin-, footprint-, and register set-compatible. This allows customers to design one line card for multiple
applications, providing cost savings over a single line card with other unsupported features.
The IXF18103 is designed to provide a single chip solution for all 10GbE LAN or WAN Physical Layer and MAC requirements
for metro and core networks, and offers the following features and benefits:
10GbE LAN Line Card
10GbE WAN Line Card
Multi 1 Gig LAN Backbone
Slot 1
ORX
ORX
RX
TX
RX
TX
OTX
OTX
Protect
Protect
Slot 2
Slot...n
10 Port
1GbE MAC
SPI-4 P2
Intel
IXF18103
10Gbps Ethernet
MAC/PCS/WIS
SPI-4 to XSBI
Intel
IXF18103
10Gbps Ethernet
MAC/PCS/WIS
SPI-4 P2 to XSBI
Net
Processor
Net
Processor
Net
Processor
Net
Processor
Net
Processor
Net
Processor
10Gbps
SONET/SDH
10GbE
LAN/WAN
CSIX L2
Switch
Fabric
TRN4035BS
300-Pin MSA
Bac
kplane
Bac
kplane
Bac
kplane
Bac
kplane
Bac
kplane
TRN4035BE
300-Pin MSA
1, 2...n
1, 2...n
4
4
NxN Switc
h
1
2
3
n
1
2
3
n
DWDM/OADM
Server
Server
Server
Server
Server
Server
Key Applications
s
Terabit Switch/Router Platforms
s
Edge and Core Router Platforms
s
SONET/SDH Add/Drop Multiplexers
s
Multi-Service Provisioning Platforms
s
10GbE PMON in Long-Haul Transport
s
Metro POP Ethernet Switches
s
Storage Area Networks
s
Network Attached Storage
s
Emerging Resilient Packet Ring (RPR)
s
Dynamic Packet Transport applications
Intel
IXF18103 Advantage
s
Supports advanced SPI-4 Phase 2 instead
of only the basic HSTL interface
s
Footprint-compatible with the Intel
IXF18101x device family to provide cost
reduction for customers who may only
need a subset of the IXF18101 functionality
s
Optimized for 10GbE LAN and WAN Line
card applications
Item
Description
Order Number
Support Collateral/Tools
s
IXF18103
s
IXF18103
s
IXF18103
10 Gigabit Ethernet LAN or WAN PHY Technical Product Brief
10 Gigabit Ethernet LAN or WAN PHY Short Form
Specifications Preview
Data Sheet
249942
273606
Contact your local rep
The following document is available only subject to NDA
Order Number: 250394-001-001 Printed in USA/0102/5K/ASI/DC
