SCHOTTKY RECTIFIER
10A, 45V
8EQ045
Description/Features
05/23/02
Case Style
www.irf.com
1
HIGH EFFICIENCY SERIES
Case Outline and Dimensions - LCC-18
The 8EQ045 Schottky rectifier has been expressly
designed to meet the rigorous requirements of hi-rel
environments. It is packaged in the hermetic isolated
LCC-18 ceramic package. The device's forward voltage
drop and reverse leakage current are optimized for the
lowest power loss and the highest circuit efficiency for
typical high frequency switching power supplies and
resonent power converters. Full MIL-PRF-19500 quality
conformance testing is available on source controlled
drawings to TX, TXV and S levels.
Hermetically Sealed
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long
Term Reliability
Suface Mount
Lightweight
Major Ratings and Characteristics
Characteristics
8EQ045
Units
I
F(AV)
10
A
V
RRM
45
V
I
FSM
@ tp = 8.3ms half-sine
250
A
V
F
@ 10Apk, T
J
=125C 0.58 V
T
J
, T
stg
Operating and storage
-55 to 150
C
PD -20350C
PIN LAYOUT
LEGEND
A = ANODE
C = CATHODE
NC = NO CONNECTION
8EQ045
2
www.irf.com
Part number
8EQ045
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
Voltage Ratings
45
Parameters
Limits Units
Conditions
I
F(AV)
Max. Average Forward Current
10
A
50% duty cycle @ T
C
= 100C, rectangular waveform
See Fig. 5
I
FSM
Max. Peak One Cycle Non - Repetitive
250
A
@ t
p
= 8.3 ms half-sine
Surge Current
Absolute Maximum Ratings
Q
Pulse Width < 300s, Duty Cycle < 2%
Parameters
Limits
Units
Conditions
T
J
Max.Junction Temperature Range
-55 to 150
C
T
stg
Max. Storage Temperature Range
-55 to 150
C
R
thJC
Max. Thermal Resistance, Junction
6.0
C/W
DC operation
See Fig. 4
to Case
wt
Weight (Typical)
0.42 g
Die Size
125X125 mils
Case Style
LCC-18
Thermal-Mechanical Specifications
Parameters
Limits
Units
Conditions
V
FM
Max. Forward Voltage Drop
0.65
V
@ 10A
See Fig. 1
Q
0.84
V
@ 20A
0.58
V
@ 10A
0.77
V
@ 20A
I
RM
Max. Reverse Leakage Current
0.5
mA
T
J
= 25C
V
R
= rated V
R
See Fig. 2
Q
15
mA
T
J
= 125C
C
T
Max. Junction Capacitance
900
pF
V
R
= 5V
DC
( 1MHz, 25C )
L
S
Typical Series Inductance
4.3
nH
Measured from center of cathode pad to center of
anode pad
Electrical Specifications
T
J
= 25C
T
J
=1 25C
8EQ045
www.irf.com
3
Fig. 2 - Typical Values of Reverse Current
Vs. Reverse Voltage
Fig. 3 - Typical Junction Capacitance Vs.
Reverse Voltage
Fig. 1 - Max. Forward Voltage Drop Characteristics
0 . 0 0 0 1
0 . 0 0 1
0 . 0 1
0 . 1
1
1 0
1 0 0
0
5
1 0
1 5
2 0
2 5
3 0
3 5
4 0
4 5
75C
50C
25C
125C
150C
T = 175C
J
A
Reverse Voltage - V
R
(V)
Reverse Current - I
R
( mA )
8EQ045
4
www.irf.com

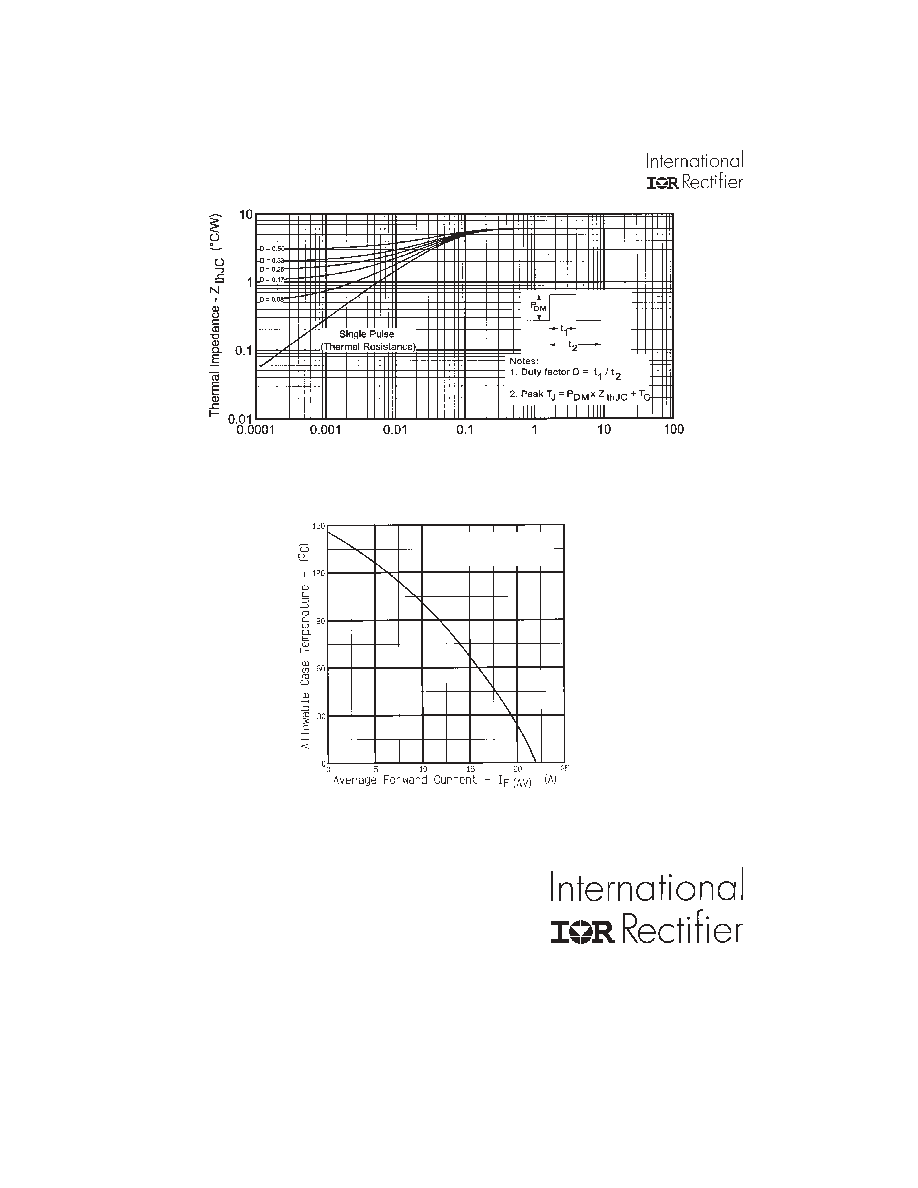

Fig. 5 - Max. Allowable Case Temperature Vs.
Average Forward Current
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics
