SD6000C..R SERIES
STANDARD RECOVERY DIODES
Hockey Puk Version
6690A
Bulletin I2035/A
Features
Wide current range
High voltage ratings up to 2400V
High surge current capabilities
Diffused junction
Hockey Puk version
Case style B-44 (R-PUK)
Typical Applications
Converters
Power supplies
High power drives
Auxiliary system supplies for traction applications
Major Ratings and Characteristics
I
F(AV)
6690
A
@ T
hs
55
C
I
F(RMS)
11150
A
@ T
hs
25
C
I
FSM
@
50Hz
76400
A
@ 60Hz
80000
A
I
2
t
@
50Hz
29200
KA
2
s
@ 60Hz
26650
KA
2
s
V
RRM
range
1200 to 2400
V
T
J
- 40 to 175
C
Parameters
SD6000C..R
Units
case style B-44 (R-PUK)
Next Data Sheet
Index
Previous Datasheet
To Order
SD6000C..R Series
Voltage
V
RRM
, maximum repetitive
V
RSM
, maximum non-
I
RRM
max.
Type number
Code
peak reverse voltage
repetitive peak rev. voltage
@ T
J
= 175C
V
V
mA
12
1200
1300
16
1600
1700
20
2000
2100
24
2400
2500
ELECTRICAL SPECIFICATIONS
Voltage Ratings
I
F(AV)
Max. average forward current
6690 (3520)
A
180 conduction, half sine wave
@ Heatsink temperature
55 (85)
C
Double side (single side) cooled
I
F(RMS)
Max. RMS forward current
11150
A
@ 25C heatsink temperature double side cooled
I
FSM
Max. peak, one-cycle forward,
76400
t = 10ms
No voltage
non-repetitive surge current
80000
t = 8.3ms
reapplied
64250
t = 10ms
100% V
RRM
67280
t = 8.3ms
reapplied
Sinusoidal halfwave,
I
2
t
Maximum I
2
t for fusing
29200
t = 10ms
No voltage
Initial T
J
= T
J
max.
26650
t = 8.3ms
reapplied
20640
t = 10ms
100% V
RRM
18850
t = 8.3ms
reapplied
I
2
t
Maximum I
2
t for fusing
292000
KA
2
s
t = 0.1 to 10ms, no voltage reapplied
V
F(TO)1
Low level value of threshold
voltage
V
F(TO)2
High level value of threshold
voltage
r
f
1
Low level value of forward
slope resistance
r
f
2
High level value of forward
slope resistance
V
FM
Max. forward voltage drop
1.22
V
I
pk
= 9000A, T
J
= T
J
max, t
p
= 10ms sinusoidal wave
A
KA
2
s
0.727
(16.7% x
x I
F(AV)
< I <
x I
F(AV)
), T
J
= T
J
max.
Parameter
SD6000C..R
Units
Conditions
Forward Conduction
V
m
0.055
(16.7% x
x I
F(AV)
< I <
x I
F(AV)
), T
J
= T
J
max.
1.350
(I >
x I
F(AV)
),T
J
= T
J
max.
0.027
(I >
x I
F(AV)
),T
J
= T
J
max.
SD6000C..R
100
Next Data Sheet
Index
Previous Datasheet
To Order
SD6000C..R Series

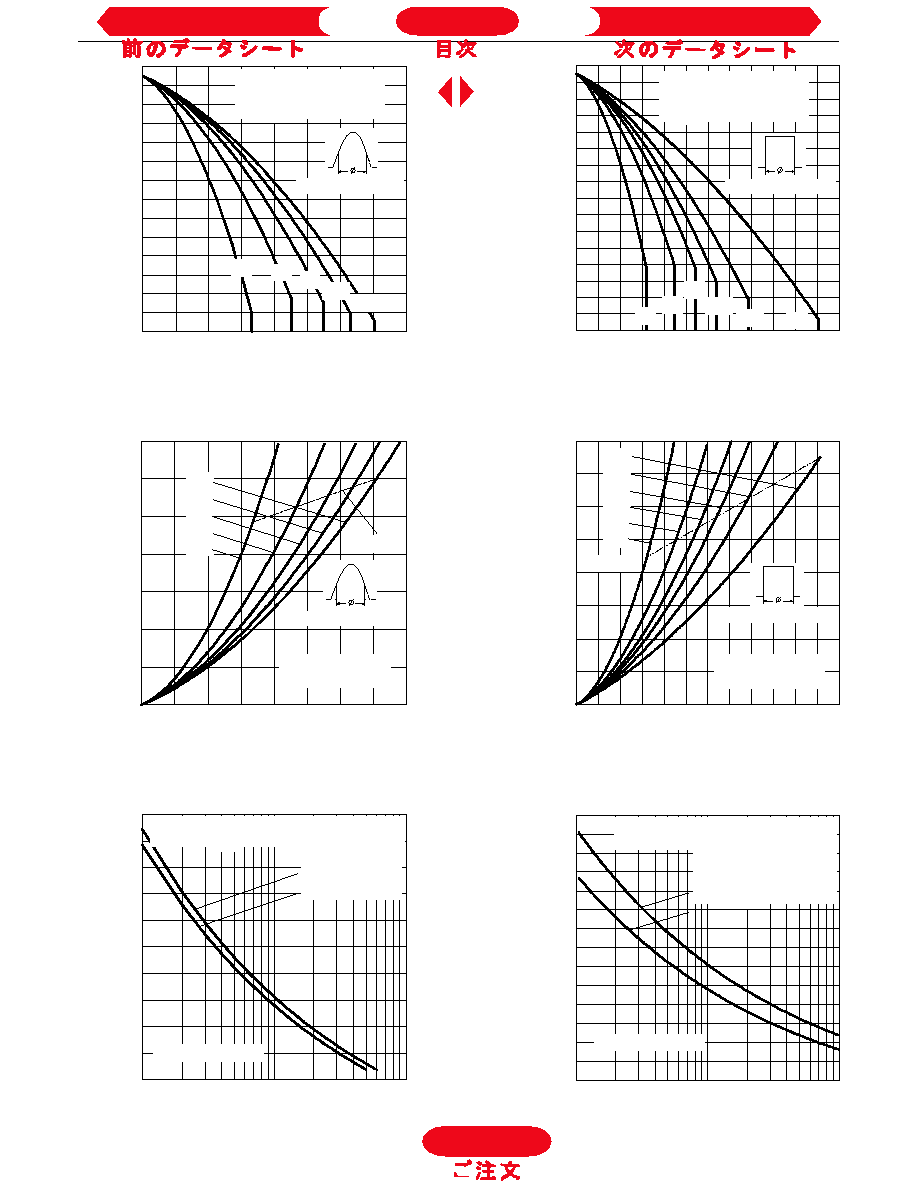

Fig. 3 - Current Ratings Characteristics
Fig. 4 - Current Ratings Characteristics
Fig. 5 - Forward Power Loss Characteristics
Fig. 6 - Forward Power Loss Characteristics
Fig. 7 - Maximum Non-Repetitive Surge Current
Fig. 8 - Maximum Non-Repetitive Surge Current
To Order
Next Data Sheet
Index
Previous Datasheet
SD6000C..R Series

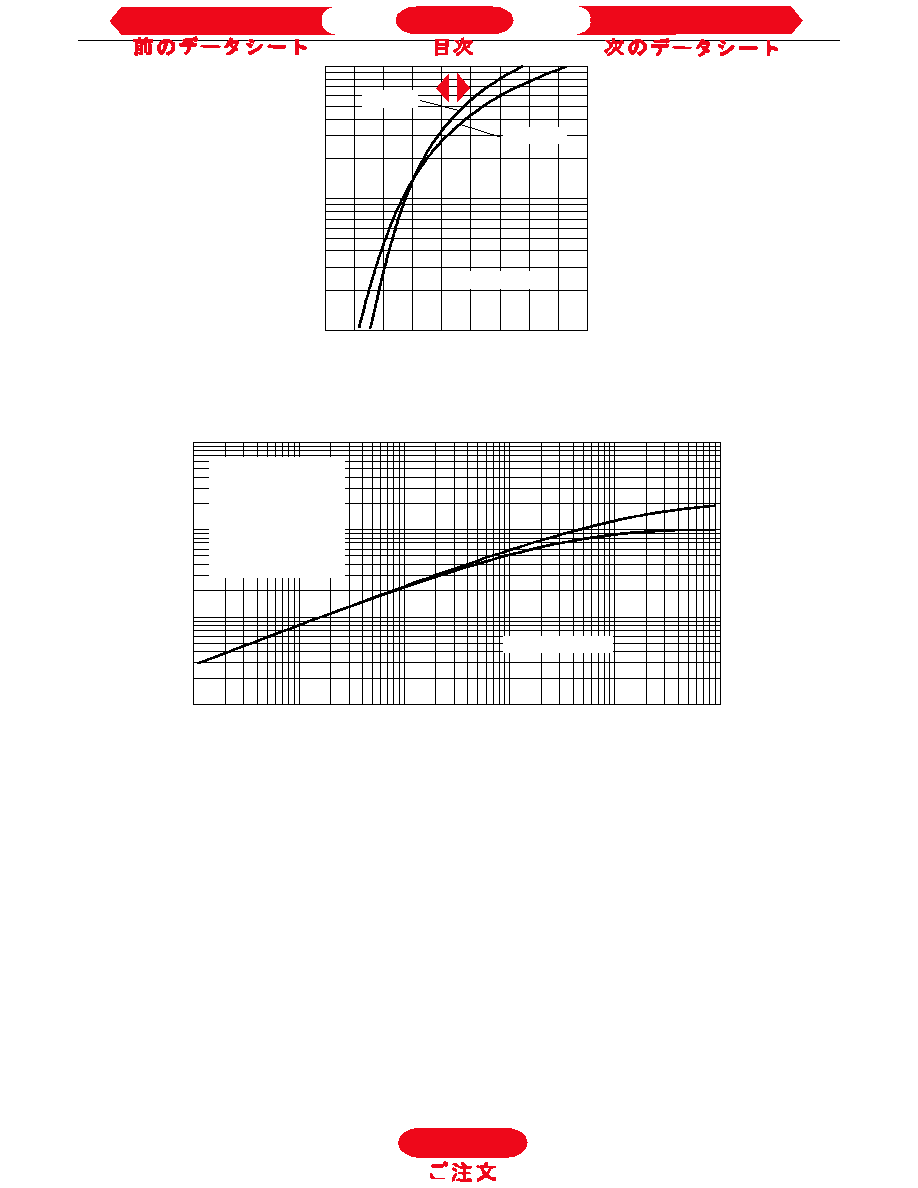

Fig. 10 - Thermal Impedance Z
thJ-hs
Characteristics
Fig. 9 - Forward Voltage Drop Characteristics
To Order
Next Data Sheet
Index
Previous Datasheet
SD6000C..R Series
R
thJ-hs
Conduction
(The following table shows the increment of thermal resistence R
thJ-hs
when devices operate at different conduction angles than DC)
Ordering Information Table
1
-
Diode
2
-
Essential part number
3
-
0 = Standard recovery
4
-
C = Ceramic Puk
5
-
Voltage code: code x 100 = V
RRM
(see Voltage Ratings Table)
6
-
R = Puk Case B-44 (R-PUK)
1
2
3
4
5
6
Device Code
SD 600
0
C
24
R
Sinusoidal conduction
Rectangular conduction
Conduction angle
Units
Conditions
Single Side Double Side
Single Side Double Side
180
0.0009
0.0010
0.0006
0.0006
120
0.0010
0.0011
0.0010
0.0010
90
0.0013
0.0013
0.0014
0.0014
K/W
T
J
= T
J
max.
60
0.0019
0.0019
0.0020
0.0020
30
0.0033
0.0033
0.0034
0.0034
T
J
Max. junction operating temperature range
-40 to 175
T
stg
Max. storage temperature range
-55 to 200
R
thJ-hs
Max. thermal resistance, junction
0.02
DC operation single side cooled
to heatsink
0.01
DC operation double side cooled
F
Mounting force, 10%
39200
N
(4000)
(Kg)
wt
Approximate weight
1590
g
Case style
B-44 (R-PUK)
See Outline Table
Parameter
SD6000C..R
Units
Conditions
Thermal and Mechanical Specifications
K/W
C
To Order
Next Data Sheet
Index
Previous Datasheet
SD6000C..R Series
Fig. 1 - Current Ratings Characteristics

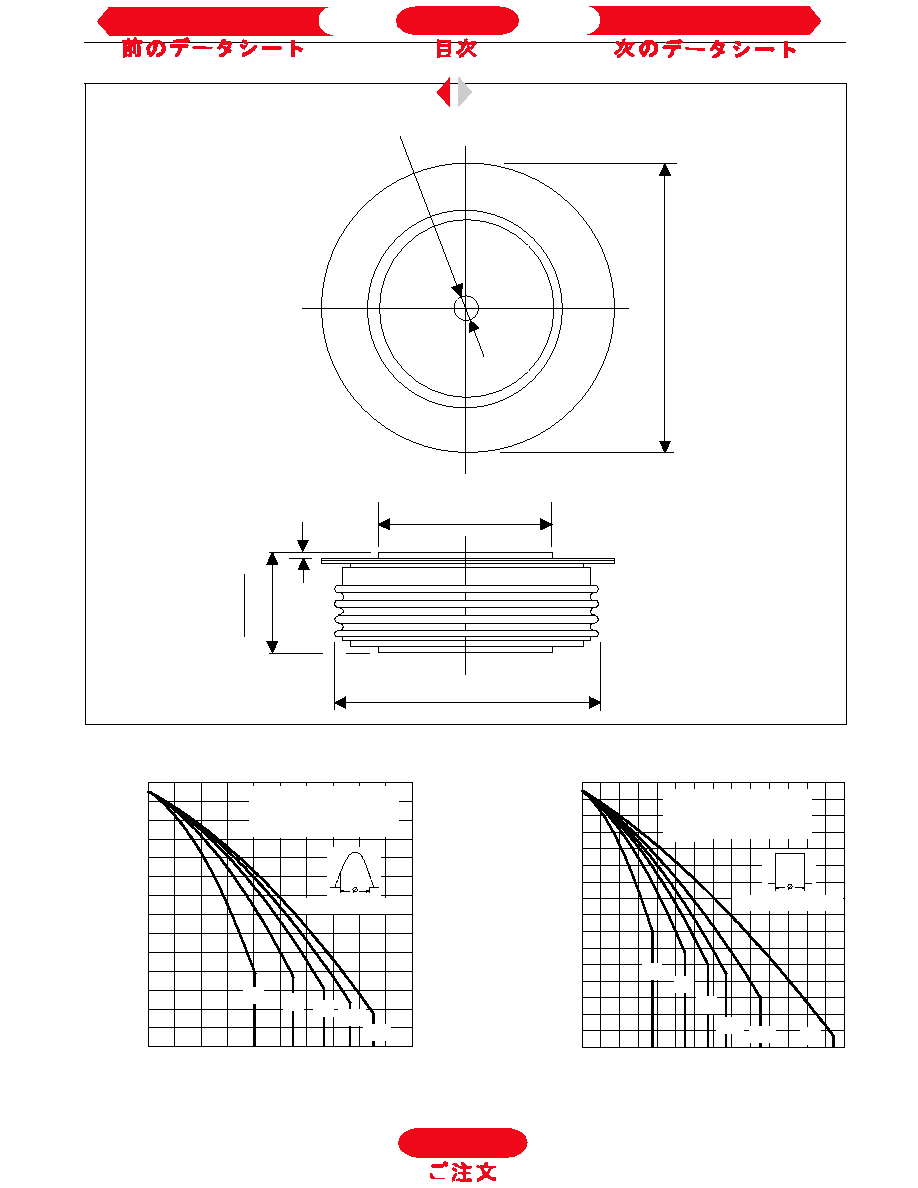

Outline Table
Fig. 2 - Current Ratings Characteristics
3.5 (0.14) DIA. NOM. x
2.5 (0.10) DEEP MIN.
BOTH ENDS
1
1
1
(
4
.
3
7
)
D
I
A
.
M
A
X
.
TWO PLACES
73.2 (2.88) DIA. MAX.
100.5 (3.96) DIA. MAX.
3
7
.
2
(
1
.
4
6
)
3
6
.
2
(
1
.
4
3
)
0.8 (0.03) MIN.
BOTH ENDS
Case Style B-44
All dimensions in millimeters (inches)
To Order
Next Data Sheet
Index
Previous Datasheet
