SPEC NO: DSAC7397
REV NO: V.1 DATE: MAY/29/2003 PAGE: 1 OF 3
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: Y.H.LI
T-1 3/4 (5mm) SOLID STATE LAMP
Features
LOW POWER CONSUMPTION.
POPULAR T-1 3/4 DIAMETER PACKAGE.
GENERAL PURPOSE LEADS.
RELIABLE AND RUGGED.
LONG LIFE - SOLID STATE RELIABILITY.
AVAILABLE ON TAPE AND REEL.
Description
The source color devices are made with InGaN on SiC Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
W7114PWC/H WHITE

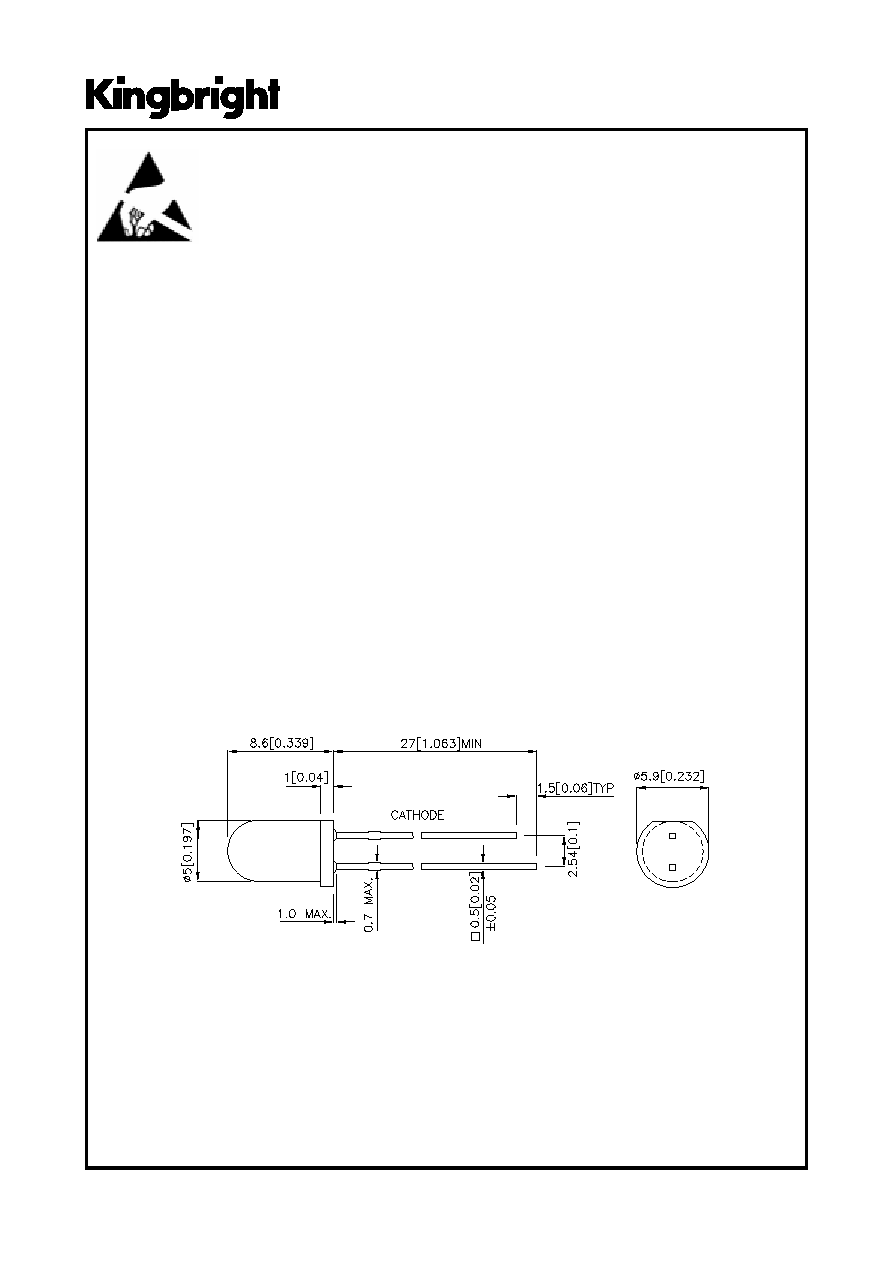

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
SPEC NO: DSAC7397
REV NO: V.1 DATE: MAY/29/2003 PAGE: 2 OF 3
APPROVED: J. Lu
CHECKED: Allen Liu DRAWN: Y.H.LI
Selection Guide
Note:
1.
1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25C
Absolute Maximum Ratings at T
A
=25C
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Symbol
Parameter
Device
Typ.
Max.
Units
Test Conditions
V
F
Forward Voltage
White
3.7
4.3
V
I
F
=20mA
I
R
Reverse Current
White
10
uA
V
R
= 5V
X
Chromaticity Coordinates
0.33
Y
0.34
C
Capacitance
White
110
pF
V
F
=0V;f=1MHz
White
Parameter
White
Units
Power dissipation
108
mW
DC Forward Current
30
mA
Peak Forward Current [1]
100
mA
Reverse Voltage
5
V
Operating Temperature
-40C To +85C
Lead Solder Temperature[2]
260C For 5 Seconds
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Viewing
Angle
Min.
Typ.
2
1/2
W7114PWC/H
WHITE (InGaN)
WATER CLEAR
2800
4000
20
