SPEC NO:DSAD2076
REV NO: V.1 DATE:APR/12/2003 PAGE: 1 OF 3
APPROVED: J.LU
CHECKED: Allen Liu DRAWN:Y.H.LI
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
T-1(3mm) BI-COLOR INDICATOR LAMP
W937GGD GREEN

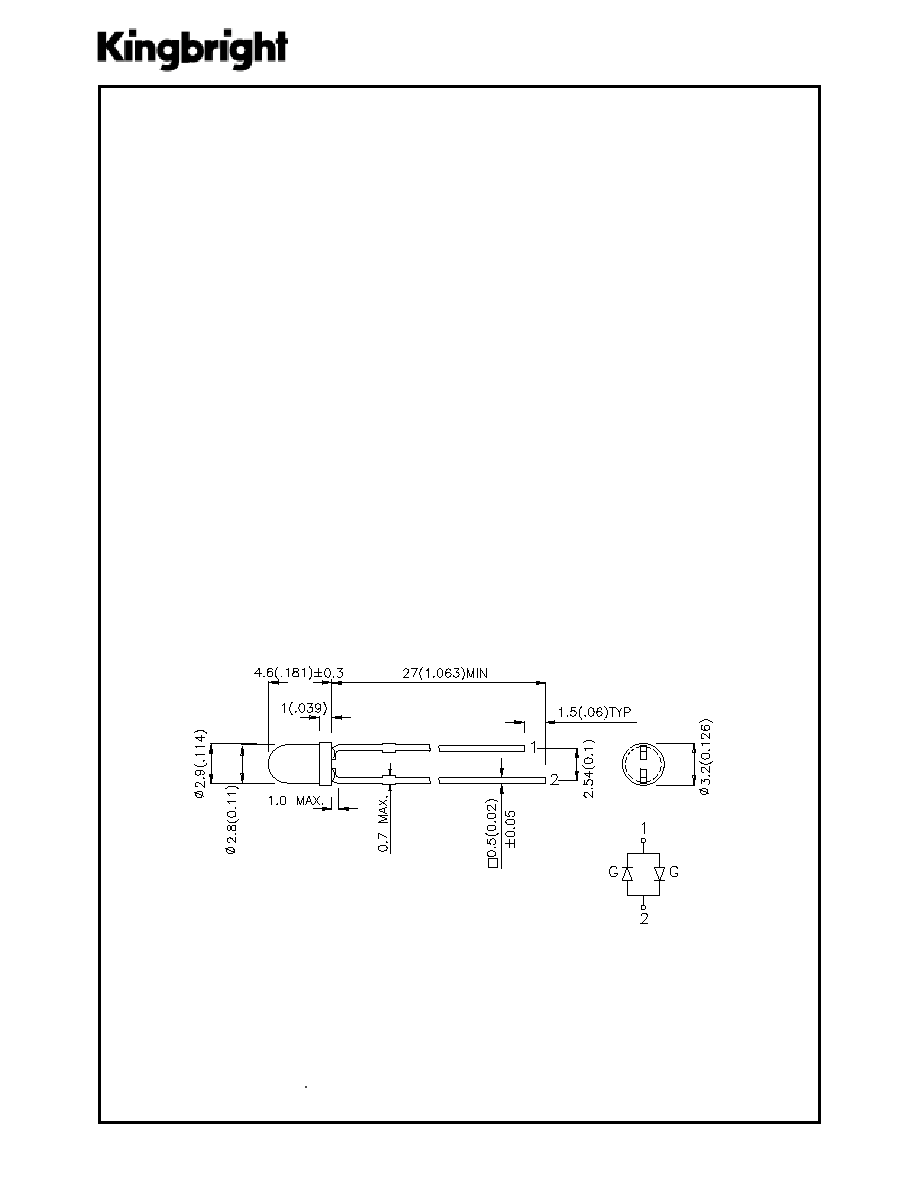

Package Dimensions
Description
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
Features
!
UNIFORM LIGHT OUTPUT.
!
LOW POWER CONSUMPTION.
!
DIFFUSION LENS TYPE ARE AVAILABLE.
!
I.C. COMPATIBLE.
!
LONG LIFE - SOLID STATE RELIABILITY.
