14-Bit, 80Msps
Wide Bandwidth ADC
s
Sample Rate: 80Msps
s
500MHz Full Power Bandwidth S/H
s
Direct IF Sampling Up to 500MHz
s
PGA Front End (2.25V
P-P
or 1.35V
P-P
Input Range)
s
75.5dB SNR and 90dB SFDR (PGA = 0)
s
73dB SNR and 90dB SFDR (PGA = 1)
s
No Missing Codes
s
Single 5V Supply
s
Power Dissipation: 1.45W
s
Two Pin Selectable Reference Values
s
Two's Complement or Offset Binary Outputs
s
Out-of-Range Indicator
s
Data Ready Output Clock
s
Pin-for-Pin Family
s
48-Pin TSSOP Package
s
Telecommunications
s
Receivers
s
Cellular Base Stations
s
Spectrum Analysis
s
Imaging Systems
s
MRI
s
Tomography
, LTC and LT are registered trademarks of Linear Technology Corporation.
The LTC
1750 is an 80Msps, 14-bit A/D converter de-
signed for digitizing wide dynamic range signals up to
frequencies of 500MHz. The input range of the ADC can be
optimized with the on-chip PGA sample-and-hold circuit
and flexible reference circuitry.
The LTC1750 has a highly linear sample-and-hold circuit
with a bandwidth of 500MHz. The SFDR is 82dB with an
input frequency of 250MHz. Ultralow jitter of 0.12ps
RMS
allows undersampling of IF frequencies with minimal
degradation in SNR. DC specs include
3LSB INL and no
missing codes.
The digital interface is compatible with 5V, 3V, 2V and
LVDS logic systems. The ENC and ENC inputs may be
driven differentially from PECL, GTL and other low swing
logic families or from single-ended TTL or CMOS. The low
noise, high gain ENC and ENC inputs may also be driven
by a sinusoidal signal without degrading performance. A
separate output power supply can be operated from 0.5V
to 5V, making it easy to connect directly to any low voltage
DSPs or FIFOs.
The 48-pin TSSOP package with a flow-through pinout
simplifies the board layout.
80Msps, 14-Bit ADC with a 2.25V Differential Input Range
DESCRIPTIO
U
FEATURES
APPLICATIO S
U
BLOCK DIAGRA
W
OF
14-BIT
PIPELINED ADC
14
S/H
CIRCUIT
1.125V
DIFFERENTIAL
ANALOG INPUT
A
IN
+
PGA
A
IN
SENSE
V
CM
4.7
F
DIFF AMP
REFLA
REFHB
GND
1750 BD
ENC
4.7
F
1
F
1
F
0.1
F
0.1
F
REFHA
REFLB
BUFFER
RANGE
SELECT
2V
REF
CORRECTION
LOGIC AND
SHIFT
REGISTER
OUTPUT
LATCHES
CONTROL LOGIC
OV
DD
V
DD
OGND
0.5V TO 5V
5V
0.1
F
1
F
1
F
1
F
D13
D0
CLKOUT
ENC
DIFFERENTIAL
ENCODE INPUT
MSBINV
0.1
F
background image
2
LTC1750
1750f
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
Resolution (No Missing Codes)
q
14
Bits
Integral Linearity Error
(Note 6)
3
0.75
3
LSB
Differential Linearity Error
q
1
0.5
1.5
LSB
Offset Error
(Note 7) External Reference (V
SENSE
= 1.125V, PGA = 0)
35
8
35
mV
Gain Error
External Reference (V
SENSE
= 1.125V, PGA = 0)
3.5
1
3.5
%FS
Full-Scale Tempco
Internal Reference
40
ppm/
C
External Reference (V
SENSE
= 1.125V)
20
ppm/
C
Offset Tempco
20
V/
C
Input Referred Noise (Transition Noise)
V
SENSE
= 1.125V, PGA = 0
0.92
LSB
RMS
ORDER PART
NUMBER
OV
DD
= V
DD
(Notes 1, 2)
Supply Voltage (V
DD
) ............................................. 5.5V
Analog Input Voltage (Note 3) .... 0.3V to (V
DD
+ 0.3V)
Digital Input Voltage (Note 4) ..... 0.3V to (V
DD
+ 0.3V)
Digital Output Voltage ................. 0.3V to (V
DD
+ 0.3V)
OGND Voltage .............................................. 0.3V to 1V
Power Dissipation ............................................ 2000mW
Operating Temperature Range
LTC1750C ............................................... 0
C to 70
C
LTC1750I ............................................ 40
C to 85
C
Storage Temperature Range ................. 65
C to 150
C
Lead Temperature (Soldering, 10 sec).................. 300
C
LTC1750CFW
LTC1750IFW
T
JMAX
= 150
C,
JA
= 35
C/W
The
q
indicates specifications which apply over the full operating
temperature range, otherwise specifications are at T
A
= 25
C. (Note 5)
ABSOLUTE
M
AXI
M
U
M
RATINGS
W
W
W
U
PACKAGE/ORDER I
N
FOR
M
ATIO
N
W
U
U
CO VERTER CHARACTERISTICS
U
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
V
IN
Analog Input Range (Note 8)
4.75V
V
DD
5.25V
q
0.7 to
1.125
V
I
IN
Analog Input Leakage Current
0 < A
IN
+
, A
IN
< V
DD
q
1
1
A
C
IN
Analog Input Capacitance
Sample Mode ENC < ENC
6.9
pF
Hold Mode ENC > ENC
2.4
pF
t
ACQ
Sample-and-Hold Acquisition Time
q
5
6
ns
t
AP
Sample-and-Hold Acquisition Delay Time
0
ns
t
JITTER
Sample-and-Hold Acquisition Delay Time Jitter
0.12
ps
RMS
CMRR
Analog Input Common Mode Rejection Ratio
1.5V < (A
IN
= A
IN
+
) < 3V
80
dB
The
q
indicates specifications which apply over the full operating temperature range, otherwise
specifications are at T
A
= 25
C. (Note 5)
A ALOG I PUT
U
U
Consult LTC Marketing for parts specified with wider operating temperature ranges.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TOP VIEW
FW PACKAGE
48-LEAD PLASTIC TSSOP
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
SENSE
V
CM
GND
A
IN
+
A
IN
GND
V
DD
V
DD
GND
REFLB
REFHA
GND
GND
REFLA
REFHB
GND
V
DD
V
DD
GND
V
DD
GND
MSBINV
ENC
ENC
OF
OGND
D13
D12
D11
OV
DD
D10
D9
D8
D7
OGND
GND
GND
D6
D5
D4
OV
DD
D3
D2
D1
D0
OGND
CLKOUT
PGA
background image
3
LTC1750
1750f
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
V
CM
Output Voltage
I
OUT
= 0
1.95
2
2.05
V
V
CM
Output Tempco
I
OUT
= 0
30
ppm/
C
V
CM
Line Regulation
4.75V
V
DD
5.25V
3
mV/V
V
CM
Output Resistance
1mA
I
OUT
1mA
4
(Note 5)
I TER AL REFERE CE CHARACTERISTICS
U
U
U
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
SNR
Signal-to-Noise Ratio
5MHz Input Signal (PGA = 0)
75.5
dB
5MHz Input Signal (PGA = 1)
73.0
dB
30MHz Input Signal (PGA = 0)
73
75.3
dB
30MHz Input Signal (PGA = 1)
72.9
dB
70MHz Input Signal (PGA = 0)
74.6
dB
70MHz Input Signal (PGA = 1)
70
72.8
dB
140MHz Input Signal (PGA = 1)
72
dB
250MHz Input Signal (PGA = 1)
70.6
dB
350MHz Input Signal (PGA = 1)
69
dB
SFDR
Spurious Free Dynamic Range
5MHz Input Signal (PGA = 0)
90
dB
5MHz Input Signal (PGA = 1)
90
dB
30MHz Input Signal (PGA = 0) (HD2 and HD3)
80
90
dB
30MHz Input Signal (PGA = 0) Other
85
95
dB
30MHz Input Signal (PGA = 1)
90
dB
70MHz Input Signal (PGA = 0)
85
dB
70MHz Input Signal (PGA = 1) (HD2 and HD3)
80
90
dB
70MHz Input Signal (PGA = 1) Other
83
95
dB
140MHz Input Signal (PGA = 1)
84
dB
250MHz Input Signal (PGA = 1)
82
dB
350MHz Input Signal (PGA = 1)
74
dB
S/(N + D)
Signal-to-(Noise + Distortion) Ratio
5MHz Input Signal (PGA = 0)
75.2
dB
5MHz Input Signal (PGA = 1)
72.8
dB
30MHz Input Signal (PGA = 0)
75.1
dB
30MHz Input Signal (PGA = 1)
72.6
dB
70MHz Input Signal (PGA = 0)
74.3
dB
70MHz Input Signal (PGA = 1)
72.4
dB
250MHz Input Signal (PGA = 1)
70
dB
THD
Total Harmonic Distortion
5MHz Input Signal, First 5 Harmonics (PGA = 0)
90
dB
5MHz Input Signal, First 5 Harmonics (PGA = 1)
90
dB
30MHz Input Signal, First 5 Harmonics (PGA = 0)
90
dB
30MHz Input Signal, First 5 Harmonics (PGA = 1)
90
dB
70MHz Input Signal, First 5 Harmonics (PGA = 0)
85
dB
70MHz Input Signal, First 5 Harmonics (PGA = 1)
90
dB
250MHz Input Signal (PGA = 1)
78
dB
IMD
Intermodulation Distortion
f
IN1
= 2.52MHz, f
IN2
= 5.2MHz (PGA = 0)
90
dBc
f
IN1
= 2.52MHz, f
IN2
= 5.2MHz (PGA = 1)
90
dBc
Sample-and-Hold Bandwidth
R
SOURCE
= 50
500
MHz
T
A
= 25
C, A
IN
= 1dBFS (Note 5), V
SENSE
= V
DD
DY
A
IC ACCURACY
U
W
background image
4
LTC1750
1750f
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
t
0
ENC Period
(Note 9)
q
12.5
2000
ns
t
1
ENC High
(Note 8)
q
6
1000
ns
t
2
ENC Low
(Note 8)
q
6
1000
ns
t
3
Aperture Delay
(Note 8)
0
ns
t
4
ENC to CLKOUT Falling
C
L
= 10pF (Note 8)
q
1
2.4
4
ns
t
5
ENC to CLKOUT Rising
C
L
= 10pF (Note 8)
t
1
+ t
4
ns
For 80Msps 50% Duty Cycle
C
L
= 10pF (Note 8)
q
7.25
8.65
10.25
ns
t
6
ENC to DATA Delay
C
L
= 10pF (Note 8)
q
2
4.9
7.2
ns
t
7
ENC to DATA Delay (Hold Time)
(Note 8)
q
1.4
3.4
4.7
ns
t
8
ENC to DATA Delay (Setup Time)
C
L
= 10pF (Note 8)
t
0
t
6
ns
For 80Msps 50% Duty Cycle
C
L
= 10pF (Note 8)
q
5.3
7.6
10.5
ns
t
9
CLKOUT to DATA Delay (Hold Time),
(Note 8)
q
6
ns
80Msps 50% Duty Cycle
t
10
CLKOUT to DATA Delay (Setup Time),
C
L
= 10pF (Note 8)
q
2.1
ns
80Msps 50% Duty Cycle
Data Latency
5
cycles
The
q
indicates specifications which apply over the full operating temperature
range, otherwise specifications are at T
A
= 25
C. (Note 5)
TI I G CHARACTERISTICS
U
W
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
V
DD
Positive Supply Voltage
4.75
5.25
V
I
DD
Positive Supply Current
q
290
338
mA
P
DIS
Power Dissipation
q
1.45
1.69
W
OV
DD
Digital Output Supply Voltage
0.5
V
DD
V
The
q
indicates specifications which apply over the full operating temperature
range, otherwise specifications are at T
A
= 25
C. (Note 5)
POWER REQUIRE E TS
W
U
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
V
IH
High Level Input Voltage
V
DD
= 5.25V, MSBINV and PGA
q
2.4
V
V
IL
Low Level Input Voltage
V
DD
= 4.75V, MSBINV and PGA
q
0.8
V
I
IN
Digital Input Current
V
IN
= 0V to V
DD
q
10
A
C
IN
Digital Input Capacitance
MSBINV and PGA Only
1.5
pF
V
OH
High Level Output Voltage
OV
DD
= 4.75V
I
O
= 10
A
4.74
V
I
O
= 200
A
q
4
4.74
V
V
OL
Low Level Output Voltage
OV
DD
= 4.75V
I
O
= 160
A
0.05
V
I
O
= 1.6mA
q
0.1
0.4
V
I
SOURCE
Output Source Current
V
OUT
= 0V
50
mA
I
SINK
Output Sink Current
V
OUT
= 5V
50
mA
The
q
indicates specifications which apply over the full
operating temperature range, otherwise specifications are at T
A
= 25
C. (Note 5)
DIGITAL I PUTS A D DIGITAL OUTPUTS
U
U
background image
5
LTC1750
1750f
Note 1: Absolute Maximum Ratings are those values beyond which the life
of a device may be impaired.
Note 2: All voltage values are with respect to GND (unless otherwise
noted).
Note 3: When these pin voltages are taken below GND or above V
DD
, they
will be clamped by internal diodes. This product can handle input currents
of greater than 100mA below GND or above V
DD
without latchup.
Note 4: When these pin voltages are taken below GND, they will be
clamped by internal diodes. This product can handle input currents of
>100mA below GND without latchup. These pins are not clamped to V
DD
.
Note 5: V
DD
= 5V, f
SAMPLE
= 80MHz, differential ENC/ENC = 2V
P-P
80MHz
sine wave, input range =
1.125V differential, unless otherwise specified.
Note 6: Integral nonlinearity is defined as the deviation of a code from a
straight line passing through the actual endpoints of the transfer curve.
The deviation is measured from the center of the quantization band.
Note 7: Bipolar offset is the offset voltage measured from 0.5 LSB
when the output code flickers between 00 0000 0000 0000 and 11
1111 1111 1111.
Note 8: Guaranteed by design, not subject to test.
Note 9: Recommended operating conditions.
ELECTRICAL CHARACTERISTICS

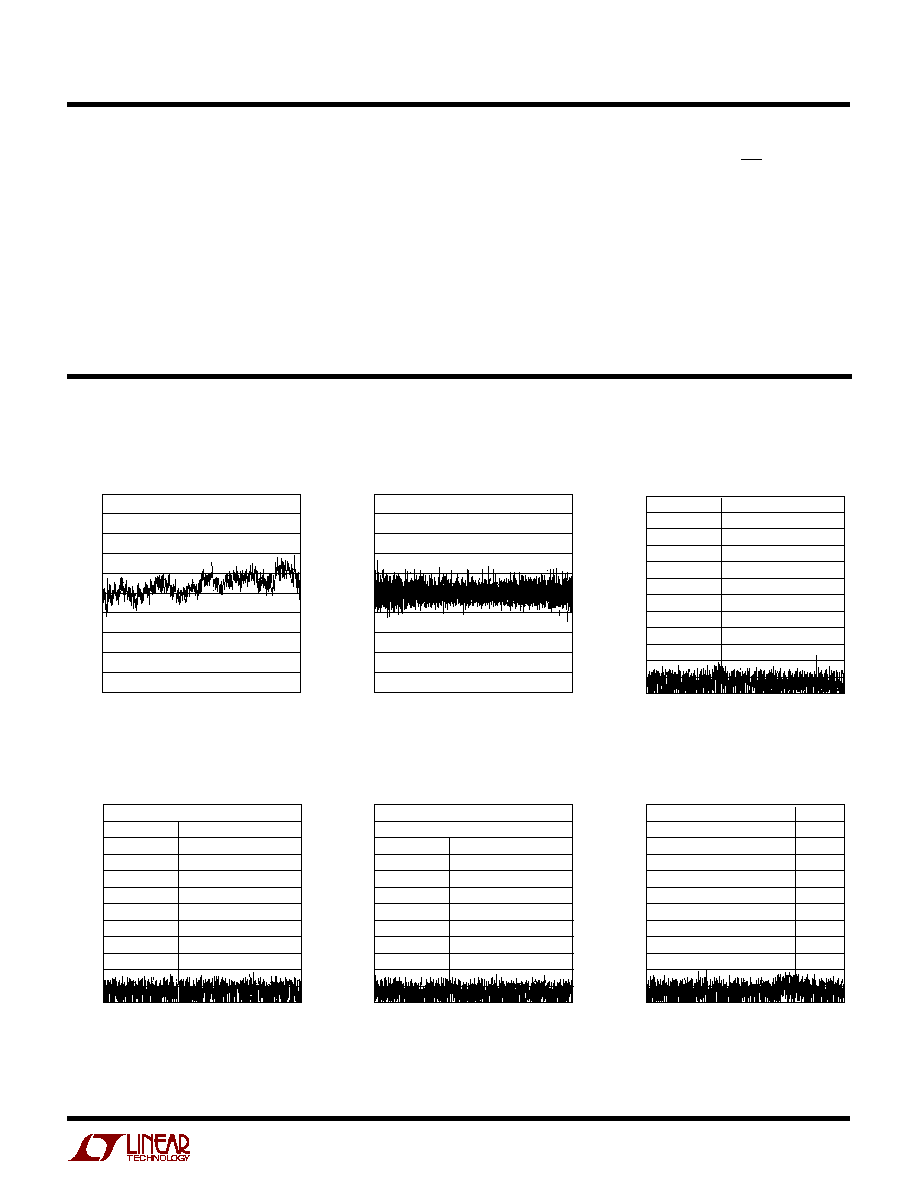

TYPICAL PERFOR A CE CHARACTERISTICS
U
W
INL
DNL
8192 Point FFT, f
IN
= 15.2MHz,
1dB, PGA = 0
8192 Point FFT, f
IN
= 15.2MHz,
10dB, PGA = 0
8192 Point FFT, f
IN
= 15.2MHz,
20dB, PGA = 0
8192 Point FFT, f
IN
= 30.2MHz,
1dB, PGA = 0
OUTPUT CODE
0
2.5
ERROR (LSB)
2.0
1.0
0.5
0
2.5
1.0
4096
8192
1750 G01
1.5
1.5
2.0
0.5
12288
16384
OUTPUT CODE
0
1.0
ERROR (LSB)
0.8
0.4
0.2
0
1.0
0.4
4096
8192
1750 G02
0.6
0.6
0.8
0.2
12288
16384
FREQUENCY (MHz)
0
AMPLITUDE (dBFS)
60
30
20
40
1750 G03
70
80
120
10
20
30
5
15
25
35
100
0
10
40
50
90
110
FREQUENCY (MHz)
0
AMPLITUDE (dBFS)
60
30
20
40
1750 G04
70
80
120
10
20
30
5
15
25
35
100
0
10
40
50
90
110
FREQUENCY (MHz)
0
AMPLITUDE (dBFS)
60
30
20
40
1750 G05
70
80
120
10
20
30
5
15
25
35
100
0
10
40
50
90
110
FREQUENCY (MHz)
0
AMPLITUDE (dBFS)
60
30
20
40
1750 G06
70
80
120
10
20
30
5
15
25
35
100
0
10
40
50
90
110
