CSM5T17
WIDE BAND TERMINATION INSENSITIVE MIXER
LO 50 TO 4800 MHz
RF 50 TO 4800 MHz
IF 50 TO 3000 MHz
LO DRIVE +17 dBm (NOMINAL)
HIGH INTERCEPT +23 dBm (TYP.)
Specifications (Rev. Date: 2/02)*
Guaranteed
Characteristics
Typical
+25
C
-40
to +85
C
SSB Conversion Loss & SSB Noise Figure (max.)
f
R
0.05 to 3.4 GHz
f
R
3.4 to 4.8 GHz
f
L
0.05 to 3.4 GHz
f
L
3.4 to 4.8 GHz
f
I
0.05 to 3.0 GHz
f
I
0.05 to 3.0 GHz
7.8 dB
10.0 dB
8.5 dB
11.5 dB
11.5 dB
12.5 dB
Isolation (min.)
L to R
f
L
= 0.05 to 4.8 GHz,
L to I
f
L
= 0.05 to 4.8 GHz
R to I
f
R
= 0.05 to 2.0 GHz
f
R
= 2.0 to 4.8 GHz
33 dB
37 dB
30 dB
22 dB
23 dB
22 dB
21 dB
20 dB
1
dB
Conversion
Compression
f
L
@ +17 dBm
+14 dBm
Input IP3 (min.)
f
L
= 0.5 to 4.8 GHz
f
I
= 0.05 to 3.0 GHz
& f
R
= 0.5 to 4.8 GHz
+23 dBm
VSWR
R-Port
f
R
= 0.05 to 4.8 GHz
L-Port
f
L
= 0.05 to 4.8 GHz
I-Port
f
I
= 0.05 to 3.0 GHz
2.0:1
2.0:1
2.0:1
*Measured in a 50-ohm system with nominal LO drive level and as a downconverter application only, unless otherwise specified.
Absolute Maximum Ratings
Outline Drawing(s)
Operating Temperature
-54
C to +85
C Package
Figure Model
Storage Temperature
-65
C to +100
C Surface
Mount CSM5T AK
Peak Input Power
+20 dBm max. at +25
C, +17 dBm at +85
C
Peak Input Current
50 mA DC
CSM5T17
Specifications subject to change without notice.
North America: 1-800-366-2266
Visit www.macom.com for complete contact and product information.

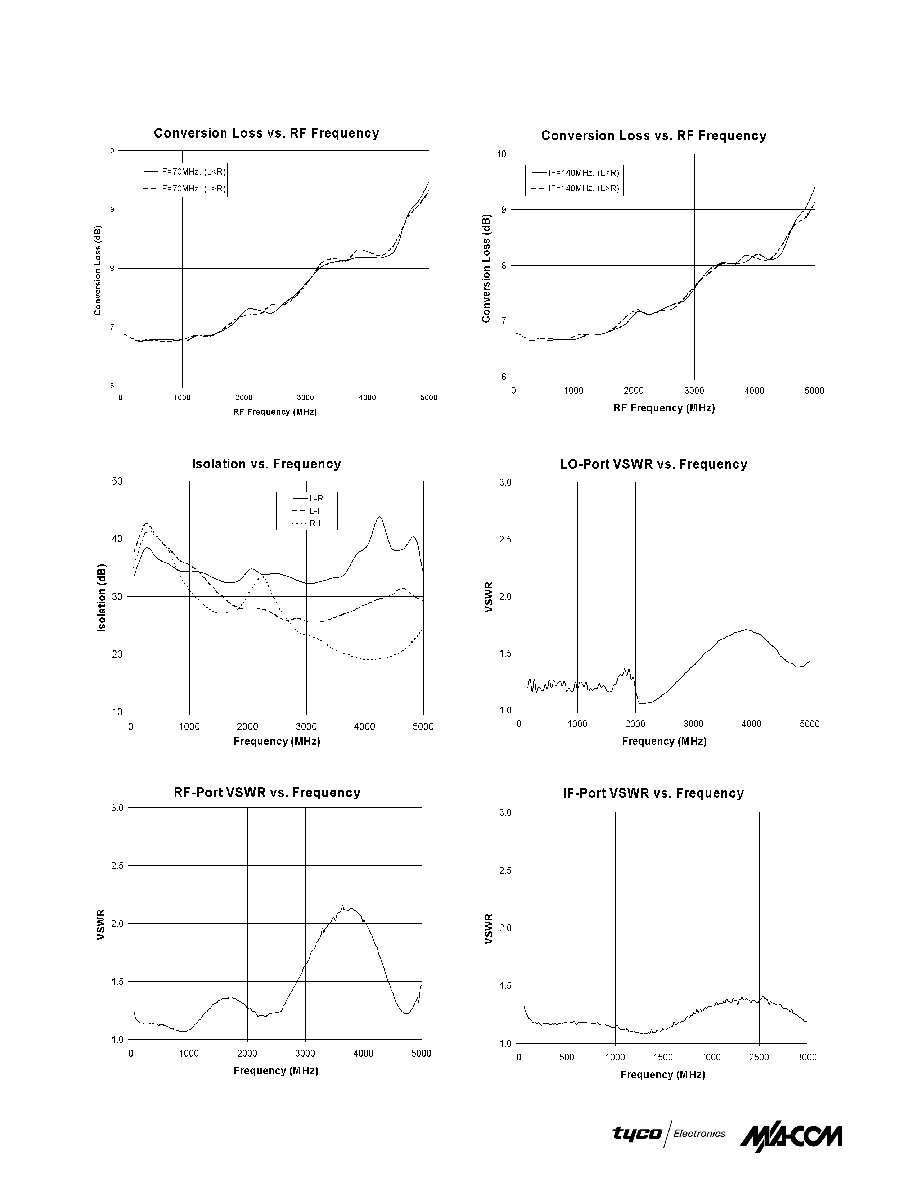

Typical Performance at 25C
