Vector Modulator, 1.805 to 1.88 GHz
(DCS) and 1.93 to 1.99 GHz (PCS)
MAMDCC0002
CSP-6
V 1.00
Features
!
Operates 1.805 to 1.88 GHz (DCS)
!
Operates 1.93 to 1.99 GHz (PCS)
!
Chip Scale Package.
!
Low Amplitude Ripple
!
Linear Phase
!
50 Ohm Nominal Impedance
!
Continuously Variable Across a Full 360 degree range
!
Test Boards Available
Description
M/A-COM's MAMDCC0002 is a Vector Modulator that
significantly reduces the required board space compared to
hybrid solutions. The monolithic passive elements will
lead to greater repeatability lot-to-lot. Low amplitude rip-
ple will provide superior performance. High intercept and
compression points will contribute to more linear system
performance. MAMDCC0002 is ideally suited for wireless
infrastructure applications.
M/A-COM's MADRCC0002 Dual Linearizer is designed
to simplify the control of Vector Modulators. See
Figure 1 and App Note AN3001.
Parameter
Test Conditions
Units
Min
Typical
Max
Frequency
DCS Band
PCS Band
GHz
GHz
1.805
1.93
--
--
1.88
1.99
Impedance
--
Ohms
--
50
--
Reference Loss
Z = 50 Ohms
dB
-12.5
--
-10.0
Attenuation Range
Z = 50 Ohms
Above Reference Loss
dB
10
--
--
Phase Shift Range
Z = 50 Ohms, Over minimum
Attenuation Range
deg
0
--
360
Amplitude Ripple
Z = 50 Ohms, Ref Loss
Z = 50 Ohms, 5 dB above Ref Loss
Z = 50 Ohms, 10 dB above Ref Loss
dB
dB
dB
--
--
--
0.07
0.07
0.09
0.15
0.20
0.20
Deviation from Linear
Phase
Z = 50 Ohms, Ref Loss
Z = 50 Ohms, 5 dB above Ref Loss
Z = 50 Ohms, 10 dB above Ref Loss
deg
deg
deg
--
--
--
0.15
0.25
0.15
0.5
0.5
0.5
Return Loss - Input
Return Loss - Output
Over 10 dB Attenuation Range
dB
dB
15
14
--
--
--
--
Input IP
3
Over 10 dB Attenuation Range
dBm
--
+41
--
Input P
1dB
Over 10 dB Attenuation Range
dBm
--
+29
--
Noise Figure
Over 10 dB Attenuation Range
dB
--
--
Note 1
Switching Speed
50% Control to 10% / 90% RF
ns
--
500
--
I Supply
--
mA
--
--
25
Electrical Specifications
T
A
= +25C
1. Noise figure is approximately equal to the absolute attenuation.
Vector Modulator, 1.805 to 1.88 GHz and 1.93 to 1.99 GHz
MAMDCC0002
V 1.00
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice. M/A-COM makes no warranty,
representation or guarantee regarding the suitability of its products for any
particular purpose, nor does M/A-COM assume any liability whatsoever arising out
of the use or application of any product(s) or information.
Visit www.macom.com for additional data sheets and product information.
!
North America: Tel. (800) 366-2266
!
Asia/Pacific: Tel.+81-44-844-8296, Fax +81-44-844-8298
!
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
2
Absolute Maximum Ratings
2
Parameter
Absolute Maximum
Max. Input Power
1.7 to 2.1 GHz
Other Frequencies
+30 dBm
+24 dBm
DC Voltages
3
Vbias1 or Vbasis2
+1.0V
DC Current
50 mA Max per Bias
Operating Temperature
-40C to +85C
Storage Temperature
-65C to +125C
2. Operation of this device above any one of these parameters
may cause permanent damange.
3. Note that external dropping resistors are required to limit the
current and voltage on the PIN diodes.
Schematic
Pin #
Function
Pin #
Function
1
NC
17
NC
2
NC
18
NC
3
NC
19
NC
4
NC
20
NC
5
NC
21
NC
6
NC
22
NC
7
NC
23
NC
8
NC
24
Bias 2B
9
Bias 1A
25
NC
10
NC
26
GND
11
GND
27
RF OUT
12
RF IN
28
GND
13
GND
29
NC
14
NC
30
Bias 1B
15
Bias 2A
31
NC
16
NC
32
NC
Pad Configuration
Recommended PCB Layout
Vector Modulator, 1.805 to 1.88 GHz and 1.93 to 1.99 GHz
MAMDCC0002
V 1.00
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice. M/A-COM makes no warranty,
representation or guarantee regarding the suitability of its products for any
particular purpose, nor does M/A-COM assume any liability whatsoever arising out
of the use or application of any product(s) or information.
Visit www.macom.com for additional data sheets and product information.
!
North America: Tel. (800) 366-2266
!
Asia/Pacific: Tel.+81-44-844-8296, Fax +81-44-844-8298
!
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
3

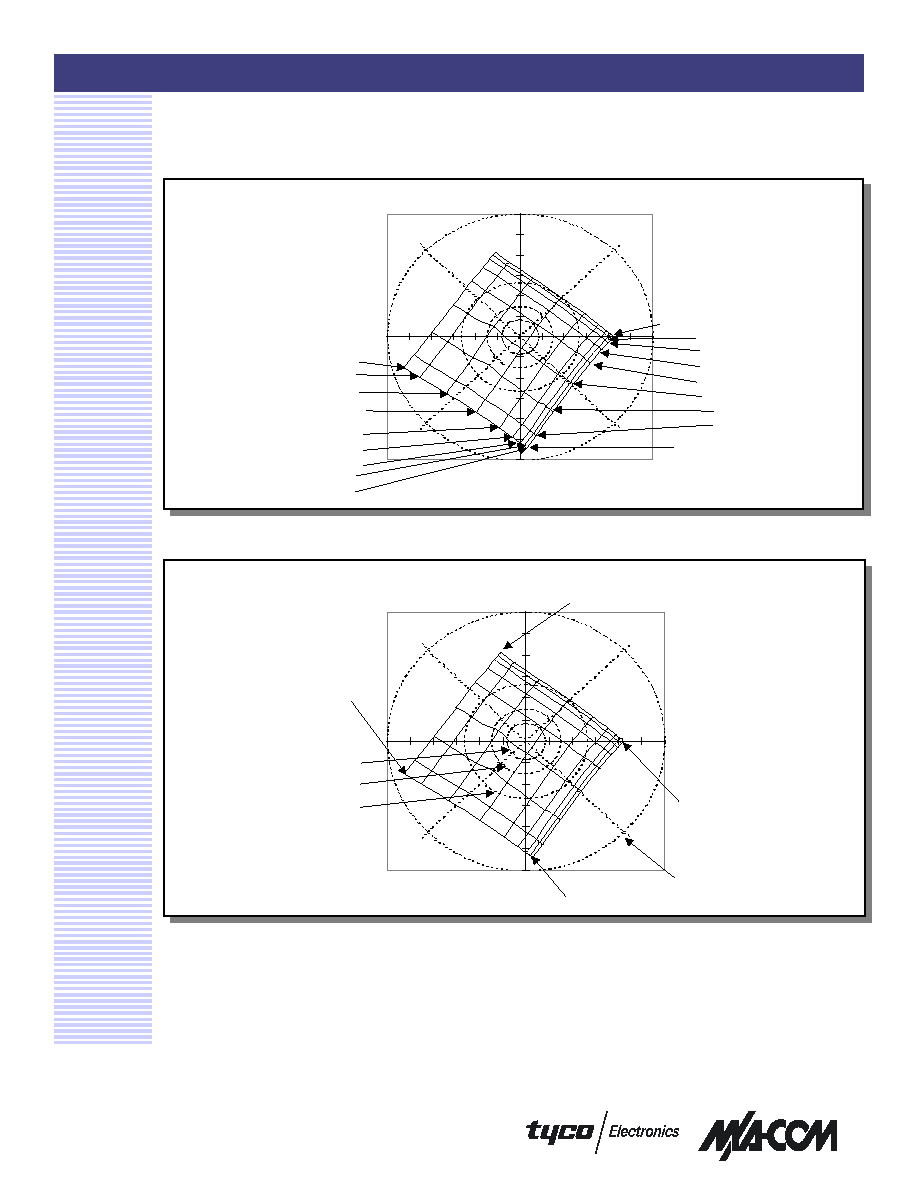

Figure 1A - Phase and Attenuation of MAMDCC0002, Vector Modulator Linearized with
MADRCC0002 Dual Linearizer
Figure 1B
bias 1 = 0.0V
0.5V
1.0V
1.5V
2.0V
2.5V
3.0V
3.5V
bias 1 = 5.0V
bias 2 = 0.0V
0.5V
bias 2 = 5.0V
3.5V
3.0V
2.5V
2.0V
1.5V
1.0V
(y)
90
(x)
0
45
4. Tic marks on x,y axes refer to reflection coefficient in increments of 0.1V. Reflection coefficients vary from -0.6 to +0.6 on both
the x and y axes.
5. Data is for vector modulators driven by linearizers. See Application Note AN3001.
6. Inputs to the linearizers vary from 0 to 5V.
7. The phase with the inputs to both linearizers set to +5V is arbitrarily called zero degrees.
bias 1 = 0V
bias 2 = 0V
bias 1 = 0V
bias 2 = +5V
(y)
90
(x)
0
45
bias 1 = +5V
bias 2 = +5V
bias 1 = +5V
bias 2 = 0V
Reflection
coefficient = 0.6
Loss = 21.5 dB
Loss = 16.5 dB
Loss = 11.5 dB
Vector Modulator, 1.805 to 1.88 GHz and 1.93 to 1.99 GHz
MAMDCC0002
V 1.00
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice. M/A-COM makes no warranty,
representation or guarantee regarding the suitability of its products for any
particular purpose, nor does M/A-COM assume any liability whatsoever arising out
of the use or application of any product(s) or information.
Visit www.macom.com for additional data sheets and product information.
!
North America: Tel. (800) 366-2266
!
Asia/Pacific: Tel.+81-44-844-8296, Fax +81-44-844-8298
!
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
4
Figure 2A - Phase and Attenuation of MAMDCC0002,
Vector Modulator with Current Drive
Figure 2B
8. Tic marks on x,y axes refer to reflection coefficient in increments of 0.1. Reflection coefficients vary from 0.6 to +0.6 on both
the x and y axes.
9. The phase with the inputs to both linearizers set to +15 mA is arbitrarily called zero degrees.
bias 1 = 0 A
bias 2 = 0 A
bias 1 = 0 A
bias 2 = 1.7 mA
(y)
90
(x)
0
45
bias 1 = 1.6 mA
bias 2 = 1.7 mA
bias 1 = 1.6 mA
bias 2 = 0 A
Reflection
coefficient = 0.6
Loss = 21.5 dB
Loss = 16.5 dB
Loss = 11.5 dB
bias 1 = 0 A
3 A
12 A
29 A
51 A
76 A
104 A
138 A
bias 1 = 1.6 mA
bias 2 = 0 A
4 A
bias 2 = 1.7 mA
140 A
110 A
79 A
51 A
29 A
13 A
(y)
90
(x)
0
45
Vector Modulator, 1.805 to 1.88 GHz and 1.93 to 1.99 GHz
MAMDCC0002
V 1.00
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice. M/A-COM makes no warranty,
representation or guarantee regarding the suitability of its products for any
particular purpose, nor does M/A-COM assume any liability whatsoever arising out
of the use or application of any product(s) or information.
Visit www.macom.com for additional data sheets and product information.
!
North America: Tel. (800) 366-2266
!
Asia/Pacific: Tel.+81-44-844-8296, Fax +81-44-844-8298
!
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
5
Functional Block Diagram
Ordering Information
Part Number
Package
MAMDCC0002
Bulk Packaging
MAMDCC0002TR
Tape and Reel
MAMDCC0002-DC000
Units Mounted on Test Board
with Driver
BIAS_1
MAMDCC0002
VECTOR
MODULATOR
1A
1B
2A
2B
BIAS_2
RF_IN
NOTES
CAPACITORS ARE 100 PF
INDUCTORS ARE COILCRAFT 0603CS-27NX-BC OR EQUIVALENT
RF_OUT
