Tyco / Electronics
Raychem Circuit Protection
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
Fax: 800-227-4866
PolySwitch
PTC
Devices
Overcurrent Protection Device
PRODUCT: TR600-150
DOCUMENT: SCD 22231
PCN: 050889
REV LETTER: L
REV DATE: MAY 15, 2003
PAGE NO.: 1 OF 1
Specification Status: Released
Max Electrical Rating at 20C
Operating
Voltage: 60V
DC
Fault
Voltage: 600V
RMS
Interrupt Current: 3A
RMS
Lead Material:
22 AWG Sn/Pb plated copper
Marking:
Raychem Logo
and Voltage
Lot Identification
Part Identification
150
600

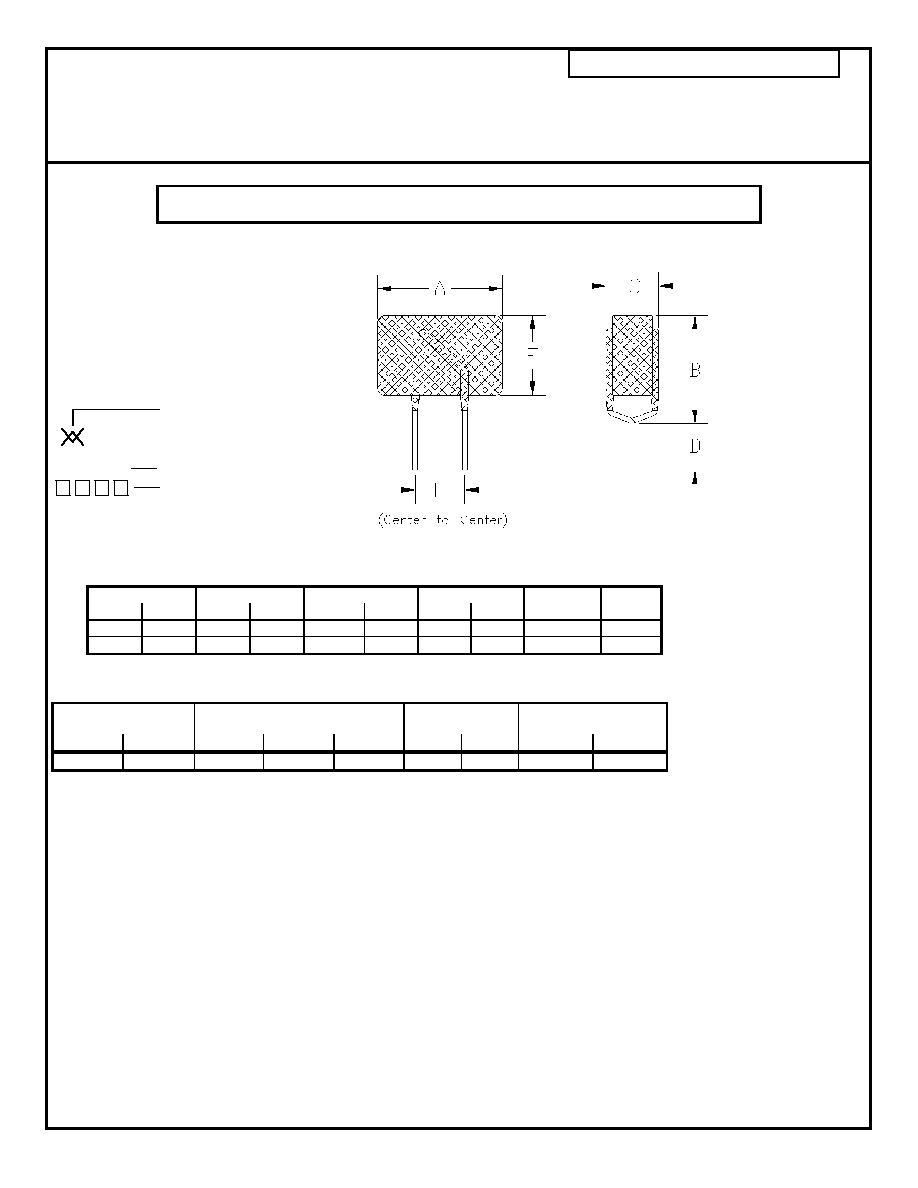

TABLE I. DIMENSIONS:
A
B
C
D E
F
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
NOM
MAX
mm: -- 13.5 -- 12.6 -- 6.0 4.7 --
5.0 10.0
in: -- (0.531) -- (0.496) -- (0.236) (0.185)
-- (0.197)
(0.394)
TABLE II. PERFORMANCE RATINGS @ 20
C (unless otherwise noted):
IHOLD (A)
RESISTANCE ()
TIME TO TRIP (s)
@ 1A
OPERATING
TEMPERATURE (C)
20C
60C
R MIN
R MAX
R
1 MAX
* TYP MAX MIN
MAX
0.150 0.096 6.0 12.0 22.0 5.0 8.0 -40
85
*Maximum device resistance at 20C measured 1hour post trip.
Agency Recognition:
UL, CSA
Reference Documents:
PS300
Precedence:
This specification takes precedence over documents referenced herein.
Effectivity: Reference
documents
shall be the issue in effect on the date of invitation for bid.
CAUTION:
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
