GENERAL DESCRIPTION

The DS28E04-100 is a 4096-bit, 1-Wire

EEPROM

chip with seven address inputs. The address inputs
are directly mapped into the 1-Wire 64-bit Device ID
Number to easily enable the host system to identify
the physical location or functional association of the
DS28E04-100 in a multidevice 1-Wire network en-
vironment. The 4096-bit EEPROM array is configured
as 16 pages of 32 bytes with a 32 byte scratchpad to
perform write operations. EEPROM memory pages
can be individually write protected or put in EPROM-
emulation mode, where bits can only be changed
from a 1 to a 0 state. In addition to the memory, the
DS28E04-100 has two general-purpose I/O ports that
can be used for input or to generate level and/or
pulse outputs. Activity registers also capture port
activity for state change monitoring. The DS28E04-
100 communicates over the single-contact 1-Wire
bus. The communication follows the standard Dallas
Semiconductor 1-Wire protocol.

APPLICATIONS

· Autoconfiguration of Modular Systems such as

Central-Office Switches, Cellular Base Stations,
Access Products, Optical Network Units, and
PBXs

· Accessory/PCB Identification

TYPICAL OPERATING CIRCUIT

PX.Y

µC

PUP

IO V

POL

P1
P0

GND

DS28E04 #1

IO V

POL

P1
P0

GND

DS28E04 #7

RST1 RST0

LED

FEATURES

· 4096 bits of EEPROM Memory Partitioned into

16 Pages of 256 Bits

· Seven Address Inputs for Physical Location

Configuration

· Two General-Purpose PIO Pins with Pulse-

Generation Capability

Individual Memory Pages can be Permanently
Write-Protected or put in OTP EPROM-
Emulation Mode ("Write to 0")

Communicates to Host with a Single Digital
Signal at 15.3kbps or 111kbps Using 1-Wire
Protocol

Parasitic or V

Powered

Conditional Search Based on PIO Status or PIO
Activity

Switchpoint Hysteresis and Filtering to Optimize
Performance in the Presence of Noise

Reads and Writes Over a Wide 2.8V to 5.25V
Voltage Range from -40°C to +85°C

16-Pin, 150-mil SO Package

ORDERING INFORMATION

PART TEMP

RANGE

PIN-PACKAGE

DS28E04S-100

-40°C to +85°C 16 SO (150 mils)

DS28E04S-100/T&R -40°C to +85°C Tape-and-Reel

PIN CONFIGURATION

GND

N.C.

GND

N.C.

POL

SO (150 mils)

DS28E04-100

4096-Bit Addressable 1-Wire EEPROM

with PIO

www.maxim-ic.com

Commands, Registers, and Modes are capitalized for
clarity.

1-Wire is a registered trademark of Dallas Semiconductor Corp.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

2 of 36

ABSOLUTE MAXIMUM RATINGS

All Pins: Voltage to GND

-0.5V, +6V

All Pins: Sink Current

20mA

Operating Temperature Range

-40°C to +85°C

Junction Temperature

+150°C

Storage Temperature Range

-40°C to +85°C

Soldering Temperature

See IPC/JEDEC J-STD-020A

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only,
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is
not implied. Exposure to the absolute maximum rating conditions for extended periods may affect device reliability.

ELECTRICAL CHARACTERISTICS

PUP

= 2.8V to 5.25V, V

= V

PUP

, floated or grounded, T

= -40°C to +85°C.)

PARAMETER SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

Ground Current

GND

(Notes 1, 2, 3)

Supply Current

= V

PUP

(Note 3)

Standby Supply Current

CCS

Device idle; A0 to A6 floating

µA

PINS A0 TO A6
Input Low Voltage

ILA

(Note 1)

0.30

Input High Voltage

IHA

= max(V

PUP

, V

) (Note 1)

0.3V

Input Load Current

Pin at GND (Note 4)

-1.1

µA

POL PIN
Input Low Voltage

ILPOL

(Note 1)

0.30

Input High Voltage

IHPOL

= max(V

PUP

, V

) (Note 1)

0.3V

Leakage Current

LKPOL

5.25V

µA

PIO PINS
Input Low Voltage

ILP

(Note 1)

0.30

Input High Voltage

IHP

= max(V

PUP

, V

) (Note 1)

0.3V

Output Low Voltage at
4mA

OLP

(Note 5)

0.4

Leakage Current

LKP

5.25V

1 µA

Minimum Sensed PIO
Pulse

PWMIN

(Note

µs

Output Pulse Duration

PULSE

(Note

250

1000 ms

IO PIN GENERAL DATA

1-Wire Pullup Resistance

PUP

(Notes 1, 8)

0.3 2.2

Input Capacitance

(Notes

100 800 pF

IO pin at V

PUP

, A0 to A6 floating, V

GND

0.05 11.00

Input Load Current

IO pin at V

PUP

, A0 to A6 floating, V

PUP

0.05 8.25

µA

High-to-Low Switching
Threshold

(Notes 3, 10, 11)

0.46

4.40

Input Low Voltage

(Notes 1, 12)

0.3

Input High Voltage

= max(V

PUP

, V

) (Note 1)

0.3V

Low-to-High Switching
Threshold

(Notes 3, 10, 13)

1.0

4.9

Switching Hysteresis

(Notes 3, 10, 14)

0.21

1.70

Output Low Voltage

At 4mA Current Load (Note 5)

0.4 V

Standard speed, R

PUP

= 2.2k

Overdrive speed, R

PUP

= 2.2k

Recovery Time
(Notes 1, 15)

REC

Overdrive speed, directly prior to reset
pulse; R

PUP

= 2.2k

µs

Standard speed (Note 16)

0.5

5.0

Rising-Edge Hold-Off Time
(Note 3)

REH

Overdrive speed

Not applicable (0)

µs

Standard speed

Time Slot Duration
(Note 1)

SLOT

Overdrive speed

µs

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

3 of 36

PARAMETER SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

IO PIN, 1-Wire RESET, PRESENCE DETECT CYCLE

Standard speed, V

PUP

> 4.5V

480

640

Standard speed (Note 17)

504

640

Overdrive speed, V

PUP

> 4.5V

Reset Low Time (Note 1)

RSTL

Overdrive speed (Note 17)

µs

Standard

speed

15 60

Presence-Detect High
Time

PDH

Overdrive speed (Note 17)

µs

Standard speed, V

PUP

> 4.5V

1.10

3.75

Standard speed

1.1

7.0

Presence-Detect Fall Time
(Notes 3, 18)

FPD

Overdrive speed

1.1

µs

Standard speed

240

Overdrive speed, V

PUP

> 4.5V

Presence-Detect Low
Time

PDL

Overdrive speed (Note 17)

µs

Standard speed, V

PUP

> 4.5V

Standard

speed

67 75

Presence-Detect Sample
Time (Note 1)

MSP

Overdrive speed

8.1

µs

IO PIN, 1-Wire WRITE

Standard speed

120

Write-0 Low Time (Note 1)

W0L

Overdrive speed (Note 17)

µs

Standard speed

15 -

Write-1 Low Time
(Notes 1, 19)

W1L

Overdrive speed

2 -

µs

IO PIN, 1-Wire READ

Standard speed

15 -

Read Low Time
(Notes 1, 20)

Overdrive speed

2 -

µs

Standard speed

Read Sample Time
(Notes 1, 20)

MSR

Overdrive speed

µs

EEPROM
Programming Current

PROG

(Note 21)

Programming Time

PROG

(Note 22)

At +25°C

200k

Write/Erase Cycles
(Endurance)

At +85°C (worst case)

50k

Data Retention

At +85°C (worst case)

years

Note 1:

System requirement.

Note 2:

Maximum instantaneous pulldown current through all pins combined.

Note 3:

Guaranteed by design, simulation only. Not production tested.

Note 4:

This load current is caused by the internal weak pullup, which asserts a logical 1 to address pins that are not connected. The
logical state of the address pins must not change during the execution of ROM function commands during those time slots in
which these bits are relevant.

Note 5:

The I-V characteristic is linear for voltages less than 1V.

Note 6:

Width of the narrowest pulse that trips the activity latch. Back to back pulses that are active for < t

PWMIN

(max) and that have an

intermediate inactive time < t

PWMIN

(max) are not guaranteed to be filtered.

Note 7:

The Pulse function requires that V

power is available; otherwise the command will not be executed.

Note 8:

Maximum allowable pullup resistance is a function of the number of 1-Wire devices in the system and 1-Wire recovery times. The
specified value here applies to systems with only one device and with the minimum 1-Wire recovery times. For more heavily
loaded systems, an active pullup such as that found in the DS2482-x00, DS2480B, or DS2490 may be required.

Note 9:

Capacitance on the data pin could be 800pF when V

PUP

is first applied. If a 2.2k

W resistor is used to pull up the data line, 2.5µs

after V

PUP

has been applied the parasite capacitance will not affect normal communications.

Note 10:

, V

, and V

are a function of the internal supply voltage.

Note 11:

Voltage below which, during a falling edge on IO, a logic 0 is detected.

Note 12:

The voltage on IO needs to be less than or equal to V

ILMAX

whenever the master drives the line low.

Note 13:

Voltage above which, during a rising edge on IO, a logic 1 is detected.

Note 14:

After V

is crossed during a rising edge on IO, the voltage on IO has to drop by at least V

to be detected as logic '0'.

Note 15:

Applies to a single DS28E04-100 without V

supply, attached to a 1-Wire line.

Note 16:

The earliest recognition of a negative edge is possible at t

REH

after V

has been previously reached.

Note 17:

Highlighted numbers are NOT in compliance with legacy 1-Wire product standards. See comparison table.

Note 18:

Interval during the negative edge on IO at the beginning of a Presence Detect pulse between the time at which the voltage is
80% of V

PUP

and the time at which the voltage is 20% of V

PUP

Note 19:

e represents the time required for the pullup circuitry to pull the voltage on IO up from V

to V

Note 20:

d represents the time required for the pullup circuitry to pull the voltage on IO up from V

to the input high threshold of the bus

master.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

4 of 36

Note 21:

Current drawn during the EEPROM programming interval. If the device does not get V

power, the pullup circuit on IO during the

programming interval should be such that the voltage at IO is greater than or equal to V

PUP

(min). If V

PUP

in the system is close to

Vpup(min) then a low-impedance bypass of R

PUP

that can be activated during programming may need to be added.

Note 22:

The t

PROG

interval begins t

REHmax

after the trailing rising edge on IO for the last time slot of the E/S byte for a valid Copy Scratchpad

sequence. Interval ends once the device's self-timed EEPROM programming cycle is complete and the current drawn by the
device has returned from I

PROG

to I

or I

CCS

, respectively.

LEGACY VALUES

DS28E04-100 VALUES

PARAMETER

STANDARD SPEED

OVERDRIVE SPEED

STANDARD SPEED

OVERDRIVE SPEED

MIN MAX MIN MAX MIN MAX MIN MAX

SLOT

(incl. t

REC

)

61µs (undef) 7µs (undef) 65µs

(undef) 9µs

(undef)

RSTL

480µs (undef) 48µs 80µs 504µs

640µs

53µs

80µs

PDH

15µs 60µs 2µs 6µs 15µs 60µs 2µs 7µs

PDL

60µs 240µs 8µs 24µs 60µs 240µs 8µs 26µs

W0L

60µs 120µs 6µs 16µs 60µs 120µs 7µs

16µs

Intentional change, longer recovery time requirement due to modified 1-Wire front end.

PIN DESCRIPTION

PIN NAME

FUNCTION

Address bit input (place value = 8), with weak pullup.

Address bit input (place value = 4), with weak pullup.

Address bit input (place value = 2), with weak pullup.

Least significant address bit input (place value = 1), with weak pullup.

5, 12

GND

Ground Reference

6, 11

N.C.

Not Connected

7 V

Optional power supply for the chip; float or ground if V

power is not available.

POL

Power-up polarity (logical state) for P0 and P1; pin has a weak pulldown.

Remote-controlled I/O pin, open drain with weak pulldown.

Address bit input (place value = 64), with weak pullup.

Address bit input (place value = 32), with weak pullup.

Address bit input (place value = 16), with weak pullup.

1-Wire Bus Interface. Open drain, requires external pullup resistor.

DETAILED DESCRIPTION

The DS28E04-100 combines 4096 bits of EEPROM, a 16-byte control page, two general-purpose PIO pins, seven
external address pins, and a fully featured 1-Wire interface in a single chip. PIO outputs are configured as open-
drain and provide an on-resistance of 100

W max. A robust PIO channel-access communication protocol ensures

that PIO output-setting changes occur error-free. The DS28E04-100 has an additional memory area called the
scratchpad that acts as a buffer when writing to the main memory or the control page. Data is first written to the
scratchpad from which it can be read back. The copy scratchpad command transfers the data to its final memory
location. Each DS28E04-100 has a device ID number that is 64 bits long. The user can define seven bits of this
number through address pins. The remaining 57 bits are factory-lasered into the chip. The device ID number
guarantees unique identification and is used to address the device in a multidrop 1-Wire network environment,
where multiple devices reside on a common 1-Wire bus and operate independently of each other. The DS28E04-
100 also supports 1-Wire conditional search capability based on PIO conditions or power-on-reset activity. The
DS28E04-100 has an optional V

supply connection. When an external supply is absent, device power is supplied

parasitically from the 1-Wire bus. When an external supply is present, PIO states are maintained in the absence of
the 1-Wire bus power source. Applications of the DS28E04-100 include autoconfiguration and state monitoring of
modular systems such as central-office switches, cellular base stations, access products, optical network units, and
PBXs, and accessory/PC board identification.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

5 of 36

OVERVIEW

The block diagram in Figure 1 shows the relationships between the major control and memory sections of the
DS28E04-100. The DS28E04-100 has five main data components: 1) 64-bit device ID number, 2) 32-byte
scratchpad, 3) sixteen 32-byte pages of EEPROM, 4) Special Function Register, and 5) PIO Control Registers. The
hierarchical structure of the 1-Wire protocol is shown in Figure 2. The bus master must first provide one of the eight
ROM Function Commands, 1) Read ROM, 2) Match ROM, 3) Search ROM, 4) Conditional Search ROM, 5) Skip
ROM, 6) Resume, 7) Overdrive-Skip ROM or 8) Overdrive-Match ROM. Upon completion of an Overdrive ROM
command byte executed at standard speed, the device enters Overdrive mode where all subsequent
communication occurs at a higher speed. The protocol required for these ROM function commands is described in
Figure 14. After a ROM function command is successfully executed, the memory/control functions become
accessible and the master may provide any one of the nine Memory/Control Function commands. The protocol for
these commands is described in Figure 9. All data is read and written least significant bit first.

Figure 1. Block Diagram

1-Wire Network

Device ID

Number Register

1-Wire

Function Control

Memory

Function

Control Unit

Special Function

Registers

32-Byte

Scratchpad

Data Memory

16 Pages of

32 Bytes Each

CRC16

Generator

Internal V

PIO

Control Registers

POL

Internal V

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

6 of 36

Figure 2. Hierarchical Structure for 1-Wire Protocol

DS28E04-100

Available
Commands:

Command
Level:

Data Field
Affected:

1-Wire ROM Function

Commands (see Figure 14)

DS28E04-Specific

Memory/Control Function

Commands (see Figure 9)

Read ROM
Match ROM
Search ROM
Conditional Search

ROM

Skip ROM
Resume
Overdrive Skip
Overdrive Match

Device ID, RC-Flag
Device ID, RC-Flag
Device ID, RC-Flag
Device ID, RC-Flag, PIO Status,

cond. Search Settings

RC-Flag
RC-Flag
RC-Flag, OD-Flag
Device ID, RC-Flag, OD-Flag

Write Scratchpad
Read Scratchpad
Copy Scratchpad
Read Memory
PIO Access Read
PIO Access Write
PIO Access Pulse
Reset Act. Latch
Write Register

32-byte Scratchpad, Flags
32-byte Scratchpad
Data Memory, Register Page
Data Memory, Registers
PIO Pins
PIO Pins, Activity Latch
PIO Pins, Activity Latch
Activity Latch
Conditional Search and Control
Registers

64-BIT DEVICE ID NUMBER (NETWORK ADDRESS)

Each DS28E04-100 has a unique device ID number that is 64 bits long, as shown in Figure 3. The first 8 bits are a
1-Wire family code. The next 8 bits are an external address byte, of which the lower 7 bits are connected to the
address input pins A0 to A6. This allows the user to set a portion of the Device ID Number by connecting some of
these pins to GND (logic 0) or to V

(logic 1) or leaving them open (logic 1). The next 40 bits are a lasered serial

number. Even if multiple DS28E04-100 are used in a 1-Wire network and all address inputs are wired to the same
state or left open (unconnected), the unique 40-bit serialization field will prevent any address conflict, allowing to
communicate with each device individually. The last 8 bits are a lasered CRC (Cyclic Redundancy Check) of the
first 56 bits, assuming that the address input pins A0 to A6 are at logic 1. The 1-Wire CRC is generated using a
polynomial generator consisting of a shift register and XOR gates as shown in Figure 4. The polynomial is X

+ X

+ 1. Further information on the Device ID CRC is found in section CRC Generation near the end of this

document.

Figure 3. 64-Bit Device ID Number

MSB

LSB

8-Bit External

Address Input

8-Bit CRC

Code

40-Bit Lasered Serial Number

A
6

A
5

A
4

A
3

A
2

A
1

A
0

8-Bit Family Code

(1Ch)

MSB

LSB MSB

LSB

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

7 of 36

Figure 4. 1-Wire CRC Generator

Polynomial = X

+ X

+ 1

STAGE

INPUT DATA

MEMORY

The DS28E04-100 EEPROM array consists of 17 pages of 32 bytes each, starting at address 0000h and ending at
address 021Fh. All memory addresses in this range have unrestricted read access. The data memory consists of
16 pages of 32 bytes each. The register page consists of 32 bytes starting at address 0200h. It contains 16 page
protection control bytes (one for each data memory page), the register page lock byte, the factory bytes, and the
reserved bytes. The reserved bytes are for future use by the factory and should be not be used. They have no
effect on device operation.

The protection control registers, along with the register page lock byte, determine whether write protection, EPROM
mode, or copy protection is enabled for each of the 16 data memory pages. A value of 55h sets write protection for
the associated memory page. A value of AAh sets EPROM mode. A value of 55h or AAh for the register page lock
byte sets copy protection for all write-protected data memory pages, as well as the register page. EPROM mode
pages are not affected.

The protection control registers and the register page lock byte write protect themselves if

set to 55h or AAh. Any other setting leaves them open for unrestricted write access.

In addition to the EEPROM, the device has a 32-byte volatile scratchpad. Writes to the EEPROM array are a two-
step process. First, data is written to the scratchpad through the Write Scratchpad command, and then copied into
the main array through the Copy Scratchpad command. The user can verify the data written to the scratchpad
through the Read Scratchpad command prior to copying into the main array.

If a memory location is write protected, data sent by the master to the associated address during a Write
Scratchpad command is not loaded into the scratchpad. Instead, it is replaced by the data in EEPROM located at
the target address. If a memory location is in EPROM mode, the scratchpad is loaded with the logical AND of the
data sent by the master and the data in EEPROM at the target address. Copy Scratchpad commands to write-
protected or EPROM mode memory locations are allowed. This allows write-protected data in the device to be
refreshed, i.e., reprogrammed with the current data.

If a memory location is copy protected, a Copy Scratchpad command to that location will be blocked, which is
indicated by FFh success bytes. Copy protection is used for a higher level of security, and should only be used
after all write-protected pages and their associated protection control bytes are set to their final values. Copy
protection as implemented with this device does not prevent copying data from one device to another; it only blocks
the execution of the copy scratchpad command with a target address of a copy-protected memory page.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

8 of 36

Figure 5. Memory Map

Address locations 0000h to 021Fh are nonvolatile. Address locations 0220h to 0225 are volatile.

ADDRESS RANGE

TYPE

DESCRIPTION

PROTECTION CODES (NOTES)

0000h to 001Fh

R/(W) Data Memory Page 0

(Protection controlled by address 0200h)

0020h to 003Fh

R/(W) Data Memory Page 1

(Protection controlled by address 0201h)

0040h to 005Fh

R/(W) Data Memory Page 2

(Protection controlled by address 0202h)

0060h to 007Fh

R/(W) Data Memory Page 3

(Protection controlled by address 0203h)

0080h to 009Fh

R/(W) Data Memory Page 4

(Protection controlled by address 0204h)

00A0h to 00BFh

R/(W) Data Memory Page 5

(Protection controlled by address 0205h)

00C0h to 0DFh

R/(W) Data Memory Page 6

(Protection controlled by address 0206h)

00E0h to 00FFh

R/(W) Data Memory Page 7

(Protection controlled by address 0207h)

0100h to 011Fh

R/(W) Data Memory Page 8

(Protection controlled by address 0208h)

0120h to 013Fh

R/(W) Data Memory Page 9

(Protection controlled by address 0209h)

0140h to 015Fh

R/(W) Data Memory Page 10

(Protection controlled by address 020Ah)

0160h to 017Fh

R/(W) Data Memory Page 11

(Protection controlled by address 020Bh)

0180h to 019Fh

R/(W) Data Memory Page 12

(Protection controlled by address 020Ch)

01A0h to 01BFh

R/(W) Data Memory Page 13

(Protection controlled by address 020Dh)

01C0h to 01DFh

R/(W) Data Memory Page 14

(Protection controlled by address 020Eh)

01E0h to 01FFh

R/(W) Data Memory Page 15

(Protection controlled by address 020Fh)

0200h

to 020Fh

R/(W)

Protection Control Pages 0
to 15

55h: Write Protected; AAh: EPROM mode.
Address 0200h is associated with memory
page 0, address 0201h with page 1, etc.

0210h

R/(W) Register Page Lock

(See text)

0211h

Factory Byte

(Reads 55h or AAh)

0212h to 021Dh

N/A

Reserved

021Eh to 021Fh

Factory Bytes

(Undefined value)

220h

PIO Logic State

(The lower two bits are valid)

221h

PIO Output Latch State

(The lower two bits are valid)

222h

PIO Activity Latch State

(The lower two bits are valid)

223h R/W

Conditional Search PIO
Selection Mask

224h R/W

Conditional Search Polarity
Selection

225h R/W

Conditional Search Control
and Status Register

Once programmed to AAh or 55h this address becomes read-only. All other codes can be stored but will neither

write-protect the address nor activate any function.

Limited write access through Write Register command

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

9 of 36

PIO-RELATED REGISTERS

Figure 6 shows the simplified logic diagram of a PIO channel.

The registers related to the PIO pins are located in

the address range 0220h to 0225h. All these registers are volatile, i.e., they lose their state when the device is
powered down. All PIO-related registers can be read like any data memory. There are special commands to control
the PIOs for input (read), output (write), pulse-generation, and to reset the activity latches.

Figure 6. PIO Simplified Logic Diagram

PIO Output
Latch

PIO Activity
Latch

Edge

Detector

Port

Function

Control

To Activity Latch
State Register

To PIO Logic
State Register

To PIO Output
Latch State Reg.

"1"

CLR ACT LATCH

P0, P1

DATA

CLOCK

POWER ON
RESET

PIO Logic State Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0220h

1 1 1 1 1 1 P1

The logic state of the PIO pins can be obtained by reading this register using the Read Memory command. This
register is read-only. Each bit is associated with the pin of the respective PIO channel. Bits 2 to 7 have no function;
they always read 1. The data in this register reflects the PIO state at the last (most significant) bit of the byte that
proceeds reading the first (least significant) bit of this register. See the PIO Access Read command description for
details.

PIO Output Latch State Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0221h

1 1 1 1 1 1

PL1

PL0

The data in this register represents the latest data written to the PIOs through the PIO Access Write command.
This register is read using the Read Memory command. This register is not affected if the device re-initializes itself
after an ESD hit. This register is read-only. Each bit is associated with the output latch of the respective PIO
channel. Bits 2 to 7 have no function; they always read 1. The flip-flops of this register power up as specified by the
state of the POL pin. If the chip has to power up with all PIO channels off, the POL pin must be connected to a logic
"1".

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

10 of 36

PIO Activity Latch State Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0222h

0 0 0 0 0 0

AL1

AL0

The data in this register represents the current state of the PIO activity latches. This register is read using the Read
Memory command. This register is read-only. Each bit is associated with the activity latch of the respective PIO
channel. Bits 2 to 7 have no function; they always read 0. A state transition on a PIO pin, High

èLow or

Low

èHigh, of a duration greater than t

PWMIN

causes the associated bit in the register to be set to a 1. This register

is cleared to 00h by a power-on reset, or by successful execution of the Reset Activity Latches command.

The next three registers control the device's participation a Conditional Search ROM sequence. The interaction of
the various signals that determine whether the device responds to a conditional search is illustrated in Figure 7.
There is a selection mask, SM, to select the participating PIOs, a polarity selection SP to specify for each channel
whether the channel signal needs to be 1 or 0 to qualify, and a PLS bit to select either the activity latches or PIO
pins as inputs. The signals of all channels are fed into an AND gate as well as an OR gate. The CT bit finally
selects the AND'ed or OR'ed result as the conditional search response signal CSR. If CT is 0, the channel signal of
at least one of the selected channels must match the corresponding polarity. If CT is 1, the channel signals of all
selected channels must match the corresponding polarity.

Figure 7. CONDITIONAL SEARCH LOGIC

AL1

PLS

SP0

SM0

SM1

SP1

AL0

CSR

Channel 0

Channel 1

PORL

Conditional Search Channel Selection Mask Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0223h

0 0 0 0 0 0

SM1

SM0

The data in this register controls whether a PIO channel qualifies for participation in the conditional search
command. To include a PIO channel, the bits in this register that correspond to those channels need to be set to 1.
This register can only be written through the Write Register command. This register is read/write. Each bit is
associated with the respective PIO channel as shown in Figure 7. Bits 2 to 7 have no function; they always read 0
and cannot be changed to 1. This register is cleared to 00h by a power-on reset.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

11 of 36

Conditional Search Channel Polarity Selection Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0224h

0 0 0 0 0 0

SP1

SP0

The data in this register specifies the polarity of each selected PIO channel for the device to respond to the
conditional search command. This register can only be written through the Write Registers command. Within a PIO
channel, the data source may be either the channel's input pin or the channel's activity latch, as specified by the
PLS bit in the Control/Status register at address 0225h. This register is read/write. Each bit is associated with the
respective PIO channel as shown in Figure 7. Bits 2 to 7 have no function; they always read 0 and cannot be
changed to 1. This register is cleared to 00h at power-up.

Control/Status Register

ADDR

b7 b6 b5 b4 b3 b2 b1 b0

0225h VCCP POL

PORL

PLS

The data in this register reports status information and further configures the device for conditional search. This
register can only be written through the Write Registers command. This register is read/write. The power-up state
of the PORL bit is "1". CT and PLS power up as "0". The functional assignments of the individual bits are explained
in the table below. Bits 2, 4, and 5 have no function; they always read 0 and cannot be set to 1.

Control/Status Register Details

BIT DESCRIPTION

BIT(S)

DEFINITION

PLS: Pin or Activity
Latch Select

Selects either the PIO pins or the PIO activity latches as input for the
conditional search.

0: pin selected (default)

1: activity latch selected

CT: Conditional Search
Logical Term

Specifies whether the data of two channels needs to be OR'ed or
AND'ed to meet the qualifying condition for the device to respond to
a conditional search. If only a single channel is selected in the
channel selection mask (0223h) this bit is a don't care.

0: bitwise OR (default)

1: bitwise AND

PORL: Power-On Reset
Latch

Specifies whether the device has performed a power-on reset. This
bit can only be cleared to 0 by writing to the Control/Status Register.
As long as this bit is 1 the device will always respond to a Conditional
Search ROM sequence.

POL: PIO Default
Polarity (Read-Only)

Reports the state of the POL pin. The state of the POL pin specifies
whether the PIO pins P0 and P1 power up high or low. The polarity
of a pulse generated at a PIO pin is the opposite of the pin's power-
up state.

0: PIO powers up 0

1: PIO powers up 1

VCCP: V

Power

Status (Read-Only)

For V

-powered operation, the V

pin needs to be connected to a

voltage source equal to V

PUP

power not available

-powered operation

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

12 of 36

ADDRESS REGISTERS AND TRANSFER STATUS

The DS28E04-100 employs three address registers, called TA1, TA2, and E/S (Figure 8). Registers TA1 and TA2
must be loaded with the target address to which the data will be written or from which data is read. Register E/S is
a read-only transfer-status register, used to verify data integrity of write commands. The lower five bits of the E/S
register indicate the Ending Offset within the 32-byte scratchpad. Bit 5 of the E/S register, called PF, is set if the
number of data bits sent by the master is not an integer multiple of 8 or if the data in the scratchpad is not valid due
to a loss of power. A valid write to the scratchpad clears the PF bit. Bit 6 has no function; it always reads 0. Note
that the lowest five bits of the target address also determine the address within the scratchpad, where intermediate
storage of data will begin. This address is called byte offset. If the target address (TA1) for a Write command is
03CH for example, then the scratchpad stores incoming data beginning at the byte offset 1CH and is full after only
four bytes. The corresponding ending offset in this example is 1FH. For maximum data bandwidth, the target
address for writing should point to the beginning of a new page, i.e., the byte offset is 0. Thus the full 32-byte
capacity of the scratchpad is available, resulting also in the ending offset of 1FH. However, it is possible to write
one or several contiguous bytes somewhere within a page. The ending offset together with the partial flag support
the master checking the data integrity after a Write command. The highest valued bit of the E/S register, called AA
is valid only if the PF flag reads 0. If PF is 0 and AA is 1, a copy has taken place. Writing data to the scratchpad
clears the AA flag.

Figure 8. Address Registers

Bit

7 6 5 4 3 2 1 0

Target

Address

(TA1)

T7 T6 T5 T4 T3 T2 T1 T0

Target

Address

(TA2) T15 T14 T13 T12 T11 T10 T9 T8

Ending Address with

Data Status (E/S)

(Read Only)

AA 0 PF E4 E3 E2 E1 E0

WRITING WITH VERIFICATION

To write data to the DS28E04-100 EEPROM sections, the scratchpad has to be used as intermediate storage. First
the master issues the Write Scratchpad command to specify the desired target address, followed by the data to be
written to the scratchpad. Under certain conditions (see Write Scratchpad command) the master will receive an
inverted CRC16 of the command, address (actual address sent), and data (as sent by the master) at the end of the
Write Scratchpad command sequence. Knowing this CRC value, the master can compare it to the value it has
calculated to decide whether the communication was successful and proceed to the Copy Scratchpad command. If
the master could not receive the CRC16, it should use the Read Scratchpad command to verify data integrity. As a
preamble to the scratchpad data, the DS28E04-100 repeats the target address TA1 and TA2 and sends the
contents of the E/S register. If the PF flag is set, data did not arrive correctly in the scratchpad or there was a loss
of power since data was last written to the scratchpad. The master does not need to continue reading; it can start a
new trial to write data to the scratchpad. Similarly, a set AA flag together with a cleared PF flag indicates that the
device did not recognize the Write command. If everything went correctly, both flags are cleared and the ending
offset indicates the address of the last byte written to the scratchpad. Now the master can continue reading and
verifying every data byte. After the master has verified the data, it can send the Copy Scratchpad command. This
command must be followed exactly by the data of the three address registers, TA1, TA2, and E/S. The master
should obtain the contents of these registers by reading the scratchpad.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

13 of 36

MEMORY/CONTROL FUNCTION COMMANDS

The Memory/Control Function Flow Chart (Figure 9) describes the protocols necessary to access the memory and
the PIO pins of the DS28E04-100. Examples on how to use these functions are included at the end of this
document. The communication between master and DS28E04-100 takes place either at standard speed (default,
OD = 0) or at Overdrive peed (OD = 1). If not explicitly set into the Overdrive Mode, the DS28E04-100 powers up in
standard speed.

WRITE SCRATCHPAD COMMAND [0Fh]

The Write Scratchpad command applies to the data memory, and the writeable addresses in the register page.
After issuing the Write Scratchpad command, the master must first provide the 2-byte target address, followed by
the data to be written to the scratchpad. The data is written to the scratchpad starting at the byte offset of T4:T0.
The ending offset (E4:E0) is the byte offset at which the master stops writing data. Only full data bytes are
accepted. If the last data byte is incomplete, its content will be ignored and the partial byte flag PF will be set.

When executing the Write Scratchpad command, the CRC generator inside the DS28E04-100 (Figure 18)
calculates a CRC of the entire data stream, starting at the command code and ending at the last data byte as sent
by the master. This CRC is generated using the CRC16 polynomial by first clearing the CRC generator and then
shifting in the command code (0FH) of the Write Scratchpad command, the Target Addresses (TA1 and TA2) as
supplied by the master, and all the data bytes. The master may end the Write Scratchpad command at any time.
However, if the end of the scratchpad is reached (E4:E0 = 11111b), the master can send 16 read-time slots and
receive the CRC generated by the DS28E04-100.

If a Write Scratchpad is attempted to a write-protected location, the scratchpad is loaded with the data already in
memory, rather than the data transmitted. Similarly, if the target address page is in EPROM mode, the scratchpad
is loaded with the bitwise logical AND of the transmitted data and data already in memory.

READ SCRATCHPAD COMMAND [AAh]

The Read Scratchpad command allows verification of the target address and the scratchpad data. After issuing the
command code, the master begins reading. The first two bytes are the target address. The next byte is the ending
offset/data status byte (E/S) followed by the scratchpad data, which may be different from what the master
originally sent. This is of particular importance if the target address is within the register page or a page in either
Write-Protected or EPROM modes. See the Write Scratchpad description for details. The master should read
E4:E0-T4:T0+1 bytes, after which it receives the inverted CRC16, based on data as it was sent by the DS28E04-
100. If the master continues reading after the CRC, all data will be logic 1s.

COPY SCRATCHPAD [55h]

The Copy Scratchpad command is used to copy data from the scratchpad to the data memory and the writable
sections of the Register Page. After issuing the Copy Scratchpad command, the master must provide a 3-byte
authorization pattern, which should have been obtained by an immediately preceding Read Scratchpad command.
This 3-byte pattern must exactly match the data contained in the three address registers (TA1, TA2, E/S, in that
order). If the pattern matches, the target address is valid, the PF flag is not set, and the target memory is not copy-
protected, the AA (Authorization Accepted) flag is set and the copy begins. The data to be copied is determined by
the three address registers. The scratchpad data from the beginning offset through the ending offset will be copied
to memory, starting at the target address. Anywhere from 1 to 32 bytes can be copied with this command. The
device's internal data transfer takes 10ms maximum during which the voltage on the 1-Wire bus must not fall below
2.8V. After waiting 10ms, the master may issue read time slots to receive AAh confirmation bytes until the master
issues a reset pulse. If the PF flag is set or the target memory is copy-protected, the copy will not begin and the AA
flag will not be set.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

14 of 36

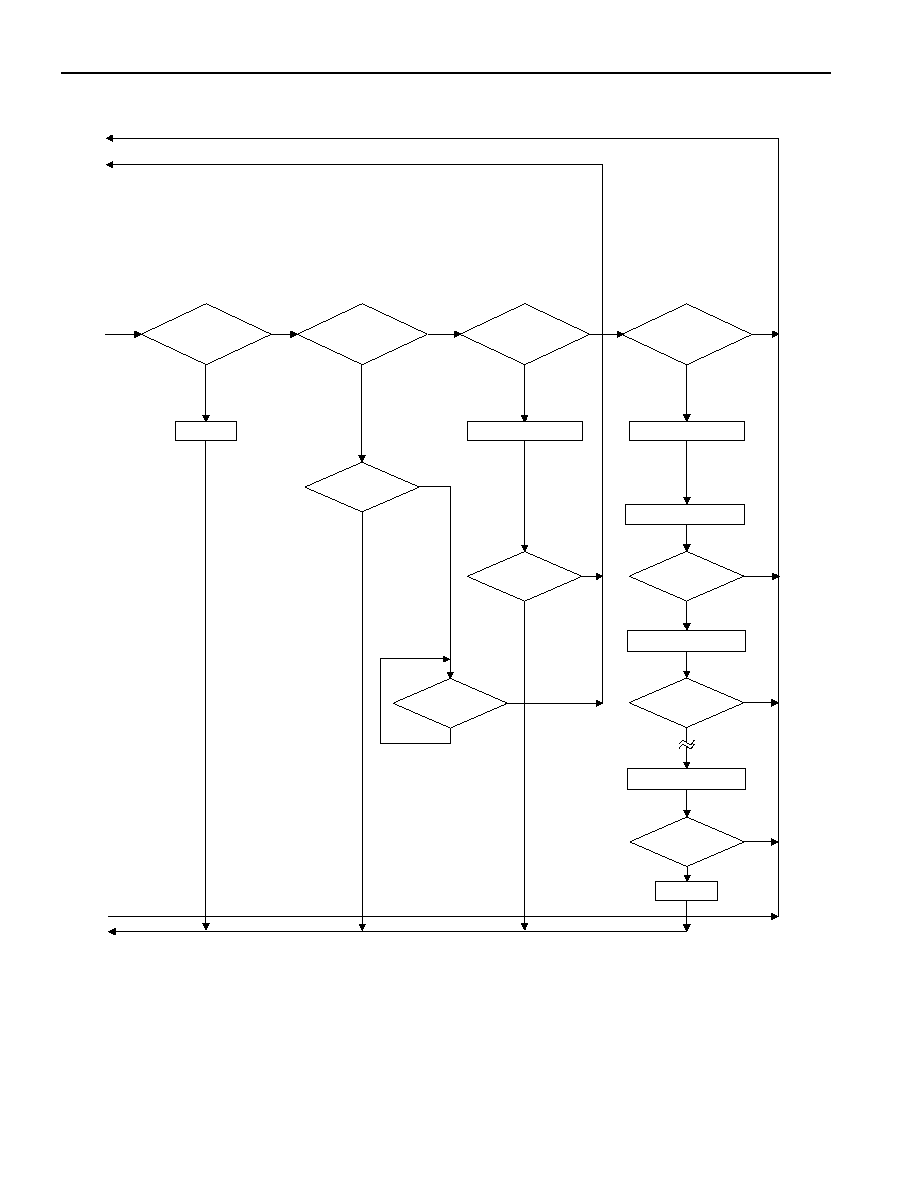

Figure 9-1. Memory/Control Function Flow Chart

0Fh

Write Scratch-

pad ?

Bus Master TX EEPROM

Array Target Address

TA1 (T7:T0), TA2 (T15:T8)

To Figure 9

Part

From Figure 9

Part

Bus Master TX Memory

Function Command

To ROM Functions

Flow Chart (Figure 14)

From ROM Functions

Flow Chart (Figure 14)

Master

TX Reset ?

Master TX Data Byte

To Scratchpad Offset

DS28E04 sets Scratchpad

Offset = (T4:T0),

Clears PF, AA

Scrpad. Offset

= 11111b?

DS28E04 TX CRC16

of Command, Address,

Data Bytes as they were

sent by the bus master

DS28E04

Increments

Scratchpad

Offset

Master

TX Reset ?

Bus Master

RX "1"s

Partial
Byte ?

PF = 1

Applies only if the page is not write
protected or in EPROM mode. If write-
protected, then the DS28E04 copies the
data byte from the target address into
the scratchpad. If in EPROM mode,
then the DS28E04 stores the bitwise
logical AND of the transmitted byte and
the data byte from the targeted address
into the scratchpad.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

18 of 36

Figure 9-5. Memory/Control Function Flow Chart (continued)

From Figure 9

Part

To Figure 9

Part

To Figure 9

Part

From Figure 9

Part

F5h

PIO Access

Read?

DS28E04 Samples

PIO Pin Status

PIO Sample

Counter = 0

Sample Count

= 31?

Master

TX Reset?

Bus Master RX

PIO Pin Status

DS28E04 Increments

PIO Sample Counter

DS28E04 Samples

PIO Pin Status

Bus Master RX

PIO Pin Status

PIO Sample

Counter = 0

DS28E04 Samples

PIO Pin Status

Bus Master RX

CRC16 of Command

and 32 Bytes of PIO

Pin Status (1

Pass)

CRC16 of 32 Bytes

of PIO Pin Status

(Subsequent Passes)

5Ah

PIO Access

Write?

Bus Master TX new

PIO Output Data Byte

Bus Master TX

inverted new PIO
Output Data Byte

Transmission

OK?

DS28E04 Updates

PIO Output Latch

Bus Master RX

Confirmation AAh

DS28E04 Samples

PIO Pin Status

Bus Master RX

PIO Pin Status

Master

TX Reset?

Bus Master

RX "1"s

Master

TX Reset?

Note 1)
See the command
description for the
exact timing of the
PIO pin sampling
and updating.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

20 of 36

READ MEMORY [F0h]

The Read Memory command is the general function to read data from the DS28E04-100. After issuing the
command, the master must provide a 2-byte target address in the range of 0000h to 0225h. After these two bytes,
the master reads data beginning from the target address and may continue until address 0225h. If the master
continues reading, the result will be logic 1s. The device's internal TA1, TA2, E/S, and scratchpad contents are not
affected by a Read Memory command.

The hardware of the DS28E04-100 provides a means to accomplish error-free writing to the memory section. To
safeguard reading data in the 1-Wire environment and to simultaneously speed up data transfers, it is
recommended to packetize data into data packets the size of one memory page each. Such a packet would
typically store a 16-bit CRC with each page of data to insure rapid, error-free data transfers that eliminate having to
read a page multiple times to determine if the received data is correct or not. (See Application Note 114 for the
recommended file structure.)

WRITE REGISTER [CCh]

The conditional search settings and the status/control register are volatile. They need to be loaded after every
power-up cycle with the Write Register command. After issuing the command, the master sends the 2-byte target
address, which should be a value between 0223h and 0225h. Next the master sends the byte to be written to the
addressed cell. If the address was valid, the byte is immediately written to its memory location. The master now
can either end the command by issuing a 1-Wire reset or send another byte for the next higher address. Once
memory address 0225h has been written, any subsequent data bytes will be ignored. The master has to send a
1-Wire reset to end the command. Since the Write Register flow does not include any error-checking for the new
register data, it is important to verify correct writing by reading the registers using the Read Memory command.

PIO ACCESS READ [F5h]

In contrast to reading the PIO logical state from address 0220h, this command reads the PIO logical status in an
endless loop. After 32 bytes of PIO pin status the DS28E04-100 inserts an inverted CRC16 into the data stream,
which allows the master to verify whether the data was received error-free. A PIO Access Read can be terminated
at any time with a 1-Wire Reset. The state of the POL pin does not affect this command.

The status of both PIO channels is sampled at the same time. The first sampling occurs during the last (most
significant) bit of the command code F5h. The first (least significant) bit of the PIO status byte is associated to P0,
and the next bit to P1. The other 6 bits of a PIO status byte do not have corresponding PIO pins; they always read
"1". While the master receives the last bit of the PIO status byte, the next sampling occurs and so on until the
master has received 32 PIO samples. Next the master receives the inverted CRC16 of the command byte and 32
PIO samples (first pass) or the CRC of 32 PIO samples (subsequent passes). While the last (most significant) bit of
the CRC is transmitted, the next PIO sampling takes place. The sampling occurs with a delay of t

REH

+ x from the

rising edge of the MS bit of the previous byte, as shown in Figure 10. The value of "x" is approximately 0.2µs.

Figure 10. PIO Access Read Timing Diagram

Example - Sampled State = FEh

MS 2 bits of
previous byte

LS 2 bits of
data byte (FEh)

Sampling Point

REH

Notes:
1

The "previous byte" could be the command code, the data byte resulting from the previous PIO sample, or the
MS byte of a CRC16.

The sample point timing also applies to the PIO Access Write and Pulse command, with the "previous byte"
being the write confirmation byte (AAh).

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

21 of 36

PIO ACCESS WRITE [5Ah]

The PIO Access Write command is the only way to write to the PIO output-latch state register (address 0221h),
which controls the open-drain output transistors of the PIO channels. In an endless loop, this command first writes
new data to the PIO and then reads back the PIO status. The implicit read-after-write can be used by the master for
status verification. A PIO Access Write can be terminated at any time with a 1-Wire Reset. The state of the POL pin
does not affect this command.

After the command code, the master transmits a byte that determines the new state of the PIO output transistors.
The first (least significant) bit is associated to P0; the next bit affects P1. The other 6 bits of the new state byte do
not have corresponding PIO pins. These bits should always be transmitted as "1"s. To switch the output transistor
off (nonconducting) the corresponding bit value is 1. To switch the transistor on, that bit needs to be 0. This way the
data byte transmitted as the new PIO output state arrives in its true form at the PIO pins. To protect the
transmission against data errors, the master must repeat the new PIO byte in its inverted form. Only if the
transmission was error-free does the PIO status change. The actual PIO transition to the new state occurs with a
delay of t

REH

+ x from the rising edge of the MS bit of the inverted PIO byte, as shown in Figure 11. The value of "x"

is approximately 0.2µs. To inform the master about the successful change of the PIO status, the DS28E04-100
transmits a confirmation byte with the data pattern AAh. After the MS bit of the confirmation byte is transmitted, the
DS28E04-100 samples the status of the PIO pins, as shown in Figure 10, and sends it to the master. Depending on
the data the master can either continue writing more data to the PIO or issue a 1-Wire reset to end the command.

Figure 11. PIO Access Write Timing Diagram

PIO

Example - Old State = FEh, New state = FDh

MS 2 bits of inverted
new-state byte

LS 2 bits of confir-
mation byte (AAh)

FEh

FDh

REH

PIO ACCESS PULSE [A5h]

As a convenient alternative to using PIO Access Write, the PIO Access Pulse command generates a self-timed
pulse on the selected PIO outputs. The polarity of the pulse is determined by the state of the POL pin. If POL = 1,
the pulse is negative (active low) and vice versa. The PIO Access Pulse command is accepted only if the device is
V

powered.

After the command code the master transmits a selection mask that specifies the PIO at which the pulse is to be
generated. A PIO is selected if the corresponding bit in the selection mask is a "1". The first (least significant) bit is
associated to P0; the next bit affects P1. The other 6 bits of the selection mask do not have corresponding PIO
pins. These bits should always be transmitted as "1"s. To protect the transmission against data errors, the master
must repeat the selection mask in its inverted form. Only if the transmission was error-free does the pulse occur.
The pulse begins with a delay of t

REH

+ x from the rising edge of the MS bit of the inverted selection mask, as

shown in Figure 12. The value of "x" is approximately 0.2µs. To inform the master about the successful pulse
generation, the DS28E04-100 transmits a confirmation byte with the data pattern AAh. While the last bit of the
confirmation byte is transmitted, the DS28E04-100 samples the status of the PIO pins, as shown in Figure 10, and
sends it to the master. Now the master can issue a 1-Wire reset to exit the command flow. This does not terminate
the pulse on a PIO pin.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

22 of 36

Figure 12. PIO Access Pulse Timing Diagram

PULSE

PIO

MS 2 bits of inverted
Selection Mask

LS 2 bits of confir-
mation byte (AAh)

REH

POL=1

POL=0

RESET ACTIVITY LATCHES [C3h]

Each PIO channel includes an activity latch that is set whenever there is a state transition at a PIO pin of duration
greater than t

PWMIN

. This change can be caused by an external event/signal or by writing to the PIO or by

generating a pulse. Depending on the application there may be a need to reset the activity latch after having
captured and serviced an external event. Since there is only read access to the PIO Activity Latch State Register,
the DS28E04-100 supports a special command to reset these latches. After having received the command code,
the device resets all activity latches simultaneously. There are two ways for the master to verify the execution of
the Reset Activity Latches command. One way is to start reading from the 1-Wire line right after the command code
is transmitted. In this case, the master reads AAh bytes until it sends a 1-Wire reset. The other way is reading
register address 0222h.

1-Wire BUS SYSTEM

The 1-Wire bus is a system that has a single bus master and one or more slaves. In all instances the DS28E04-
100 is a slave device. The bus master is typically a microcontroller. The discussion of this bus system is broken
down into three topics: hardware configuration, transaction sequence, and 1-Wire signaling (signal types and
timing). The 1-Wire protocol defines bus transactions in terms of the bus state during specific time slots, which are
initiated on the falling edge of sync pulses from the bus master.

HARDWARE CONFIGURATION

The 1-Wire bus has only a single line by definition; it is important that each device on the bus be able to drive it at
the appropriate time. To facilitate this, each device attached to the 1-Wire bus must have open-drain or tri-state
outputs. The 1-Wire port of the DS28E04-100 is open drain with an internal circuit equivalent to that shown in
Figure 13.

A multidrop bus consists of a 1-Wire bus with multiple slaves attached. The DS28E04-100 supports both a
standard and Overdrive communication speed of 15.4kbps (max) and 111kbps (max), respectively. Note that
legacy 1-Wire products support a standard communication speed of 16.3kbps and Overdrive of 142kbps. The
slightly reduced rates for the DS28E04-100 are a result of additional recovery times, which in turn were driven by a
1-Wire physical interface enhancement to improve noise immunity. The value of the pullup resistor primarily
depends on the network size and load conditions. The DS28E04-100 requires a pullup resistor of 2.2k

W (max) at

any speed.

The idle state for the 1-Wire bus is high. If, for any reason, a transaction needs to be suspended, the bus MUST be
left in the idle state if the transaction is to resume. If this does not occur and the bus is left low for more than 16µs
(Overdrive speed) or more than 120µs (standard speed), one or more devices on the bus can be reset.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

23 of 36

Figure 13. Hardware Configuration

Open-Drain

Port Pin

RX = RECEIVE

TX = TRANSMIT

100

MOSFET

PUP

DATA

PUP

11µA
Max.

BUS MASTER

DS28E04 1-Wire PORT

TRANSACTION SEQUENCE

The protocol for accessing the DS28E04-100 through the 1-Wire port is as follows:

§ Initialization

§ ROM Function Command

§ Memory/Control Function Command

§ Transaction/Data

INITIALIZATION

All transactions on the 1-Wire bus begin with an initialization sequence. The initialization sequence consists of a
reset pulse transmitted by the bus master followed by presence pulse(s) transmitted by the slave(s). The presence
pulse lets the bus master know that the DS28E04-100 is on the bus and is ready to operate. For more details, see
the 1-Wire Signaling section.

1-Wire ROM FUNCTION COMMANDS

Once the bus master has detected a presence, it can issue one of the eight ROM function commands that the
DS28E04-100 supports. All ROM function commands are 8 bits long. A list of these commands follows (refer to the
flow chart in Figure 14).

READ ROM [33h]

This command allows the bus master to read the DS28E04-100's 8-bit family code, unique 40-bit serial number, 8-
bit address byte, and 8-bit CRC. The lower order 7 bits of the address byte read back the state of the address pins
A6 to A0. See also Figure 3. This command can only be used if there is a single slave on the bus. If more than one
slave is present on the bus, a data collision occurs when all slaves try to transmit at the same time (open drain
produces a wired-AND result). The resultant family code and 48-bit serial number result in a mismatch of the CRC.
Note that there will also be a CRC mismatch if one or more of the external address inputs are connected to GND.
The ROM CRC is hardcoded with A6 to A0 set to 1s. The master should comprehend this and calculate the ROM
CRC similarly.

MATCH ROM [55h]

The Match ROM command, followed by a 64-bit ROM sequence, allows the bus master to address a specific
DS28E04-100 on a multidrop bus. Only the DS28E04-100 that exactly matches the 64-bit ROM sequence,
including the external address, responds to the following Memory/Control Function command. All other slaves wait
for a reset pulse. This command can be used with a single or multiple devices on the bus.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

24 of 36

SEARCH ROM [F0h]

When a system is initially brought up, the bus master might not know the number of devices on the 1-Wire bus or
their device ID numbers. By taking advantage of the wired-AND property of the bus, the master can use a process
of elimination to identify the device ID numbers of all slave devices. For each bit of the device ID number, starting
with the least significant bit, the bus master issues a triplet of time slots. On the first slot, each slave device
participating in the search outputs the true value of its device ID number bit. On the second slot, each slave device
participating in the search outputs the complemented value of its device ID number bit. On the third slot, the master
writes the true value of the bit to be selected. All slave devices that do not match the bit written by the master stop
participating in the search. If both of the read bits are zero, the master knows that slave devices exist with both
states of the bit. By choosing which state to write, the bus master branches in the romcode tree. After one complete
pass, the bus master knows the device ID number of a single device. Additional passes identify the device ID
numbers of the remaining devices. Refer to Application Note 187: 1-Wire Search Algorithm for a detailed
discussion, including an example.

Note: Since the DS28E04-100 lasered ROM CRC is calculated assuming the address inputs are all logic 1, then
any address inputs that are connected to GND are not validated. It is recommended to do a double search when
building a list of devices on the 1-Wire line.

CONDITIONAL SEARCH [ECh]

The Conditional Search ROM command operates similarly to the Search ROM command except that only those
devices, which fulfill certain conditions (CSR = 1), will participate in the search. This function provides an efficient
means for the bus master to identify devices on a multidrop system that have to signal an important event. After
each pass of the conditional search that successfully determined the 64-bit ROM code for a specific device on the
multidrop bus, that particular device can be individually accessed as if a Match ROM had been issued, since all
other devices will have dropped out of the search process and will be waiting for a reset pulse. The DS28E04-100
responds to the conditional search if the CSR signal is active. See the description of the registers at addresses
0223h to 0225h and Figure 7 for more details.

SKIP ROM [CCh]

This command can save time in a single-drop bus system by allowing the bus master to access the memory
functions without providing the 64-bit ROM code. If more than one slave is present on the bus and, for example, a
Read command is issued following the Skip ROM command, data collision occurs on the bus as multiple slaves
transmit simultaneously (open-drain pulldowns produce a wired-AND result).

RESUME [A5h]

To maximize the data throughput in a multidrop environment, the Resume function is available. This function
checks the status of the RC bit and, if it is set, directly transfers control to the Memory functions, similar to a Skip
ROM command. The only way to set the RC bit is through successfully executing the Match ROM, Search ROM, or
Overdrive Match ROM command. Once the RC bit is set, the device can repeatedly be accessed through the
Resume Command function. Accessing another device on the bus clears the RC bit, preventing two or more
devices from simultaneously responding to the Resume Command function.

OVERDRIVE SKIP ROM [3Ch]

On a single-drop bus this command can save time by allowing the bus master to access the memory functions
without providing the 64-bit ROM code. Unlike the normal Skip ROM command, the Overdrive Skip ROM sets the
DS28E04-100 in the Overdrive mode (OD = 1). All communication following this command has to occur at
Overdrive speed until a reset pulse of minimum 480µs duration resets all devices on the bus to standard speed
(OD = 0).

When issued on a multidrop bus, this command sets all Overdrive-supporting devices into Overdrive mode. To
subsequently address a specific Overdrive-supporting device, a reset pulse at Overdrive speed has to be issued
followed by a Match ROM or Search ROM command sequence. This speeds up the time for the search process. If
more than one slave supporting Overdrive is present on the bus and the Overdrive Skip ROM command is followed
by a Read command, data collision occurs on the bus as multiple slaves transmit simultaneously (open-drain
pulldowns produce a wired-AND result).

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

25 of 36

Figure 14-1. ROM Functions Flow Chart

From Figure 14

Part

To Memory Functions

Flow Chart (Figure 9)

Master TX Bit 0

Master TX Bit 63

Master TX Bit 1

RC = 1

DS28E04 TX

Family Code

(1 Byte)

Bit 0

Match?

Bit 1

Match?

Bit 63

Match?

DS28E04 TX Bit 0
DS28E04 TX Bit 0

Master TX Bit 0

DS28E04 TX Bit 1
DS28E04 TX Bit 1

Master TX Bit 1

DS28E04

TX Bit 63

DS28E04

TX Bit 63

Master TX Bit 63

RC = 1

Bit 0

Match?

Bit 1

Match?

Bit 63

Match?

To Figure 14

Part

RC = 0

F0h

Search ROM

Command?

55h

Match ROM

Command?

ECh

Cond. Search

Command?

33h

Read ROM

Command?

To Figure 14

Part

From Memory Functions

Flow Chart (Figure 9)

Bus Master TX ROM

Function Command

DS28E04 TX

Presence Pulse

Reset Pulse?

OD = 0

Bus Master TX

Reset Pulse

From Figure 14, 2

Part

CSR = 1?

DS28E04 TX Bit 0
DS28E04 TX Bit 0

Master TX Bit 0

DS28E04 TX Bit 1
DS28E04 TX Bit 1

Master TX Bit 1

DS28E04

TX Bit 63

DS28E04

TX Bit 63

Master TX Bit 63

RC = 1

Bit 0

Match?

Bit 1

Match?

Bit 63

Match?

DS28E04 TX

CRC Byte

DS28E04 TX

Ext. Address

(7 bits)

DS28E04 TX

Serial Number

(40 bits)

DS28E04 TX

"0" (1 bit)

The CRC is hard-coded assuming
all external address bits are 1's.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

27 of 36

OVERDRIVE MATCH ROM [69h]

The Overdrive Match ROM command followed by a 64-bit ROM sequence transmitted at Overdrive speed allows
the bus master to address a specific DS28E04-100 on a multidrop bus and to simultaneously set it in Overdrive
mode. Only the DS28E04-100 that exactly matches the 64-bit ROM sequence responds to the subsequent
Memory/Control Function command. Slaves already in Overdrive mode from a previous Overdrive Skip or
successful Overdrive Match command remain in Overdrive mode. All overdrive-capable slaves return to standard
speed at the next Reset Pulse of minimum 480µs duration. The Overdrive Match ROM command can be used with
a single or multiple devices on the bus.

1-Wire SIGNALING

The DS28E04-100 requires strict protocols to ensure data integrity. The protocol consists of four types of signaling
on one line: Reset Sequence with Reset Pulse and Presence Pulse, Write-Zero, Write-One, and Read-Data.
Except for the Presence pulse, the bus master initiates all falling edges. The DS28E04-100 can communicate at
two different speeds, standard speed, and Overdrive speed. If not explicitly set into the Overdrive mode, the
DS28E04-100 communicates at standard speed. While in Overdrive Mode, the fast timing applies to all waveforms.

To get from idle to active, the voltage on the 1-Wire line needs to fall from V

PUP

below the threshold V

. To get

from active to idle, the voltage needs to rise from V

ILMAX

past the threshold V

. The time it takes for the voltage to

make this rise is seen in Figure 15 as '

e' and its duration depends on the pullup resistor (R

PUP

) used and the

capacitance of the 1-Wire network attached.

The voltage V

ILMAX

is relevant for the DS28E04-100 when determining

a logical level, not triggering any events.

Figure 15 shows the initialization sequence required to begin any communication with the DS28E04-100. A Reset
Pulse followed by a Presence Pulse indicates the DS28E04-100 is ready to receive data, given the correct ROM
and Memory/Control Function command. If the bus master uses slew-rate control on the falling edge, it must pull
down the line for t

RSTL

+ t

to compensate for the edge. A t

RSTL

duration of 480µs or longer exits the Overdrive

Mode, returning the device to standard speed. If the DS28E04-100 is in Overdrive Mode and t

RSTL

is no longer than

80µs, the device remains in Overdrive Mode. If the device is in Overdrive Mode and t

RSTL

is between 80µs and

480µs, the device will reset, but the communication speed is undetermined.

Figure 15. Initialization Procedure: Reset and Presence Pulse

RESISTOR

MASTER

DS28E04

RSTL

PDL

RSTH

PDH

MASTER TX "RESET PULSE" MASTER RX "PRESENCE PULSE"

PUP

IHMASTER

ILMAX

REC

MSP

After the bus master has released the line, it goes into receive mode. Now the 1-Wire bus is pulled to V

PUP

through

the pullup resistor, or in case of a DS2482-x00 or DS2480B driver, by active circuitry. When the threshold V

crossed, the DS28E04-100 waits for t

PDH

and then transmits a Presence Pulse by pulling the line low for t

PDL

. To

detect a presence pulse, the master must test the logical state of the 1-Wire line at t

MSP

The t

RSTH

window must be at least the sum of t

PDHMAX

, t

PDLMAX

, and t

RECMIN

. Immediately after t

RSTH

is expired, the

DS28E04-100 is ready for data communication. In a mixed population network, t

RSTH

should be extended to

minimum 480µs at standard speed and 48µs at Overdrive speed to accommodate other 1-Wire devices.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

28 of 36

Read/Write Time Slots

Data communication with the DS28E04-100 takes place in time slots, which carry a single bit each. Write time slots
transport data from bus master to slave. Read time slots transfer data from slave to master. Figure 16 illustrates
the definitions of the write and read time slots.

All communication begins with the master pulling the data line low. As the voltage on the 1-Wire line falls below the
threshold V

, the DS28E04-100 starts its internal timing generator that determines when the data line is sampled

during a write time slot and how long data is valid during a read time slot.

Figure 16. Read/Write Timing Diagram

Write-One Time Slot

RESISTOR

MASTER

PUP

IHMASTER

ILMAX

SLOT

W1L

Write-Zero Time Slot

RESISTOR

MASTER

REC

PUP

IHMASTER

ILMAX

SLOT

W0L

Read-Data Time Slot

RESISTOR

MASTER

DS28E04

REC

PUP

IHMASTER

ILMAX

Master

Sampling

Window

SLOT

MSR

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

29 of 36

Master-to-Slave

For a write-one time slot, the voltage on the data line must have crossed the V

threshold before the write-one

low time t

W1LMAX

is expired. For a write-zero time slot, the voltage on the data line must stay below the V

threshold until the write-zero low time t

W0LMIN

is expired. For the most reliable communication, the voltage on the

data line should not exceed V

ILMAX

during the entire t

W0L

or t

W1L

window. After the V

threshold has been crossed,

the DS28E04-100 needs a recovery time t

REC

before it is ready for the next time slot.

Slave-to-Master

A read-data time slot begins like a write-one time slot. The voltage on the data line must remain below V

until the

read low time t

is expired. During the t

window, when responding with a 0, the DS28E04-100 starts pulling the

data line low; its internal timing generator determines when this pulldown ends and the voltage starts rising again.
When responding with a 1, the DS28E04-100 does not hold the data line low at all, and the voltage starts rising as
soon as t

is over.

The sum of t

d (rise time) on one side and the internal timing generator of the DS28E04-100 on the other side

define the master sampling window (t

MSRMIN

to t

MSRMAX

) in which the master must perform a read from the data line.

For the most reliable communication, t

should be as short as permissible, and the master should read close to

but no later than t

MSRMAX

. After reading from the data line, the master must wait until t

SLOT

is expired. This

guarantees sufficient recovery time t

REC

for the DS28E04-100 to get ready for the next time slot. Note that t

REC

specified herein applies only to a single DS28E04-100 attached to a 1-Wire line. For multidevice configurations,
t

REC

needs to be extended to accommodate the additional 1-Wire device input capacitance. Alternatively, an

interface that performs active pullup during the 1-Wire recovery time such as the DS2482-x00 or DS2480B 1-Wire
line drivers can be used.

IMPROVED NETWORK BEHAVIOR (SWITCHPOINT HYSTERESIS)

In a 1-Wire environment, line termination is possible only during transients controlled by the bus master (1-Wire
driver). 1-Wire networks, therefore, are susceptible to noise of various origins. Depending on the physical size and
topology of the network, reflections from end points and branch points can add up, or cancel each other to some
extent. Such reflections are visible as glitches or ringing on the 1-Wire communication line. Noise coupled onto the
1-Wire line from external sources can also result in signal glitching. A glitch during the rising edge of a time slot can
cause a slave device to lose synchronization with the master and, consequently, result in a search ROM command
coming to a dead end or cause a device-specific function command to abort. For better performance in network
applications, the DS28E04-100 uses a new 1-Wire front end, which makes it less sensitive to noise and also
reduces the magnitude of noise injected by the slave device itself.

The 1-Wire front end of the DS28E04-100 differs from traditional slave devices in four characteristics.
1) The falling edge of the presence pulse has a controlled slew rate. This provides a better match to the line

impedance than a digitally switched transistor, converting the high-frequency ringing known from traditional
devices into a smoother low-bandwidth transition. The slew-rate control is specified by the parameter t

FPD

which has different values for standard and Overdrive speed.

2) There is additional lowpass filtering in the circuit that detects the falling edge at the beginning of a time slot.

This reduces the sensitivity to high-frequency noise. This additional filtering does not apply at Overdrive speed.

3) There is a hysteresis at the low-to-high switching threshold V

. If a negative glitch crosses V

but does not go

below V

- V

, it will not be recognized (Figure 17, Case A). The hysteresis is effective at any 1-Wire speed.

4) There is a time window specified by the rising edge hold-off time t

REH

during which glitches are ignored, even if

they extend below V

- V

threshold (Figure 17, Case B, t

< t

REH

). Deep voltage droops or glitches that

appear late after crossing the V

threshold and extend beyond the t

REH

window cannot be filtered out and are

taken as the beginning of a new time slot (Figure 17, Case C, t

³ t

REH

Only devices that have the parameters t

FPD

, V

, and t

REH

specified in their electrical characteristics use the

improved 1-Wire front end.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

30 of 36

Figure 17. Noise Suppression Scheme

PUP

REH

Case A

Case C

Case B

CRC GENERATION

With the DS28E04-100 there are two different types of CRCs. One CRC is an 8-bit type and is stored in the most
significant byte of the 64-bit ROM. The bus master can compute a CRC value from the first 56 bits of the ROM and,
if none of the address inputs is connected to GND, compare it to the value stored within the DS28E04-100 to
determine whether the ROM data has been received error-free. If any of the address pins are connected to GND,
the bus master can calculate the CRC based on an all 1s external address field to determine whether the non-
external address ROM data has been received error-free. The equivalent polynomial function of this CRC is X

+ X

+ 1. This 8-bit CRC is received in the true (noninverted) form. It is computed at the factory and hardcoded into

the ROM.

The other CRC is a 16-bit type, generated according to the standardized CRC16-polynomial function x

+ x

+ 1. This CRC is used for fast verification of a data transfer when writing to or reading from the scratchpad or when
reading from the PIOs. In contrast to the 8-bit CRC, the 16-bit CRC is always communicated in the inverted form. A
CRC generator inside the DS28E04-100 chip (Figure 18) calculates a new 16-bit CRC, as shown in the command
flow chart (Figure 9). The bus master compares the CRC value read from the device to the one it calculates from
the data, and decides whether to continue with an operation or to reread the portion of the data with the CRC error.

With the Write Scratchpad command, the CRC is generated by first clearing the CRC generator and then shifting in
the command code, the target addresses TA1 and TA2, and all the data bytes as they were sent by the bus
master. The DS28E04-100 transmits this CRC only if E4:E0 = 11111b, i.e., the end of the scratchpad is hit.

With the Read Scratchpad command, the CRC is generated by first clearing the CRC generator and then shifting in
the Command code, the target addresses TA1 and TA2, the E/S byte, and the scratchpad data as they were sent
by the DS28E04-100. The DS28E04-100 transmits this CRC only if the reading continues through the end of the
data written in the previous write scratchpad sequence. Example: if one writes a single byte to the scratchpad and
then reads the scratchpad, one will receive a CRC of the command, TA1, TA2, and the data byte.

With the initial pass through the PIO Access Read command flow, the CRC is generated by first clearing the CRC
generator and then shifting in the command code followed by 32 bytes of PIO pin data. Subsequent passes
through the command flow generate a 16-bit CRC that is the result of clearing the CRC generator and then shifting
in 32 bytes read from the PIO pins. For more information on generating CRC values, refer to Application Note 27.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

31 of 36

Figure 18. CRC-16 Hardware Description and Polynomial

Polynomial = X

+ X

+ 1

STAGE

INPUT DATA

CRC
OUTPUT

COMMAND-SPECIFIC 1-Wire COMMUNICATION PROTOCOL--LEGEND

SYMBOL DESCRIPTION

RST

1-Wire Reset Pulse generated by master.

1-Wire Presence Pulse generated by slave.

Select

Command and data to satisfy the ROM function protocol.

Command "Write Scratchpad".

Command "Read Scratchpad".

CPS

Command "Copy Scratchpad".

Command "Read Memory".

WREG

Command "Write Register".

PIOR

Command "PIO Access Read".

PIOW

Command "PIO Access Write".

PIOP

Command "PIO Access Pulse".

RAL

Command "Reset Activity Latches".

Target address TA1, TA2.

TA-E/S

Target address TA1, TA2 with E/S byte.

<32 T4:T0 bytes>

Transfer of as many bytes as needed to reach the end of the scratchpad for a given
target address.

Transfer of as many data bytes as are needed to reach the end of the memory.

Data for registers at addresses 223h to 225h, 1 to 3 bytes, depending on start address.

CRC16\

Transfer of an inverted CRC16.

FF loop

Indefinite loop where the master reads FF bytes.

AA loop

Indefinite loop where the master reads AA bytes.

Programming

Data transfer to EEPROM; no activity on the 1-Wire bus permitted during this time.

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

34 of 36

MEMORY FUNCTION EXAMPLE

Write 5 bytes to memory page 1, starting at address 0021h. Read the entire memory and the PIO-related registers.
With only a single DS28E04-100

connected to the bus master, the communication looks like this:

MASTER MODE

DATA (LSB FIRST)

COMMENTS

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

0Fh

Issue "Write Scratchpad" command

21h

TA1, beginning offset = 21h

00h

TA2, address = 0021h

<5 data bytes>

Write 5 bytes of data to scratchpad

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

AAh

Issue "Read Scratchpad" command

21h

Read TA1, beginning offset = 21h

00h

Read TA2, address = 0021h

05h

Read E/S, ending offset = 00101b, AA, PF = 0

<5 data bytes>

Read scratchpad data and verify

<2 bytes CRC16\>

Read CRC to check for data integrity

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

55h

Issue "Copy Scratchpad" command

TX 21h

TA1

00h

TA2

(AUTHORIZATION CODE)

TX 05h

E/S

----

<1-Wire idle high>

Wait 10ms for the copy function to complete

AAh

Read copy status, AAh = success

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

F0h

Issue "Read Memory" command

00h

TA1, beginning offset = 00h

00h

TA2, address = 0000h

<550 data bytes>

Read the entire memory

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

35 of 36

PIO ACCESS READ EXAMPLE

Read the state of the PIOs 32 times.
With only a single DS28E04-100

connected to the bus master, the communication looks like this:

MASTER MODE

DATA (LSB FIRST)

COMMENTS

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

F5h

Issue "PIO Access Read" command

<32 data bytes>

Read 32 PIO samples

<2 bytes CRC16\>

Read CRC to check for data integrity

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

The inverted CRC16 is transmitted after 32 bytes of PIO data.

PIO ACCESS WRITE EXAMPLE

Set both PIOs to 0 and then to 1. Both PIOs are pulled high to V

or V

PUP

by a resistor.

With only a single DS28E04-100

connected to the bus master, the communication looks like this:

MASTER MODE

DATA (LSB FIRST)

COMMENTS

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

5Ah

Issue "PIO Access Write" command

FCh

Write new PIO output state

03h

Write inverted new PIO output state

AAh

Read confirmation byte

FCh

Read new PIO pin status

FFh

Write new PIO output state

00h

Write inverted new PIO output state

AAh

Read confirmation byte

FFh

Read new PIO pin status

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

DS28E04-100: 4096-Bit 1-Wire Addressable EEPROM with PIO

36 of 36

PIO ACCESS PULSE EXAMPLE

Generate a pulse on PIO1. Both PIOs are pulled high to V

by a resistor. POL = 1. V

power is present.

With only a single DS28E04-100

connected to the bus master, the communication looks like this:

MASTER MODE

DATA (LSB FIRST)

COMMENTS

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

CCh

Issue "Skip ROM" command

A5h

Issue "PIO Access Pulse" command

FEh

Write PIO selection mask

01h

Write inverted PIO selection mask

AAh

Read confirmation byte

1111110Xb

Read PIO pin status

TX (Reset)

Reset

pulse

RX (Presence)

Presence

pulse

The "X" indicates the state of PIO0, which is not defined in this example.

PACKAGE INFORMATION

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to

www.maxim-ic.com/DallasPackInfo

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: DS28E04S-100/T&R

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: DS28E04S-100/T&R
