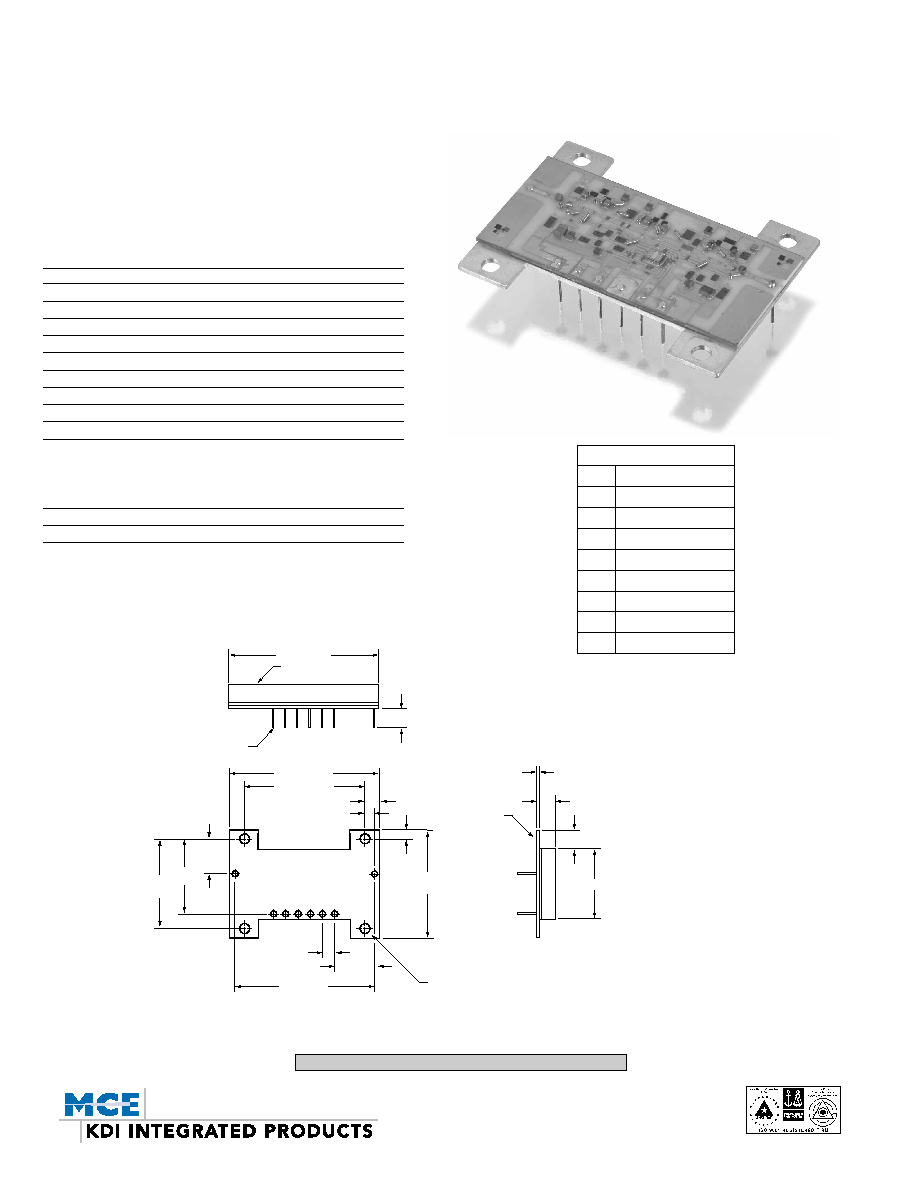

PIN DIODE
ATTENUATOR, DIGITAL CELLULAR DAS-A11S
3 BIT PLUS "OFF" SWITCH 800900 MHz
GENERAL INFORMATION
The Model DAS-A11S is a pin diode switched type with series attenua-
tors in a sealed thick film hybrid pin package. The unit includes an extin-
guish switch which provides a total of 65 dB isolation above insertion
loss. The pin diodes provide a robust semiconductor which is often
preferred over GaAs for ESD and sensitivity to voltage spikes. Other
values of attenuation can be provided upon request.
GENERAL SPECIFICATIONS
Model: DAS-A11S
Frequency Range: 800900 MHz
Insertion Loss: 2 dB maximum
VSWR: 1.4 maximum
Isolation: 65 dB minimum. (Above Insertion Loss)
Attenuation Range: 0-28 dB
Accuracy: 0.5 dB
Bit Values: 4,8 & 16 dB
RF Power: +20 dBm maximum
DC Power: +5V DC 0.5V
Logic:
Attenuation: Logic `0' = Thru
Logic `1' = Attenuation
Switch: Logic `0' = Thru
Logic `1' = Attenuation
Type: Pin Diode
Package: Pin Type
PIN REF DES
1
2
3 16 dB
4 8 dB
5 DC GND
6 4 dB
7
8
+5V
EXTINGUISH(MUTE)
RF IN/OUT
RF IN/OUT
PIN DESIGNATION CHART
SILVER PLATED
ALUM CARRIER
.03[0,76]
.15[3,8]
.20[5,1] MIN.
.155[3,94]
COVER
EPOXY SEALED
.35[8,9]
1.45[36,83]
.75[19,1]
.412
[10,46]
.900[22,9]
.125[3,18]
(5)PLS.
.10[2,5]
1.55[39,37]
.230[5,84]
.19[4,83]
.70[17,8]
1.25[31,75]
.020[0,51] DIA. GOLD PLATED
KOVAR PINS (8)PLS.
8
7 6 5 4 3 2
1
1.08
[27,43]
.
0
9
[
2
,
2
9
]
T
Y
P
.
.102[2,59] DIA. THRU
(4) MTG. HOLES
11-5-02
KEY: Inches[Millimeters] .XX .03 .XXX .010 [.X 0.8 .XX 0.25]
