MIC2550
MIC2550
Micrel
MIC2550
Universal Serial Bus Transceiver
Final Information

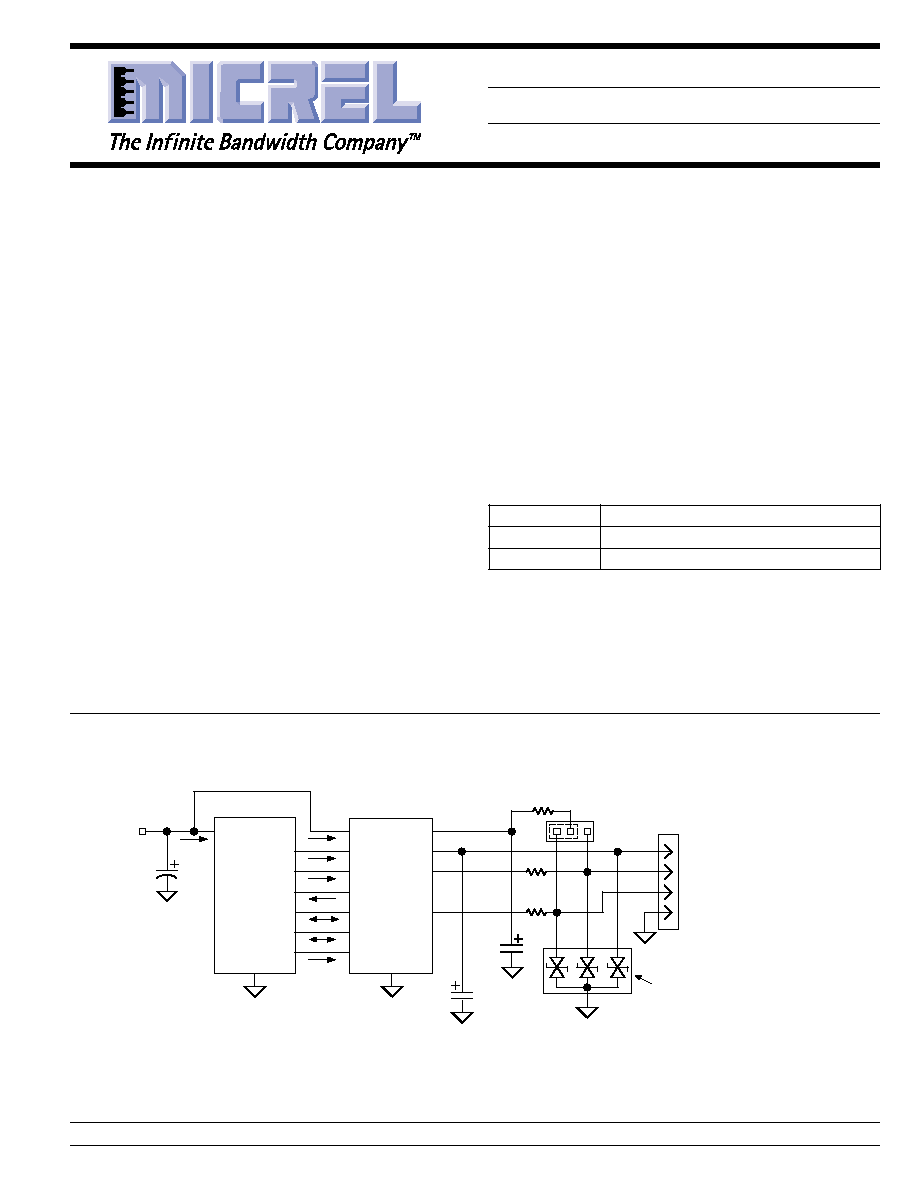

General Description
The MIC2550 is a single-chip transceiver that complies with
the physical layer specifications for Universal Serial Bus
(USB).
The MIC2550 supports full-speed (12Mbps) dual supply
voltage operation (patent pending) and low-speed (1.5Mbps)
operation.
A unique dual supply voltage operation allows the MIC2550
to reference the system I/F I/O signals to a supply voltage
down to 2.5V while independently powered by the USB V
BUS
.
This allows the system interface to operate at its core voltage
without addition of buffering logic and also reduce system
operating current.
System Diagram
Features
Compliant to USB Specification Revision 2.0 for
low-speed (1.5Mbps) and full-speed (12Mbps) operation
Compliant to IEC-61000-4.2 (Level 2)
Operation down to 2.5V
Dual supply voltage operation
Integrated speed-select termination supply
Very low power consumption meets USB suspend-
current requirements
Small 14-pin TSSOP and 16-pin
MLFTM packages
Applications
Personal digital assistants (PDA)
Palmtop computers
Cellular telephones
Ordering Information
Part Number
Package
MIC2550BTS
14-Pin TSSOP
MIC2550BML
16-Pin MLFTM
System
Supply Voltage
System
Interface
VIF
SPD
OE#
RCV
VP
D
VM
D
D+
VBUS
VTRM
GND
D
D+
V
BUS
USB
Interface
Connector
41206ESDA SurgX
GND
R
S
24
R
S
24
1.5k
GND
HIGH
SPEED
LOW
SPEED
MIC2550
SUS
1
F
1
F min
10
F max
0.47
F
(See "Applications Information"
for additional suppliers.)
Micrel, Inc. 1849 Fortune Drive San Jose, CA 95131 USA tel + 1 (408) 944-0800 fax + 1 (408) 944-0970 http://www.micrel.com
MicroLeadFrame and MLF are trademarks of Amkor Technology.
SurgX is a registered trademark of Cooper Electronics Technologies.
MIC2550
Micrel
MIC2550
2
January 2003
Pin Description
Pin Name
Pin Number
Pin Number
Pin Function
MIC2550BTS
MIC2550BML
VIF
1
15
System Interface Supply Voltage (Input): Determines logic voltage levels for
system interface signaling to logic controller.
SPD
2
1
Speed (Input): Edge rate control. Logic high selects full-speed edge rates.
Logic low selects low-speed edge rates.
RCV
3
2
Receive Data (Output): System interface receive data interface to logic
controller.
VP
4
3
Plus (Input/Output): System interface signal to logic controller. If OE# is
logic 1, VP is a receiver output (+); If OE# is logic 0, VP is a driver input (+).
VM
5
4
Minus (Input/Output): System interface signal to logic controller. If OE# is
logic 1, VM is a receiver output (); If OE# is logic 0, VM is a driver input ().
NC
6, 13
5, 8, 13 16
Not internally connected.
GND
7
6
Ground: Power supply return and signal reference.
SUS
8
7
Suspend (Input): Logic high turns off internal circuits to reduce supply
current.
OE#
9
9
Output Enable (Input): Active-low system interface input signal from logic
controller. Logic low causes transceiver to transmit data onto the bus. Logic
high causes the transceiver to receive data from the bus.
D
10
10
USB Differential Data Line (Input/Output)
D+
11
11
USB Differential Data Line + (Input/Output)
VTRM
12
12
Termination Supply (Output): 3.3V speed termination resistor supply output.
VBUS
14
14
USB Supply Voltage (Input): Transceiver supply.
Pin Configuration
2
SPD
3
RCV
4
VP
5
VM
6
NC
7
GND
1
VIF
VBUS
14
NC
13
VTRM
12
D+
11
D
10
OE#
9
8
SUS
14-Pin TSSOP (TM)
1
2
3
4
12
11
10
9
16 15 14 13
5
6
7
8
SPD
RCV
VP
VM
VTRM
D+
D--
OE#
NC
VBUS
VIF
NC
NC
SUS
GND
NC
16-Pin MLFTM (ML)
January 2003
3
MIC2550
MIC2550
Micrel
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
IF
) ................................................... +6.5V
Input Voltage (V
BUS
) ........................ 0.5V(min)/5.5V(max)
Output Current (I
D+
, I
D
) ...........................................
50mA
Output Current (all others) .......................................
15mA
Input Current ............................................................
50mA
Power Dissipation (P
D
) ................................................ TBD
Storage Temperature (T
S
) ......................... 65
to +150
C
ESD, Note 3
V
BUS
, D+, D .........................................................
10kV
All other pins ...........................................................
2kV
Operating Ratings
(Note 2)
Supply Voltage (V
BUS
) ................................. 4.0V to 5.25V
Temperature Range (T
A
) ........................... 40
C to +85
C
Junction Temperature (T
J
) ........................................ 160
C
Package Thermal Resistance
TSSOP
(
JA
) ..................................................... 100
C/W
Electrical Characteristics
(Note 8)
T
A
= 25
C, bold values indicate 40
C
T
A
+85
C; typical values at V
BUS
= 5.0V, V
IF
= 3.0V; minimum and maximum values at
V
BUS
= 4.0V to 5.25V, V
IF
= 2.5V to 3.6V; unless noted.
Symbol
Parameter
Condition
Min
Typ
Max
Units
System and USB Interface DC Characteristics
V
BUS
USB Supply Voltage
4.0
5.25
V
V
IF
System I/F Supply Voltage
2.5
5.25
V
V
IL
Low-Level Input Voltage, Note 4
0.15V
IF
V
V
IH
High-Level Input Voltage, Note 4
0.85V
IF
V
V
OH
High-Level Output Voltage, Note 4
I
OH
= 20
A
0.9V
IF
V
V
OL
Low-Level Output Voltage, Note 4
I
OL
= 20
A
0.1
V
I
IL
Input Leakage Current, Note 4
5
A
I
IF
System I/F Supply Current
D and D+ are idle, V
IF
= 3.6V, V
BUS
= 5.25V
1
A
SUS = 1, OE# = 1
D and D+ are idle, V
IF
= 3.6V, V
BUS
= 5.25V
1
A
SUS = 0, OE# = 1
D and D+ active, C
LOAD
= 50pF, SPD = 1,
325
A
SUS = 0, V
IF
= 3.6V, OE# = 0, f = 6MHz,
Note 7
D and D+ active, C
LOAD
= 600pF, SPD = 0,
40
A
SUS = 0, V
IF
= 3.6V, OE# = 0, f = 750kHz,
Note 7
I
BUS
USB Supply Current
D and D+ are idle, V
BUS
= 5.25V, SPD = 0
140
200
A
SUS = 1, OE# = 1
D and D+ are idle, V
BUS
= 5.25V, SPD = 1
140
200
A
SUS = 1, OE# = 1
D and D+ are idle, V
BUS
= 5.25V, SPD = 0
140
200
A
SUS = 0, OE# = 0
D and D+ are idle, V
BUS
= 5.25V, SPD = 1
200
350
A
SUS = 0, OE# = 1
D and D+ active, C
LOAD
= 50pF, SPD = 1,
6.75
mA
SUS = 0, V
BUS
= 5.25V, f = 6MHz, Note 7
D and D+ active, C
LOAD
= 600pF, SPD = 0
4.25
mA
SUS = 0, V
BUS
= 5.25V, f = 750kHz, Note 7
V
TRM
Termination Voltage
I
TRM
= 2.5mA
3.0
3.6
V
ESD Protection
IEC-1000-4-2
Air Discharge
10 pulses
6
kV
(D+, D,
Contact Discharge
10 pulses
6
kV
V
BUS
only)
MIC2550
Micrel
MIC2550
4
January 2003
Symbol
Parameter
Condition
Min
Typ
Max
Units
Transceiver DC Characteristics
I
LO
Hi-Z State Data Line Leakage
0V < V
BUS
< 3.3V, D+, D, OE# = 1 pins only
10
+10
A
V
DI
Differential Input Sensitivity
|(D+) (D)|, V
IN
= 0.8V 2.5V
0.2
V
V
CM
Differential Common-Mode Range
Includes V
DI
range
0.8
2.5
V
V
SE
Single-Ended Receiver Threshold
0.8
2.0
V
Receiver Hysteresis, Note 6
200
mV
V
OL
Static Output Low, Note 5
OE# = 0, R
L
= 1.5k
to 3.6V
0.3
V
V
OH
Static Output High, Note 5
OE# = 0, R
L
= 15k
to GND
2.8
3.6
V
V
CRS
Output Signal Crossover Voltage
1.3
2.0
V
Note 6
C
IN
Transceiver Capacitance, Note 6
Pin to GND
20
pF
Z
DRV
Driver Output Resistance
Steady state drive, Note 6
6
18
Low-Speed Driver Characteristics, Note 7
t
R
Transition Rise Time
C
L
= 50pF
75
ns
C
L
= 600pF
300
ns
t
F
Transition Fall Time
C
L
= 50pF
75
ns
C
L
= 600pF
300
ns
t
R
/t
F
Rise and Fall Time Matching
T
R
T
F
80
125
%
V
CRS
Output Signal Crossover Voltage
1.3
2.0
V
Full-Speed Driver Characteristics, Note 7
t
R
Transition Rise Time
C
L
= 50pF
4
20
ns
t
F
Transition Fall Time
C
L
= 50pF
4
20
ns
t
R
/t
F
Rise and Fall Time Matching
T
R
T
F
90
111.11
%
V
CRS
Output Signal Crossover Voltage
1.3
2.0
V
Transceiver Timing, Note 7
t
PVZ
OE# to RCVR Tri-state Delay
Figure 1
15
ns
t
PZD
Receiver Tri-state to Transmit Delay
Figure 1
15
ns
t
PDZ
OE# to DRVR Tri-state Delay
Figure 1
15
ns
t
PZV
Driver Tri-state to Receiver Delay
Figure 1
15
ns
t
PLH
V+/V to D+/D Propagation Delay
Figure 4
15
ns
t
PHL
V+/V to D+/D Propagation Delay
Figure 4
15
ns
t
PLH
D+/D to RCV Propagation Delay
Figure 3
15
ns
t
PHL
D+/D to RCV Propagation Delay
Figure 3
15
ns
t
PLH
D+/D to V+/D Propagation Delay
Figure 3
8
ns
t
PHL
D+/D to V+/D Propagation Delay
Figure 3
8
ns
Note 1.
Exceeding the absolute maximum rating may damage the device.
Note 2.
The device is not guaranteed to function outside its operating rating.
Note 3.
Devices are ESD sensitive. Handling precautions recommended. Human body model, 1.5k in series with 100pF.
Note 4.
Applies to the VP, VM, RCV, OE#, SPD, and SUS pins.
Note 5.
Applies to D+, D.
Note 6.
Not production tested. Guaranteed by design.
Note 7.
Characterized specification(s), but not production tested.
Note 8.
Specification for packaged product only.
January 2003
5
MIC2550
MIC2550
Micrel
V
M
V
P
V
P
/V
M
t
PVZ
t
PZV
V
OE#
H
L
t
PZD
t
PZD
V
D+
/V
D
V
D
V
D+

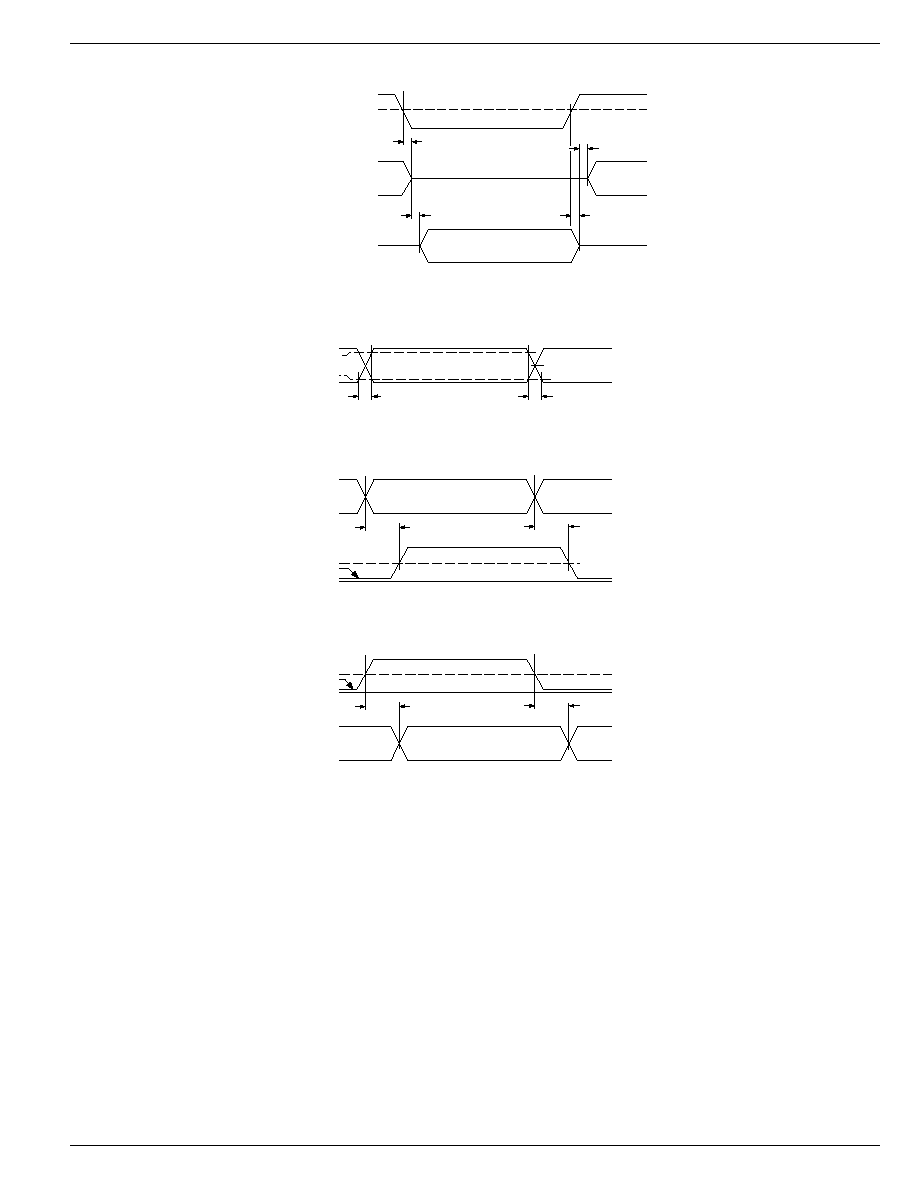

Figure 1. Enable and Disable Times
10%
V
D
V
D+
Differential
Data
Lines
90%
t
R
t
F
V
CRS
Figure 2. Rise and Fall Times
V
D
V
D+
Differential
Data
Lines
t
PLH
t
PHL
Output
V
OH
V
OL
V
SS
Figure 3. Receiver Propagation Delay D+/D to RCV, V
P
, and V
M
V
D
V
D+
Differential
Data
Lines
t
PLH
t
PHL
Input
V
OI
V
OL
V
SS
Figure 4. Driver Propagation Delay V
P
and V
M
to D+/D
Timing Diagrams
MIC2550
Micrel
MIC2550
6
January 2003
:
)
t
i
m
s
n
a
r
T
(
0
=
#
E
O
t
u
p
n
I
t
u
p
t
u
O
t
l
u
s
e
R
P
V
M
V
+
D
D
V
C
R
0
0
0
0
X
0
E
S
0
1
0
1
0
0
c
i
g
o
L
1
0
1
0
1
1
c
i
g
o
L
1
1
1
1
X
d
e
n
i
f
e
d
n
U
:
)
e
v
i
e
c
e
R
(
1
=
#
E
O
t
u
p
n
I
t
u
p
t
u
O
t
l
u
s
e
R
+
D
D
P
V
M
V
V
C
R
0
0
0
0
X
0
E
S
0
1
0
1
0
0
c
i
g
o
L
1
0
1
0
1
1
c
i
g
o
L
1
1
1
1
X
d
e
n
i
f
e
d
n
U
Table 1. Truth Table
Test Circuits
Device
Under
Test
50pF
24
For D+, D--:
V = 0V for t
PZH
and t
PHZ
V = V
BUS
for t
PZL
and t
PLZ
V
Test
Point
500

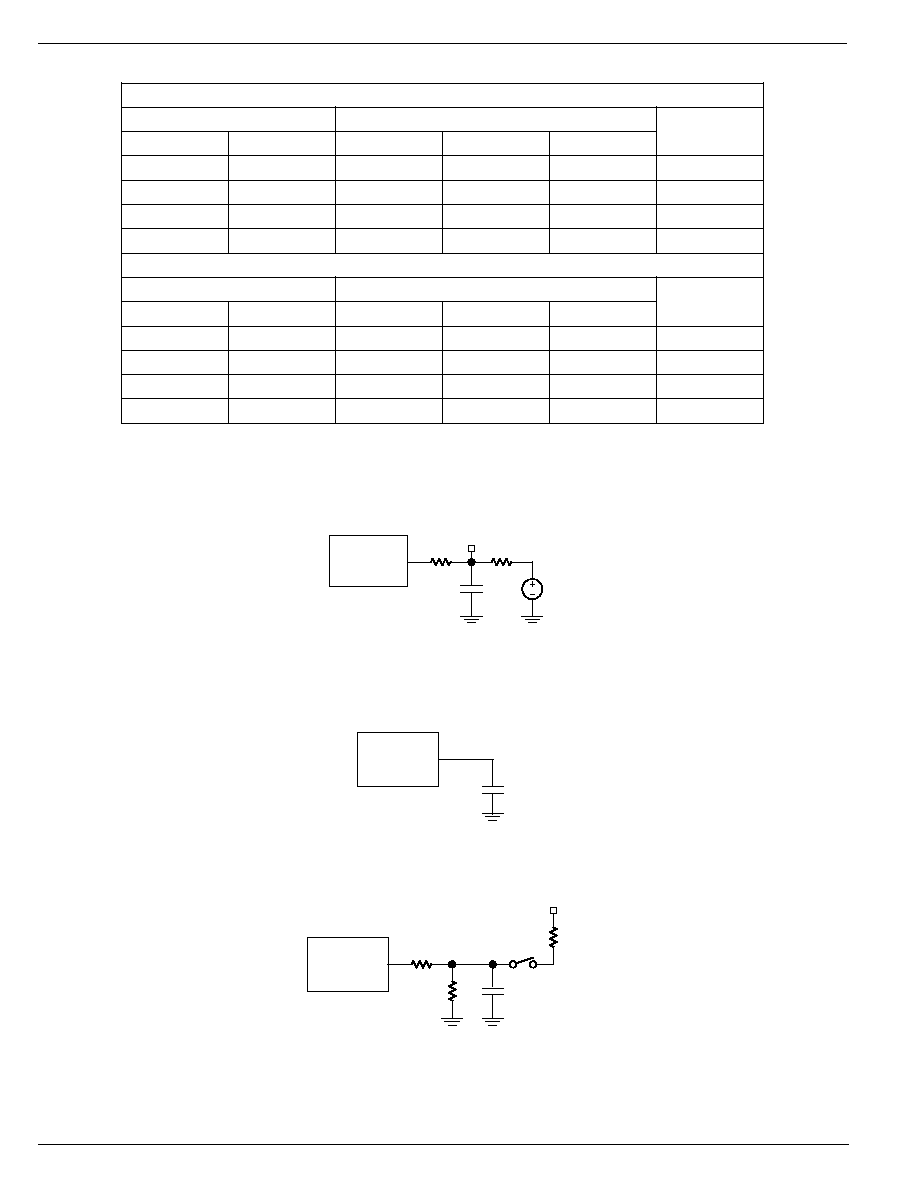

Figure 5. Load for Enable and Disable Time (D+, D)
Device
Under
Test
25pF
Figure 6. V
P
, V
M
and RCV Load
Device
Under
Test
15k
C
L
V
TRM
1.5k
*
24
C
L
= 50pF, full speed
C
L
= 50pF, low speed (minimum timing)
C
L
= 600pF, low speed (maximum timing)
*1.5k on D for low speed or D+ for high speed
Figure 7. D+ and D Load
January 2003
7
MIC2550
MIC2550
Micrel

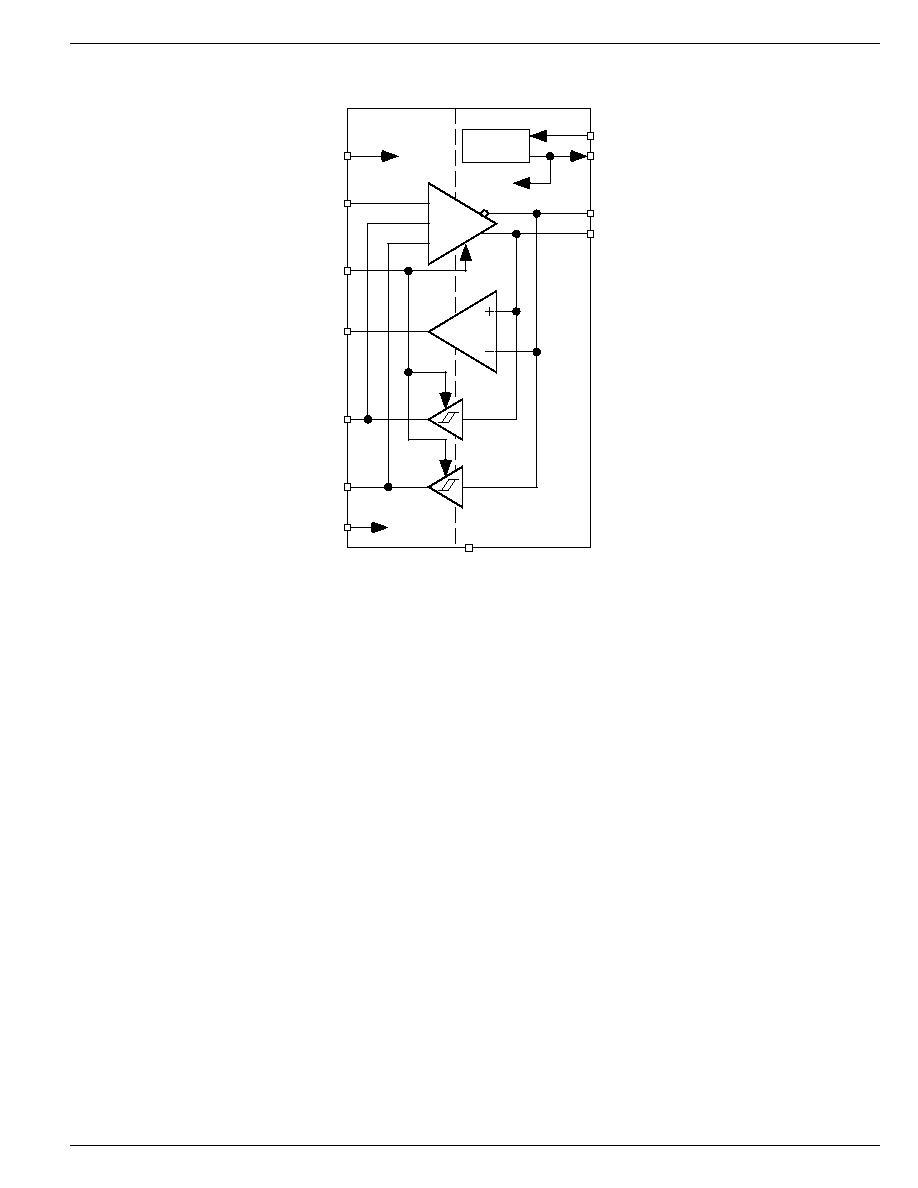

Block Diagram
Regulator
VM
GND
VP
RCV
OE#
SPD
VIF
D
D+
VBUS
VTRM
USB VOLTAGE DOMAIN
SYSTEM I/F
VOLTAGE DOMAIN
TO
INTERNAL
CIRCUITS
SUS
MIC2550
Micrel
MIC2550
8
January 2003
Applications Information
The MIC2550 is designed to provide USB connectivity in
mobile systems where system supply voltages are not avail-
able to satisfy USB requirements. The MIC2550 can operate
down to supply voltages of 2.5V and still meet USB physical
layer specifications. As shown in the system diagram, the
MIC2550 takes advantage of USB's supply voltage, V
BUS
, to
operate the transceiver. The system voltage, V
IF
, is used to
set the reference voltage used by the digital I/O lines (VP, VM,
RCV, OE#, SPD, and SUS pins) interfacing to the system.
Internal circuitry provides translation between the USB and
system voltage domains. V
IF
will typically be the main supply
voltage rail for the system.
In addition, a 3.3V, 10% termination supply voltage, V
TRM
, is
provided to support speed selection. A 0.47
F (minimum)
capacitor from V
TRM
to ground is required to ensure stability.
As shown in the typical application diagram, a 1
F capacitor
is recommended. A 1.5K resistor is required between this pin
and the D+ or D lines to respectively specify full-speed or
low-speed operation.
Power Supply Configurations
V
IF
/V
BUS
Switched
When the V
BUS
input pin is pulled to ground a low impedance
path between V
IF
and V
BUS
can cause a high current flow
from V
IF
to V
BUS
thereby damaging the MIC2550. This issue
can arise in systems where V
BUS
is driven from a power
supply that can be switched off such as in the case of a
desktop PC. Adding a Schottky diode, such as the ZHCS1000
by Zetex, in series with V
BUS
will prevent any current flow
during this condition. A solution is shown in Figure 8 below.
MIC2550
VIF
Note: *(Optional) See Text -
Power Supply Configurations
VBUS
1
F min
VBUS
USB Device
Power Controller
*(Optional)
D1
ZHCS1000 or
equivalent

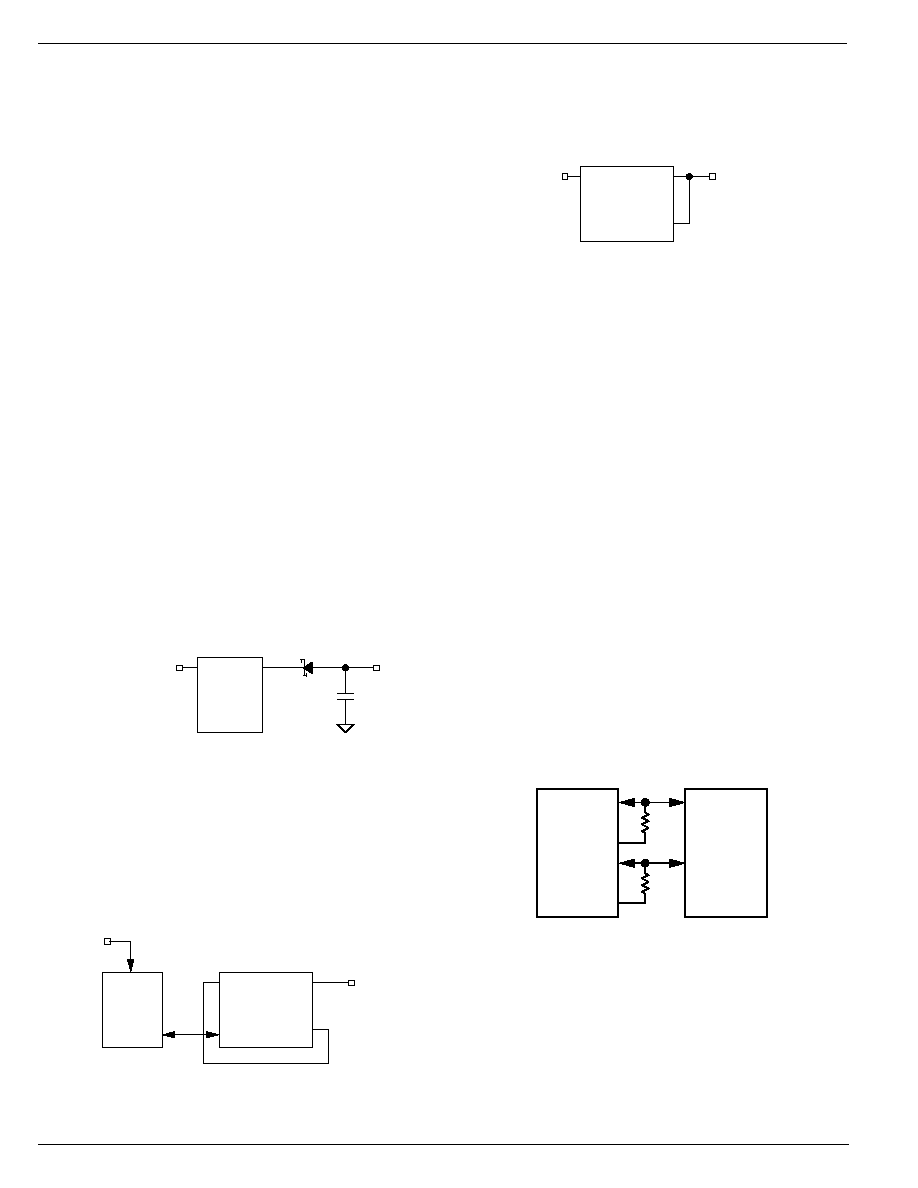

Figure 8. Solution to V
IF
/V
BUS
Switching
I/O Interface Using 3.3V
In systems where the I/O interface utilizes a 3.3V USB
controller, an alternate solution is shown in Figure 9. This
configuration has the advantage over Figure 8, in that no
extra components are needed. Ensure that the load on V
TRM
does not exceed 1mA total.
MIC2550
VIF
VBUS
I/O
VBUS
V
P
/V
M
/
RCV/OE#
VTRM
USB
Controller
V
DD
3.3V
Figure 9. I/O Interface Uses 3.3V
Internal 3.3V Source
If the device is self-powered and has 3.3V available, the
circuit in Figure 10 is yet another power supply configuration
option. In this configuration, the internal regulator is disabled
and the 3.3V source and not V
BUS
powers the entire chip.
MIC2550
VIF
3.3V
VBUS
VTRM
Figure 10. Powering Chip
from Internal 3.3V Source
Suspend
When the suspend pin (SUS) is high, power consumption is
reduced to a minimum. V
TRM
is not disabled. RCV, V
P
and V
M
are still functional to enable the device to detect USB activity.
For minimal current consumption in suspend mode, it is
recommended that OE# = 1.
External ESD Protection
The use of ESD transient protection devices is not required
for operation, but is recommended. We recommend the
following devices or the equivalent:
Cooper Electronics Technologies (
www.cooperet.com)
41206ESDA SurgX
0805ESDA SurgX
Littelfuse (
www.littelfuse.com)
V0402MHS05
SP0503BAHT
Non-Multiplexed Bus
To save pin count for the USB logic controller interface, the
MIC2550 was designed with V
P
and V
M
as bidirectional pins.
To interface the MIC2550 with a non-multiplexed data bus,
resistors can be used for low cost isolation as shown in
Figure 11.
V
PO
V
P
V
M
V
MO
USB Logic
Controller
(SIE)
MIC2550
V
P
V
M
10k
10k
Figure 11. MIC2550 Interface to
Non-Multiplexed Data Bus
January 2003
9
MIC2550
MIC2550
Micrel
PCB Layout Recommendations
Although the USB standard and applications are not based in
an impedance controlled environment, a properly designed
PCB layout is recommended for optimal transceiver perfor-
mance. The suggested PCB layout hints are as follows:
Match signal line traces (VP/VM, D+, D) to
40ps, approximately
1
/
3
inch if possible. FR-4
PCB material propagation is about 150ps/inch,
so to minimize skew try to keep VP/VM, D+/D
traces as short as possible.
For every signal line trace width (w), separate
the signal lines by 1.52 widths. Place all other
traces at >2 widths from all signal line traces.
Maintain the same number of vias on each
differential trace, keeping traces approximately
at same separation distance along the line.
Control signal line impedances to
10%.
Keep R
S
as close to the IC as possible, with
equal distance between R
S
and the IC for both
D+ and D.
MIC2550
Micrel
MIC2550
10
January 2003

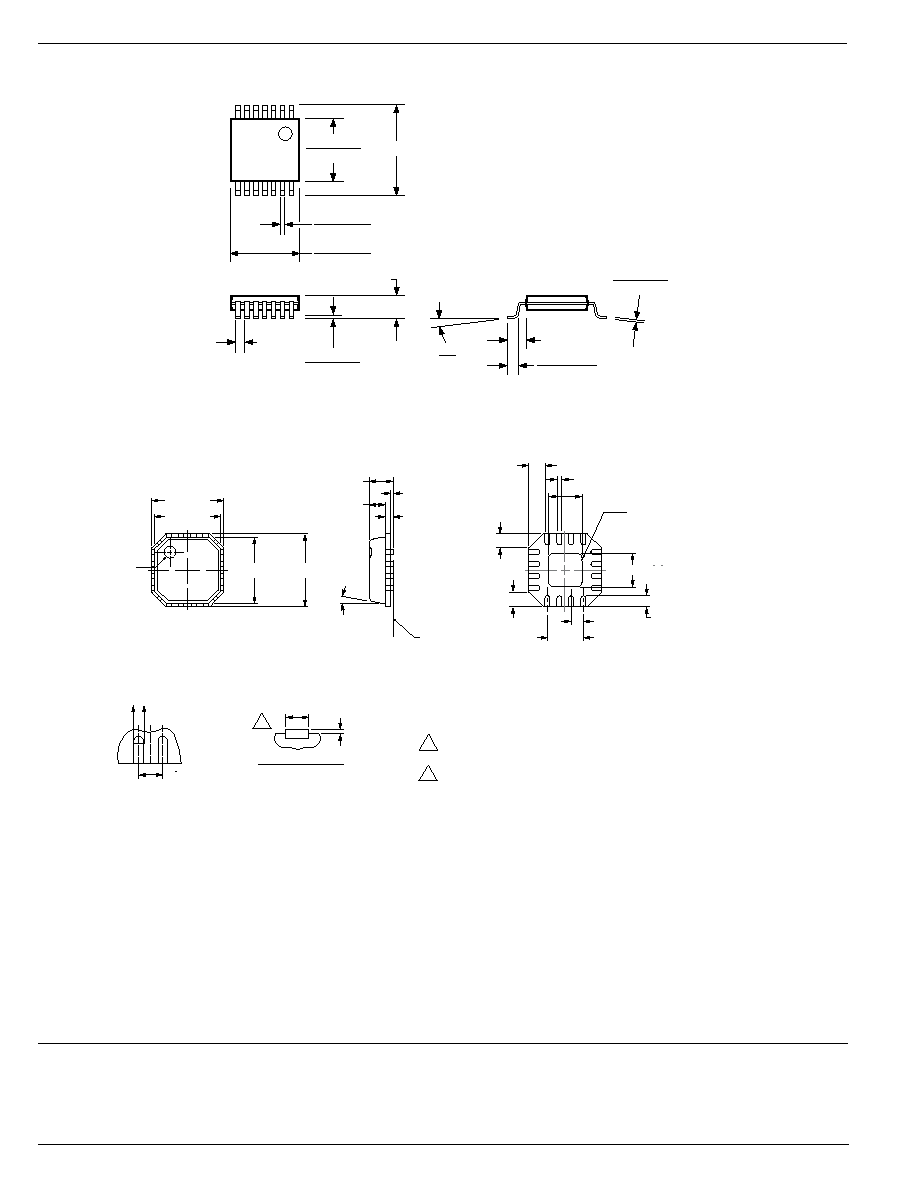

Package Information
1.10 MAX (0.043)
0.15 (0.006)
0.05 (0.002)
1.00 (0.039) REF
0.65 BSC
(0.026)
8
0
6.4 BSC (0.252)
5.10 (0.200)
4.90 (0.193)
0.20 (0.008)
0.09 (0.003)
0.70 (0.028)
0.50 (0.020)
DIMENSIONS:
MM (INCH)
4.50 (0.177)
4.30 (0.169)
0.30 (0.012)
0.19 (0.007)
14-Pin TSSOP (TS)
3.00BSC
2.75BSC
0.50 DIA
3.00BSC
12
max
SEATING
PLANE
2.75BSC
16
1
1
2
3
4
N
2
3
4
0.85
+0.15
0.65
0.65
+0.15
0.65
0.01
+0.04
0.01
0.23
+0.07
0.05
0.01
+0.04
0.01
0.42
+0.18
0.18
0.42
+0.18
0.18
0.23
+0.07
0.05
1.60
+0.10
0.10
PIN 1 ID
0.5 BSC
1.5 REF
0.42
+0.18
0.18
1.60
+0.10
0.10
0.40
+0.05
0.05
0.20 REF.
0.5BSC
SECTION "C-C"
SCALE: NONE
FOR EVEN TERMINAL/SIDE
TOP VIEW
BOTTOM VIEW
1. DIMENSIONS ARE IN mm.
2. DIE THICKNESS ALLOWABLE IS 0.305mm MAX.
3. PACKAGE WARPAGE MAX 0.05mm.
4. THIS DIMENSION APPLIES TO PLATED TERMINAL AND IS MEASURED
BETWEEN 0.20mm AND 0.25mm FROM TIP.
5. APPLIES ONLY FOR TERMINALS
C C
CL
4
Rev. 02
16-Pin MLFTM (ML)
MICREL, INC.
1849 FORTUNE DRIVE
SAN JOSE, CA 95131
USA
TEL
+ 1 (408) 944-0800
FAX
+ 1 (408) 944-0970
WEB
http://www.micrel.com
This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or
other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel, Inc.
2003 Micrel, Incorporated
PDF
ZIP
