High-Voltage High-Current Source Driver Array
Final Information
General
The MIC2981/82 is an 8-channel, high-voltage, high-current
source driver array ideal for switching high-power loads from
logic-level TTL, CMOS, or PMOS control signals.
These drivers can manage multiple loads of up to 50V and
500mA, limited only by package power dissipation.
Micrel's MIC2981/82 features inputs compatible with 5V TTL
and 5V to 15V CMOS or PMOS logic outputs. Micrel's dual-
marked device replaces either UDN2981 or UDN2982 de-
vices.
The MIC2981/82 is available in the 18-pin plastic DIP and 18-
lead wide SOP package. Both devices operate in the indus-
trial temperature range.

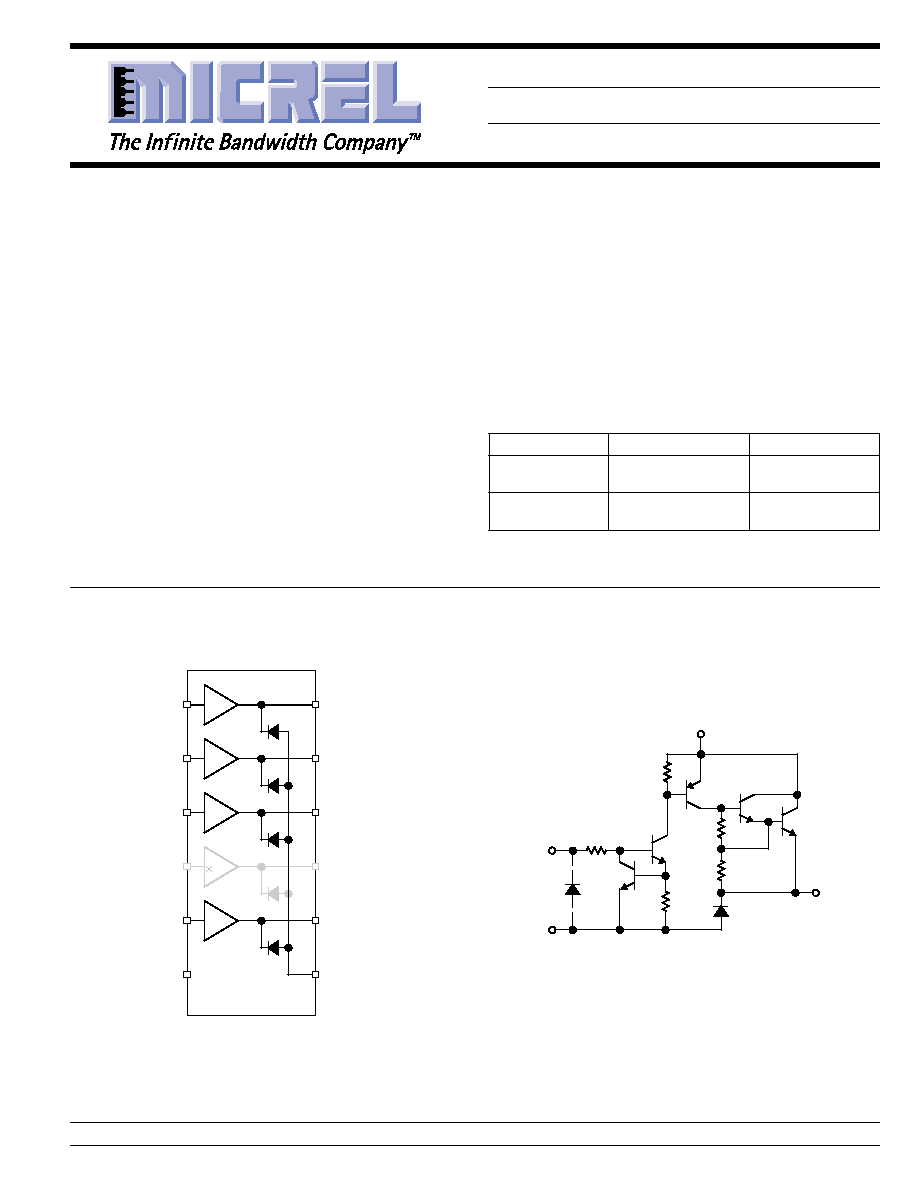

Functional Diagrams
OUT1
OUT2
OUT3
OUT4OUT7
OUT8
MIC2981
MIC2982
4
IN1
IN2
IN3
IN4IN7
IN8
GND
V
S
Features
Output voltage to 50V
Output current to 500mA
Transient-protected outputs
Integral clamp diodes
TTL, CMOS, or PMOS compatible inputs
Applications
Relay and solenoid switching
Stepping motor
LED and incandescent displays
Ordering Information
Part Number
Temperature Range
Package
MIC2981BN/
MIC2982BN*
40
C to +85
C
18-pin DIP
MIC2981BWM/
MIC2982BWM*
40
C to +85
C
18-pin wide SOP
* Orders for MIC2981BN or MIC2982BN will be filled with dual-marked
MIC2981/82BN. Orders for MIC2981BWM or MIC2982BWM will be
filled with dual-marked MIC2981/82BWM.
IN
OUT
V
S
GND
1.5k
20k
800
1.8k
Typical MIC2891/2982 Source Driver
