INSTRUMENTATION AMPLIFIER (PRELIMINARY)
Mii
HYBRID MICROELECTRONICS
PRODUCTS DIVISION
Features:
+25C
to
+180C
Operation
Ultra-Low Voltage Drift
Low
Offset
Voltage
Low
Nonlinearity
Low
Noise
High
CMR
High Input Impedance
Applications:
Amplification of signals from sources such as:
Strain Gages
Thermocouplers
RTDs
Low
Level
Signals
Medical
Instrumentation
DESCRIPTION
The MII 52301 is a high accuracy hybrid-circuit instrumentation amplifier designed for signal conditioning requirements where
very high performance is desired.
The input stage uses ultra-low drift, low noise technology to provide exceptional input characteristics.
+25C
+180C
(1)
PARAMETER
MIN
MAX
MIN
MAX
UNITS
Gain Equation:
A, = 1 + 40K/Rg
Rated Output
Voltage
Current
10
10
10
5
V
mA
Input Offset Voltage
(vs Temp, 30
V/C)
8
16
mV
Input Bias Current
Each Input
Offset
(vs Temp, .3na/C)
10
10
50
50
nA
nA
Input Voltage
Common Mode Voltage Range
CMRR: Gain = 100
60
10
40
10
V
dB
Power Supply
Voltage
Current
15
15
15
20
V
mA
Dynamic Response
Full power Bandwidth
Unity Gain Bandwidth
(-3dB)
40
.8
35
.8
kHz
MHz
(1) 200c operation is a possible option. Check with the Factory.
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. HYBRID MICROELECTRONICS PRODUCTS DIVISION
905 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
09/19/01
52301
INSTRUMENTATION AMPLIFIER (PRELIMINARY)

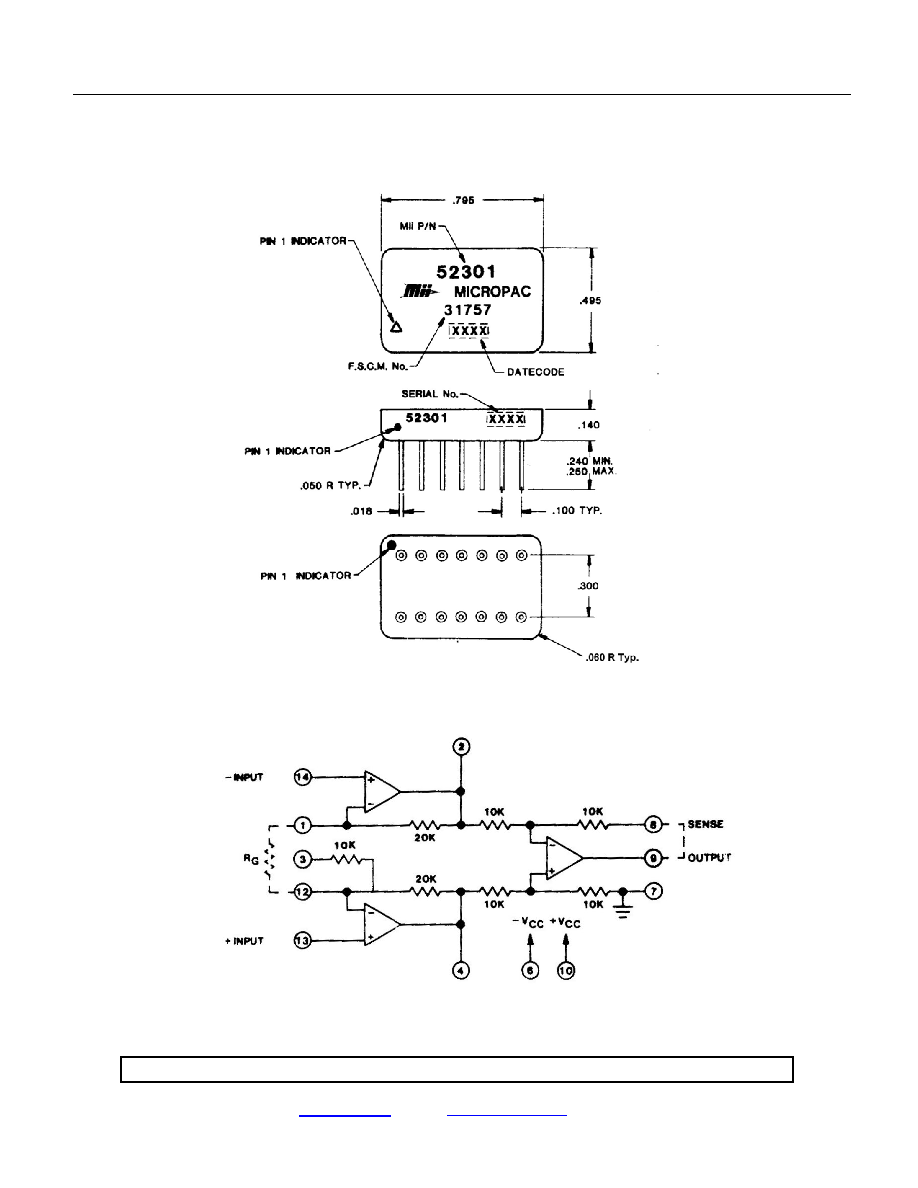

Package Dimensions
