Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. MICROCIRCUITS PRODUCTS DIVISION
905 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
8/12/02
Pg. 1 of 4
53209
53210 SPDT SOLID-STATE RELAYS
53211 High Power AC/DC Switching
Mii
MICROCIRCUITS PRODUCTS
DIVISION
Features:
Replacements for M30-1, M30-3, M30-4
SPDT, Break-Before-Make
Up to 1500 V RMS optical isolation
Output voltage up to
320 VDC (53211)
Power FET output low on-state resistance
Full military temperature operation:
-55C to +125C
Military environmental screening available
Applications:
High power switching
Line drivers
Servo control
Harsh environment
Load control
General purpose switching
DESCRIPTION
The 53209, 53210, and 53211 are military SPDT high power, solid-state relays. These light-weight devices are resistant to
damage from shock and vibration, and are immune to contact-related problems (contamination, arcing) associated with
mechanical equivalents.
Optical coupling between the input and output stages provides effective isolation up to 1500 volts AC RMS. Power FET
outputs eliminate bipolar offset, and minimize output voltage drop for high current capability.
The control logic is CMOS compatible, and will accommodate bias supplies ranging between 4 and 16 VDC. A TTL input
driver with pull-up resistor may also be used.
These solid-state relays are ideal for use in military systems, or wherever high reliability, low power actuation, and light
weight are design considerations. Applications include general purpose signal switching and electronic load control.
ABSOLUTE MAXIMUM RATINGS
Isolation Voltage
1
................................................................................................................................................ 1500 VAC RMS
Continuous Operating Output Voltage: 53209.............................................................................................................80 Peak
53210 .........................................................................................................160 Peak
53211 .........................................................................................................320 Peak
Load Current
2
: 53209 ...............................................................................................................................................4.1 A RMS
53210 ..............................................................................................................................................2.6 A RMS
53211...............................................................................................................................................1.3 A RMS
Bias Supply Voltage, V
DD
................................................................................................................................................16 VDC
Control Logic Input Voltage ..............................................................................................................................................16 VDC
Operating Temperature ........................................................................................................................... -55C to +125C Case
Storage Temperature ........................................................................................................................................-55C to +125C
Notes:
1
60 Hz sine wave
2
at 25C with 2.0 C/W heat sink max
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. MICROCIRCUITS PRODUCTS DIVISION
905 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
8/12/02
Pg. 2 of 4
53209,
53210,
&
53211
SPDT SOLID-STATE RELAYS
ELECTRICAL CHARACTERISTICS
T
A
= +25 C
PARAMETER CONDITIONS
MIN
TYP
MAX
UNITS
Isolation Voltage, I/O
60 Hz Sine Wave
1500
VAC RMS
Isolation Resistance
at 500 V
10
9
Ohms
Continuous Operating Output Voltage
53209
53210
53211
80
160
320
VAC Peak
VAC Peak
VAC Peak
Transient Output Voltage
53209
53210
53211
80
180
380
VAC Peak
VAC Peak
VAC Peak
Load Current
53209
53210
53211
2.0 C/W Heat Sink
4.1
2.6
1.3
Amps
RMS
On Resistance
53209
53210
53211
T
A
= 25C
0.6
1.5
6.0
Ohms
Ohms
Ohms
Capacitance, I/O
25 V, 1 MHz
5
pF
Leakage Current
Load Voltage = Maximum
20
A
Bias Supply Voltage, V
DD
4
16
VDC
Bias Current
13
16
mA
Control Logic Voltage
16
VDC
Control Logic Current
2
A
Control Logic Level High
0.75
V
DD
V
DD
VDC
Control Logic Level Low
0
0.15 V
DD
VDC
t
r
(Rise Time)
t
on
(Turn-On-Time)
t
f
(fall Time)
t
off
(Turn-Off Time)
t
d
(Dwell Time)
Load Voltage = 28 VDC
R
L
= 50
0.5
3.0
4.0
50
250
1.5
ms
ms
s
s
ms
Thermal Resistance,
JA
JC
20
4.2
C/W
C/W
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. MICROCIRCUITS PRODUCTS DIVISION
905 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
8/12/02
Pg. 3 of 4
53209, 53210 and 53211
SPDT SOLID-STATE RELAYS

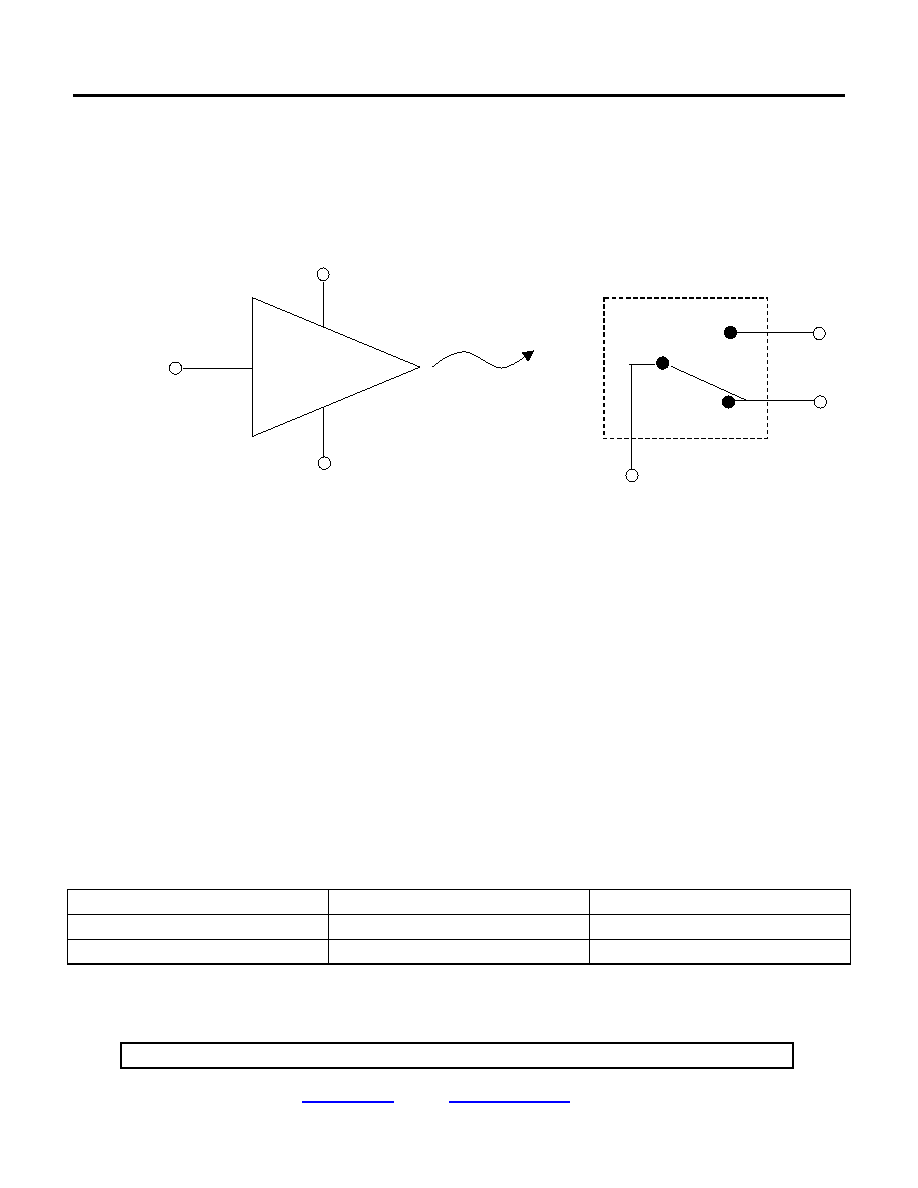

Truth Table
INPUT (Pin 1)
Pin 12
Pin 16
High Closed Open
Low Open
Closed
22
12
1
16
3
9
COMMON
FET OUTPUT
V
DD
CONTROL LOGIC
GND
INPUT BUFFER
Micropac Industries cannot assume any responsibility for any circuits shown or represent that they are free from patent infringement.
Micropac reserves the right to make changes at any time in order to improve design and to supply the best product possible.
MICROPAC INDUSTRIES, INC. MICROCIRCUITS PRODUCTS DIVISION
905 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 494-2281
www.micropac.com
E-MAIL:
hybridsales@micropac.com
8/12/02
Pg. 4 of 4
53209, 53210 and 53211
SPDT SOLID-STATE RELAYS

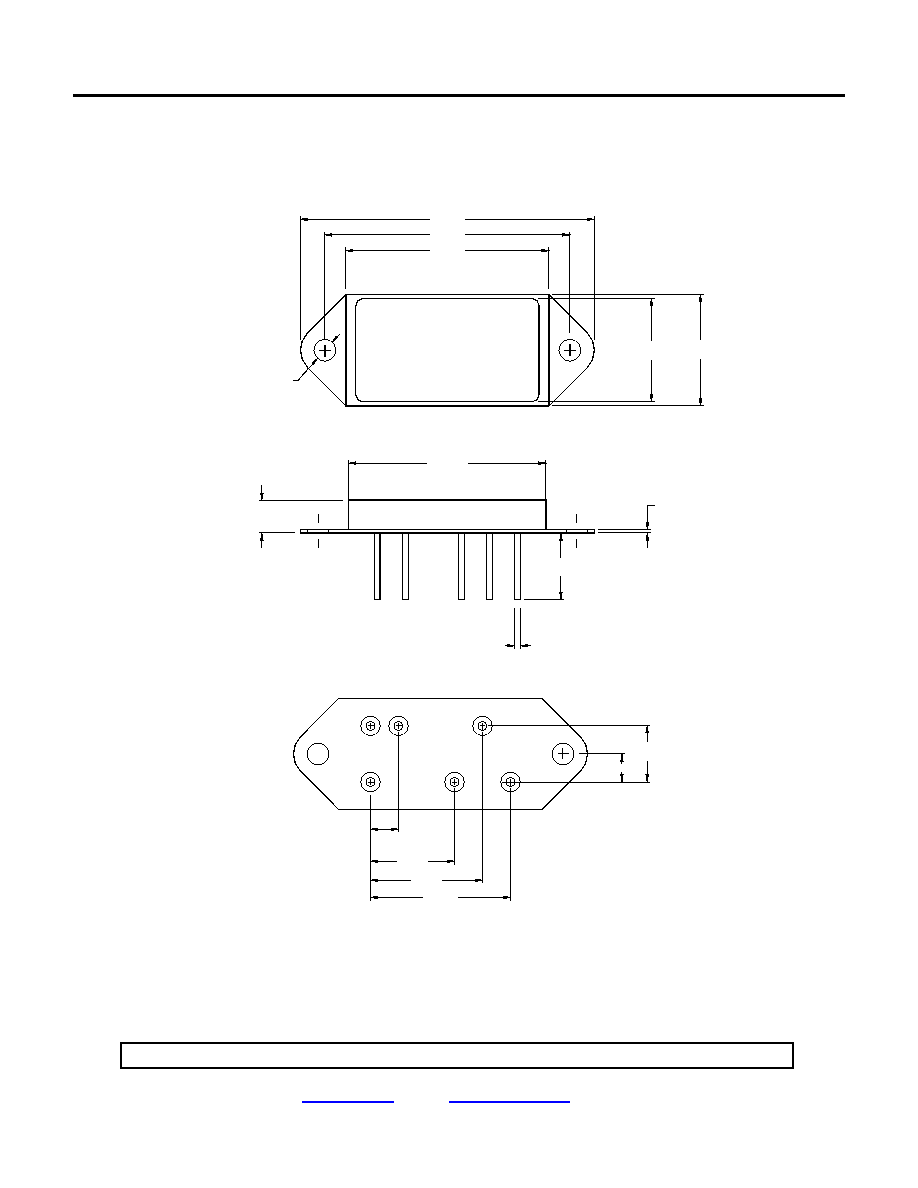

Package Dimensions
.735
(.060)
(1.390)
.240 MAX.
1.000
.600
.800
.200
TOL: .010
(BOTTOM VIEW)
.200
.400
22
16
3
1
12
9
1.450
1.750
2.100
.45 MIN.
.157
2 PLACES
.040, 6 PLACES
.795
