MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION 725 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com
E-MAIL:
optosales@micropac.com
3 - 42
SINGLE CHANNEL OPTOCOUPLER
66156
PHOTODIODE OUTPUT
COAXIAL OR BULKHEAD MOUNT PACKAGES
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
High
Reliability
Bulkhead or Press fit version
Rugged
package
Stabile over wide temperature
+1.0kIV electrical isolation
Applications:
Analog
isolation
Secure
telecom
Line
receiver
Medical
Monitor motor control voltage
DESCRIPTION
The 66156 contains a Gallium Aluminum Arsenide (GaAIAs) infrared LED optically coupled to a silicon photodiode. This
66156-20X is a hermetically sealed package which is threaded in order to provide convenient bulkhead mounting and is
available in standard and screened versions or tested to customer specifications. The 66156-10X is a hermetically sealed
coaxial package which can be soldered or press-fit mounted and is also available in the same versions.
ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage........................................................................................................................................................ 1.0kV
Reverse LED Input Voltage ...................................................................................................................................................... 3V
Peak Forward Input Current
1mS (LED, continuous) ....................................................................................................100mA
Continuous Transistor Power Dissipation at (or below) 25C Free-Air Temperature (see Note 2) ................................300mW
Average Forward Input Current ..........................................................................................................................................50mA
Reverse Current (LED) .......................................................................................................................................................100
A
Reverse Voltage (Detector, 1 min. max) ................................................................................................................................40V
Total Output Power Dissipation ........................................................................................................................................100mW
Storage Temperature..........................................................................................................................................-65C to +150C
Operating Free-Air Temperature Range ..............................................................................................................-40C to +85C
Lead Solder Temperature (10 seconds max.) ................................................................................................................... 260C
Notes:
1. Derate linearly to 125C free-air temperature at the rate of 0.68 mA/C above 65C.
2. Derate linearly to 125C free-air temperature at the rate of 3 mW/C.

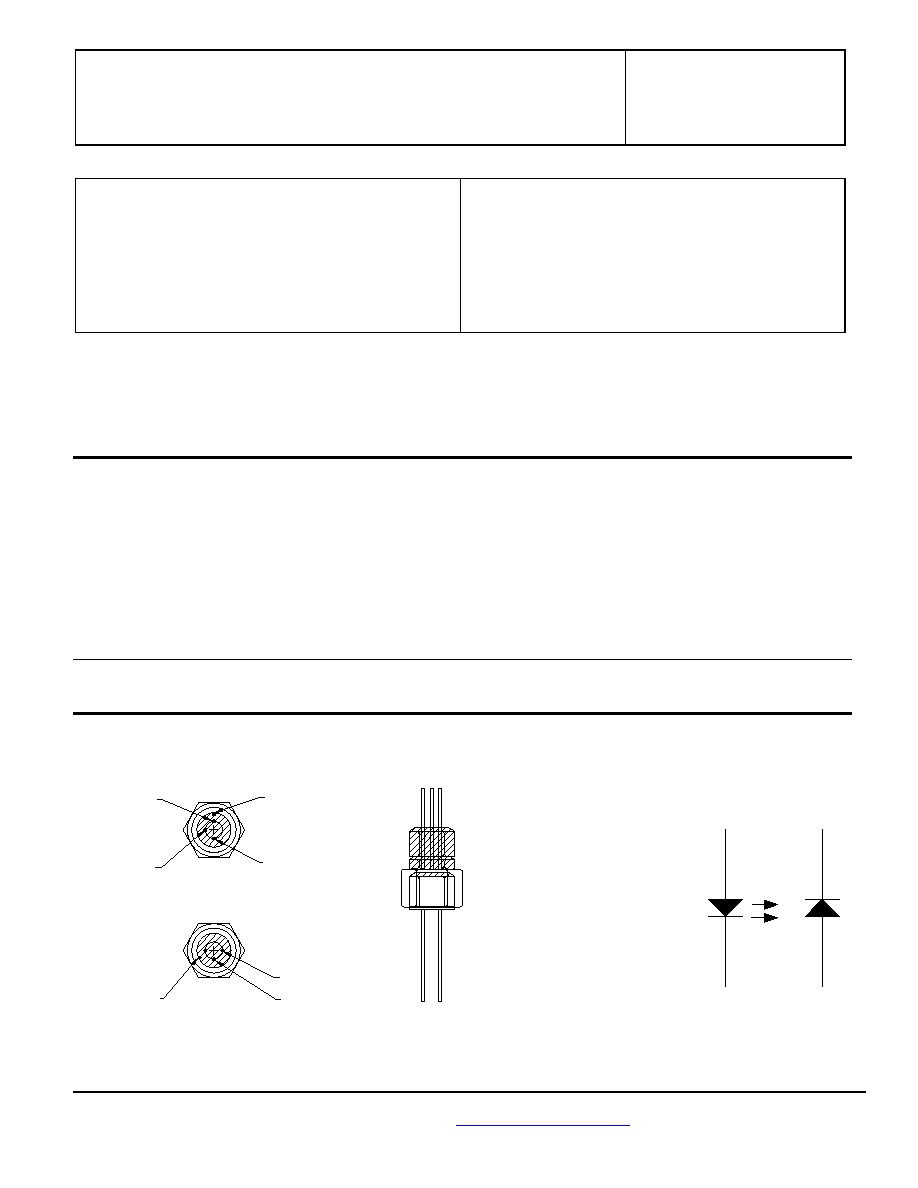

Package Dimensions Schematic Diagram
ANODE
CATHODE
RED DOT
CASE GND
ANODE
CATHODE
WHITE DOT
PHOTODIODE
A
K
A
K
MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION 725 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com
E-MAIL:
optosales@micropac.com
3 - 43
66156
SINGLE CHANNEL OPTOCOUPLERS
ELECTRICAL CHARACTERISTICS
T
A
= 25
C Unless otherwise specified
PARAMETER
SYMBOL
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Input Diode Static Forward Voltage
V
F
2.2
V
I
F
= 50mA
Reverse Breakdown Voltage
B
VR
3
V
I
R
= 100
A
Input Diode Capacitance
C
IN
25
pF
V = 0V, f = 1MHz
OUTPUT TRANSISTOR
T
A
= 25
C Unless otherwise specified
PARAMETER
SYMBOL
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Dark Current
I
D
100
A
V
R
= 5V, R
L
= 1M
Reverse Breakdown Voltage
B
VR
30
V
I
R
= 100
A
COUPLED CHARACTERISTICS
T
A
= 25
C Unless otherwise specified
PARAMETER
SYMBOL
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Output Voltage
V
O
1.5
V
P-P
I
F
= 75Ma, R
L
= 3.3k
Rise Time
t
r
200
nS
I
F
= 75Ma, R
L
= 3.3k
Fall Time
t
f
200
nS
I
F
= 75Ma, R
L
= 3.3k
RECOMMENDED OPERATING CONDITIONS:
PARAMETER
SYMBOL
MIN
MAX
UNITS
Input Current, Low Level
I
FL
0
100
A
Input Current, High Level
I
FH
50
100
mA
Supply Voltage
V
CE
5
10
V
Operating Temperature
T
A
-40
+85
C
SELECTION GUIDE
PART NUMBER
PART DESCRIPTION
66156-103
Single Channel, (0 to 70C) operating range. Press-fit, coaxial package
66156-104
Single Channel, (-40 to 85C) operating range. Press-fit, coaxial package
66156-203
Single Channel, (0 to 70C) operating range. Bulkhead mount package
66156-204
Single Channel, (-40 to 85C) operating range. Bulkhead mount package
