MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION 725 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@micropac.com
1 - 9
62069
HI BRITE HERMETIC LED INDICATORS
Mii
OPTOELECTRONIC PRODUCTS
DIVISION
Features:
Sunlight
viewable
Front or Rear Mountable
Hermetic LED JANTX screened
Choice of colors: red, yellow or green
Designed for high-reliability applications
Applications:
Fault
indicator
On / Off indicator
Logic status indicator
Binary data display
DESCRIPTION
The 62069 rear mount panel indicators are constructed with a hermetically sealed LED in a rugged, black anodized housing.
The LED is JANTX screened in accordance with MIL-PRF-19500 / 519, 520, or 521 as applicable. (Refer to 1N6609, 1N6610
and 1N6611 data sheets for more information). The unique style allows mounting from the front or rear and comes complete
with mounting hardware. Color-coded insulated wires exit the housing providing ample length for installation.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature........................................................................................................................................-65
C to 100C
Operating Temperature .................................................................................................................................-55
C to 100C
Reverse Voltage..............................................................................................................................................................5VDC
Continuous Forward Current...........................................................................................................................................35mA
Power Dissipation.........................................................................................................................................................120mW

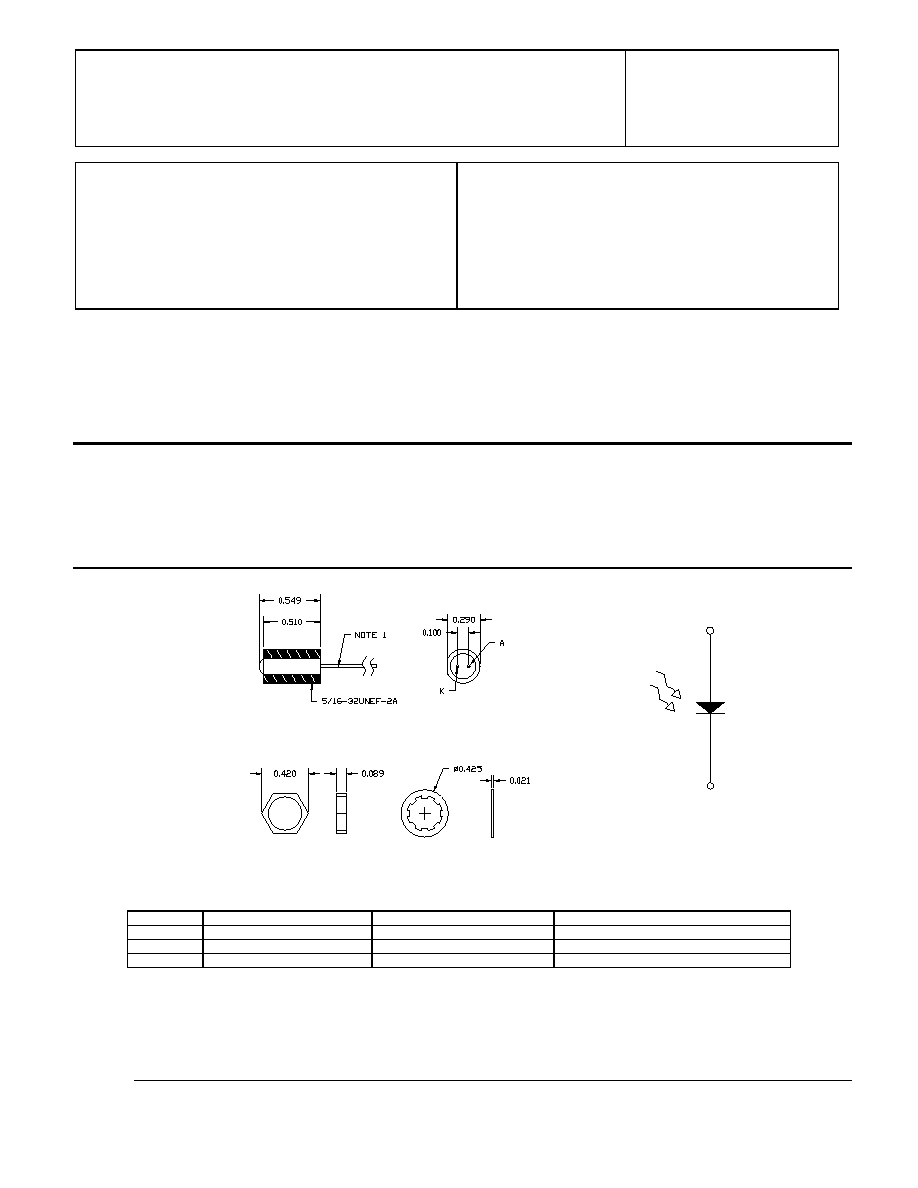

Package Dimensions Schematic Diagram
NOTE 1
INSULATED WIRE 10" MIN. LENGTH
wHITE- CATHODE RED-ANODE
ALL DIMENSIONS ARE IN INCHES
TOLERANCE +/-.005
K
A
COLOR
PANEL MOUNT P/N
LED P/N (REF. ONLY)
CONTROLLING MIL DOCUMENT
Red
62069-112
JANTX 1N6609
MIL-PRF-19500/519
Yellow
62069-212
JANTX 1N6610
MIL-PRF-19500/520
Green
62069-312
JANTX 1N6611
MIL-PRF-19500/521
NOTES:
Unless otherwise specified
.
1.
Outside corners to be broken .010 Max.
2.
Inside corners may be broken .010 Max.
3.
Holes may be C'Sunk .005 Max.
4.
Break all sharp edges.
5.
Threads per FED-STD-H-28.
MICROPAC INDUSTRIES, INC.
OPTOELECTRONIC PRODUCTS DIVISION 725 E. Walnut St., Garland, TX 75040 (972) 272-3571 Fax (972) 487-6918
www.micropac.com
E-MAIL: optosales@micropac.com
1 - 10
62069
HI BRITE HERMETIC LED INDICATORS

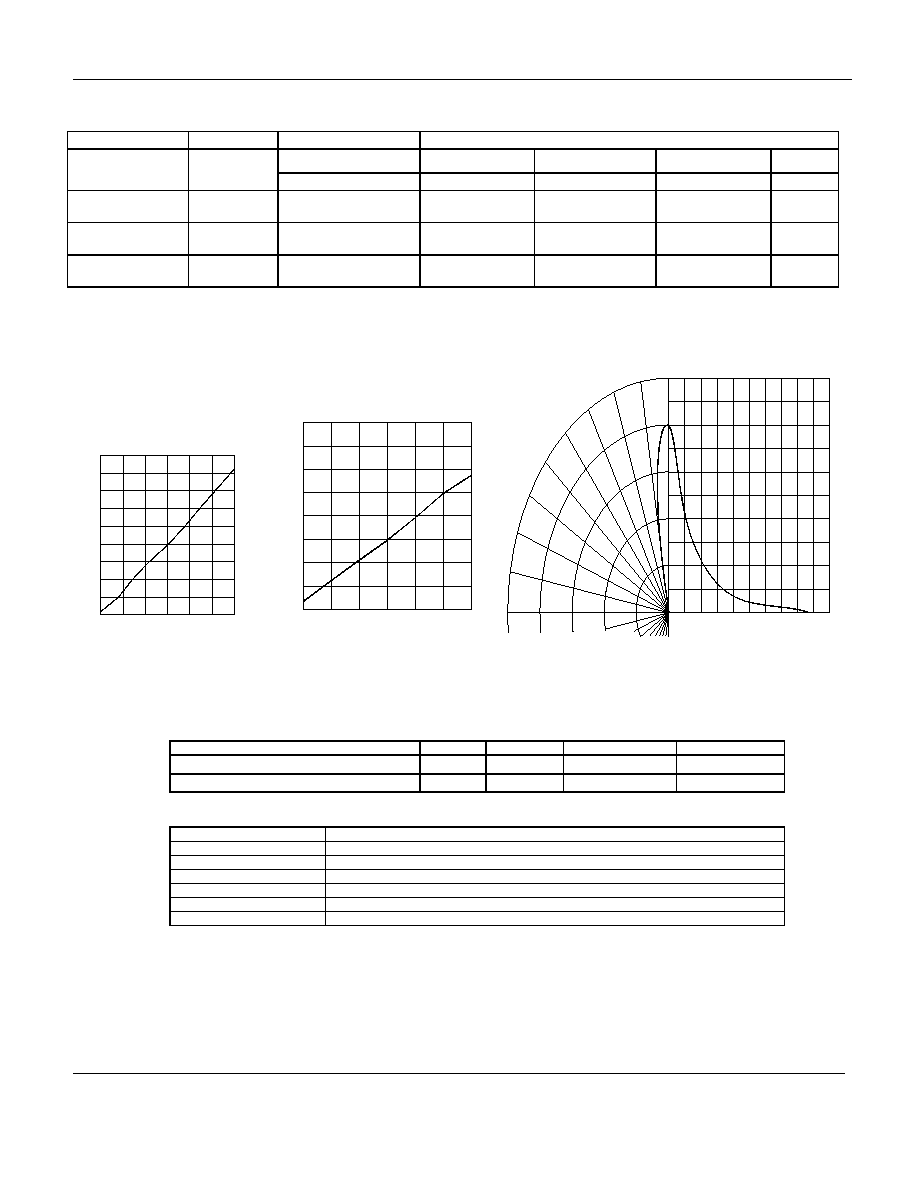

ELECTRICAL CHARACTERISTICS T
A
=25C
PART NUMBER
COLOR
TEST CONDITION
PARAMETER LIMITS
I
F
PEAK
I
V1
= 0
V
F
C
mA
TYP.
MIN.
MAX.
MAX.
1N6609
M19500/519
RED
20
635
20 mcd
3V
100pF
1N6610
M19500/520
YELLOW
20
585
20 mcd
3V
100pF
1N6611
M19500/521
GREEN
20
570
20 mcd
3V
100pF
RED/YELLOW GREEN
Relative Luminous Intensity vs. Angular Displacement
Relative Luminous Intensity Relative Luminous Intensity
vs
Forward Current
(Normalized at 20mA)
5
10
15
20
30
35
25
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
Vs
Forward Current
(Normalized at 25mA)
5
10
15
20
30
35
25
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
0
20
40
80
60
100
0
10
30
50
70
90
0.25
0.50
0.75
1.0
1.25
90
80
70
60
50
40
30
20
10
0
I
F
- Forward Current - mA I
F
- Forward Current mA
RECOMMENDED OPERATING CONDITIONS:
PARAMETER
SYMBOL
MIN
MAX
UNITS
Forward Current
I
F
20
35
mA
Operating Temperature
T
A
-55
+100
C
SELECTION GUIDE
PART NUMBER
PART DESCRIPTION
62069-111
Rear mount panel mount, commercial red, with wire wrap leads
62069-211
Rear mount panel mount, commercial yellow, with wire wrap leads
62069-311
Rear mount panel mount, commercial green, with wire wrap leads
62069-122
Rear mount panel mount, JTX screened, red with insulated leads
62069-222
Rear mount panel mount, JTX screened, yellow with insulated leads
62069-322
Rear mount panel mount, JTX screened, green with insulated leads
NOTE:
1. JAN Quality level is designated by adding -01 to part #.
2.
JANTX Quality level is designated by adding -02 to part #.
