M28331/M28332/M28333 (3x)
Single/Dual/Triple E3/DS3/STS-1 Line Interface Unit
The M28333 is a three-channel, DS3/E3/STS-1, fully integrated Line Interface Unit
(LIU) device. It is configured via external pins and does not require a microprocessor
interface. Each channel has an independent receive equalizer requiring no user
configuration. Additionally, each channel has a programmable transmit pulse shaper
that can be set to ensure that the transmit pulse meets the pulse mask requirement
for the digital cross-connect. The M28332 is a dual-channel, and the M28331 is a
single-channel LIU with performance identical to the M28333.
The M28333 gives the user new economies of scale in concentrator applications
where three DS3 or STS-1 channels are concentrated into a single STS-3 channel.
Each line interface is reduced to 1:1 coupling transformers, terminating resistors, and
a capacitor. The Transmit Line Driver Monitor checks for a faulty transmitter or
shorted output.
NOTE:
In this document, "i" is used to represent the number of channels:
i = 1 (M28331), i = 2 (M28332), and i = 3 (M28333).

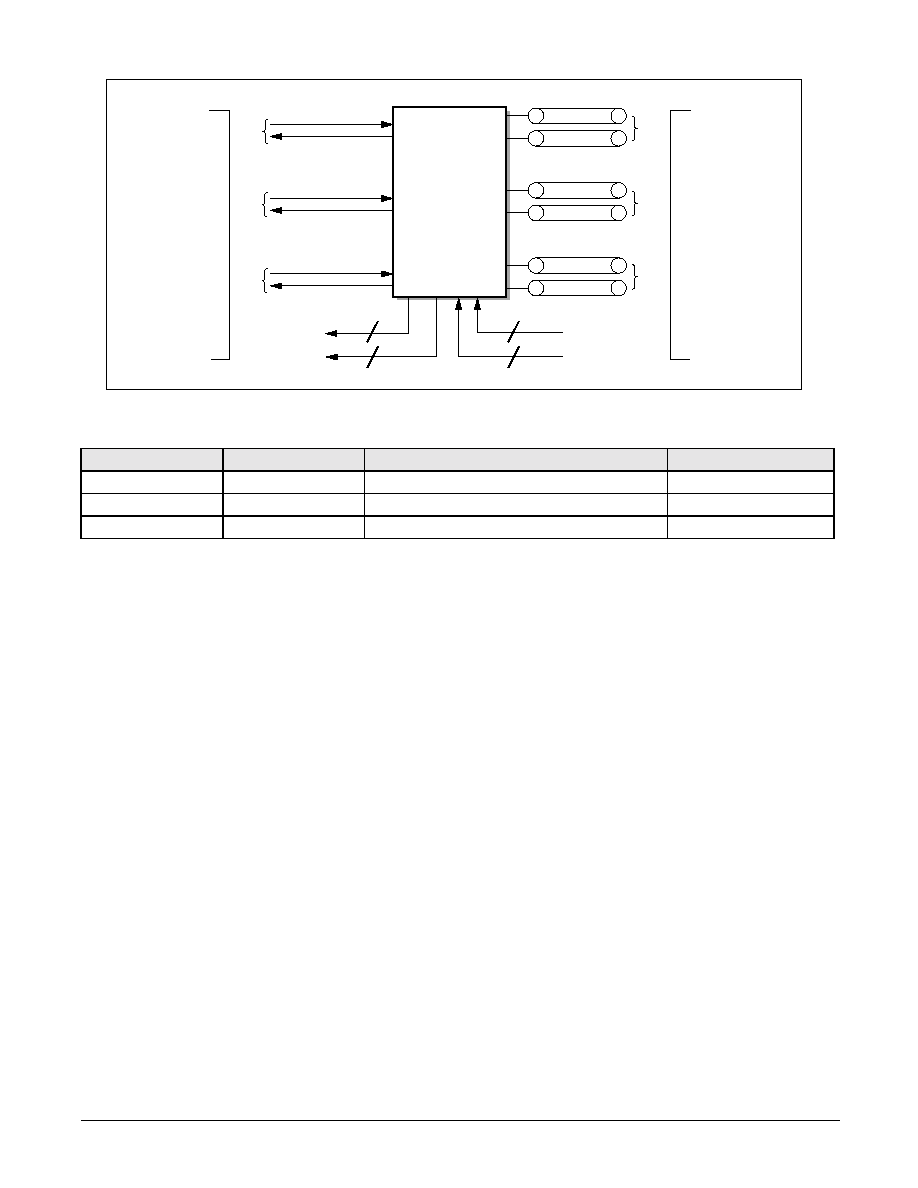

Functional Block Diagram
TPOS
TNEG
TCLK
ENCODER
TAIS
Pulse
Shaper
E3MODE
LINE
DRIVER
PDB
DATA
MUX
RLOOP
ENDECDIS
LLOOP
LBO
XOE
TLINEP
TLINEM/N
DECODER
RPOS
RNEG
RCLK
RLOS
TCLK
Clock/
Data
Recovery
PDATA
PDATA/
NDATA
NDATA
DATCLK
P
N Receiver
TX
Monitor
ALOS
RLINEP
RLINEM/N
TMONP
TMONM
TXMON
TMONTST
REFCLK
REQH
Channel 1
Channel 2
Channel 3
RLOSMDIS
RLOSTHR
RLOSMAX
Distinguishing Features
Programmable pulse shaper to meet
cross-connect pulse masks (ANSI T1.102-
1993)
Meets jitter tolerance and jitter generation
specifications of Bellcore GR499, GR253,
and ETSI TBR24
Alarms for coding violation and loss of
signal
Full diagnostic loopback capability
Uses a minimum of external components
Compliant with ITU-T G.703 and ETSI
TBR24
Independent power down mode per
channel
Easily interfaced to the DS3/E3 Framer IC
(CX28342/3/4/6/8 and CN8330)
Selectable B3ZS/HDB3 encoding/
decoding
Transmit monitor inputs
Programmable RLOS threshold
Physical Characteristics
100-pin ETQFP package
Single 3.3 V power supply
1 W maximum power dissipation
(M28333)
- 40 C to +85 C temperature range
5 V-tolerant pins
TTL digital pins
Applications
Digital Cross-Connect Systems
Routers
ATM Switches
Channelized Line Aggregation Units
Test Equipment
Channel Service Units
Multiplexers
