FREQUENCY MIXERS
Designer's Kit
K1-LAVI+
RF/IF MICROWAVE COMPONENTS
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For quick access to product information see MINI-CIRCUITS CATALOG & WEB SITE
ISO 9001 ISO 14001
CERTIFIED
2 to 2500MHz
LAVI+ Features
Very wideband
Very low coversion loss
Very high IP3
only
179
95
Model
LO
Frequency
Conversion Loss
RF In
IP3
LO-RF
LO-IF
Power
(MHz)
(dB)
at 1dB (dBm)
Isolation
Isolation
(dBm)
Compr.
(dB)
(dB)
(dBm)
RF
LO
IF
Typ.
Max.
Typ.
Typ.
Typ. Min.
Typ. Min.
LAVI-9VH+
+19
820-870
990-1040 120-220
7.2
0.12
8.5
+23
36
46
40
46
37
LAVI-10VH+
+21
300-1000
525-1175
60-875
6.3
0.12
8.0
+20
33
50
40
45
30
LAVI-17VH+
+21
470-1730
600-1800
70-1000
6.8
0.20
8.9
+20
32
52
38
50
36
LAVI-22VH+
+21
425-2200
525-2400 100-700
7.7
0.20
9.6
+20
31
50
36
45
28
LAVI-2VH+
+23
2-1100
2-1100
2-1000
7.5
0.12
9.5
+23
34
48
37
47
36
LAVI-25VH+
+23
400-2500
650-2800
70-1500
7.8
0.25
9.6
+20
32
50
35
45
30
Protected under U.S. Patent 6,807,407
$

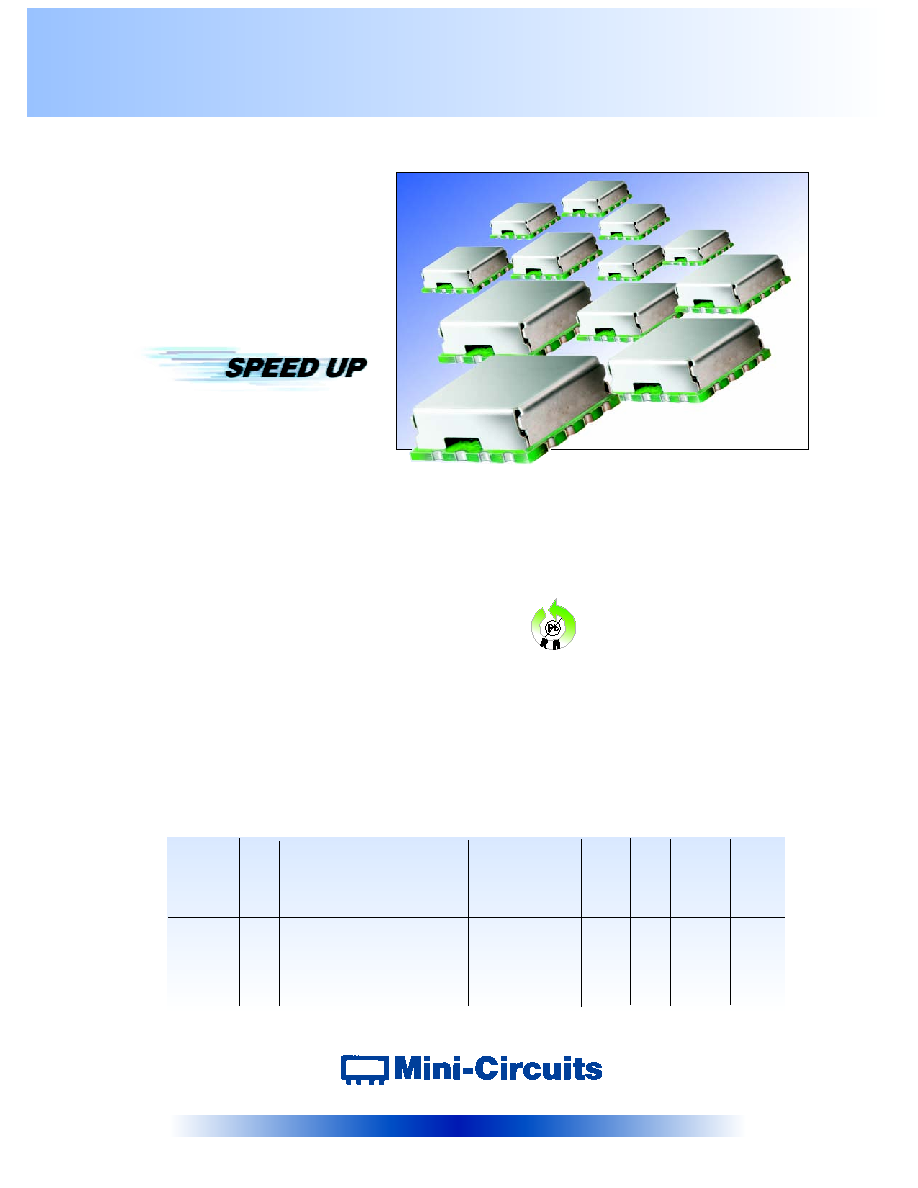

Kit K1-LAVI+
Electrical specifications of each model
ea. kit
(6 models, 2 of each,12 total )
MINI-CIRCUITS DESIGNER'S KITS
THE SOLUTION !
Very high isolation
High 1dB compression
Shielded metal cover
Small size
(L ) .50"x ( W ) .50"x ( H ) .18"
o
S
C O M P L I A N T
All models are RoHS compliant
REV. OR
M104861
K1-LAVI+
PDF
ZIP
