Level 7 (LO Power +7 dBm)
2400 to 6700 MHz
Frequency Mixer
Surface Mount
CASE STYLE: SM2
PRICE: $8.95 ea. QTY (10-49)
Demo Board MCL P/N: TB-74
Suggested PCB Layout (PL-067)
Outline Dimensions ( )
inch
mm
Maximum Ratings
Pin Connections
LO
10
RF
6
IF
1
GROUND
2,3,4,5,7,8,9
Outline Drawing
Electrical Specifi cations
REV. B
M98898
MBA-671
EDB990801/1
060327
Page 1 of 2
1 dB COMP.: +1 dBm typ.
FREQUENCY
(MHz)
CONVERSION LOSS
(dB)
LO-RF ISOLATION
(dB)
LO-IF ISOLATION
(dB)
IP3
at center
band
(dBm)
LO/RF
IF
f
L
-f
U
--
X
Max.
Typ.
Min.
Typ.
Min.
Typ.
2400-6700
DC-1000
6.5
0.1
9.2
36
20
26
17
10
A
B
C
D
E
F
G
H
.250
.300
.070
.290
.050
.015
.050
.060
6.35
7.62
1.78
7.37
1.27
0.38
1.27
1.52
J
K
L
M
N
P
Q
R
wt
.030
.080
.300
.100
.020
.015
.070
.014 grams
0.76
2.03
7.62
2.54
0.51
0.38
1.78
0.36
0.3
Frequency
(MHz)
Conversion
Loss
(dB)
Isolation
L-R
(dB)
Isolation
L-I
(dB)
VSWR LO
Port
(:1)
VSWR RF
Port
(:1)
RF
LO
LO
+7dBm
LO
+7dBm
LO
+7dBm
LO
+7dBm
LO
+7dBm
Typical Performance Data
Electrical Schematic
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffi x identifi es RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifi cations.
MBA-671
MBA-671+
Features
excellent temperature stability
excellent performance repeatability
leads with strain relief
very low cost
ultra low height, 0.07"
protected by US Patent 5,534,830
Applications
satellite communication
ISM band
PCMCIA
Operating Temperature
-40C to 85C
Storage Temperature
-55C to 100C
RF Power
50mW
IF Current
40mA
2400.00
2430.00
6.94
35.14
22.53
6.58
4.95
2597.00
2627.00
6.11
33.16
23.57
7.31
3.25
2895.00
2925.00
5.11
31.10
23.98
5.83
1.88
3000.00
3030.00
4.90
31.11
23.73
5.23
1.61
3300.00
3330.00
4.58
31.80
23.98
4.61
1.28
3492.50
3522.50
4.70
33.07
24.97
4.78
1.61
3700.00
3730.00
4.92
33.70
26.25
4.21
2.10
3791.00
3821.00
5.01
34.34
26.80
3.90
2.31
4000.00
4030.00
5.32
36.66
27.71
2.86
2.84
4388.00
4418.00
5.93
38.33
28.33
1.70
3.16
4500.00
4530.00
6.11
39.03
28.13
1.49
3.22
4985.00
5015.00
6.08
40.18
26.99
1.31
4.02
5000.00
5030.00
6.10
40.38
27.03
1.33
4.07
5400.00
5430.00
6.57
38.38
26.96
2.08
4.09
5500.00
5530.00
7.20
38.33
26.75
2.32
4.95
5582.00
5612.00
7.42
38.54
26.53
2.45
5.13
6000.00
6030.00
8.02
38.49
25.53
2.75
4.39
6179.00
6209.00
7.79
39.55
25.30
3.99
4.47
6500.00
6530.00
8.20
38.33
25.09
5.89
5.81
6776.00
6806.00
8.23
32.58
24.62
9.08
6.44
INTERNET http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers
NORTH AMERICA 800-654-7949 417-335-5935 Fax 417-335-5945 EUROPE 44-1252-832600 Fax 44-1252-837010
Mini-Circuits
Mini-Circuits ISO 9001 & ISO 14001 Certified

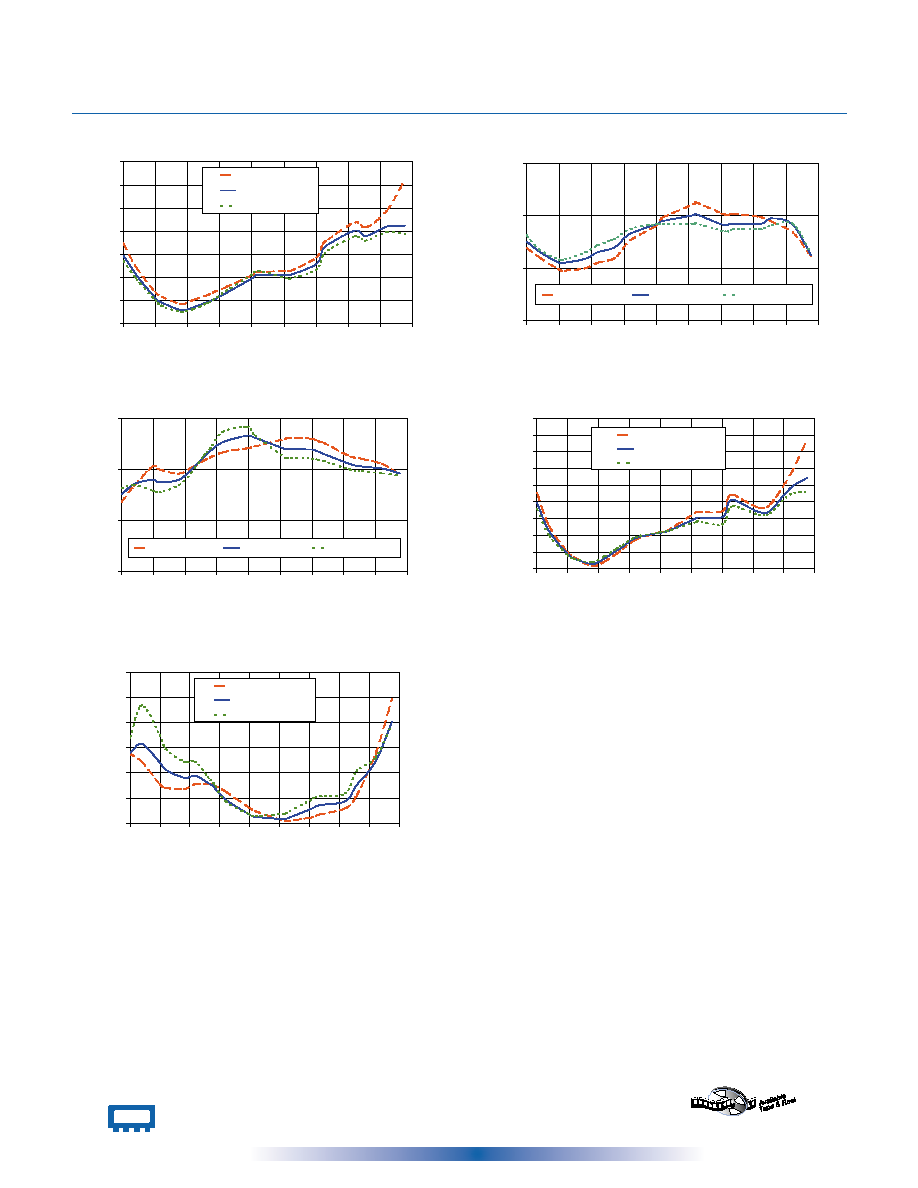

Performance Charts
