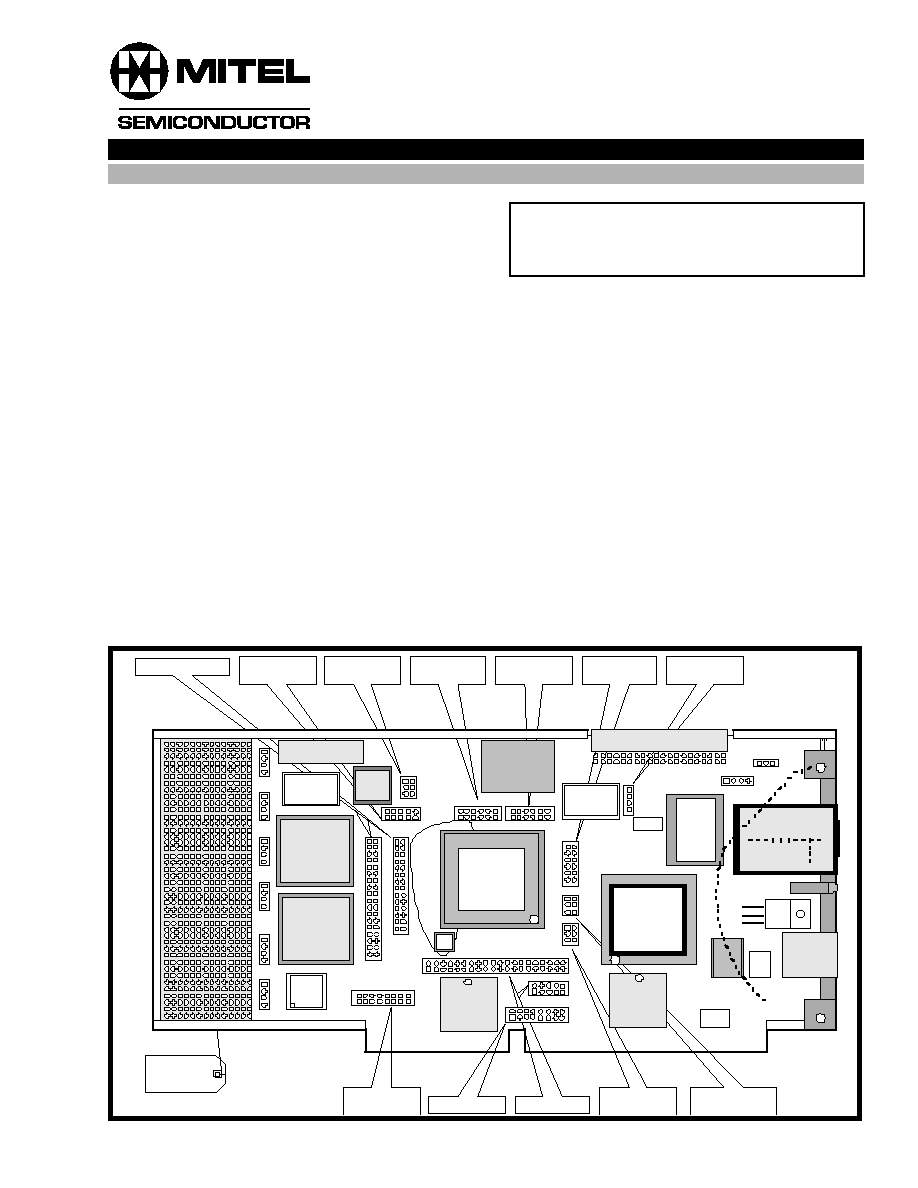

Figure 1 - Evaluation Board Components

CPU Bus Header

SSRAM Bus Header

ISA Bus Mapping

Header

Sec UTOPIA Bus

Header

RX UTOPIA Bus
Header

TX UTOPIA Bus
Header

Local TDM Bus
Header

Message Channel
Header

JTAG signals

Header

PLL Signals

Header

PHY Clock
Source Headers

Wire-Wrap

Area

Int select Header

5V ISA Connector

MHZ
8 DIP

Altera

44PLCC

Altera

44PLCC

24QSOP

JP6

MVIP 40 Pin Connector

JP1

U24

PM5346

128 PQFP

U25

9 PIN
ODL

U14

20.0 MHZ

14 DIP

U23

U26

19.44 MHZ

14 DIP

U22

U13
PLL

MT9041
28PLCC

JP3

U28

MCA1

240PQFP

U10
LDX
MT90820
100 PQFP

MCA1

ALTERA

10K40

208 PIN

SSRAM

64X18

SSRAM

64X18

U11

Tele.

RJ11

JP16

JP14

JP19

JP18

JP17

JP15

MT9160

20SOIC

U12

JP21

JP20

JP10

JP8

JP23

JP13

Markings

Use Arial 10pts.

TX Plane

RX Plane

JP11

JP5

JP7

JP4

JP22

JP9

JP12

JP24

ISSUE 1

March 1998

MEB90500 - E1

Customer Evaluation Kit

Advance Information

Features

Allows Mitel customers to evaluate the MT90500AL
device

Demonstrates the advantages of Mitel AAL1
solution

Eases bench-top prototyping to reduce
development risk

Provides a highly functional graphical user
interface (GUI) in Windows NT

Provides built-in logic for 155 Mbps, SONET STS-
3C optical interface

PLL connectivity for clock recovery

Works with ISA-compatible cards for PC platforms

Windows NT operating system

Built-in connectors include: MT90500 UTOPIA L1
signals, MT90500 external SSRAM interface, PLL
signals, MT90500 CPU bus header, MT90500
JTAG lines, 40-pin MVIP header for external TDM
bus connection

Wire-wrap area

Includes Mitel MT90820 digital cross-point for TDM
pattern generation

Includes Mitel MT9160 codec to establish voice

path

This kit includes: handset connector for voice
over ATM demo, 2 cards with 155 Mbps access
rate and optical cable for interconnecting 2
cards

Includes Mitel MT9041 PLL to implement clock
recovery

Introduction

This document describes a kit containing printed
circuit boards and sample software to be provided to
Mitel MT90500 customers.

The package containing the card, example software,
windows-based GUI and installation and description
documentation is referred to as the MT90500
Customer Evaluation Kit (MCEK), from now on in
this document.

Ordering Information

MEB90500 - E1

MEB90500

Advance Information

Functional Requirements

Interface and Mechanical - this evaluation kit offers
two PC-compatible boards with an ISA interface. The
boards are fitted with an MVIP 40-pin connector, one
RJ-11 jack for handset connection, and an optical
module connector for the ATM 155 connection.

Hardware

Figure 1 outlines the physical characteristics of each
MT90500 Evaluation card available in the kit.

The evaluation board is a PC-compatible 8/16-bit ISA
board which provides the following interfaces:

ATM155 MMF optical interface (ATM)

MVIP compatibility (TDM)

Handset Connector (Local TDM)

The specific components used are shown in Figure
1. The FPGA module emulates a Motorola/Intel
processor via the ISA bus interface. This module
emulates the functionality of a

processor and

integrates all the other logic functions that are
required to operate the board. It provides the
necessary control for the operation of the Mitel
codec (MT9160), LDX (MT90820) and external PLL
(MT9041) as required.

The Mitel MT90820 LDX device allows the user to
generate 64 kbps or nx64 kbps patterns to the
MT90500 device, at 2.048, 4.096 and 8.192 Mbps.

The card contains an MT9160 codec interfacing with
a telephone handset for demo purposes. A GUI
interface is provided to operate the codec.

The MCEK is provided with two Synchronous SRAM
(64K x 18) used by the MT90500 to externally store
its control and data structures.

The MCEK is built with the tools necessary to
exercise directly most of the MT90500 functionality:

processor interface (headers on control

signals)

external SSRAM interface

TDM interface (external via the MVIP
connector; local via headers)

UTOPIA interface (primary and auxiliary
interface headers)

JTAG port (headers)

TDM clock recovery and generation

The MCEK also provides the customer with the
ability to use the following clock modes:

Adaptive

Freerun

Synchronized to the 155Mbps PHY device
(receive only)

Note: For SYNC to PHY modes, the MCEK allows
the customer to access the 8kHz output from the
PHY chip.

In addition, this kit contains a software algorithm for
an adaptive clock recovery method.

In regards to clock generation and recovery, the
cards can either generate clocks in master mode or
receive input clocks in slave mode.

Software, Device Drivers

Three software modules are provided:

A demonstration program which allows audio
communications between two cards connected
back to back via an ATM crossover cable or an
ATM switch. The audio communication will be
provided on each card via a telephone handset
(codec on local bus). The software
demonstrates how to set up one channel per
VC in structured data transfer (SDT) mode. The
clock mode (one of the 3 mentioned above) can
be selected by the user. This demonstration
program also allows the user to configure the
MT90500 for multiple channels per VC in
structured data transfer (SDT) mode or pointer-
free mode, including the option for the clock
mode selection. The pertinent documented C
source code for this demo software is provided.
This software runs under Windows NT.

A demonstration program showing the power of
the MT90500. To accomplish this objective, the
application transmits 1024 channels
simultaneously. The pertinent documented C
source code for this demonstration is provided.
The driver initializes the card, including the
FPGA.

A diagnostic module which provides access to
registers within the Mitel MT90500 and its
external memory. The diagnostic software is
able to run while the other software is
operating. This software runs under Windows
NT.

Advance Information

MEB90500

Handset Connection

A simple handset connection using the Mitel MT9160
codec is used.

MCEK Contents

The MCEK consists of the following items:

two (2) MT90500 Evaluation Boards

one (1) ATM cross-over cable

two (2) handsets

3.5" labeled diskettes containing the Windows
NT binary software and the three documented
demonstration programs in source code ('C')

a documentation manual containing the kit
installation and configuration instructions and
board schematics

Warranty Terms

The following terms are applicable to this product:

Warranty: 30 days. Orders are Non Cancellable/Non
Returnable. This engineering product is for technical
evaluation only. Out of box failures will be replaced
upon return of defective product, within 60 days from
the day of return. Physical alterations or
modifications will void this warranty.
