7-45

Features

Programmable µ

Law

Law codec and filters

Programmable CCITT (G.711)/sign-magnitude
coding

Programmable transmit, receive and side-tone
gains

DSP-based:

Speakerphone switching algorithm

ii) DTMF and single tone generator

iii) Tone Ringer

Differential interface to telephony transducers

Differential audio paths

Single 5 volt power supply

Applications

Fully featured digital telephone sets

Cellular phone sets

Local area communications stations

Description

The MT9094 DPhone-

is a fully featured integrated

digital telephone circuit. Voice band signals are
converted to digital PCM and vice versa by a
switched capacitor Filter/Codec. The Filter/Codec
uses an ingenious differential architecture to achieve
low noise operation over a wide dynamic range with
a single 5V supply. A Digital Signal Processor
provides handsfree speaker-phone operation. The
DSP is also used to generate tones (DTMF, Ringer
and Call Progress) and control audio gains. Internal
registers are accessed through a serial microport
conforming to INTEL MCS-51TM

specifications. The

device is fabricated in Mitel's low power ISO

-CMOS

technology.

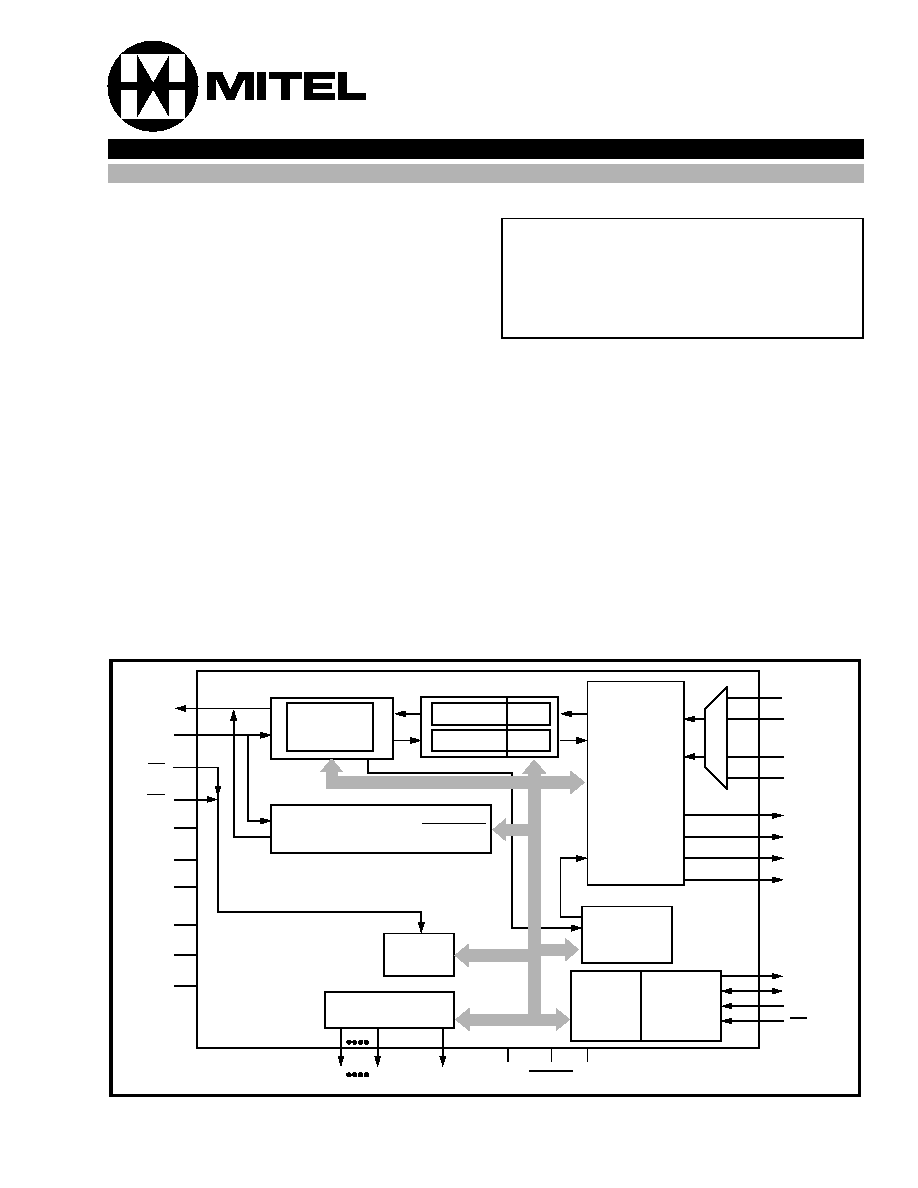

Figure 1 Functional Block Diagram

AAAA

AAA

AAAA

Digital Signal Processor

Filter/Codec Gain

DSTo

DSTi

F0i

C4i

VSSD

VDD

VSSA

VSS

SPKR

VBias

VRef

S12

WD PWRST IC

SCLK

DATA 1

DATA 2

SPKR-

SPKR+

HSPKR-

HSPKR+

M+

M-

MIC+

MIC-

Transducer

Interface

22.5/-72dB

1.5dB

Tx & Rx

ENCODER

7dB

DECODER

-7dB

C-Channel
Registers

Control

Registers

Timing

Circuits

LCD Driver

New Call

Tone

Generator

S/P &

P/S

Converter

Serial

Port

(

MCS-51

Compatible)

STATUS

ISSUE 2

May 1995

MT9094

Digital Telephone (DPhone-II)

ISO

-CMOS ST-BUS

FAMILY

Ordering Information

MT9094AP

44 Pin PLCC

-40°C to +85°C

MT9094

7-46

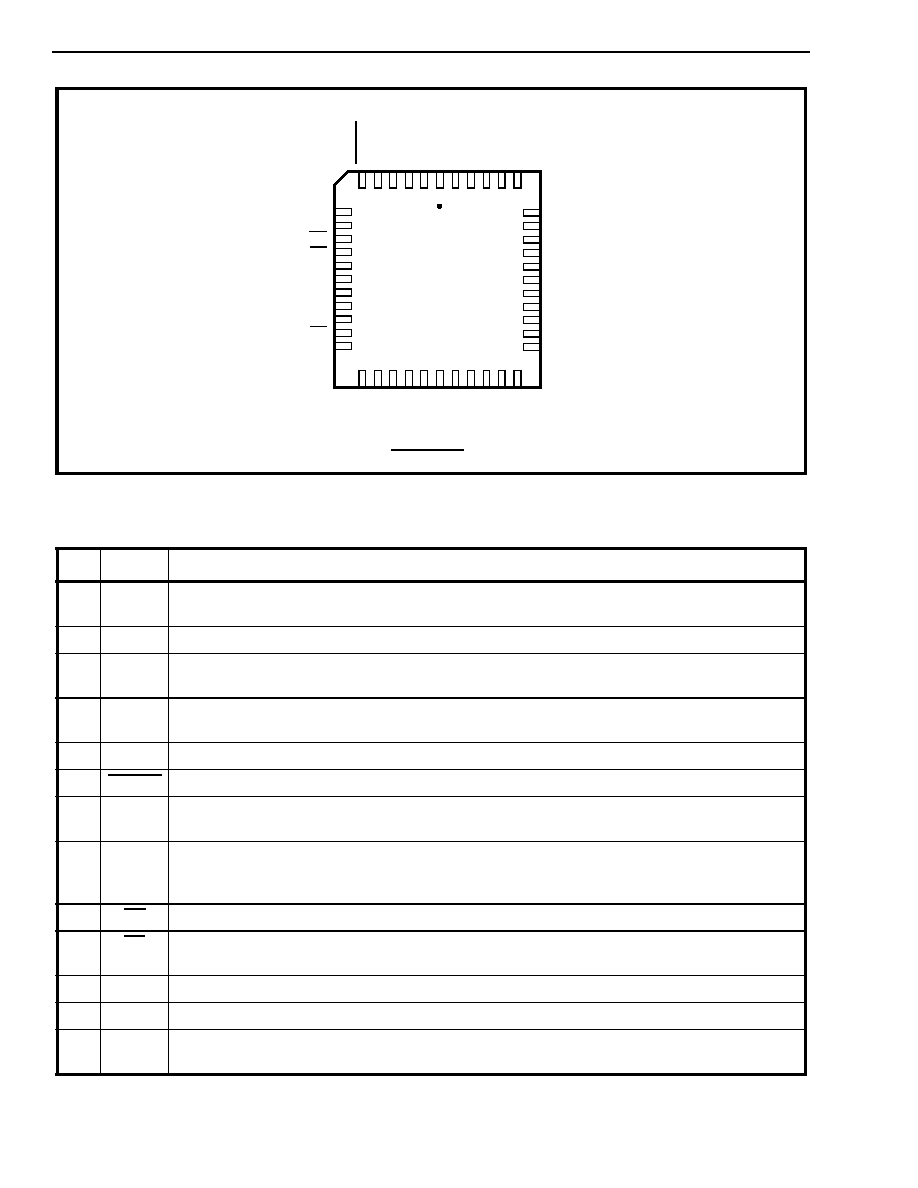

Figure 2 - Pin Connections

Pin Description

Pin #

Name

Description

M+

Non-Inverting Microphone (Input). Non-inverting input to microphone amplifier from the
handset microphone.

No Connect. No internal connection to this pin.

Bias

Bias Voltage (Output). (V

/2) volts is available at this pin for biasing external amplifiers.

Connect 0.1 µF capacitor to V

SSA

Ref

Reference voltage for codec (Output). Nominally [(V

/2)-1.5] volts. Used internally.

Connect 0.1 µF capacitor to V

SSA

Internal Connection. Tie externally to V

for normal operation.

PWRST Power-up Reset (Input). CMOS compatible input with Schmitt Trigger (active low).

DSTi

ST-BUS Serial Stream (Input). 2048 kbit/s input stream composed of 32 eight bit channels;
the first four of which are used by the MT9094. Input level is TTL compatible.

DSTo

ST-BUS Serial Stream (Output). 2048 kbit/s output stream composed of 32 eight bit
channels. The MT9094 sources digital signals during the appropriate channel, time coincident
with the channels used for DSTi.

C4i

4096 kHz Clock (Input). CMOS level compatible.

F0i

Frame Pulse (Input). CMOS level compatible. This input is the frame synchronization pulse
for the 2048 kbit/s ST-BUS stream.

SSD

Digital Ground. Nominally 0 volts.

No Connect. No internal connection to this pin.

SCLK

Serial Port Synchronous Clock (Input). Data clock for MCS-51 compatible microport. TTL
level compatible.

7
8
9
10
11
12
13
14
15
16

39
38
37
36
35
34
33
32
31
30

RST

VBi

VRe

M-

VSS

M+

DSTi

DSTo

C4i

F0i

VSSD

SCLK

DATA 2
DATA 1

SPKR+
SPKR-
HSPKR+
HSPKR-
VDD
BP
S12
S11
S10
S9
S8

SSD

44 PIN PLCC

S S

PKR

MT9094

7-47

NOTES:
Intel and MCS-51 are registered trademarks of Intel Corporation, Santa Clara, CA, USA.

DATA 2 Serial Data Transmit. In an alternate mode of operation, this pin is used for data transmit from

MT9094. In the default mode, serial data transmit and receive are performed on the DATA 1 pin
and DATA 2 is tri-stated.

DATA 1 Bidirectional Serial Data. Port for microprocessor serial data transfer compatible with

MCS-51 standard (default mode). In an alternate mode of operation , this pin becomes the data
receive pin only and data transmit is performed on the DATA 2 pin. Input level TTL compatible.

Chip Select (Input). This input signal is used to select the device for microport data transfers.
Active low. (TTL level compatible.)

Watchdog (Output). Watchdog timer output. Active high.

18 IC

Internal Connection. Tie externally to V

for normal operation.

19,

No Connection. No internal connection to these pins.

SSD

Digital Ground. Nominally 0 volts.

22-3

S1-S12 Segment Drivers (Output). 12 independently controlled, two level, LCD segment drivers. An

in-phase signal, with respect to the BP pin, produces a non-energized LCD segment. An
out-of-phase signal, with respect to the BP pin, energizes its respective LCD segment.

Backplane Drive (Output). A two-level output voltage for biasing an LCD backplane.

Positive Power Supply (Input). Nominally 5 volts.

HSPKR- Inverting Handset Speaker (Output). Output to the handset speaker (balanced).

HSPKR+ Non-Inverting Handset Speaker (Output). Output to the handset speaker (balanced).

SPKR-

Inverting Speaker (Output). Output to the speakerphone speaker (balanced).

SPKR+ Non-Inverting Speaker (Output). Output to the speakerphone speaker (balanced).

SPKR

Power Supply Rail for Analog Output Drivers. Nominally 0 Volts.

MIC-

Inverting Handsfree Microphone (Input). Handsfree microphone amplifier inverting input
pin.

MIC+

Non-inverting Handsfree Microphone (Input). Handsfree microphone amplifier
non-inverting input pin.

SSA

Analog Ground. Nominally 0 V.

M-

Inverting Microphone (Input). Inverting input to microphone amplifier from the handset
microphone.

Pin Description (continued)

Pin #

Name

Description

MT9094

7-48

Overview

The Functional Block Diagram of Figure 1 depicts
the main operations performed within the DPhone

-II

Each of these functional blocks will be described in
the sections to follow. This overview will describe
some of the end-user features which may be
implemented as a direct result of the level of
integration found within the DPhone

-II

The main feature required of a digital telephone is to
convert the digital Pulse Code Modulated (PCM)
information, being received by the telephone set, into
an analog electrical signal. This signal is then
applied to an appropriate audio transducer such that
the information is finally converted into intelligible
acoustic energy. The same is true of the reverse
direction where acoustic energy is converted first
into an electrical analog and then digitized (into
PCM) before being transmitted from the set. Along
the way if the signals can be manipulated, either in
the analog or the digital domains, other features
such as gain control, signal generation and filtering
may be added. More complex processing of the
digital signal is also possible and is limited only be
the processing power available. One example of this
processing power may be the inclusion of a complex
handsfree switching algorithm. Finally, most
electro-acoustic transducers (loudspeakers) require
a large amount of power to develop an effective
acoustic signal. The inclusion of audio amplifiers to
provide this power is required.

The DPhone

-II

features Digital Signal Processing

(DSP) of the voice encoded PCM, complete Analog/
Digital and Digital/Analog conversion of audio
signals (Filter/CODEC) and an analog interface to
the external world of electro-acoustic devices
(Transducer Interface). These three functional blocks
combine to provide a standard full-duplex telephone
conversation utilizing a common handset. Selecting
transducers for handsfree operation, as well as
allowing the DSP to perform its handsfree switching
algorithm, is all that is required to convert the
full-duplex handset conversation into a half-duplex
speakerphone conversation. In each of these
modes, full programmability of the receive path and
side-tone gains is available to set comfortable
listening levels for the user as well as transmit path
gain control for setting nominal transmit levels into
the network.

The ability to generate tones locally provides the
designer with a familiar method of feedback to the
telephone user as they proceed to set-up, and
ultimately, dismantle a telephone conversation. Also,
as the network slowly evolves from the dial pulse/
DTMF methods to the D-Channel protocols it is

essential that the older methods be available for
backward compatibility. As an example; once a call
has been established, say from your office to your
home, using the D-Channel signalling protocol it may
be necessary to use in-band DTMF signalling to
manipulate your personal answering machine in
order to retrieve messages. Thus the locally
generated tones must be of network quality and not
just a reasonable facsimile. The DPhone

-II

DSP can

generate the required tone pairs as well as single
tones to accommodate any in-band signalling
requirement.

Each of the programmable parameters within the
functional blocks is accessed through a serial
microcontroller port compatible with Intel MCS-51
specifications.

Functional Description

In this section, each functional block within the
DPhone

-II

is described along with all of the

associated control/status bits. Each time a control/
status bit(s) is described it is followed by the address
register where it will be found. The reader is referred
to the section titled `Register Summary' for a
complete listing of all address map registers, the
control/status bits associated with each register and
a definition of the function of each control/status bit.
The Register Summary is useful for future reference
of control/status bits without the need to locate them
within the text of the functional descriptions.

Filter-CODEC

The Filter/CODEC block implements conversion of
the analog 3.3kHz speech signals to/from the digital
domain compatible with 64kb/s PCM B-Channels.
Selection of companding curves and digital code
assignment are register programmable. These are
CCITT G.711 A-law or µ-Law, with true-sign/
Alternate Digit Inversion or true-sign/Inverted
Magnitude coding, respectively. Optionally, sign-
magnitude coding may also be selected for
proprietary applications.

The Filter/CODEC block also implements transmit
and receive audio path gains in the analog domain.
These gains are in addition to the digital gain pad
provided in the DSP section and provide an overall
path gain resolution of 0.5dB. A programmable gain,
voice side-tone path is also included to provide
proportional transmit speech feedback to the
handset receiver so that a dead sounding handset is
not encountered. Figure 3 depicts the nominal
half-channel and side-tone gains for the DPhone

-II

MT9094

7-49

On PWRST (pin 6) the Filter/CODEC defaults such
that the side-tone path, dial tone filter and 400Hz
transmit filter are off, all programmable gains are set
to 0dB and µ-Law companding is selected. Further,
the Filter/CODEC is powered down due to the PuFC
bit (Transducer Control Register, address 0Eh) being
reset. This bit must be set high to enable the Filter/
CODEC.

The internal architecture is fully differential to provide
the best possible noise rejection as well as to allow a
wide dynamic range from a single 5 volt supply
design. This fully differential architecture is
continued into the Transducer Interface section to
provide full chip realization of these capabilites.

A reference voltage (V

Ref

), for the conversion

requirements of the CODER section, and a bias
voltage (V

Bias

), for biasing the internal analog

sections, are both generated on-chip. V

Bias

is also

brought to an external pin so that it may be used for
biasing any external gain plan setting amplifiers. A
0.1µF capacitor must be connected from V

Bias

analog ground at all times. Likewise, although V

Ref

may only be used internally, a 0.1µF capacitor from
the V

Ref

pin to ground is required at all times. It is

suggested that the analog ground reference point for
these two capacitors be physically the same point.
To facilitate this the V

Ref

and V

Bias

pins are situated

on adjacent pins.

The transmit filter is designed to meet CCITT G.714
specifications. The nominal gain for this filter path is
0dB (gain control = 0dB). An anti-aliasing filter is

SERIAL

PORT

DSP GAIN*

FILTER/CODEC

TRANSDUCER INTERFACE

PCM

72 to

+22.5 dB

(1.5dB

steps)

DTMF,

Tone

Ringer &

Handsfree

72 to

+22.5 dB

(1.5dB

steps)

Receive

Filter Gain
0 to 7 dB

(1 dB steps)

Side-tone

9.96 to

+9.96dB

(3.32 dB steps)

Side-tone

Nominal

Gain

Transmit

Filter Gain

0 to +7dB

(1 dB steps)

-Law 11 dB

-Law 18.8 dB

-6 dB

Speaker Gain

0 to 24 dB

(8 dB steps)

Receiver

Driver

Speaker

Phone

Driver

0.2dB*

Tone

Ringer

(input

from DSP)

Transmit

Gain

M
U
X

-Law 6.3 dB

-Law 3.7 dB

-Law 6.1dB

-Law 15.4dB

MIC+

MIC

M+

-6 dB

HSPKR+

HSPKR

SPKR+

SPKR

Speakerphone

Speaker

(40

nominal)

(32

min)

Handsfree
mic

Transmitter
microphone

Handset
Receiver
(150

)

Transmit

Internal to Device

External to Device

DIGITAL DOMAIN

ANALOG DOMAIN

Note: *gain the same for A-Law and m

Law

Receive

Figure 3 - Audio Gain Partitioning

MT9094

7-50

included. This is a second order lowpass
implementation with a corner frequency at 25kHz.
Attenuation is better than 32dB at 256 kHz and less
than 0.01dB within the passband.

An optional 400Hz high-pass function may be
included into the transmit path by enabling the Tfhp
bit in the Transducer Control Register (address 0Eh).
This option allows the reduction of transmitted
background noise such as motor and fan noise.

The receive filter is designed to meet CCITT G.714
specifications. The nominal gain for this filter path is
0 dB (gain control = 0dB). Filter response is peaked
to compensate for the sinx/x attenuation caused by
the 8kHz sampling rate.

The Rx filter function can be altered by enabling the
DIAL EN control bit in the Transducer Control
Register (address 0Eh). This causes another
lowpass function to be added, with a 3dB point at
1000Hz. This function is intended to improve the
sound quality of digitally generated dial tone
received as PCM.

Transmit sidetone is derived from the Tx filter and is
subject to the gain control of the Tx filter section.
Sidetone is summed into the receive path after the
Rx filter gain control section so that Rx gain
adjustment will not affect sidetone levels. The
side-tone path may be enabled/disabled with the
SIDE EN bit located in the Transducer Control
Register (address 0Eh). See also STG

-STG

(address 0Bh).

Transmit and receive filter gains are controlled by the
TxFG

-TxFG

and RxFG

-RxFG

control bits

respectively. These are located in the FCODEC Gain
Control Register 1 (address 0Ah). Transmit filter gain
is adjustable from 0dB to +7dB and receive filter gain
from 0dB to -7dB, both in 1dB increments.

Side-tone filter gain is controlled by the STG

-STG

control bits located in the FCODEC Gain Control
Register 2 (address 0Bh). Side-tone gain is
adjustable from -9.96dB to +9.96dB in 3.32dB
increments.

Law selection for the Filter/CODEC is provided by
the A/µ companding control bit while the coding
scheme is controlled by the sign-mag/CCITT bit.
Both of these reside in the General Control Register
(address 0Fh).

Digital Signal Processor

The DSP block is located, functionally, between the
serial ST-BUS port and the Filter/CODEC block. Its

main purpose is to provide both a digital gain control
and a half-duplex handsfree switching function. The
DSP will also generate the digital patterns required
to produce standard DTMF signalling tones as well
as single tones and a tone ringer output. A
programmable (ON/OFF) offset null routine may also
be performed on the transmit PCM data stream. The
DSP can generate a ringer tone to be applied to the
speakerphone speaker during normal handset
operation so that the existing call is not interrupted.

The main functional control of the DSP is through
two hardware registers which are accessible at any
time via the microport. These are the Receive Gain
Control Register at address 1Dh and the DSP
Control Register at address 1Eh. In addition, other
functional control is accomplished via multiple
RAM-based registers which are accessible only
while the DSP is held in a reset state. This is
accomplished with the DRESET bit of the DSP
Control Register. Ram-based registers are used to
store transmit gain levels (20h for transmit PCM and
21h for transmit DTMF levels), the coefficients for
tone and ringer generation (addresses 23h and 24h),
and tone ringer warble rates (address 26h). All
undefined addresses below 20h are reserved for the
temporary storage of interim variables calculated
during the execution of the DSP algorithms. These
undefined addresses should not be written to via the
microprocessor port. The DSP can be programmed
to execute the following micro-programs which are
stored in instruction ROM, (see PS0 to PS2, DSP
Control Register, address 1Eh). All program
execution begins at the frame pulse boundary.

PS2 PS1 PS0

Micro-program

Power up reset program

Transmit and receive gain control

program; with autonulling of the
transmit PCM, if the AUTO bit is
set (see address 1Dh)

DTMF generation plus transmit

and receive gain control program
(autonull available via the AUTO
control bit)

Tone ringer plus transmit and

receive gain control program
(autonull available via the AUTO
control bit)

handsfree switching program

Last three selections reserved

MT9094

7-51

Note: For the DSP to function it must be selected to

operate, in conjunction with the Filter/Codec, in one
of the B-Channels. Therefore, one of the
B-Channel enable bits must be set (see Timing
Control, address 15h : bits CH

EN and CH

EN).

Power Up reset Program

A hardware power-up reset (pin 6, PWRST) will
initialize the DSP hardware registers to the default
values (all zeros) and will reset the DSP program
counter. The DSP will then be disabled and the PCM
streams will pass transparently through the DSP. The
RAM-based registers are not reset by the PWRST
pin but may be initialized to their default settings by
programming the DSP to execute the power up reset
program. None of the micro-programs actually
require the execution of the power up reset program
but it is useful for pre-setting the variables to a
known condition. Note that the reset program
requires one full frame (125µSec) for execution.

Gain Control Program

Gain control is performed on converted linear code
for both the receive and the transmit PCM. Receive
gain control is set via the hardware register at
address 1Dh (see bits B0 - B5) and may be changed
at any time. Gain in 1.5dB increments is available
within a range of +22.5dB to -72dB. Normal
operation usually requires no more than a +20 to -20
dB range of control. However, the handsfree
switching algorithm requires a large attenuation
depth to maintain stability in worst case
environments, hence the large (-72 dB) negative
limit. Transmit gain control is divided into two RAM
registers, one for setting the network level of transmit
speech (address 20h) and the other for setting the
transmit level of DTMF tones into the network
(address 21h). Both registers provide gain control in
1.5dB increments and are encoded in the same
manner as the receive gain control register (see
address 1Dh, bits B0 - B5). The power up reset
program sets the default values such that the receive
gain is set to -72.0 dB, the transmit audio gain is set
to 0.0dB and the transmit DTMF gain is set to -3.0
dB (equivalent to a DTMF output level of -4dBm0 into
the network).

Optional Offset Nulling

Transmit PCM may contain residual offset in the form
of a DC component. An offset of up to ±fifteen linear
bits is acceptable with no degradation of the
parameters defined in CCITT G.714. The DPhone

-II

filter/CODEC guarantees no more than ±ten linear
bits of offset in the transmit PCM when the autonull

routine is not enabled. By enabling autonulling (see
AUTO in the Receive Gain Control Register, address
1Dh) offsets are reduced to within ±one bit of zero.
Autonulling circuitry was essential in the first
generations of Filter/Codecs to remove the large DC
offsets found in the linear technology. Newer
technology has made nulling circuitry optional as
offered in the DPhone

-II

DTMF and Gain Control Program

The DTMF program generates a dual cosine wave
pattern which may be routed into the receive path as
comfort tones or into the transmit path as network
signalling. In both cases, the digitally generated
signal will undergo gain adjustment as programmed
into the Receive Gain Control and the Transmit
DTMF Gain Control registers. The composite signal
output level in both directions is -4dBm0 when the
gain controls are set to 2Eh (-3.0 dB). Adjustments to
these levels may be made by altering the settings of
the gain control registers. Pre-twist of 2.0dB is
incorporated into the composite signal. The
frequency of the low group tone is programmed by
writing an 8-bit coefficient into Tone Coefficient
Register 1 (address 23h), while the high group tone
frequency uses the 8-bit coefficient programmed into
Tone Coefficient Register 2 (address 24h). Both
coefficients are determined by the following
equation:

COEFF = 0.128 x Frequency (in Hz)

where COEFF is a rounded off 8 bit binary integer

A single frequency tone may be generated instead of
a dual tone by programming the coefficient at
address 23h to a value of zero. In this case
thefrequency of the single output tone is governed by
the coefficient stored at address 24h.

Table 1

DTMF Signal to distortion:

The sum of harmonic and noise power in the frequency band

from 50Hz to 3500Hz is typically more than 30dB below the
power in the tone pair. All individual harmonics are typically
more than 40dB below the level of the low group tone.

Frequency

(Hz)

COEF

Actual

Frequency

Deviation

697

59h

695.3

-.20%

770

63h

773.4

+.40%

852

6Dh

851.6

-.05%

941

79h

945.3

+.46%

1209

9Bh

1210.9

+.20%

1336

ABh

1335.9

.00%

1477

BDh

1476.6

-.03%

1633

D1h

1632.8

-.01%

MT9094

7-52

Table 1 gives the standard DTMF frequencies, the
coefficient required to generate the closest
frequency, the actual frequency generated and the
percent deviation of the generated tone from the
nominal.

Tone Ringer and Gain Control Program

A locally generated alerting (ringing) signal is used to
prompt the user when an incoming call must be
answered. The DSP uses the values programmed
into Tone Coefficient Registers 1 and 2 (addresses
23h and 24h) to generate two different squarewave
frequencies in PCM code. The amplitude of the
squarewave frequencies is set to a mid level before
being sent to the receive gain control block. From
there the PCM passes through the decoder and
receive filter, replacing the normal receive PCM data,
on its way to the loudspeaker driver. Both
coefficients are determined by the following
equation:

COEFF = 8000/Frequency (Hz)

where COEFF is a rounded off 8 bit binary integer

The ringer program switches between these two
frequencies at a rate defined by the 8-bit coefficient
programmed into the Tone Ringer Warble Rate
Register (address 26h). The warble rate is defined
by the equation:

Tone duration (warble frequency

in Hz) = 500/COEFF

where 0 < COEFF < 256, a warble rate of 5-20Hz is
suggested.

An alternate method of generating ringer tones to the
speakerphone speaker is available. With this method
the normal receive speech path through the decoder
and receive filter is uninterrupted to the handset,
allowing an existing conversation to continue. The
normal DSP and Filter/CODEC receive gain control
is also retained by the speech path. When the OPT
bit (DSP Control Register address 1Eh) is set high
the DSP will generate the new call tone according to
the coefficients programmed into registers 23h, 24h
and 26h as before. In this mode the DSP output is no
longer a PCM code but a toggling signal which is
routed directly through the New Call Tone gain
control section to the loudspeaker driver. Refer to
the section titled `New Call Tone'.

Handsfree Program

A half-duplex speakerphone program, fully contained
on chip, provides high quality gain switching of the
transmit and receive speech PCM to maintain loop
stability under most network and local acoustic
environments. Gain switching is performed in
continuous 1.5dB increments and operates in a
complimentary fashion. That is, with the transmit
path at maximum gain the receive path is fully
attenuated and vice versa. This implies that there is
a mid position where both transmit and receive paths
are attenuated equally during transition. This is
known as the idle state.

Of the 64 possible attenuator states, the algorithm
may rest in only one of three stable states; full
receive, full transmit and idle. The maximum gain
values for full transmit and full receive are
programmable through the microport at addresses
20h and 1Dh respectively, as is done for normal
handset operation. This allows the user to set the
maximum volumes to which the algorithm will
adhere. The algorithm determines which path should
maintain control of the loop based upon the relative
levels of the transmit and receive audio signals after
the detection and removal of background noise
energy. If the algorithm determines that neither the
transmit or the receive path has valid speech energy
then the idle state will be sought. The present state
of the algorithm plus the result of the Tx vs. Rx
decision will determine which transition the algorithm
will take toward its next stable state. The time
durations required to move from one stable state to
the next are parameters defined in CCITT
Recommendation P.34 and are used by default by
this algorithm (i.e., build-up time, hang-over time and
switching time).

Quiet Code

The DSP can be made to send quiet code to the
decoder and receive filter path by setting the
RxMUTE bit high. Likewise, the DSP will send quiet
code in the transmit (DSTo) path when the TxMUTE
bit is high. Both of these control bits reside in the
DSP Control Register at address 1Eh. When either
of these bits are low, their respective paths function
normally.

MT9094

7-53

Transducer Interfaces

Four standard telephony transducer interfaces are
provided by the DPhone

-II

. These are:

The handset microphone inputs (transmitter),

pins M+/M- and the speakerphone microphone
inputs, pins MIC+/MIC-. The transmit path is
muted/not-muted by the MIC EN control bit.
Selection of which input pair is to be routed to
the transmit filter amplifier is acomplished by the
MIC/HNSTMIC control bit. Both of these reside
in the Transducer Control Register (address
0Eh). The nominal transmit path gain may be
adjusted to either 6.1dB (suggested for µ-Law)
or 15.4dB (suggested for A-Law). Control of this
gain is provided by the MICA/u control bit
(General Control Register, address 0Fh). This
gain adjustment is in addition to the
programmable gain provided by the transmit
filter and DSP.

The handset speaker outputs (receiver), pins

HSPKR+/HSPKR-. This internally
compensated, fully differential output driver is
capable of driving the load shown in Figure 4.
This output is enabled/disabled by the HSSPKR
EN bit residing in the Transducer Control
Register (address 0Eh). The nominal handset
receive path gain may be adjusted to either
-12.3dB (suggested for µ-Law) or - 9.7dB
(suggested for A-Law). Control of this gain is
provided by the RxA/u control bit (General
Control Register, address 0Fh). This gain
adjustment is in addition to the programmable
gain provided by the receive filter and DSP.

The loudspeaker outputs, pins SPKR+/SPKR-.

This internally compensated, fully differential
output driver is capable of directly driving 6.5vpp
into a 40 ohm load. This output is enabled/
disabled by the SPKR EN bit residing in the
Transducer Control Register (address 0Eh). The
nominal gain for this amplifier is 0.2dB.

C-Channel

Access to the internal control and status registers of
Mitel basic rate, layer 1, transceivers is through the
ST-BUS Control Channel (C-Channel), since direct
microport access is not usually provided, except in
the case of the SNIC (MT8930). The DPhone

-II

provides asynchronous microport access to the
ST-BUS C-Channel information on both DSTo and
DSTi via a double-buffered read/write register
(address 14h). Data written to this address is
transmitted on the C-Channel every frame when
enabled by CH

EN (see ST-BUS/Timing Control).

Figure 4 - Handset Speaker Driver

LCD

A twelve segment, non-multiplexed, LCD display
controller is provided for easy implementation of
various set status and call progress indicators. The
twelve output pins (S

) are used in conjunction with

12 segment control bits, located in LCD Segment
Enable Registers 1&2 (addresses 12h and 13h), and
the BackPlane output pin (BP) to control the on/off
state of each segment individually.

The BP pin drives a continuous 62.5Hz, 50% duty
cycle squarewave output signal. An individual
segment is controlled via the phase relationship of its
segment driver output pin with respect to the
backplane, or common, driver output. Each of the
twelve Segment Enable bits corresponds to a
segment output pin. The waveform at each segment
pin is in-phase with the BP waveform when its
control bit is set to logic zero (segment off) and is
out-of-phase with the BP waveform when its control
bit is set to a logic high (segment on). Refer to the
LCD Driver Characteristics for pin loading
information.

Microport

A serial microport, compatible with Intel MCS-51
(mode 0) specifications, provides access to all
DPhone

-II

internal read and write registers. This

microport consists of three pins; a half-duplex
transmit/receive data pin (DATA1), a chip select pin
(CS) and a synchronous data clock pin (SCLK).

On power-up reset (PWRST) or with a software reset
(RST), the DATA1 pin becomes a bidirectional
(transmit/receive) serial port while the DATA2 pin is
internally disconnected and tri-stated.

HSPKR+

HSPKR-

1000 pF

150 ohm

load

(speaker)

1000 pF

ground

MT9094

MT9094

7-54

All data transfers through the microport are two-byte
transfers requiring the transmission of a Command/
Address byte followed by the data byte written or
read from the addressed register. CS must remain
asserted for the duration of this two-byte transfer. As
shown in Figure 5, the falling edge of CS indicates to
the DPhone

-II

that a microport transfer is about to

begin. The first 8 clock cycles of SCLK after the
falling edge of CS are always used to receive the
Command/Address byte from the microcontroller.
The Command/Address byte contains information
detailing whether the second byte transfer will be a
read or a write operation and of what address. The
next 8 clock cycles are used to transfer the data byte
between the DPhone

-II

and the microcontroller. At

the end of the two-byte transfer CS is brought high
again to terminate the session. The rising edge of CS
will tri-state the output driver of DATA1 which will
remain tri-stated as long as CS is high.

Receive data is sampled and transmit data is made
available on DATA1 concurrent with the falling edge
of SCLK.

Lastly, provision is made to seperate the transmit
and receive data streams onto two individual pins.
This control is given by the DATASEL pin in the
General Control Register (address 0Fh). Setting
DATASEL logic high will cause DATA1 to become the
data receive pin and DATA2 to become the data
transmit pin. Only the signal paths are altered by

DATASEL; internal timing remains the same in both
cases. Tri-stating on DATA2 follows CS as it does on
DATA1 when DATASEL is logic low. Use of the
DATASEL bit is intended to help in adapting Motorola
(SPI) and National Semiconductor (Micro-wire)
microcontrollers to the DPhone

-II

. Note that whereas

Intel processor serial ports transmit data LSB first
other processor serial ports, including Motorola,
transmit data MSB first. It is the responsibility of the
microcontroller to provide LSB first data to the
DPhone

-II

ST-BUS/Timing Control

A serial link is required for the transport of data
between the DPhone

-II

and the external digital

transmission device. The DPhone

-II

utilizes the

ST-BUS architecture defined by Mitel
Semiconductor. Refer to Mitel Application Note
MSAN-126. The DPhone

-II

ST-BUS consists of

output and input serial data streams, DSTo and DSTi
respectively, a synchronous clock signal C4i, and a
framing pulse

F0i.

The data streams operate at 2048kb/s and are Time
Division Multiplexed into 32 identical channels of
64kb/s bandwidth. Frame Pulse (a 244nSec low
going pulse) is used to parse the continuous serial
data streams into the 32 channel TDM frames. Each
frame has a 125µSecond period translating into an 8
kHz frame rate. Valid frame pulse occurs when F0i is

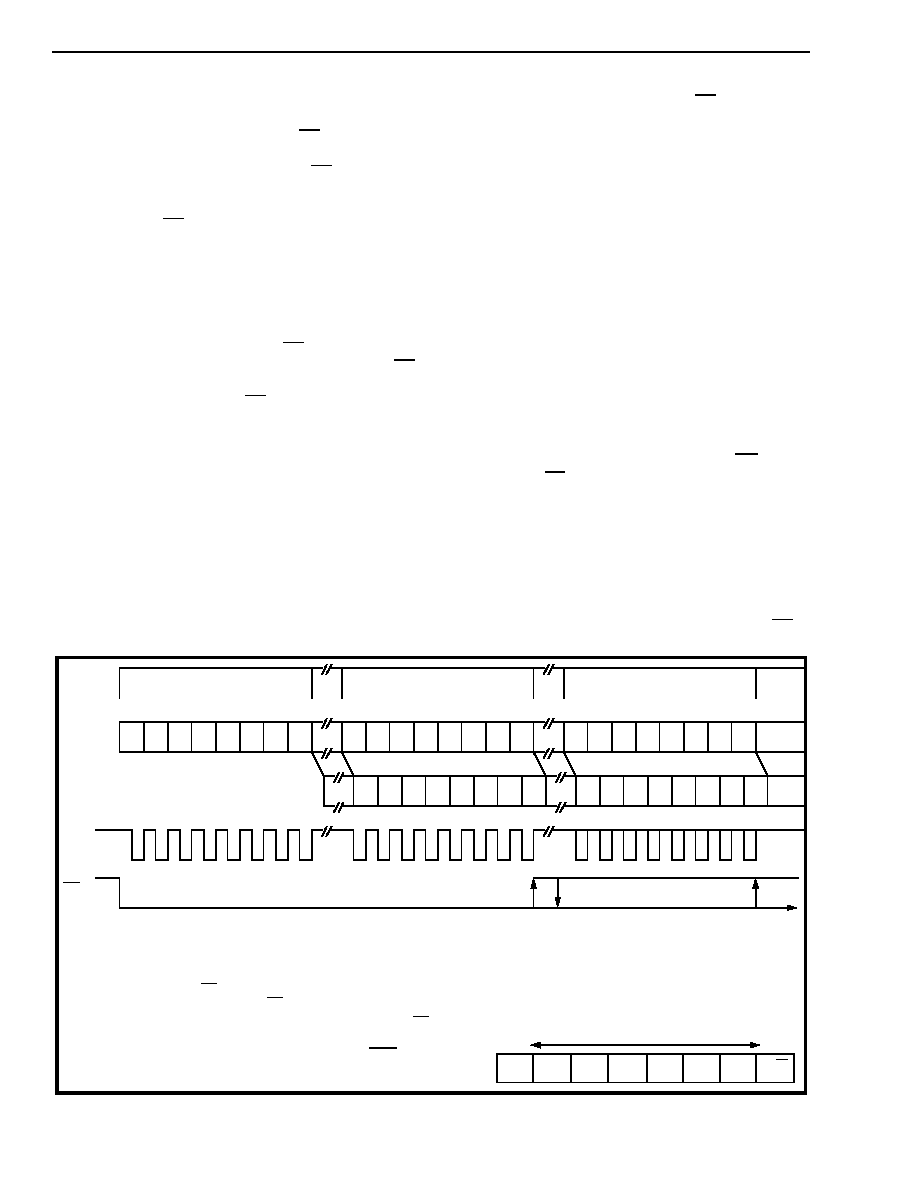

Figure 5 - Serial Port Relative Timing

R/W

COMMAND/ADDRESS

DATA INPUT/OUTPUT

COMMAND/ADDRESS

DATA 1
Receive

DATA 1 or DATA 2
Transmit

SCLK

Delays due to MCS-51 internal timing which are transparent.

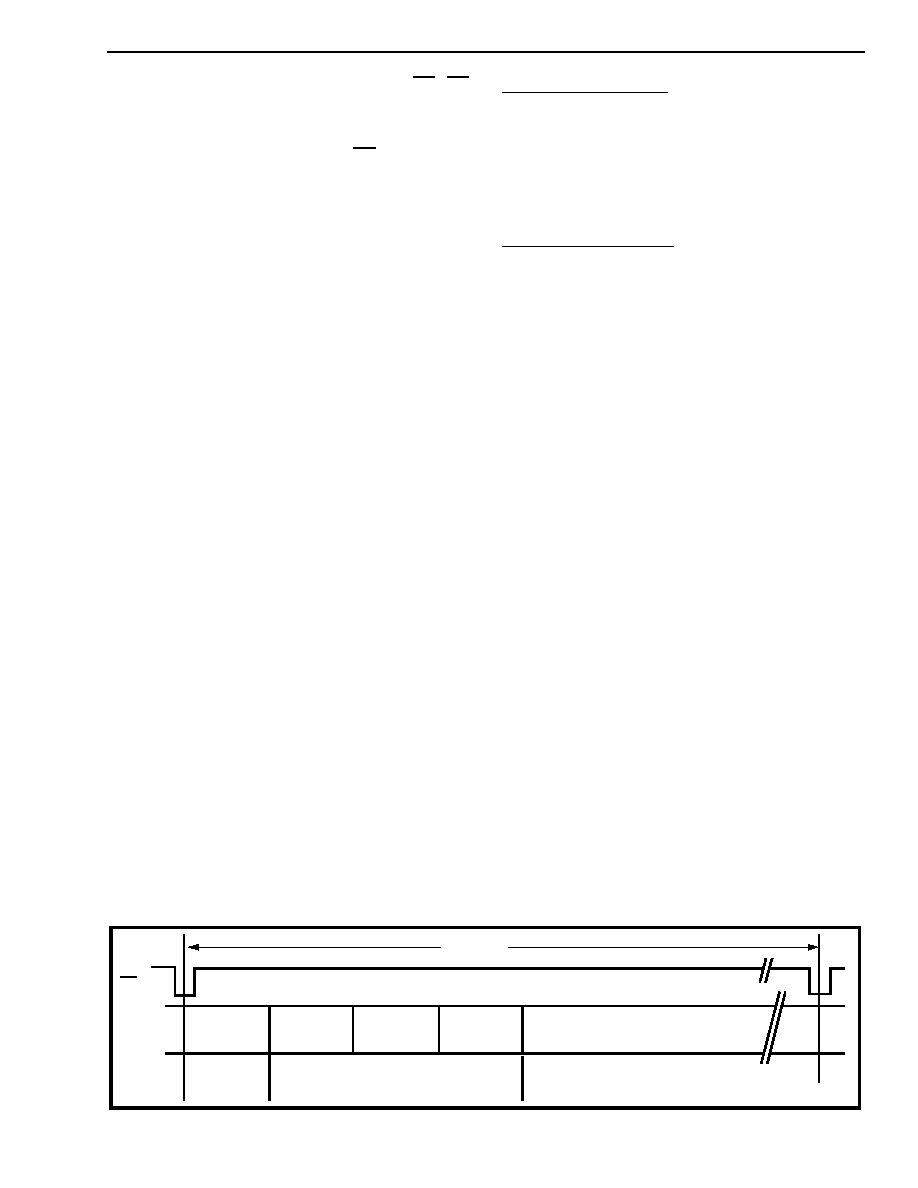

The DPhone-II: -latches received data on the falling edge of SCLK

-outputs transmit data on the falling edge of SCLK

The falling edge of CS indicates that a COMMAND/ADDRESS byte will be transmitted from the microprocessor. The subsequent
byte is always data followed by CS returning high.

A new COMMAND/ADDRESS byte may be loaded only by CS cycling high then low again.

The COMMAND/ADDRESS byte contains:

1 bit - Read/Write
6 bits - Addressing Data
1 bit - Not used, write logic "0"

MT9094

7-55

logic low coincident with a falling edge of C4i. C4i
has a frequency (4096MHz) which is twice the data
rate. This clock is used to sample the data at the _
bit-cell position on DSTi and to make data available
on DSTo at the start of the bit-cell. C4i is also used
to clock the DPhone

-II

internal functions (i.e., DSP,

Filter/CODEC, HDLC) and to provide the channel
timing requirements.

The DPhone

-II

uses channels 1, 2 & 3 of the 32

channel frame. These channels are always defined,
beginning with the first channel after frame pulse, as
shown in Figure 6 (DSTi and DSTo channel
assignments). Channels are enabled independently
by the three control bits Ch

En -Ch

En residing in

the Timing Control Register (address15h).

EN - C-Channel

Channel 1 conveys the control/status

information for Mitel's layer 1 transceiver. The
full 64kb/s bandwidth is available and is
assigned according to which transceiver is
being used. Consult the data sheet for the
selected transceiver for its bit definitions and
order of bit transfer. When this bit is high
register data is transmitted on DSTo. When
low, this timeslot is tri-stated on DSTo. Receive
C-Channel data (DSTi) is always routed to the
register regardless of this control bit's logic
state. C-channel data is transferred on the
ST-BUS MSB first by the DPhone

-II

EN and Ch

EN - B1-Channel and B2-Channel

Channels 2 and 3 are the B1 and B2 channels,

respectively. These bits (Ch

EN and Ch

EN)

are used to enable the PCM channels from/to
the DPhone

-II

as required.

Transmit PCM on DSTo

When high, PCM from the Filter/CODEC and DSP is
transmitted on DSTo in the selected ST-BUS
channel. When low, DSTo is forced to logic 0 for the
corresponding timeslot. If both Ch

EN and Ch

are enabled, default is to channel 2.

Receive PCM from DSTi

When high, PCM from DSTi is routed to the DSP and
Filter/CODEC in the associated channel. If both
Ch

EN and Ch

EN are enabled the default is to

channel 2.

New Call Tone

The New Call Tone Generator produces a frequency
shifted square-wave used to toggle the speaker
driver outputs. This is intended for use where a
ringing signal is required concurrently with an
already established voice conversation in the
handset.

Programming of the DSP for New Call generator is
exactly as is done for the tone ringer micro-program
except that the OPT bit (DSP Control Register,
address 1Eh) is set high. In this mode the DSP does
not produce a frequency shifted squarewave output
to the filter CODEC section. Instead the DSP uses
the contents of the tone coefficient registers, along
with the tone warble rate register, to produce a gated
squarewave control signal output which toggles
between the programmed frequencies. This control
signal is routed to the New Call Tone block when the
NCT EN control bit is set (General Control Register,
address 0Fh). NCT EN also enables a separate gain
control block, for controlling the loudness of the
generated ringing signal. With the gain control block
set to 0dB the output is at maximum or 6 volts p-p.
Attenuation of the applied signal, in three steps of 8
dB, provide the four settings for New Call tone (0, -8,
-16, -24 dB). The NCT gain bits (NCTG

-NCTG

)

reside in the FCODEC Gain Control Register 2
(address 0Bh).

Figure 6 - ST-BUS Channel Assignment

F0i

DSTi,
DSTo

125

CHANNEL 1

C-channel

CHANNEL 3

B2-channel

CHANNEL 2

B1-channel

CHANNELS 4 - 31

Not Used

MSB first for C, B1 - & B2-

Channels

Not

Used

MT9094

7-56

Watchdog

To maintain program integrity an on-chip watchdog
timer is provided for connection to the
microcontroller reset pin. The watchdog output WD
(pin 17) goes high while the DPhone

-II

is held in

reset via the PWRST (pin 6). Release of PWRST will
cause WD to return low immediately and will also
start the watchdog timer. The watchdog timer is
clocked on the falling edge of F0i

and requires only

this input, along with V

, for operation.

If the watchdog reset word is written to the watchdog
register (address 11h) after PWRST is released, but
before the timeout period (T=512mSec) expires, a
reset of the timer results and WD will remain low.
Thereafter, if the reset word is loaded correctly at
intervals less than 'T' then WD will continue low. The
first break from this routine, in which the watchdog
register is not written to within the correct interval or
it is written to with incorrect data, will result in a high
going WD output after the current interval 'T' expires.

WD will then toggle at this rate until the watchdog
register is again written to correctly.

x=don't care

Test Loops

Detail LBio and LBoi Loopback Register (address
16h)

LBio

Setting this bit causes data on DSTi to
be looped back to DSTo directly at the
pins. The appropriate channel enables
Ch

EN -Ch

EN must also be set.

LBoi

Setting this bit causes data on DSTo to
be looped back to DSTi directly at the
pins.

5-BIT WATCHDOG RESET WORD

DPhone-II Register Map

Address

(Hex)

WRITE

READ

00-09

RESERVED

FCODEC GAIN CONTROL REGISTER 1

VERIFY

FCODEC GAIN CONTROL REGISTER 2

VERIFY

RESERVED

TRANSDUCER CONTROL REGISTER

VERIFY

GENERAL CONTROL REGISTER

VERIFY

RESERVED

WATCHDOG REGISTER

NOT USED

LCD SEGMENT ENABLE REGISTER 1

VERIFY

LCD SEGMENT ENABLE REGISTER 2

VERIFY

C-CHANNEL REGISTER (to DSTo)

C-CHANNEL REGISTER (from DSTi)

TIMING CONTROL REGISTER

VERIFY

LOOP-BACK REGISTER

VERIFY

17-1C

RESERVED

RECEIVE GAIN CONTROL REGISTER

VERIFY

DSP CONTROL REGISTER

VERIFY

RESERVED

TRANSMIT AUDIO GAIN REGISTER

VERIFY

TRANSMIT DTMF GAIN REGISTER

VERIFY

RESERVED

TONE COEFFICIENT REGISTER 1

VERIFY

TONE COEFFICIENT REGISTER 2

VERIFY

RESERVED

TONE RINGER WARBLE RATE REGISTER

VERIFY

27-3F

RESERVED

MT9094

7-57

Register Summary

This section contains a complete listing of the
DPhone

-II

mapping associated with each register and a
definition of the function of each control/status bit.

The Register Summary may be used for future
reference to review each of the control/status bit
definitions without the need to locate them in the text
of the functional block descriptions.

ADDRESSES 00h and 09h are RESERVED

ADDRESSES 0Ch and 0Dh are RESERVED

Note: Bits marked "-" are reserved bits and should be written with logic "0".

Receive Gain

Setting (dB)

RxFG

Transmit Gain

Setting (dB)

TxFG

(default)

-1

-2

-3

-4

-5

-6

-7

(default) 0

FCODEC Gain Control Register 1

ADDRESS = 0Ah WRITE/READ VERIFY

Power Reset Value

X000 X000

RxFG

TxFG

RxFG

= Receive Filter Gain n

TxFG

= Transmit Filter Gain n

Side-tone Gain

Setting (dB)

STG

(default) OFF

-9.96

-6.64

-3.32

3.32

6.64

9.96

FCODEC Gain Control Register 2

ADDRESS = 0Bh WRITE/READ VERIFY

Power Reset Value

0X00 X000

NCTG

STG

STG

= Side-tone Gain n

Gain (dB)

NCTG

0 (default)

-8

-16

-24

NCTGn = New Call Tone Gain n

MT9094

7-58

ADDRESS 10h is RESERVED

Note: Bits marked "-" are reserved bits and should be written with logic "0".

PuFC

When high, the Filter/CODEC is powered up. When low, the Filter/CODEC is powered down. If PuFC, SPKR EN and

HSSPKR EN are all low then the VRef/VBias circuit is also powered down.

Tfhp

When high, an additional high pass function (passband beginning at 400Hz) is inserted into the transmit path. When

low, this highpass filter is disabled.

DIAL EN

When high, a first order lowpass filter is inserted into the receive path (3dB = 1kHz). When low, this lowpass filter is

disabled.

SIDE EN

When high, the sidetone path is enabled (assuming STG

2-0

are not all low). When low, the sidetone path is disabled.

MIC EN

When high, the selected transmit microphone is enabled to the transmit filter section. When low, the microphone

path is muted.

MIC/HNSTMIC

When high, the handsfree microphone (pins MIC±) is muxed into the transmit path. When low, the handset

microphone (pins M±) is muxed into the transmit path. Both are contingent on "MIC EN".

SPKR EN

When high, the handsfree loudspeaker driver is powered up. When low, this driver is powered down.

HSSPKR EN

When high, the handset speaker driver is powered up. When low, this driver is powered down.

Transducer Control Register

ADDRESS = 0Eh WRITE/READ VERIFY

Power Reset Value

0000 0000

PuFC

Tfhp

DIAL

SIDE

MIC/

SPKR

HSSPKR

MIC

HNSTMIC

RST

Active high reset. Performs the same function as PWRST but does not affect the microport or the watchdog circuits.

To remove this reset a PWRST must occur or this bit must be written low.

DATASEL

When high, the microport transmit and receive are performed on separate pins. DATA1 is receive while DATA2 is

transmit. When low, the microport conforms to Intel MCS-51 mode 0 specifications; DATA1 is a bi-directional
(transmit/receive) serial data pin while DATA2 is internally disconnected and tri-stated.

A/u

When high, A-Law (de)coding is selected. When low, µ-Law (de)coding is selected.

Sign-mag/CCITT

When high, sign-magnitude bit coding is selected, When low, true CCITT PCM coding is selected.

RxA/u

When high, the receiver driver nominal gain is set at -9.7 dB. When low this driver nominal gain is set at -12.3 dB.

MICA/u

When high, the transmit amplifier nominal gain is set at 15.4 dB. When low this amplifier nominal gain is set at 6.1

dB.

SIDEA/u

When high, the side-tone nominal gain is set at -18.8 dB. When low this nominal gain is set at -11 dB.

NCT EN

When high, the new call tone generator output from the DSP is selected as the source for the loudspeaker path.

When low, the CODEC output is selected for the loudspeaker path. Note that SPKR EN must also be set high for
new call tone to function.

General Control Register

ADDRESS = 0Fh WRITE/READ VERIFY

Power Reset Value

0000 0000

RST

DATA

Sign-Mag/

MIC

Side

NCT

SEL

CCITT

MT9094

7-59

Note: Bits marked "-" are reserved bits and should be written with logic "0".

WATCHDOG RESET WORD - XXX01010

Watchdog Register

ADDRESS = 11h WRITE

Power Reset Value

XXX0 1010

Twelve segment control bits used for the LCD outputs. When high the respective segment is on. When low the respective segment is
off.

LCD Segment Enable Register 1

ADDRESS = 12h WRITE/READ VERIFY

Power Reset Value

0000 0000

Twelve segment control bits used for the LCD outputs. When high the respective segment is on. When low the respective segment is
off.

LCD Segment Enable Register 2

ADDRESS = 13h WRITE/READ VERIFY

Power Reset Value

XXXX 0000

C-Channel Register

ADDRESS = 14h WRITE/READ

Power Reset Value

Write = 1111 1111

Micro-port access to the ST-BUS C-Channel information.

Read = Not Applicable

MT9094

7-60

ADDRESSES 17h - 1Ch are RESERVED

Note: Bits marked "-" are reserved bits and should be written with logic "0".

All bits active high:

EN and Ch

Channels 2 and 3 are the B1 and B2 channels, respectively. PCM associated with the DSP, Filter/CODEC and trans-

ducer audio paths is conveyed in one of these channels as selected in the timing control register.

Transmit B1 and B2 data on DSTo

When high PCM from the Filter/CODEC and DSP is transmitted on DSTo in the associated channel. When low

DSTo is forced to logic 0 for the corresponding timeslot. If both Ch

EN and Ch

EN are enabled, data defaults to

channel 2.

Receive B1 and B2 data on DSTi

When enabled PCM from DSTi is routed to the DSP and Filter/CODEC in the associated channel. If both Ch

and Ch

EN are enabled, data input defaults to channel 2.

Channel 1 conveys the control/status information for the layer 1 transceiver. The full 64kb/s bandwidth is available and

is assigned according to which transceiver is being used. Consult the data sheets for the transceiver selected. When

high register data is transmitted on DSTo. When low this timeslot is tri-stated on DSTo. Receive C-Channel data (DSTi)

is always routed to the register regardless of this control bit's logic state.

Timing Control Register

ADDRESS = 15h WRITE/READ VERIFY

Power Reset Value

XX0X 0000

Active high enables data from the ST-BUS input to be looped back to the ST-BUS output directly at the pins. The DSTo

tri-state driver must also be enabled using one of the channel enable signals.

Active high enables data from ST-BUS output to be looped back to the ST-BUS input directly at the pins.

Loop-back Register

ADDRESS = 16h WRITE/READ VERIFY

Power Reset Value

X00X XXXX

LBio

LBoi

MT9094

7-61

Note: Bits marked "-" are reserved bits and should be written with logic "0".

AUTO

When high autonulling of the transmit PCM is enabled. When low, autonulling is disabled. This bit is used in conjunction with

the PS2 - PS0 bits of the DSP Control Register at address 1Eh.

B5-B0

These 6 bits (indicated below in hexadecimal) are decoded to control Rx PCM gain:

Note: B0-B5 of addresses 20h and 21h are encoded in the same manner

B5-B0

Gain Setting (dB)

B5-B0

Gain Setting (dB)

+22.5

-25.5

+21.0

-27.0

+19.5

-28.5

+18.0

-30.0

+16.5

-31.5

+15.0

-33.0

+13.5

-34.5

+12.0

-36.0

+10.5

-37.5

+9.0

-39.0

+7.5

-40.5

+6.0

-42.0

+4.5

-43.5

+3.0

-45.0

+1.5

-46.5

+0.0

-48.0

-1.5

-49.5

-3.0

-51.0

-4.5

-52.5

-6.0

-54.0

-7.5

-55.5

-9.0

-57.0

-10.5

-58.5

-12.0

-60.0

-13.5

-61.5

-15.0

-63.0

-16.5

-64.5

-18.0

-66.0

-19.5

-67.5

-21.0

-69.0

-22.5

-70.5

-24.0

-72.0

Receive Gain Control Register

ADDRESS = 1Dh WRITE/READ VERIFY

Power Reset Value

0000 0000

AUTO

MT9094

7-62

ADDRESS 1Fh is RESERVED

ADDRESS 22h is RESERVED

Note: Bits marked "-" are reserved bits and should be written with logic "0".

OPT:

When high, the tone ringer is in New Call tone mode. When low the normal tone ringer program is executed.

RxMUTE:

This bit when high turns off the receive PCM channel, substituting quiet code.

TxMUTE:

This bit when high turns off the transmit PCM channel, substituting quiet code.

DRESET:

This bit (when high) enables the DSP. If low, no programs are executed, the master clock is disabled and the

program counter is reset to zero.

PS2-PS0:

These bits are program select bits for the DSP Rom programs.

PS2

PS1

PS0

MICRO-PROGRAM

Power up reset program

Gain control program

DTMF & Gain control program

Tone Ringer & Gain control program

Handsfree program

Reserved

DSP Control Register

ADDRESS = 1Eh WRITE/READ VERIFY

Power Reset Value

0000 0000

PS2

PS1

PS0

OPT

RxMUTE

TxMUTE

DRESET

Transmit Audio Gain Register

ADDRESS = 20h WRITE/READ VERIFY

Power Reset Value

XX11 0000

This register controls the transmit speech path gain in 1.5dB steps as in Receive Gain Register (address 1Dh).

Transmit DTMF Gain Register

ADDRESS = 21h WRITE/READ VERIFY

Power Reset Value

XX10 1110

This register controls the transmit DTMF level in 1.5dB steps as in Receive Gain Register (address 1Dh).

MT9094

7-63

ADDRESS 25h is RESERVED

Addresses: 27h to 2Dh are transmit and receive gains and coefficients used by the filters in the handsfree

decision circuit.

2Eh to 3Fh are scratch-pad ram locations used by the DSP algorithms as temporary storage dur-

ing calculations.

This register is used to program the low-group frequency of the DTMF program. The tone coefficient is calculated as follows:

COEF = 0.128 x Frequency

where: Frequency is in Hz (note: COEF must be converted to an 8 bit binary integer)

Highest frequency possible:

1992.2 Hz

Lowest frequency possible:

7.8 Hz

Frequency resolution:

7.8 Hz

Pre-twist:

-2.1dB ± 0.2dB

This register is used to program the first frequency of the squarewave ringer program. The tone coefficient is calculated as follows:

COEF = 8000 / Frequency

where: Frequency is in Hz (note: COEF must be rounded off and converted to an 8 bit binary integer)

Highest frequency possible:

4000 Hz

Lowest frequency possible:

31.4 Hz

Frequency resolution:

non-linear

This tone can be disabled by writing zero to this register for single tone generation.

Tone Coeff Register 1-DTMF or Tone Ringer

ADDRESS = 23h WRITE/READ VERIFY

Power Reset Value

0000 0000

This register is used to program the high-group frequency of the DTMF program. The tone coefficient is calculated as follows:

COEF = 0.128 x Frequency

where: Frequency is in Hz (note: COEF must be converted to an 8 bit binary integer)

Highest frequency possible:

1992.2 Hz

Lowest frequency possible:

7.8 Hz

Frequency resolution:

7.8 Hz

Pre-twist:

0dB

This register is used to program the second frequency of the squarewave program. The tone coefficient is calculated similarly to tone

coefficient register 1.

Tone Coeff Register 2-DTMF or Tone Ringer

ADDRESS = 24h WRITE/READ VERIFY

Power Reset Value

0000 0000

The tone ringer will switch between squarewave frequencies at a warble frequency defined by this register. The relationship between

the duration period of each tone and the 8 bit warble coefficient is as follows:

Tone duration (warble frequency) = 500 / COEF

where: Frequency is in Hz, and 0

COEF <256

Highest frequency possible:

500 Hz

Lowest frequency possible:

2.0 Hz

Tone Ringer Warble Rate-Tone Ringer

ADDRESS = 26h WRITE/READ VERIFY

Power Reset Value

0000 0000

MT9094

7-64

Applications

To maintain a fully differential topology in the
transmit path the suggested connection scheme for
the transmit microphones is shown in Figure 7.
However, it is possible to use a single-ended
arrangement as shown in Figure 8 for the transmit
interface. In this case the dynamic range of the
MT9094 is reduced by half. In both figures the output
drivers are connected in a fully differential manner.

The MT9094 is a member of the Mitel family of digital
terminal equipment components. There are two

transmisssion devices which connect directly with
the MT9094 to complete an application; the MT8930
(SNIC) and the MT8971/72 (DSIC/DNIC). An ISDN
4-wire "TE" function is implemented with the
MT8930/MT9094 combination. A 2-wire digital phone
for PABX, key-systems and other proprietary
applications is implemented with the MT8971/72/
MT9094 combination.

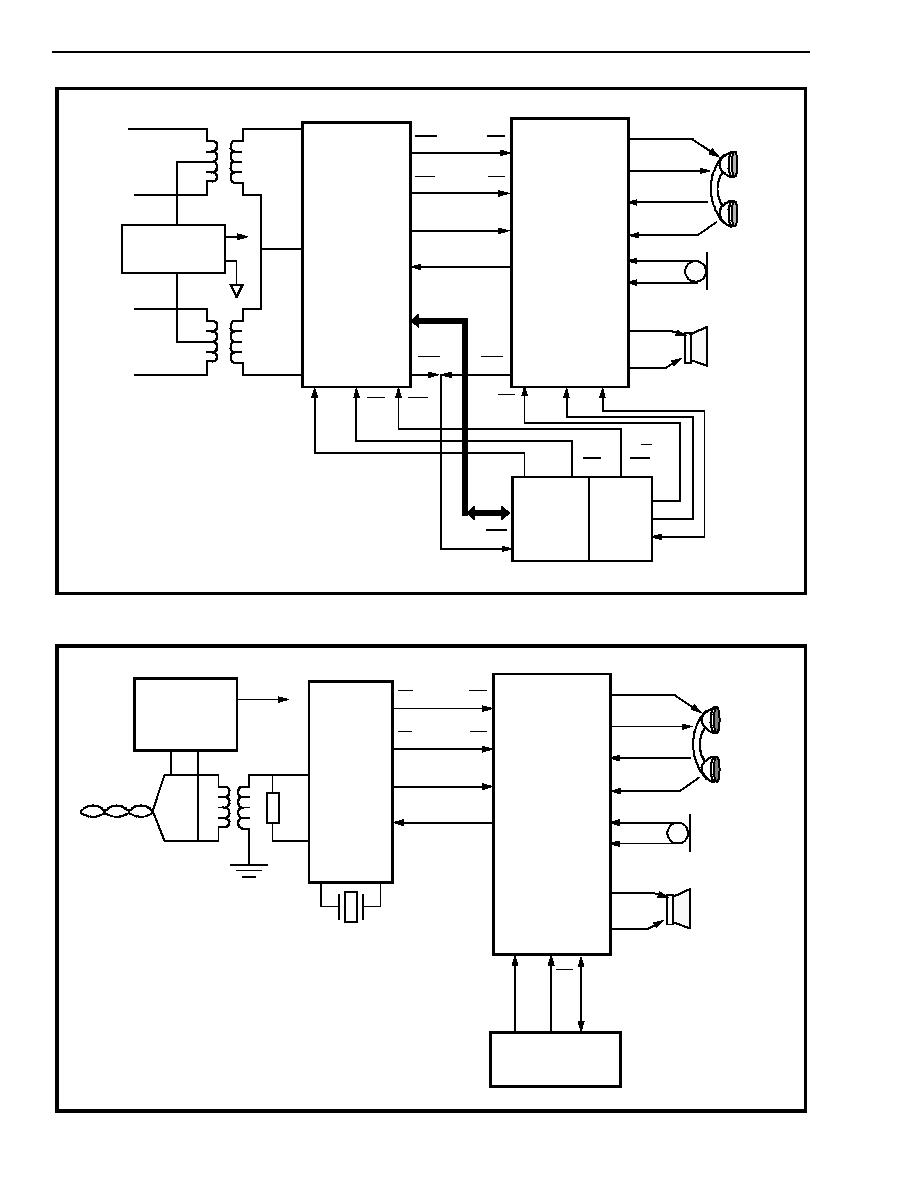

Figures 9 and 10 show the 4-wire and 2-wire
applications, respectively.

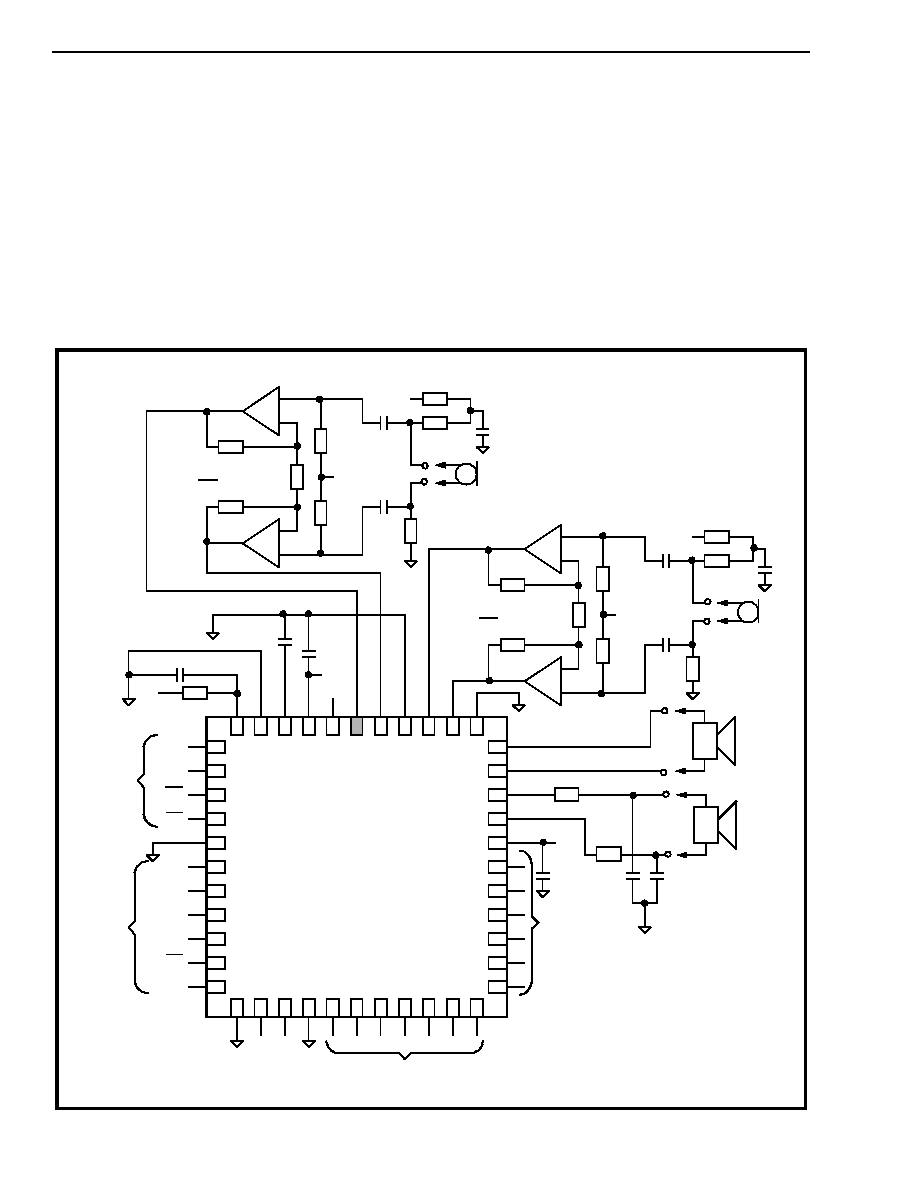

Figure 7 - Application Circuit - fully differential audio input

ST-BUS

Port

Transmission

Device

Serial

Microport

INTEL

MCS-51

DSTi

DSTo

C4i

F0i

SCLK

DATA2

DATA1

43 42

41 40

22 23

24 25

26 27

LCD

MT9094

+5V

0.1

VBias

Av = 1+

100K

VBias

100K

0.1

+5V

330

511

Electret
Microphone

511

Av = 1+

100K

VBias

100K

0.1

+5V

330

511

Electret
Microphone

511

0.1

nom.

min.

150

+5V

F 1000pF

1000pF

1000pF caps
are optional

LCD

Note: Single-ended configurations reduce

dynamic range by a factor of two.

0.1

MT9094

7-67

Programming Examples

Some examples of the programming steps required
to set-up various telephony functions are given. Note
that these steps are from the power-up reset default

definition. If some other state is currently true then
some programming steps may be omitted while new
ones may be required.

Standard Full-duplex handset call

Description

Address DATA

select B-Channel of operation

15h

bits 2 or 3 (as required)

reset DSP

1Eh

00h

set Rx gain (ie 0dB with Tx autonull)

1Dh

70h (or as required)

set Tx gain (ie 0dB)

20h

30h (or as required)

start Rx gain program

1Eh

21h

select transducers and turn on

sidetone and filter/CODEC

0Eh

99h

set sidetone gain

0Bh

04h (for 0dB or as required)

optional:

set CODEC Rx and Tx gain

select A-Law versus

-Law

0Ah

0Fh

as required (0dB default)

bits 1-5 (as required)

Half-Duplex handsfree operation

Description

Address DATA

select B-Channel of operation

15h

bits 2 or 3 (as required)

reset DSP

1Eh

00h

set Rx gain (ie 12 dB)

1Dh

38h (or as required)

set Tx gain (ie 0dB)

20h

30 h (or as required)

start handsfree program

1Eh

81h

select transducers and filter/CODEC

and turn off sidetone

0Eh

1Eh

optional:

set CODEC Rx and Tx gain

select A-Law versus

-Law

0Ah

0Fh

as required (0dB default)

bits 1-5 (as required)

Generate tone ringer

Description

Address DATA

select B-Channel of operation

15h

bits 2 or 3 (as required)

reset DSP

1Eh

00h

set Rx gain (ie 0 dB with Tx

autonull)

1Dh

70h (or as required)

set Tx gain (ie 0dB)

20h

30h (or as required)

write tone coefficient 1

23h

as required

write tone coefficient 2

24h

as required

write warble tone rate coefficient

26h

as required

start tone ringer program

1Eh

61h

select speaker and filter/CODEC

and turn off sidetone

0Eh

82h

control ringer cadence by toggling

RxMUTE

1Eh

61 (on)

69 (off)

61 (on)

69 (off) etc...

MT9094

7-68

Generate DTMF tones

Description

Address DATA

select B-Channel of operation

15h

bits 2 or 3 (as required)

reset DSP

1Eh

00h

set Rx DTMF gain (ie -20 dBm0)

1Dh

22h (or as required)

set Tx audio gain (ie 0dB)

20h

30h (or as required)

set Tx DTMF gain (ie -4dBm0)

21h

2Eh (or as required)

write tone coefficient 1

23h

as required

write tone coefficient 2

24h

as required

start DTMF program

1Eh

41h

select transducers and filter/CODEC

(PuFC)

and turn off sidetone

0Eh

as required

optional:

set CODEC Rx gain

0Ah

as required (0dB default)

send tones in only Rx or Tx by

disabling

RxMUTE or TxMUTE appropriately

1Eh

as required

New Call Tone

Description

Address DATA

Assume that a B-Channel of operation has already been selected for the concurrent handset

conversation.

If this is not true select one.

select B-Channel of operation

15h

bits 2 or 3 (as required)

reset DSP

1Eh

00h

**********************************************************************************

set Rx gain (ie 0 dB with Tx autonull)

1Dh

70h (or as required)

set Tx gain (ie 0dB)

20h

30h (or as required)

Note: these two steps a required for the concurrent conversation only and do not affect new

call tone generation. See Standard Full-duplex handset call for required programming.

**********************************************************************************

write tone coefficient 1

23h

as required

write tone coefficient 2

24h

as required

write warble rate coefficient

26h

as required

start new call tone ringer program

1Eh

71h

set new call tone gain

0Bh

NCTG2-1 (as required)

select speaker

0Eh

02h

9Bh (assuming a concurrent handset

call)

enable new call tone

0Fh

01h (assuming all other bits are

-Law

control ringer cadence by toggling

between gain control and tone ringer

with gain control programs

1Eh

71h (on)

31h (off)

71h (on) etc...

MT9094

7-69

* Excluding PWRST which is a Schmitt Trigger Input.

Note 1: Power delivered to the load is in addition to the bias current requirements.
Note 2: I

DDFT

is not additive to I

DDC1

Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Units

Supply Voltage

-V

-0.3

Voltage on any I/O pin

-0.3

+0.3

Current on any I/O pin (transducers excluded)

±20

Storage Temperature

-65

+150

Power Dissipation (package)

Plastic

750

Static Discharge

ESD

±2.0

Latch-up Current

±100

Recommended Operating Conditions

- Voltages are with respect to V

unless otherwise stated.

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Supply Voltage

4.75

5.25

Input Voltage (high) *

2.4

Noise margin = 400mV

Input Voltage (low) *

0.4

Noise margin = 400mV

Operating Temperature

-40

+85

Clock Frequenecy (C4i)

CLK

4092

4096

4100

kHz

Power Characteristics

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Supply Current (clock enabled, all
functions off

DDC1

Supply Current by function
Filter/Codec
DSP
Handset Driver (bias only, no signal)
Speaker Driver (bias only, no signal)
Timing Control, C-Channel, ST-BUS,
etc.
Total all functions enabled

DDF1

DDF3

DDF4

DDF5

DDF6

DDFT

1.5
1.5
1.5
1.5
1.0

7.0

mA
mA
mA
mA
mA

See Note 1.
See Note 1.

See Note 2.

MT9094

7-70

DC Electrical Characteristics are over recommended temperature and range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

TTL compatible pins only.

DC Electrical Characteristics

(except LCD Drive Pins)

- Voltages are with respect to ground (V

) unless

otherwise stated.

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Input HIGH Voltage TTL inputs

2.0

Input LOW Voltage TTL inputs

0.8

VBias Voltage Output

Bias

Max. Load = 100

Input Leakage Current

0.1

= V

to V

Positive Going Threshold
Voltage (PWRST only)
Negative Going Threshold
Voltage (PWRST only)

T+

T-

3.3

1.5

Output HIGH Current TTL O/P

-10

-16

= 2.4V DSTo, WD,

DATA1,
DATA2

Output LOW Current TTL O/P

= 0.4V DSTo, WD,

DATA1,
DATA2

Output Voltage

Ref

/2)-1.5

No load

Output Leakage Current

0.01

OUT

= V

and V

Output Capacitance

Input Capacitance

DC Electrical Characteristics

- LCD Drive Pins

- Voltages are with respect to ground (V

) unless otherwise

stated.

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Output High Voltage Both
Segment and Backplane

4.8

---

Volts

Io = 1mA, V

= 5V

Output Low Voltage Both
Segment and Backplane

---

0.2

Volts

Io = 1mA, V

= 5V

Segment Output Load

---

1200

Backplane Output Load

---

7200

Frequency

62.5

MT9094

7-71

AC Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

* Note: MICA/u, refer to General Control Register, address 0Fh.

AC Characteristics

for A/D (Transmit) Path

- 0dBm0 = 1.421V

rms

for

-Law and 1.477V

rms

for A-Law, at the

CODEC. (V

Ref

= 0.5 volts and V

Bias

= 2.5 volts). All parameters pertain exclusively to the Filter/CODEC except absolute half-channel gain

and transmit idle channel noise.

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Analog input equivalent to
overload decision

Li3.17

Li3.14

5.79

6.0

Vp-p
Vp-p

-Law

A-Law
Both at CODEC

Absolute half-channel gain.
Transmit filter gain = 0dB setting

AX1

AX2

5.4

14.7

6.1

15.4

6.8

16.1

dB
dB

MICA/u=0*
MICA/u=1*
MIC± or M± to PCM
1020Hz

All other transmit filter settings
(1 to 7dB) are in addition to 0dB
setting

AX1

AX2

-0.15
-0.15

+0.15
+0.15

dB
dB

MICA/u=0*
MICA/u=1*
from nominal
MIC± or M± to PCM
1020Hz

Gain tracking vs. input level
CCITT G.714 Method 2

-0.3
-0.6
-1.6

0.3
0.6
1.6

dB
dB
dB

3 to -40 dBm0
-40 to -50 dBm0
-50 to -55 dBm0

Signal to total Distortion vs.
input level
CCITT G.714 Method 2

35
29
24

dB
dB
dB

0 to -30dBm0
-40 dBm0
-45 dBm0

Transmit Idle Channel Noise

-72

17.5

-66

dBrnC0

dBrn0p

-Law

A-Law

Gain relative to gain at 1020Hz
<50 Hz
60 Hz
200 Hz
300-3000 Hz
3000-3400 Hz
4000 Hz
>4600 Hz

-0.25

-0.9

-25
-30

0.0

0.25
0.25

-12.5

-25

dB
dB
dB
dB
dB
dB
dB

Absolute Delay

360

at frequency of minimum
delay

Group Delay relative to D

750
380
130
750

500-600 Hz
600-1000 Hz
1000-2600 Hz
2600 - 2800 Hz

Power Supply Rejection
f=1020 Hz
f=0.3 to 3 kHz
f=3 to 4 kHz
f=4 to 50 kHz

PSSR

PSSR1
PSSR2
PSSR3

37
40
35
40

dB
dB
dB
dB

100mV

rms

signal

-Law

PSSR1-3 not production
tested

MT9094

7-72

AC Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

* Note: RxA/u, refer to General Control Register, address 0Fh.

AC Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

AC Characteristics

for D/A (Receive) Path

- 0dBm0 = 1.421V

rms

for

-Law and 1.477V

rms

for A-Law, at the CODEC.

Ref

= 0.5 volts and V

Bias

= 2.5 volts). All parameters pertain exclusively to the Filter/CODEC except absolute gain and receive idle

channel noise.

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Analog output at the CODEC full
scale

Lo3.17

Lo3.14

5.704
5.906

Vp-p
Vp-p

-Law

A-Law

Absolute half-channel gain.
Receive filter gain = 0dB setting

AR1

AR2

AR3

-0.6

-12.9
-10.3

0.2

-12.3

-9.7

0.95

-11.8

-9.1

dB
dB
dB

PCM to SPKR±
PCM to HSPKR±, RxA/u=0*
PCM to HSPKR±, RxA/u=1*
1020Hz

All other receive filter settings
(-1 to -7dB) are in addition to
0dB setting

AR1

AR2

AR3

-0.15
-0.15
-0.15

+0.15
+0.15
+0.15

dB
dB
dB

PCM to SPKR±
PCM to HSPKR±, RxA/u=0*
PCM to HSPKR±, RxA/u=1*
from nominal
1020Hz

Gain tracking vs. input level
CCITT G.714 Method 2

-0.3
-0.6
-1.6

0.3
0.6
1.6

dB
dB
dB

3 to -40 dBm0
-40 to -50 dBm0
-50 to -55 dBm0

Signal to total distortion vs. input
level
CCITT G.714 Method 2

35
29
24

dB
dB
dB

0 to -30dBm0
-40 dBm0
-45 dBm0

Receive Idle Channel Noise

15.5

-75

dBrnC0

dBrn0p

-Law

A-Law

Gain relative to gain at 1020Hz
200 Hz
300-3000 Hz
3000-3400 Hz
4000 Hz
>4600 Hz

-0.25
-0.90

0.25
0.25
0.25

-12.5

-25

dB
dB
dB
dB
dB

Absolute Delay

240

at frequency of min. delay

Group Delay relative to D

750
380
130
750

500-600 Hz
600-1000 Hz
1000-2600 Hz
2600 - 2800 Hz

Crosstalk

D/A to A/D
A/D to D/A

-74
-80

dB
dB

G.714.16

AC Electrical Characteristics

for Side-tone Path

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Absolute path gain
Gain adjust = 0dB

AS1

AS2

-17.2
-13.1

-16.7
-12.6

16.2

-12.1

dB
dB

SIDEA/u, MICA/u, RxA/u all 0
SIDEA/u, MICA/u, RxA/u all 1
M± inputs to HSPKR± outputs
1000Hz

All other settings
(-9.96 to +9.96dB)

-0.3
-0.3

+0.3
+0.3

dB
dB

SIDEA/u=0
SIDEA/u=1
from nominal
relative measurements w.r.t.
G

AS1

& G

AS2

MT9094

7-73

AC Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

Electrical Characteristics are over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

AC Electrical Characteristics

for New Call Tone

Characteristics

Sym

Typ

Units

Test Conditions

New Call Tone Output voltage
(SPKR+ to SPKR-)

NCT1

NCT2

NCT3

NCT4

6.0

2.390
0.950
0.380

Vp-p
Vp-p
Vp-p
Vp-p

NCTG0=0, NCTG1=0
NCTG0=1, NCTG1=0
NCTG0=0, NCTG1=1
NCTG0=1, NCTG1=1
load > 34 ohms across SPKR±

Electrical Characteristics

for Analog Outputs

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Earpiece load impedance

260

300

ohms

across HSPKR±

Allowable Earpiece capacitive
load

300

each pin:

HSPKR+
HSPKR-

Earpiece harmonic distortion

0.5

300 ohms load across
HSPKR± (tol-15%),RxA/u=1,
V

693V

rms

, Rx gain=0dB

Speaker load impedance

ohms

across SPKR±

Allowable Speaker capacitive
load

300

each pin

SPKR+
SPKR-

Speaker harmonic distortion

0.5

40 ohms load across SPKR±
(tol-15%),
V

6.2Vp-p, Rx gain=0dB

Electrical Characteristics

for Analog Inputs

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

Differential input voltage without
overloading CODEC

2.87
1.02

Vp-p
Vp-p

MICA/u=0, A/u=0
MICA/u=0, A/u=1
across MIC± or M± inputs,
Tx filter gain = 0dB setting

Input impedance

MIC+, MIC-, M+ or M-
to V

MT9094

7-74

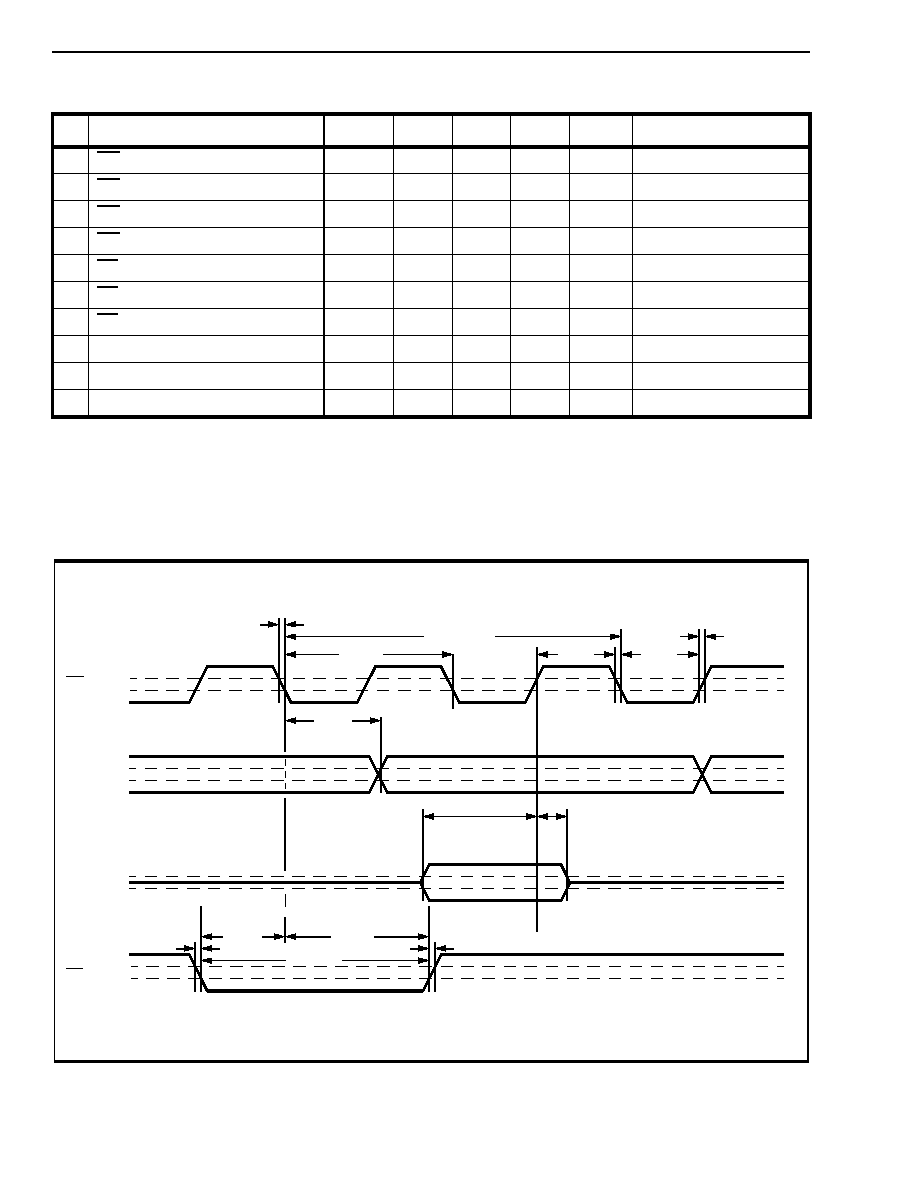

Timing is over recommended temperature range & recommended power supply voltages.
Typical figures are at 25

C and are for design aid only: not guaranteed and not subject to production testing.

Figure 11 -ST-BUS Timing Diagram

AC Electrical Characteristics

- ST-BUS Timing (See Figure 11)

Characteristics

Sym

Min

Typ

Max

Units

Test Conditions

C4i Clock Period

C4P

243

244

245

C4i Clock High Period

C4H

121

122

123

C4i Clock Low Period

C4L

121

122

123

C4i Clock Transition Time

F0i Frame Pulse Setup Time

F0iS

F0i Frame Pulse Hold Time

F0iH

F0i Frame Pulse Width Low

F0iW

150

DSTo Delay

DSToD

100

125

=50 pF

DSTi Setup Time

DSTiS

DSTi Hold Time

DSTiH

1 bit cell

C4P

C4H

C4L

DSTiS

DSTiH

F0iS

F0iH

F0iW

DSToD

C4i

DSTo

DSTi

F0i

2.4V
0.4V

2.4V

0.4V

2.4V
0.4V

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: MT9094

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: MT9094
