PDSP16488A

Single Chip 2D Convolver with Integral Line Delays

Advance Information

Supersedes version in 1996 Media IC Handbook, HB4599-1.0

DS3713 - 6.4 December 1997

and the PDSP16488A MA data sheet, DS3742

The PDSP16488A is a fully integrated, application specific,

image processing device. It performs a two dimensional convo-
lution between the pixels within a video window and a set of
stored coefficients. An internal multiplier accumulator array can
be multi-cycled at double or quadruple the pixel clock rate. This
then gives the window size options listed in Table 1.

An internal 32kbit RAM can be configured to provide either

four or eight line delays. The length of each delay can be
programmed to the users requirement, up to a maximum of 1024
pixels per line. The line delays are arranged in two groups,which
may be internally connected in series or may be configured to
accept separate pixel inputs. This allows interlaced video or
frame to frame operations to be supported.

The 8-bit coefficients are also stored internally and can be

downloaded from a host computer or from an EPROM. No
additional logic is required to support the EPROM and a single
device can support up to 16 convolvers.

The PDSP16488A contains an expansion adder and delay

network which allows several devices to be cascaded. Con-
volvers with larger windows can then be fabricated as shown in
Table 2.

Intermediate 32-bit precision is provided to avoid any danger

of overflow, but the final result will not normally occupy all bits.
The PDSP16488A thus provides a gain control block in the
output path, which allows the user to align the result to the most
significant end of the 32-bit word.

Table 2 PDSP16488As needed to implement typical window sizes

Pixel

size Width

Window size

Depth

Maximum pixel

rate (MHz)

Line delays

8
8
8

16
16

4
8
8
4
8

4
4
8
4
4

20
20
10
20
10

4 1024
4 1024

8 512
4 512
4 512

Table 1 Single PDSP16488A configurations

Max.
pixel

rate

(MHz)

Pixel

size

3 3 5 5 7 7 9 9 11 11 15 15 23 23

No. of PDSP16488As for N N window size

10
10
20
20
40
40

1
1
1
1
1
2

1
2
2
4

-
-
-

-
-
-
-
-

*Maximum rate is limited to 30MHz by line store expansion delays

ORDERING INFORMATION

Commercial (0癈 to 70癈)
PDSP16488A / C0 / AC (PGA)
Industrial ( 40癈 to 85癈)
PDSP16488A / B0 / AC (PGA)
PDSP16488A / B0 / GC (QFP)
Military ( 55癈 to 125癈)
PDSP16488A / A0 / AC (PGA)
PDSP16488A / A0 / GC (QFP)
PDSP16488A / MA / ACBR (PGA) MIL-STD-883 Class B*
PDSP16488A / MA / GCPR (QFP) MIL-STD-883 Class B*
*

See Notes following Static Electrical CharacteristicsTable

Note:

PDSP16488A devices are not guaranteed to cascade with

PDSP16488 devices. Mitel Semiconductor do not recommend
that PDSP16488A be mixed with PDSP16488 devices in a single
equipment design. The PDSP16488A requires external pullup
resistors in EPROM Mode (see Static Electrical Characteristics).

FEATURES

The PDSP16488A is a replacement for the
PDSP16488 (see Note below)

8 or 16-bit Pixels with rates up to 40 MHz

Window Sizes up to 8 8 with a Single Device

Eight Internal Line Delays

Supports Interlace and Frame-to-Frame Operations

Coefficients Supplied from an EPROM or Remote Host

Expandable in both X and Y for Larger Windows

Gain Control and Pixel Output Manipulation

84-pin PGA or 132-pin QFP Package Options

Fig. 1 Typical stand-alone real time system

PDSP16488A

EPROM

ADDR

DATA

POWER

RESET

DELAYED

SYNC

OUTPUT

DATA

RES

DELOP

CLK
HRES
BYPASS

SYNC

EXTRACT

COMPOSITE

DATA

PIXEL

CLOCK

GEN

ADC

OPTIONAL

FIELD

DELAY

IP7:0

L7:0

D15:0

SYNC

ODD FIELD

Type

Input

I/O

Input

Dual
function

Output

Input

Output

I/O

Input

I/O

Input

Output

Input

Outputs

Power

Signal

IP7:0

L7:0

BYPASS

HRES

X15:0

D15:0

PC1

PC0

DELOP

R/W

PROG

CLK

BIN

OVR

RES

SINGLE

MASTER

OEN

CS3:0

F1:0

GND

Table 3 Signal descriptions

Description

Pixel data input to the first line delay (most significant byte in 16-bit mode).

Pixel data input to the second group of line delays. (least significant byte in 16-bit mode). Alterna-
tively an output from the last line delay when the appropriate mode bit is set.

The first line delay in the first group is bypassed when this input is high. No internal pullup resistor.

Resets the line delay address pointers when high. Normally the composite sync signal in real time
applications. In non real time systems it defines a frame store update period, when low.

Address/data connections from a Master or Single device to the external coefficient source,
with X15 defining EPROM or Host support. Otherwise they provide the expansion data input.

Signed 16-bit scaled data or multiplexed 32-bit intermediate data. During intermediate transfers the
most significant half is valid when the clock is low, and the least significant half when clock is high.

During programming a Master device outputs a timing strobe on this pin. This is passed down
the chain in a multiple device system, using the

PC0

input on the next device.

This pin is used in conjunction with

PC1

in multiple device systems. It terminates the write strobe

from a Master device which is EPROM supported.

This output provides a version of the HRES input which has been delayed by an amount defined by
the user.

The data strobe from a host computer, active low. This pin will be an output from an EPROM
supported Master device which provides strobes to the remaining devices.

An active low enable which is internally gated with

R/W

and DS to perform reads or writes to the

internal registers. In a Single or Master device, which is supported from an EPROM, the
bottom 72 addresses are always used and CE is not needed. CE can then be used to initiate a
new register load sequence after the power on load sequence.

Read / not write line from the host CPU. When an EPROM is used this pin should be tied low.

This pin is normally an input which signifies that registers are to be changed or examined. It is,
however, an output from an EPROM supported Single or Master device indicating to the rest
of the system that registers are being updated.

Clock. All events are triggered on the rising edge of CLK, except the latching of least significant
expansion inputs . Internally the clock can be multiplied by two or four in order to increase the
effective number of multipliers.

This output indicates the result from the internal comparison. A high value indicates that the pixel
was greater than the internal threshold. The output is only valid from the last device in a chain.

When high this output indicates that there has been a gain control overflow.

Active low power on reset signal.

Tied to ground to indicate a Single device system. Internal pullup resistor.

Tied to ground to indicate the Master device in a multiple device system. Must be left open circuit
in a Single device system. Internal pullup resistor.

Output enable signal. Active low.

Four address bits from a Master specifying one of sixteen devices in a multiple device system.
Must be externally decoded to provide chip enables for the additional devices.

These bits indicate the field selection given by the gain control auto select logic. The same coding
as that used for Control Register bits C5:4 is used.

5V supply. All V

pins must be connected.

0V supply. All GND pins must be connected.

Pin

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

Pin

34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

Signal

N/C
D0

OEN

BIN

PC1

GND
OVR
N/C
HRES

R/W

N/C
N/C
GND
N/C

GND
V

PROG

GND
CS3
CS2
CS1
CS0
V

RES

PC0

N/C
DELOP
X0
X1
N/C

Signal

N/C
X2
X3
X4
N/C
X5
GND
X6
X7
N/C
X8
X9
V

X10

MASTER

N/C
X11
X12

SINGLE

GND
GND
N/C
X13
X14
N/C
X15
V

BYPASS
IP0
V

N/C

Pin

67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

Signal

N/C
IP1
GND
IP2
N/C
V

IP3
V

IP4
GND
IP5
GND
IP6
V

IP7
V

N/C
L7
GND
L6
GND
L5
V

L4
V

L3
V

L2
GND
L1
F1
L0
N/C

Pin

100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

Signal

N/C
V

F0
D15
N/C
D14
D13
GND
D12
GND
V

D11
D10
D9
GND
CLK
CLK
CLK
GND
GND
D8
V

D7
D6
D5
D4
GND
D3
N/C
D2
D1
N/C

Table 5 Pin connections for GC132 (power) package. See Fig 3b.

Pin

A1
B1
C2
C1
D2
D1
E2
E1
F2

G2
G1
H2

J1
J2

K1
K2

Signal

L0
F1
L1
L2
L3
N/C
L4
L5
L6
L7
IP7
N/C
IP6
IP5
IP4
N/C
IP3

Pin

N1
N2

M6
M7

N10

Signal

IP2
IP1
IP0
BYPASS
X15
X14
X13
N/C

SINGLE

X12
X11

MASTER

X10
X9
X8
X7
X6

Pin

M10

N11

M11

N12
N13

M13

L12
L13

K12
K13

J12
J13

H12
G12
G13

F12
E13

Signal

X5
X4
X3
X2
X1
X0
DELOP

PC0

RES

CS0
CS1
CS2
CS3

PROG
DS
CE

R/W

Pin

E12
D13
D12
C13
C12
B13
A13
A12
B11
A11
B10
A10

B9
A9
B8
B7
A7

Signal

HRES
OVR

PC1

BIN

OEN

D0
D1
D2
D3
D4
D5
D6
D7
D8
CLK
N/C
D9

Pin

B6
A5
B5
A4
B4
A3
B3
A2
F1
N6

F13

A6
H1
N8

H13

Signal

D10
D11
N/C
D12
D13
D14
D15
F0
V

GND1
GND2
GND3
GND4

Table 4 Pin connections for AC84 (power) package. See Fig. 3a.

BASIC OPERATION

The PDSP16488A convolver performs a weighted sum of all

the pixels within an N N two dimensional window. Each pixel
value is multiplied by a signed coefficient, or weight, and the
products are summed together. In practice positive weights
would be used to produce averaging effects, with various distri-
bution laws, and negative weights would be used for edge
enhancement. The window is moved continuously over the video
frame, and for real time operation a new result must be obtained
for every pixel clock. In most applications odd sized windows will
be used, resulting in a centre pixel whose value is modified by the
surrounding pixels.

Output Accuracy

With 8 bit pixels, and an 8 8 window, it is possible for the

accumulated sum to grow to 22 bits within a single device. With
16-bit pixels, and an 8 4 window (the maximum possible), the
sum can grow to 29 bits. The PDSP16488A actually allows for
word growth up to 32 bits, and thus allows several devices to be
cascaded without any danger of overflow. Since coefficients can
be negative, the final result is a 32-bit signed two's complement
number.

In a particular application the desired output will lie some-

where within these 32 bits, the actual position being dependent
on the coefficient values used. This causes problems in physi-
cally choosing which output pins to connect to the rest of the
system. To overcome this problem the PDSP16488A contains a
gain control block, which allows the final result to be aligned to the
most significant end of the 32-bit internal result. The provision of
the gain control block, rather than a simple shifter, allows the gain
to be defined more accurately.

The sixteen most significant bits of the adjusted result are

available on output pins D15:0, which contains a sign bit.

Output Saturation

If the output from the convolver is driving a display, negative

pixels will give erroneous results. An option is thus provided
(register bits C7:6) that forces all negative results to zero, which
are then interpreted as black by the display. At the same time
positive results, which overflow the gain control, are forced to
saturate at the most positive number, i.e. peak white. In this mode
the output sign bit is always zero,and should not be connected to
an A-D converter.

A separate option forces both negative and positive overflows

to saturate at their respective maximum values, but in scale
negative results remain valid. A gain control overflow warning flag
(OVR) is also available, which can be used in a host CPU
supported system to change the gain parameters if overflows are
not acceptable.

Binary Output

The PDSP16488A contains a 16-bit arithmetic comparator

which allows the output from the gain control block to be com-
pared with a previously programmed value. An output flag allows
the user to detemine if the result was above or below a value
contained within an internal register.

Multiplier Array

The PDSP16488A contains sixteen 8 8 multipliers each

producing a 16-bit result. Internally the pixel clock supplied by
the user can be multiplied by two or four, which together with
the proprietary architecture, allows each multiplier to be used
several times within a pixel clock period. This increases the

effective number of multipliers, which are available to the user,
from 16 to 32 or 64 respectively. This architecture produces a
very efficient utilization of chip area, and allows the line delays
to be accommodated on the same device.

The sixteen multipliers are arranged in a 4 deep by 4 wide

array, resulting in effective arrays of 4 by 8 or 8 by 8 with the multi-
cycling options. The multiplier array can also be configured to
handle 16-bit signed pixels; the effective number of available
multipliers is then halved.

Line Delay Operation

Internal RAM is arranged in two separate groups, and can be

configured to provide line delays to match the chosen size of the
convolver. When a four deep arrangement is used, with 8-bit
pixels, four line delays are available, and each can be pro-
grammed to contain up to 1024 pixels. In an eight deep array,
or if 16-bit pixels are needed, each line can contain up to 512
pixels. Fig. 4 illustrates the options available.

The first line delay in one of the groups can optionally be

switched in or out under the control of an input pin. It is used to
delay the pixel input when data is obtained from another
convolver in a multiple device system, or it is used to support
interlaced video.

Signals L7:0 may be used as pixel inputs or outputs. They

are configured as inputs at power-on to avoid possible bus
conflicts, but by setting a mode control bit can become outputs.
They can then be used to drive another device when multiple
PDSP16488As are required.

Interlaced Video

When using real time interlaced video, a picture or frame is

composed from two fields, with odd lines in one field and even
lines in the other. An external field delay is thus required to gather
information from adjacent lines, and the convolver needs two
input buses. The bus providing the delayed pixels has an extra
internal line delay. This is only used in the field containing the
upper line in any pair of lines, and must be bypassed in the other
field. It ensures that data from the previous field always corre-
sponds to the line above the present active line, and avoids the
need to change the position of the coefficients from one field to
the next.

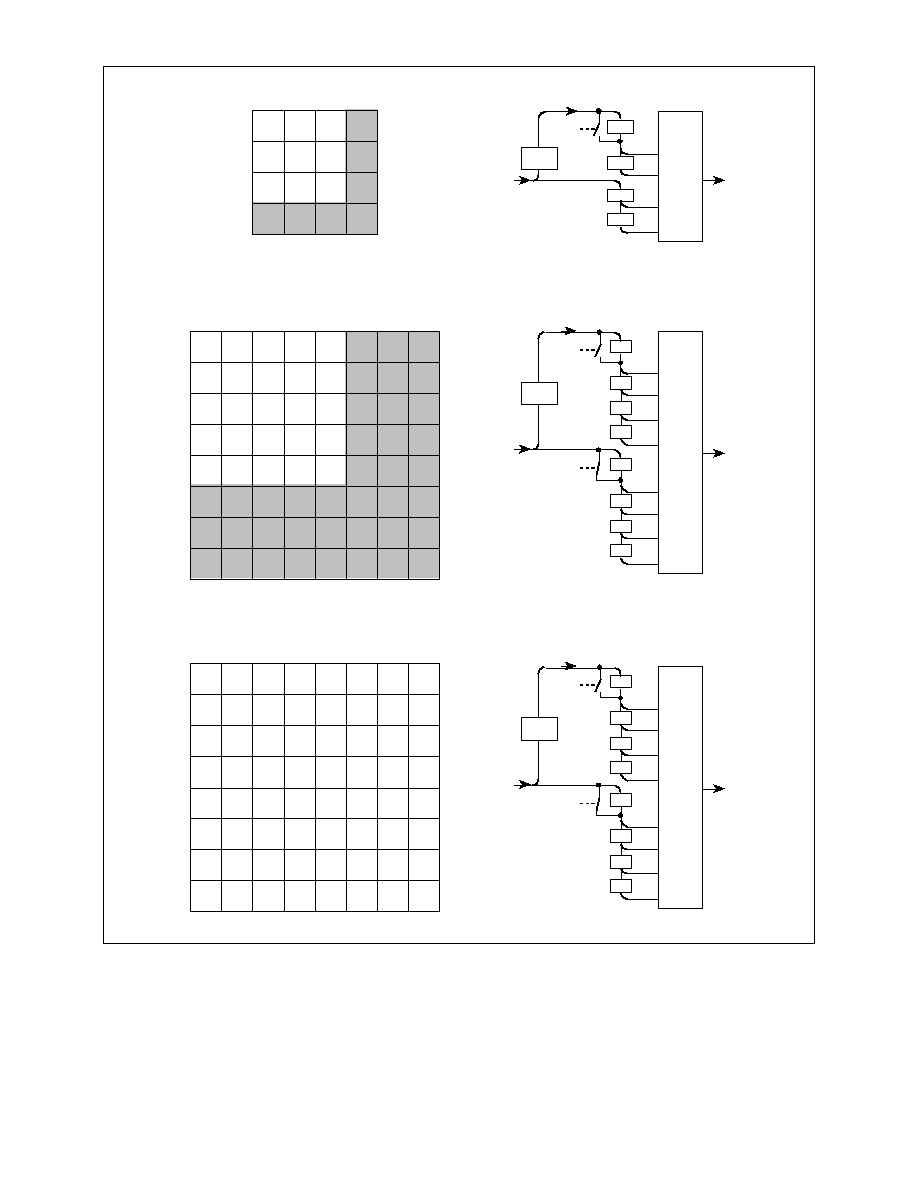

Fig. 5 shows the translation from physical to internal line

positions, for single device interlaced systems. Line N is the line
presently being convolved, which is either one or two lines
previous to the line presently being produced.

When windows requiring four or more lines are to be imple-

mented, the first line delay, in the group supplied from the L7:0
pins, must always be bypassed. This bypass option is controlled
by register B, bit 7 and is not effected by the BYPASS input pin..
The coefficients must be loaded into the locations shown, which
match the translated line positions, with unused coefficients,
shown shaded, loaded with zeros.

Defining the Length of the Line Delay

Fig. 5 defines the maximum line lengths available in each of

the window size options. The actual line lengths can be defined
in one of three ways, to support both real time applications, taking
pixels directly from a camera, and also use in systems supported
by a frame store. In the former case the line delays must be
referenced to video synchronization pulses. In the latter case the
line lengths are well defined, and the horizontal flyback `dead
times' will have been removed.

Fig. 4 Line delay configurations

512

8 8

ARRAY

512

IP7:0

BYPASS

L7:0

BYPASS

512

8 8

ARRAY

512

IP7:0

BYPASS

L7:0

BYPASS

1024

4 4

8 4

ARRAY

IP7:0

BYPASS

L7:0

1024

4 4

8 4

ARRAY

IP7:0

BYPASS

L7:0

512

IP7:0

BYPASS

L7:0

BYPASS

4 4

8 4

ARRAY

To support real time applications an option is provided in

which the length of the line delay is defined by the number of
clocks obtained while the HRES input is low. HRES would
normally be composite sync when the convolver is directly
attached to an NTSC or PAL video input.

The line delay is achieved by reading the previous contents

of a RAM-based line store, and then writing new information to
the same address. When HRES is high, write operations are
inhibited, and the address counter is reset. During an active line
the counter is incremented by the pixel clock. If the maximum
count is reached before the end of a line, then write operations are
terminated and wraparound effects avoided.

The rising edge of HRES, marking the end of a line, is

normally asynchronous to the pixel clock, and it is possible for an
additional pixel to be stored on some lines. This has no effect on
the convolver operation, and will not cause a cumulative shift in
the pixel position from line to line.

An alternative means of defining the line length is, however,

provided when an exact number of pixels is needed. HRES going
low then starts the delay operation for every line, but it ceases
when the 10-bit value contained in two registers is reached. This
method can avoid the need to store blank pixels at the end of a
line before HRES goes high. With this method the line must
contain an even number of pixels but the value loaded into the
control registers, defining the line length, must be one less than
the even number required.

In an image processing system, the pixel clock is often re-

synchronized, or even inhibited, during blanking or sync. The
next line is then started with a precise time interval from the end
of sync (falling edge of HRES) to the first pixel clock edge. This
avoids any visible pixel jitter at the beginning of the line, which
would otherwise be present since pixel clock is asynchronous
with respect to video sync pulses.

When using the PDSP16488A the pixel clock should not be

inhibited, or re-synchronized, until the delayed version of the

HRES input goes active. This is present on the DELOP output
pin. This will ensure that no pixels on the right hand edge are lost
due to the internal pipeline delay. If the pixel clock is a continuous
signal, the user must ensure that the HRES high to low transition
meets the timing requirements defined in Fig. 10. The HRES
rising edge at the end of a line need not be synchronized.

When pixels are read or written to a frame store, an alternative

line delay configuration is needed. Within the frame store lines
would be stored in contiguous locations, with no gaps caused by
the flyback period between the lines. This method of use makes
the HRES defined line delay operation difficult to use, and an
alternative mode of operation is provided. The HRES input is then
driven by a system-provided signal, which defines a complete
frame store update period. It is not a line defining signal. The high
to low transition of this signal will initiate the line store update
sequence and allow the internal address pointers to increment.
These pointers will be synchronously reset at the end of a line,
when they reach the pre-programmed value. They will then
immediately start a new operation using address zero. The actual
line delay must be pre-loaded into two control registers as
described previously.

Write operations back to the frame store must allow for the

total pipeline delay. This can be achieved by inhibiting write
operations until DELOP goes low. Write operations then continue
until it goes back high. The PDSP16488A assumes that data is
valid when a clock signal is applied, and that it also meets the set
up and hold requirements given in Fig. 10. If data is not valid due,
for example, to a frame store DRAM refresh cycle, then the user
must externally inhibit the clock. The clock supplied to the
convolver will in this mode be a signal which defines a frame store
cycle time.

The use of the convolver in a line scan system is similar to its

use with a frame store. These systems have no flyback period,
and the address counter must be synchronously reset at the end
of the line and then allowed to continue.

1024

4 4

8 4

ARRAY

IP7:0

ODD

FIELD

Output is shifted

by 1 line in
every field

FIELD

DELAY

VIDEO

LINE N 2

L7:0

N 1

L7:0

512

8 8

ARRAY

512

IP7:0

FIELD

DELAY

Output is shifted

by 1 line in
every field

ODD

FIELD

DELAY

BYPASSED

REG B BIT 7 SET

VIDEO

LINE N 2

N 1

N 2

L7:0

512

8 8

ARRAY

512

IP7:0

FIELD

DELAY

Output is shifted

by 2 lines in

every field

ODD

FIELD

DELAY

BYPASSED

REG B BIT 7 SET

VIDEO

LINE N 4

N 3

N 1

N 4

N 2

N 1

N 3

N 2

C24

C56

C16

C48

C40

C32

LINE N 3

LINE N 2

LINE N 1

LINE N

LINE N 1

LINE N 2

LINE N 3

LINE N 4

C25

C57

C17

C49

C41

C33

C26

C58

C18

C50

C10

C42

C34

C27

C59

C19

C51

C11

C43

C35

C28

C60

C20

C52

C12

C44

C36

C29

C61

C21

C53

C13

C45

C37

C30

C62

C22

C54

C14

C46

C38

C31

C63

C23

C55

C15

C47

C39

8 8 WINDOW

C48

C40

C32

LINE N 2

LINE N 1

LINE N

LINE N 1

LINE N 2

C49

C41

C33

C50

C10

C42

C34

C51

C11

C43

C35

C52

C12

C44

C36

5 5 WINDOW

LINE N 1

LINE N

LINE N 1

C10

3 3 WINDOW

Fig. 5 Line delay allocations in SINGLE device interlaced systems

Gain Control Block

This block is provided as an aid to locating the bits of interest

in the 32-bit internal result. The magnitude of the largest convolved
output will depend on the size of the window, and the coefficient
values used. The function of the gain control block is then to
produce an output, which is accurate to 16 bits, and which is
aligned to the most significant end of this 32-bit word. The sixteen
most significant bits of the word are available on D15:0 and the
largest number need only have one sign bit if the gain control is
correctly adjusted.

Fig. 6 indicates the mechanism employed with the required

function implemented in two steps. Two mode control bits,
register C, bits 5:4, allow one of four 20 bit fields to be selected
from the final 32-bit value. These four fields are positioned with
the first at the most significant end, and then at four bit
displacements down to the least significant end.

By setting an enabling bit, register C, bit 0, the field selection

can optionally be done automatically. This feature should only be
used in the real time operating mode, when HRES defines video
lines. Internal logic examines the most significant 13, 9, or 5 bits
from the 32-bit result, and makes a field selection dependent on
which group does not contain identical sign bits. If less than five
sign bits are obtained, the logic will select the field containing the
most significant 20 bits. The selection is indicated by F1:0.

The automatic field selection is particularly useful when a

fixed scene is being processed. The selection is reset when any
internal register is updated (i.e.

PROG has been low) and is then

held high for ten further occurrences of the HRES input. This
allows the internal multiplier/accumulator array to be completely
flushed before a field selection is made. As convolver outputs of
greater magnitude are produced the field selection logic will
respond by selecting a more significant field. The most significant
field found necessary remains selected until

PROG again goes

low. Even if the automatic field selection is not enabled, F1:0 will
still indicate which field would have been selected. These are
coded in the same way as register C, bits 5:4.

Having chosen a field, either manually or automatically, it

is then multiplied by a 4-bit unsigned integer. This is contained
within the user-programmed gain control register, and the
multiplication will produce a 24-bit result . The middle 16 bits
of this result contain the required output bits. The gain control
multiplier can overflow in to the unused most significant four
bits if the parameters are chosen wrongly. This condition is
flagged by pin OVR.

By setting appropriate mode control bits, further manipulation

of the gain control output is possible. One option, register C, bits

Fig. 6 Gain control block

7:6 = 11, allows all negative outputs to be forced to zero, and at
the same time positive gain control overflows will saturate at the
maximum positive number. Register C, bits 7:6 = 10 will saturate
positive and negative overflows at their respective maximum
values, but otherwise leaves them unchanged. Occasional over-
flows can be tolerated in some systems, and this option prevents
any gross errors.

Expansion

Multiple devices can be connected in cascade in order to

obtain window sizes larger than those provided by a single
PDSP16488A. This requires an additional adder in each device
which is fed from expansion data inputs. This adder is not used
by a Single device or the first device in a cascaded system, and
is enabled or disabled by register B, bit 4.

The first device in the cascaded system must be designated

as a Master device by MASTER tying low. Its expansion input
bus is then used as the source of data for the coefficient and
control registers in all devices in the system.

In order to reduce the pin count required for 32-bit buses, both

expansion in and data out are time-multiplexed with the phases
of the pixel clock. When the clock is high the least significant half
will be valid, and when the clock is low the most significant half will
be valid.

In practice this multiplexing is only possible with pixel clocks

up to 20MHz. Above these frequencies the multiplexing must be
inhibited by setting register A, bit 7. The intermediate data
accuracy will then be reduced, since only the lower 16 bits of the
internal 32-bit intermediate sum are available on the D15:0 output
pins. In such systems the coefficients must be scaled down in
order to keep the intermediate and final results down to 16 bits.
The final device should not use the gain control block but instead
should simply output the non-multiplexed 16-bit result. The OVR
flag and pixel saturation options will not be available.

Pixel Input and Output Delays

In a real time system, when line delays are referenced to

video sync pulses present on the HRES input, the first pixel from
the last line delay does not appear on the L7:0 pins until the fifth
active pixel clock edge after HRES has gone low. This is
illustrated in Fig. 8. In a vertically expanded system, this output
provides the input to the first line delays in the vertically displaced
devices. The internal logic is thus designed to always expect this
five clock delay. Compensation must thus be applied to the
devices which are directly connected to the video source, such
that the first pixel is not valid until the fifth clock rising edge.

For this reason the PDSP16488A contains an optional four

clock pipeline delay on each of the pixel data inputs, as shown in
Fig. 7. When the delay is used the first pixel in a video line must
be available on the input pins after the first pixel clock edge. This
would be so if the device were connected to an A-D converter,
since that would introduce a one pixel pipeline delay. If the system
introduces any further external pipeline delays, then the internal
delay should be bypassed, and the user should ensure that the
first pixel is valid after the fifth clock edge.

The use of this four clock delay is controlled by register B,

bit 3. This delay is in addition to the delays which are provided to
support expansion in both the X and Y directions, and are
controlled by register D, bits 3:2. Both delays are in fact simply
added together in the device, but are separately defined since
they add delays for different system reasons.

FROM EXPANSION ADDER

AUTOMATIC

FIELD SELECT

32 BITS

20 12

MUX

GAIN CONTROL

REGISTER

SATURATE

LOGIC

MSB

LSB

D15:0

F1:0

4 CLOCK

DELAY

LINE

DELAYS

WIDTH = S

4 CLOCK

DELAYS

ZERO

REG B3 = 1

DELAY = 0, DEFINED BY REG D3:2 = 00

REG D0 = 0

4 CLOCK

DELAY

LINE

DELAYS

WIDTH = S

4 CLOCK

DELAYS

REG B3 = 0

D = 4 S(N 1) DEFINED BY REG D3:2

REG D0 = 0

4 CLOCK

DELAY

LINE

DELAYS

WIDTH = S

DELAYS

4 CLOCK

DELAY

LINE

DELAYS

0/4

DELAYS

WIDTH = S

DELAYS

REG D0 = 0 IF S = 4,

OR REG D0 = 1 IF S = 8

Nth PDSP16488A IN THE ROW

4 CLOCK

DELAY

LINE

DELAYS

0/4

DELAYS

WIDTH = S

DELAYS

Nth PDSP16488A IN THE ROW

4 CLOCK

DELAY

LINE

DELAYS

0/4

DELAYS

WIDTH = S

DELAYS

REG B3 = 1

D = 4 S(N 1) DEFINED BY REG D3:2

Nth PDSP16488A IN THE ROW

INPUT

OUTPUT

PDSP16488A

REG B3 = 1

DELAY = 0, DEFINED BY REG D3:2 = 00

REG D0 = 0 IF S = 4,

OR REG D0 = 1 IF S = 8

REG B3 = 1

D = 4 S(N 1) DEFINED BY REG D3:2

REG D0 = 0 IF S = 4,

OR REG D0 = 1 IF S = 8

REG B3 = 0

D = 4 S(N 1) DEFINED BY REG D3:2

REG D0 = 0

Fig. 7 Multi-device delay paths

Delay Compensation for Large Windows

A large window is composed of several partial windows each of

which is implemented in an individual device. If necessary the partial
window must be padded with zero coefficients to become one of the
standard sizes. When constructing a large window it is necessary to
delay the expansion data inputs in order to compensate for growth
in the horizontal direction. Delays in the partial sums are also
necessary to compensate for the total pipeline delay needed to
produce the previous complete horizontal stripe.

Within each device in a horizontal stripe, apart from the first,

the expansion input must be delayed by the width of the partial
window, before it is added to the internal sum. Since partial
windows can only be 4 or 8 pixels wide, a delay of 4 or 8 pixel
clocks is needed. There is, however, an in-built delay of 4 pixels
in the inter device connection, and the PDSP16488A thus only
needs an option to delay the expansion input by an additional four
pixels.

The data from the last device in a horizontal row of convolvers

feeds the expansion input of the first device in the next row. This
is shown in Fig. 7. With this arrangement, the position of the partial
window as illustrated, is the inverse of its vertical position on a
normal TV screen. Thus the top left hand device corresponds to
the bottom left hand portion of the complete window.

The output from the last device in the row is delayed with

respect to the original data input by an amount given by the
formula;

DELAY = 4 S(N 1), where N is the number of devices in a

row and S is the partial window width, i.e. 4 or 8.

The internal convolver sums, in each of the devices in the next

row, must be delayed by this amount before they are added to
results from the previous row. This is more conveniently achieved
by delaying data going into the line stores. The required cumula-
tive delay with respect to the first horizontal stripe is then
automatically obtained when more than two rows of devices are
needed.

options. These delays have been selected to support systems
needing from two to eight devices and are described in the
applications section.

Coefficients

Sixty-four coefficients are stored internally and must be

initially loaded from an external source. Table 5 gives the
coefficient addresses within a device, with coefficient C0 speci-
fied by the least significant address and C63 by the most
significant address. Fig. 9 shows the physical window position
within the device that is allocated to each coefficient in the various
modes of operation. Horizontally the coefficient positions corre-
spond to the convolution process as if it were observed on a
viewing screen, i.e. the left hand pixel is multiplied with C0. In the
vertical direction the lines of coefficients are inverted with respect
to a visual screen, i.e. the line starting with C0 is actually at the
bottom of the visualized window.

The coefficients may be provided from a Host CPU using

conventional addressing, a read/not write line, data strobe, and
a chip enable. Alternatively, in stand alone systems, an EPROM
may be used. A single EPROM can support up to 16 devices with
no additional hardware.

When windows are to be fabricated which are smaller than

the maximum size that the device will provide in the required
configuration, then the areas which are not to be used must
contain zero coefficients. The pipeline delay will then be that of a
completely filled window.

Function

Mode Reg A
Mode Reg B
Mode Reg C
Mode Reg D
Comparator LSB
Comparator MSB
Scale value
Pixels/line LSB
Pixels/line MSB
C0-C15
C16-C31
C32-C47
C48-C63
Unused

Hex address

00
01
02
03
04
05
06
07
08

40-4F
50-5F
60-6F
70-7F
09-3F

Table 5 Internal register addressing

Data size

8
8
8

15
16

Window size

4 4
8 4
8 8
4 4
8 4

Pipeline delay

34
30
26
28
26

ble 6 Pipeline delays

Total Pipeline Delay

The total pipeline delay is dependent on the device configu-

ration and the number of devices in the system. Table 6 gives the
delays obtained with the various single device configurations
when the gain control is used. These delays are the internal
processing delays and do not include the delays needed to move
a given size window completely into a field of interest. When
multiple devices are needed, additional delays are produced
which must be calculated for the particular application. These
delays are discussed in the applications section.

The PDSP16488A contains facilities for outputting a delayed

version of HRES (DELOP) to match any processing delay.
Register C. bits 3:1 allow this delay to be selected from any value
between 29 and 92 pixel clocks as detailed in Table 9.

CLK

RSU

HRES

(sync)

ACTIVE LINE PERIOD

FIRST
PIXEL
VALID

(REG B3

SET)

FIRST

PIXEL
FROM

LINE

STORE

VALID

LAST2

PIXELS
INTER-

NALLY

STORED

ASYNCHRONOUS BACK EDGE

LINE STORE

WRITES INHIBITED

Fig.8 Pixel input delays

Fig. 9 Physical coefficient positions

C16

C24

C32

C40

C48

C56

C17

C25

C33

C41

C49

C57

C10

C18

C26

C34

C42

C50

C58

C11

C19

C27

C35

C43

C51

C59

C12

C20

C28

C36

C44

C52

C60

C13

C21

C29

C37

C45

C53

C61

C14

C22

C30

C38

C46

C54

C62

C15

C23

C31

C39

C47

C55

C63

8 8, 8-BIT DATA

512

L7:0

512

IP7:0

512

C32

C40

C16
C48

C24
C56

C33

C41

C17
C49

C25
C57

C34

C10
C42

C18
C50

C26
C58

C35

C11
C43

C19
C51

C27
C59

C36

C12
C44

C20
C52

C28
C60

C37

C13
C45

C21
C53

C29
C61

C38

C14
C46

C22
C54

C30
C62

C39

C15
C47

C23
C55

C31
C63

8 4, 16-BIT DATA

512

L7:0

512

IP7:0

LSB

MSB

C16

C24

C17

C25

C10

C18

C26

C11

C19

C27

C12

C20

C28

C13

C21

C29

C14

C22

C30

C15

C23

C31

8 4, 8-BIT DATA

L7:0

1024

IP7:0

C12

C13

C10

C14

C11

C15

4 4, 8-BIT DATA

L7:0

1024

IP7:0

C16

C20

C24

C12
C28

C17

C21

C25

C13
C29

C18

C22

C10
C26

C14
C30

C19

C23

C11

C27

C15
C31

4 4, 16-BIT DATA

512

L7:0

512

IP7:0

LSB

MSB

NOTE: Two coefficients occurring in the same box have identical values

Loading Registers from a Host CPU

The X14:0 expansion data inputs on a single or master device

are connected to the host bus to provide address and data for the
internal registers. In a multiple device system the remaining
devices receive addresses and data which have been passed
through the expansion connection between earlier devices in the
cascade chain. Each device needs an individual chip enable
( CE ) plus a global data strobe (DS), a read/ not write (

R/W

) line,

and PROG signal from the host.

Registers are individually addressed and can be loaded in any

sequence once the global PROG signal has been produced by the
host. The latter would normally be produced from an address decoder
encompassing all the necessary device addresses.

If a self-timed system is to be implemented, a timing strobe

must be passed down the expansion chain through
the

PC0/PC1

connections. The

PC0

output from the final device

is used as a host REPLY signal, and indicates that the last
device has received data after the propagation delay of previous
devices. The timing strobe is produced in the Master device from
the host data strobe, and will appear on the

PC0

output. This

feature allows the user to cascade any number of devices without
having to know the propagation delay through each device. The
timing information for this mode of operation is given in Fig. 10.

The host can also read the data contained in the internal registers.

The required device is selected using chip enable with the

R/W

line

high, indicating a read operation. Single device systems output the
data read on X7:0, but in multiple device systems data is read from
the D7:0 outputs on the final device in the chain. These must be
connected back to the host data bus through tristate drivers, whose
tristate control must be generated externally (see Figs. 14 and 15).
When earlier devices in the chain are addressed, the register
contents are transferred through the expansion connections down to
the final device. In the self timed configuration the data will be valid
when REPLY is taken low by

PC1

, as shown in Fig. 10.

If REPLY is not to be used, the

PC0/PC1

connections are

not necessary, and the host data strobe for a write operation must
be wide enough to allow for the worst case propagation delay
through all the devices (t

DEL

). If the data or address from the host

does not meet the set up time given in Fig. 8, the width of the data
strobe can be simply extended to compensate for the additional
delay. When reading data the access time required is
t

ACC

DEL

(N 1), using the maximum times given in the Host

Mode Switching Characteristics.

Host control lines
X7:0

8-bit data bus. In a Single device system this bus is
bidirectional; in other configurations it is an input.
Only a Single or Master device is connected directly
to the host. Other devices receive data from the
output of the previous device in the chain.

X14:8

7-bit address bus which is used to identify one of the
73 internal registers. Connected in the same man-
ner as X7:0.

X15

X15 must be open circuit on the Master device

An input from the previous

PC1

output in a multiple

device chain. Not needed on a Single device or if the
self timed feature is not used.

Reply to the host from a Single device or from the
last device in a cascade chain. It indicates that the
write strobe can be terminated. Connected to

PC0

input of the next device at intermediate points in the
chain if the self timed feature is used.

PROG

R/W

Read/Not Write line from the host CPU which is
connected to all devices in the system.

An active low enable which is normally produced
from a global address decode for the particular
device. This must encompass all internal register
addresses.

An active low host data strobe which is connected to
all devices in the system.

An active low global signal, produced by the host,
which is connected to all devices in the system.
Together with a unique chip enable for every device,
it allows the internal registers to be updated or
examined by the host PROG and CE should be tied
together in a Single device system.

Loading Registers from an EPROM

In the EPROM mode, one device has to assume the role of

a host computer. If more than one device is present, this must be
the first component in the chain, which must have its MASTER
pin tied low.

The Master device contains internal address counters which

allow the registers in up to 16 cascaded PDSP16488As to be
specified. It also generates the PROG signal and a data strobe
on the pins which were previously inputs. These outputs must be
connected to the other devices in the system, which still use them
as inputs. The

R/W

input should be tied low on all devices.

The width of the data strobe is determined by the feedback

connection from the

PC1

output on the last device to the

PC0

input

on the Master. The

PC0/PC1

connections must be made be-

tween devices in a multiple device system; in a single device
system the connection is made internally.

The available EPROM access time is determined by an

internal oscillator and does not require the pixel clock to be
present during the programming sequence. Any pixel clock re-
synchronization in a real time system will thus not affect the
coefficient load operation. The relevant EPROM timing informa-
tion is shown in Fig. 11.

The load procedure will commence after RES has gone from

low to high, and will be indicated by the PROG output going
low. The data from 73 EPROM locations will be loaded into the
internal registers using addresses corresponding to those in
Table 5. Within a particular page of 128 EPROM locations, the
first nine locations supply control register information, and the
top 64 supply coefficients. The middle 55 locations are not
used. If the window size is 8 4, the top 32 locations will also
contain redundant data, and if the size is 4

4 the top 48 will

be redundant.

In a multiple device system the load sequence will be re-

peated for every device, and four additional address bits will be
generated on the CS3:0 pins. These address bits provide the
EPROM with a page address, with one page allocated to each
device in the system. Within each page only 73 locations provide
data for a convolver, the remainder are redundant as in the single
device system. The CS3:0 outputs must also be decoded in order
to provide individual chip enables for each device. These can
readily be derived by using an AS138 TTL decoder. Bits in an
internal control register determine the number of times that the
sequence is repeated.

If changes to the convolver operation are to be made after

power-on, activating the CE input on the Master or Single
device will instigate the load procedure. Additional EPROM
address bits supplied from the system will allow different filter
coefficients to be used.

PC0

PC1

R/W

cease when the value in the counter equals that
contained in these bits. The bits are redundant in a
Single device which only uses one 128-byte block.

BITS 6:4 These bits define one of the five basic configurations.

The line delays will automatically be configured to
match the chosen window size and pixel accuracy.
The maximum clock rate that is available to the user
reflects the internal multiplication factor.

BIT 7

This bit must be set if the pixel clock is greater than
20MHz. It disables the output and input time
multiplexing, and instead outputs the least significant
half of the 32-bit intermediate sum for the complete
clock cycle. When the gain control is used, the output
multiplexing will automatically be disabled.

Register B bit allocation (Table 9)
BIT 0

This bit defines the input for the second group of line
delays. It must be set in the 16-bit pixel modes, and
is set by power on reset.

BIT 2:1

These bits control the mode of operation of the line
stores. In real time systems pixels can be stored
either until HRES (sync) goes high , or until a pre-
determined count is reached. In the frame store
mode line store operations are continuous, with a
pre-determined line length.

BIT 3 When this bit is set four pipeline delays are added to

the pixel inputs to compensate for the internal/
external delays between line stores. The extra delay
is only necessary when a device supplied with
system video in which the first pixel in a line is valid
in the period following the first active clock edge. See
Fig 7. The delay is not necessary if the device is fed
from the output of another convolver. When set this
bit will add four additional delays to those defined by
register D, bits 4: 2.

BIT 4

When this bit is set the expansion adder will not be
used. It is automatically set in a Master or Single
device.

EPROM control lines
X7:0

8 bit data from the EPROM to the Master or Single
device. Otherwise data is received from the previous
device in the chain.

X14:8

Lower 7 address bits to the EPROM from a Master or
Single device. Otherwise an input from the data
output of the previous device.

X15

Tied to ground on a Master device to indicate the
EPROM mode.

Tied low on all devices.

An output from a Master or Single device which
provides a data strobe for the other devices. A pullup
resistor is required on this pin in EPROM mode

CS3: 0

Four additional address bits for the EPROM which are
provided by the Master device. They allow 16 addi-
tional devices to be used and must be externally
decoded to provide chip enables.

An input on the Master device which is driven from
the

PC1

output of the last device in the chain. Used

internally to terminate the write strobe. Connected
to previous

PC1

outputs at intermediate points in

the chain. Not needed for a Single device.

An output connected to the

PC0

input of the next

device in the chain. The last device feeds back to the
Master. Not needed for a Single device.

An enable which is produced by decoding CS3:0 from
the Master. It is not needed for a Master or Single
device which will always use the bottom block of
addresses with internally generated write strobes. It
can, however, be used on these devices to initiate a
new load procedure after the initial power-on
sequence.

An active low signal produced by an EPROM sup-
ported Master or Single device. An input to all other
devices. It indicates that a register load sequence
is occurring, either after power on, or as the result
of CE as explained above. It remains active until
register 73 in the final device has been loaded.
Register A, bits 3:0 define the number of cascaded
devices. A pullup resistor is required on this pin in
EPROM mode.

System Configuration

The device is configured using a combination of the state of

the SINGLE and MASTER pins, and the contents of the four
Mode Control registers. In a Master or Single device the state of
the X15 pin is used to define whether the system is EPROM or
Host supported, as described above.

Mode Control Registers

Register A bit allocation (Table 8)
BITS 3:0 These bits are `don't care' when using a host compu-

ter but to a Master device, in an EPROM supported
system, they define the number of interconnected
chips. The EPROM must contain contiguous 128 byte
blocks for each of the devices in the system and a 4-
bit counter in the Master device will sequence through
up to 16 block reads. An internal comparator in the
Master causes the loading of the internal registers to

PC0

PC1

PROG

Function

Number of extra devices from 1-15

8-bit, 8 8 window, 10MHz max.,
8 512 line delays.

16-bit, 8 4 window, 10MHz max.,
4 512 line delays.

16-bit, 4 4 window, 20MHz max.,
4 512 line delays.

8-bit, 8 4 window, 20MHz max.,
4 1024 line delays.

8-bit, 4 4 window, 40MHz max.,
4 1024 line delays

Multiplexed exp. data

Non-multiplexed exp. data

Code

XXXX

000

001

010

011

101

Bit

3:0

6:4

Table 8 Register A bit functions

BIT 7

This bit controls the bypass option on the first line
delay on the L7:0 inputs. It is only effective when an
8 bit pixel mode is selected, which also needs more
than four line delays. When L7:0 are used as outputs
it should always be reset. In the 16-bit modes the
bypass function is only controlled by the BYPASS pin,
and the bit is redundant.

Function

Second line delay group fed from the
first group

Second line delay group fed from L7:0
which become inputs

Store pixels to end of line

Store pixels till count is reached

Frame store operation

Not Used

No delays on pixel inputs

4 delays on both pixel inputs

Use expansion adder

Expansion adder disabled

Not used

Use first delay in second group

Bypass first delay in second group

Bit

2:1

6:5

Code

Register C bit allocation (Table 10)
BIT 0

If this bit is set, the 20-bit field selected from the 32-bit
result, is defined automatically by internal logic.

BITS 3:1 These bits are in conjunction with register D, bits 7:5

to define the pixel delay from the HRES input to the
DELOP output. They are used to match the appropri-
ate processing delay in a particular system. The
minimum delay is 29 pixel clocks.

BITS 5:4 These bits define which of the four 20-bit fields out of

the 32-bit final result is selected as the input to the gain
control. They are redundant when the gain control is
not used, or if register C, bit 0, is set.

BITS 7:6 These bits define the use of the gain control as given

in Table 10. Intermediate devices in a multiple device
system

must bypass the gain control block, otherwise

the additional pipeline delays will affect the result.
Disabling the gain control block will reduce the device
pipeline by 13 CLK cycles from the delays shown in
Table 6.

Table 9 Register B bit functions

Table 10 Register C bit functions (continues...)

Function

Field selection defined by C5:4

Automatic field selection

DELOP = 29 0 clocks

DELOP = 29 8 clocks

DELOP = 29 16 clocks

Code

000

001

010

Bit

3:1

Function

DELOP = 29 24 clocks

DELOP = 29 32 clocks

DELOP = 29 40 clocks

DELOP = 29 48 clocks

DELOP = 29 56 clocks

Select upper 20 bits

Select next 20 bits

Select bottom 20 bits

By-pass the gain control

Normal gain control output

Saturate at max. ve and ve values.

Force ve to zero.Sat. ve values.

Code

011

100

101

110

111

Bit

3:1

5:4

7:6

Table 10 Register C bit functions (continued)

Table 11 Register D bit functions

Register D bit allocation (Table 11)
BIT 0

If this bit is set the expansion data input is delayed
by four pixel clocks before it is added to the present
convolver output. It is used in multiple device systems
when the partial window width is 8 pixels.

BIT 1

When this bit is set the internal sum is shifted to the
left by 8 places before being added to the expansion
input. It is used when two devices are used, each in an
8-bit pixel mode, to construct a 16-bit pixel mode.

BITS 3:2 These bits define the delays on both sets of pixel

inputs before entering the line stores. The delays are
always identical on both sets.

BIT 4

When this bit is set the convolver interprets 8 or 16-
bit pixels as 2's complement signed numbers

BIT 7:5

These bits add 0 to 7 additional clock delays to those
selected by Register C, bits 3:1.

Function

X15:0 Not delayed

X15:0 Delayed

Internal sum not shifted

Internal sum multiplied by 256

Input to line stores not delayed

Input to line stores delayed by 4

Input to line stores delayed by 8

Input to line stores delayed by 12

Unsigned pixel data input

2's complement pixel data input

Add 0 to 7 clock delays to DELOP

Bit

3:2

7:5

Code

XXX

ELECTRICAL CHARACTERISTICS

The Electrical Characteristics are guaranteed over the following range of operating conditions, unless otherwise stated:

= 5V�10%, GND = 0V, T

AMB

(Commercial) = 0癈 to 70癈, T

AMB

(Industrial) = 40癈 to 85癈,

AMB

(Military) = 55癈 to 125癈

Static Characteristics

Output high voltage
Output low voltage
Input high voltage
Input low voltage
Input leakage current
Input capacitance
Output leakage current
Output short circuit current
Current at full speed

= 4mA

= 8mA

GND < V

< V

, no internal pullup

GND < V

OUT

< V

, no internal pullup

= 5�5V

Conditions

Characteristic

Min.

Typ. Max.

0�4

0�8

300

Max.

2�4

2�0

V
V
V
V

礎

mA
mA

Value

Symbol

NOTE: Signal pins PC0, X15, MASTER, SINGLE and OVR have pullup resistors in the range 15k

to 200k

. BYPASS, PROG and DS have no internal pullup

resistors. When the device is used in EPROM mode, external pullup resistors should be connected to the PROG and DS pins.

Units

ABSOLUTE MAXIMUM RATINGS (NOTE 1)
Supply voltage, V

Input voltage, V

Output voltage, V

OUT

Clamp diode current per pin, I

(see note 2)

Static discharge voltage (HBM)
Storage temperature, T

Maximum junction temperature, T

JMAX

Commercial grade
Industrial grade
Military grade

Package power dissipation
Thermal resistance, junction-to-case,

0�5V to 7�0V

0�5V to V

0�5V

0�5V to V

0�5V

18mA

500V

65癈 to 150癈

95癈

110癈
150癈

2000mW

5癈/W

PDSP16488A MA ACBR and PDSP16488A MA GCPR
(MIL-STD-883 CLASS B PARTS)

Polyimide is used as an inter-layer dielectric and as

glassification. Polymeric material is also used for die attach
which, according to the requirements in paragraph 1.2.1, pre-
cludes categorising these devices as fully compliant. In every
other respect, these devices are manufactured and screened in
full accordance with MIL-STD-883 (latest revision).

The PDSP16488A MA ACBR (PGA packge) is subject to the

constant acceleration test, Method 2001, Test Condition A (5kg).

Life test/burn-in connections are given in Tables 12 and 13 on

the following page.

Change Notification

The change notification requirements of MIL-PRF-38535

will be implemented on MIL-STD-883 grade devices. Known
customers will be notified of any changes since the last buy
when ordering further parts if significant changes have been
made.

Rev.

Date

MAR 1993

JUL 1996

NOV 1997

NOTES
1. Exceeding these ratings may cause permanent damage.
Functional operation under these conditions is not implied.
2. Maximum dissipation should not be exceeded for more
than1 second, only one output to be tested at any one time.
3. Exposure to absolute maximum ratings for extended
periods may affect device reliablity.
