MITSUMI

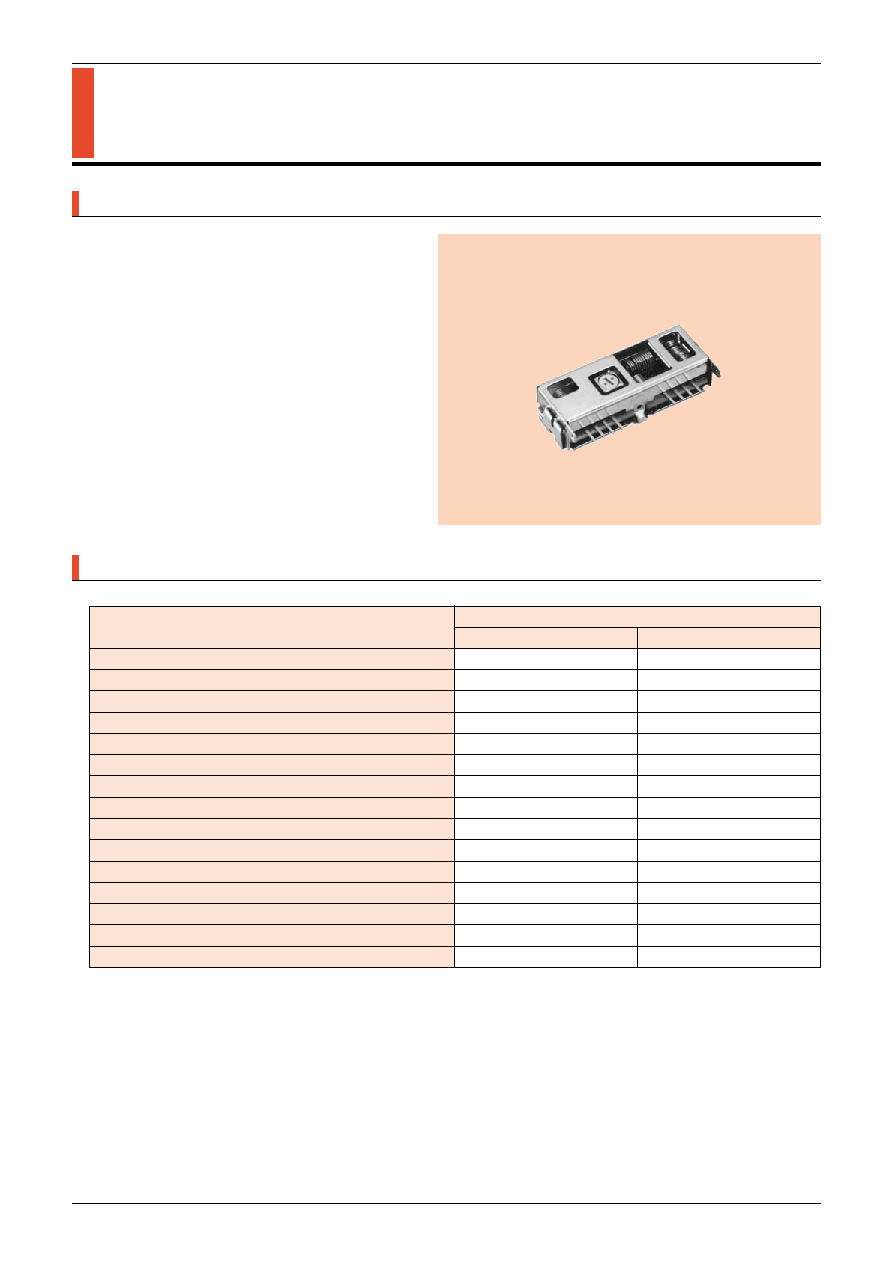

Super Compact, FM Electronic Tuner for Popular Class Home Stereo
FE352-A01/J01
FEATURES
1. Ultra-small three gang (40% less volume than
MITSUMI's regular model)FM electronic tuner.
2. Ideal for popular (small), home stereo systems.
3. Single gate MOS-FET used in high frequency
amplification circuit.
4. Includes buffer circuit for local oscillator.
5. Supports various bands (normal overseas,
North American, Japanese).
AM/FM Electronic Tuners
SPECIFICATIONS
*
Note
Specifications subject to change without notice.
*
1
Condition 1 : 1k
load on OSC OUT terminal.
*
2
Condition 2 : +25 30C
Item
FE352-A01/J01
A01
J01
Supply Voltage
7.0V
7.0V
Current Consumption
168mA
168mA
Tuning Range
87.5~108MHz
76~108MHz
Tuning Voltage
1.6~7.6V
1.4~8.4V
Input Impedance
75
unbalanced, 300 balanced 75 unbalanced, 300 balanced
Output Impedance
300
unbalanced
300
unbalanced
Center IF
10.7MHz
10.7MHz
IF Output Bandwidth at -3dB
400150kHz
400150kHz
Power Gain
306dB 296dB
Gain Variation
6dB max. (3dB typ.)
6dB max. (3dB typ.)
Noise Figure
9dB max. (6dB typ.)
14dB max. (10dB typ.)
Image Rejection
38dB min. (43dB typ.)
35dB min. (42dB typ.)
IF Rejection
60dB min. (70dB typ.)
60dB min. (75dB typ.)
OSC Output Voltage
*
1
50mV/rms min. (90mV/rms typ.)
50mV/rms min. (90mV/rms typ.)
Freq. Drift vs. Ambient Temp.
*
2
500kHz max.
500kHz max.
MITSUMI

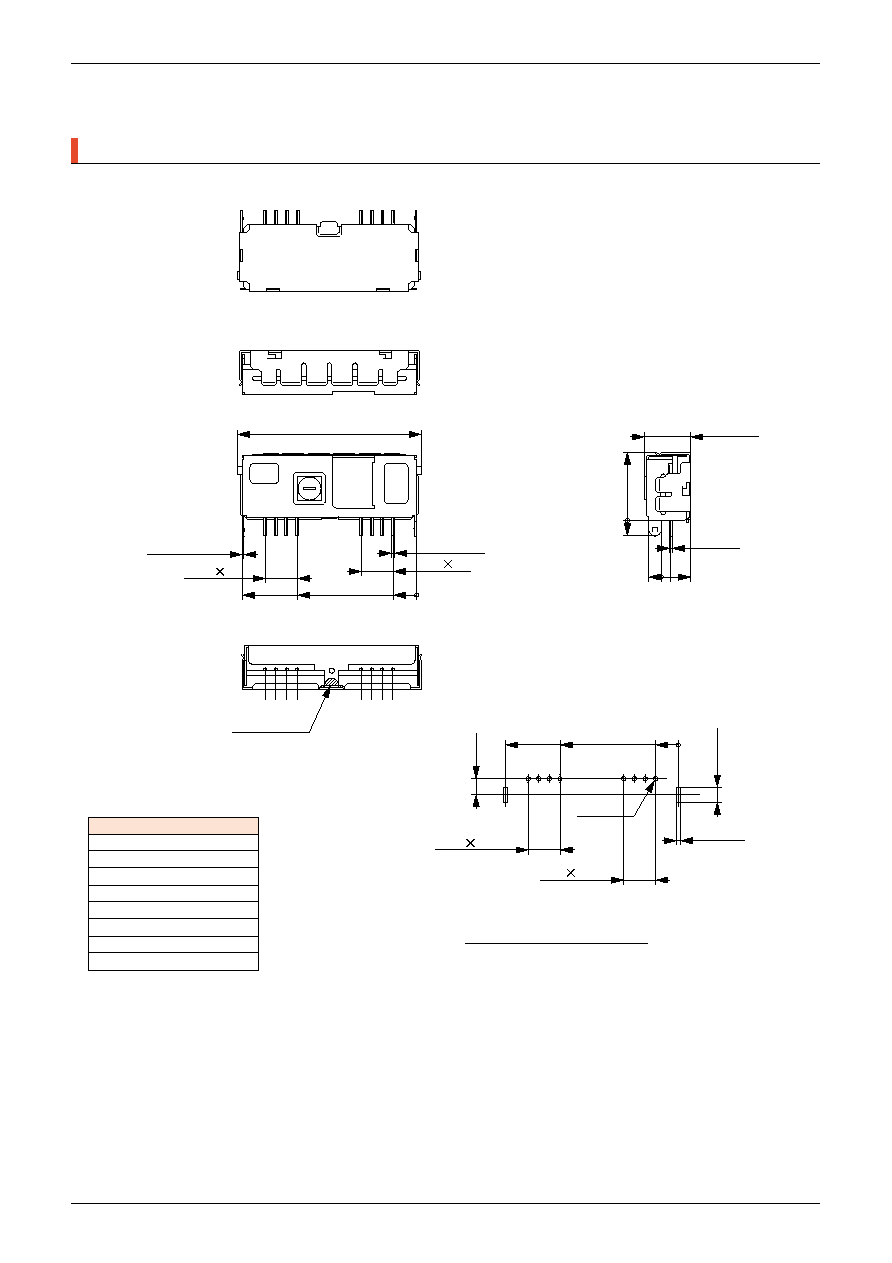

DIMENSIONS
Super Compact, FM Electronic Tuner for Popular Class Home Stereo
8 7 6 5
4
3 2 1
SOLDERING
(1point)
5.3
27.8
40.6
3.75
2-0.9
2
-
3.5
2.5
3=7.5
2.5
3=7.5
8-1
2.5
3
8-0.7
0.2
45max.
2-0.4
0.02
2.5 3
5.5
28
41
TERMINAL HOLES(MOUNT SIDE)
REFERENCE ONLY
8 7 6 5
4
3 2 1
MITSUMI
0.5
0.2
2.25
(6.9)
3
3.6
17max.
12max.
Unit : mm
General Tolerance : 0.5
EXTERNAL TERMINALS
1. ANT
2. ANT
3. GND
4. GND
5. Vt
6. +B
7. IF OUT
8. OSC OUT
