MPC7400 RISC Microprocessor

Hardware Specifications

The MPC7400 is an implementation of the PowerPCTM family of reduced instruction set computing (RISC)

microprocessors. This document describes pertinent electrical and physical characteristics of the MPC7400.

For functional characteristics of the processor, refer to the MPC7400 RISC Microprocessor User's Manual.

This document contains the following topics:

Topic

Page

Section 1.1, "Overview"

Section 1.2, "Features"

Section 1.3, "General Parameters"

Section 1.4, "Electrical and Thermal Characteristics"

Section 1.5, "Pin Assignments"

Section 1.6, "Pinout Listings"

Section 1.7, "Package Description"

Section 1.8, "System Design Information"

Section 1.9, "Document Revision History"

Section 1.10, "Ordering Information"

To locate updates for this document, refer to the website at http://www.motorola.com/sps. For the most

current part errata document, please contact your Motorola Sales Office.

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Overview

1.1 Overview

The MPC7400 is the first implementation of the fourth generation (G4) of PowerPC microprocessors from

Motorola. The MPC7400 implements the full PowerPC 32-bit architecture and is targeted at both portable

and computing systems applications. Some comments on the MPC7400 (with respect to MPC750):

The MPC7400 adds an implementation of the new AltiVecTM technology instruction set

The MPC7400 includes significant improvements in memory subsystem (MSS) bandwidth and

offers an optional, high-bandwidth MPX bus interface

The MPC7400 adds full hardware-based multiprocessing capability, including a 5-state cache

coherency protocol (4 MESI states plus a fifth state for shared intervention)

The MPC7400 is implemented in a next generation process technology for core frequency

improvement

The MPC7400 floating-point unit has been improved to make latency equal for double-precision

and single-precision operations involving multiplication

The completion queue has been extended to 8 slots

There are no other significant changes to scalar pipelines, decode/dispatch/completion mechanisms,

or the branch unit. The MPC750's 4-stage pipeline model is unchanged (fetch, decode/dispatch,

execute, complete/writeback)

Figure 1 shows a block diagram of the MPC7400.

MPC7400

RISC

Micr

opr

ocessor

Hardwar

Specifications

PRELIMINAR

Y--SUBJECT

CHANGE WITHOUT

NOTICE

Overview

Figur

e 1. MPC7400 Block Diagram

Additional Features

· Time Base Counter/
Decrementer
· Clock Multiplier
· JTAG/COP Interface
· Power Management

Fetcher

Branch Processing

BTIC

(64 Entry)

+ x ÷

FPSCR

VSCR

FPSCR

L2CR

CTR

+ x ÷

Instruction Unit

Unit

Instruction Queue

(6 Word)

2 Instructions

Reservation

Integer System

Dispatch Unit

64-Bit (2 Instructions)

128-Bit

(4 Instructions)

32-Bit

Floating-

Point Unit

32-Bit

64-Bit

Reservation

Load/Store Unit

(EA Calculation)

Finished Stores

32-Bit

Completion Unit

Reorder Buffer

(8 Entry)

Tags

32-Kbyte

i Cache

Data Reload

Queue

Instruction

Reload Queue

Load Fold

L1Operations

to two instructions per clock

Data MMU

SRs

(Original)

128-Entry

DBAT

Array

DTLB

Queue

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Features

1.2 Features

This section summarizes features of the MPC7400's implementation of the PowerPC architecture. Major

features of the MPC7400 are as follows:

Branch processing unit
-- Four instructions fetched per clock
-- One branch processed per cycle (plus resolving 2 speculations)
-- Up to 1 speculative stream in execution, 1 additional speculative stream in fetch
-- 512-entry branch history table (BHT) for dynamic prediction
-- 64-entry, 4-way set associative Branch Target Instruction Cache (BTIC) for eliminating branch

delay slots

Dispatch unit
-- Full hardware detection of dependencies (resolved in the execution units)
-- Dispatch two instructions to eight independent units (system, branch, load/store, fixed-point

unit 1, fixed-point unit 2, floating-point, AltiVec permute, AltiVec ALU)

-- Serialization control (predispatch, postdispatch, execution serialization)

Decode
-- Register file access
-- Forwarding control
-- Partial instruction decode

Completion
-- 8 entry completion buffer
-- Instruction tracking and peak completion of two instructions per cycle
-- Completion of instructions in program order while supporting out-of-order instruction

execution, completion serialization and all instruction flow changes

Fixed-point units (FXUs) that share 32 GPRs for integer operands
-- Fixed-point unit 1 (FXU1)--multiply, divide, shift, rotate, arithmetic, logical
-- Fixed-point unit 2 (FXU2)--shift, rotate, arithmetic, logical
-- Single-cycle arithmetic, shifts, rotates, logical
-- Multiply and divide support (multi-cycle)
-- Early out multiply

Three-stage floating-point unit and a 32-entry FPR file
-- Support for IEEE-754 standard single and double-precision floating-point arithmetic
-- 3 cycle latency, 1 cycle throughput (single or double precision)
-- Hardware support for divide
-- Hardware support for denormalized numbers
-- Time deterministic non-IEEE mode

System unit
-- Executes CR logical instructions and miscellaneous system instructions
-- Special register transfer instructions

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Features

AltiVec Unit
-- Full 128-bit data paths
-- Two dispatchable units: vector permute unit and vector ALU unit.
-- Contains its own 32-entry 128-bit vector register file (VRF) with 6 renames
-- The vector ALU unit is further sub-divided into the vector simple integer unit (VSIU), the

vector complex integer unit (VCIU), and the vector floating-point unit (VFPU).

-- Fully pipelined

Load/store unit
-- One cycle load or store cache access (byte, half word, word, double-word)
-- 2 cycle load latency with 1 cycle throughput
-- Effective address generation
-- Hits under misses (multiple outstanding misses)
-- Single-cycle unaligned access within double word boundary
-- Alignment, zero padding, sign extend for integer register file
-- Floating-point internal format conversion (alignment, normalization)
-- Sequencing for load/store multiples and string operations
-- Store gathering
-- Executes the cache and TLB instructions
-- Big- and little-endian byte addressing supported
-- Misaligned little-endian supported
-- Supports FXU, FPU, and AltiVec load/store traffic
-- Complete support for all 4 architecture AltiVec DST streams

Level 1 (L1) cache structure
-- 32K, 32-byte line, 8-way set associative instruction cache (iL1)
-- 32K, 32-byte line, 8-way set associative data cache (dL1)
-- Single-cycle cache access
-- Pseudo least-recently-used (LRU) replacement
-- Data cache supports AltiVec LRU and transient instructions algorithm
-- Copy-back or write-through data cache (on a page per page basis)
-- Supports all PowerPC memory coherency modes
-- Non-blocking instruction and data cache
-- Separate copy of data cache tags for efficient snooping
-- No snooping of instruction cache except for ICBI instruction

Level 2 (L2) cache interface
-- Internal L2 cache controller and tags; external data SRAMs
-- 512K, 1M, and 2Mbyte 2-way set associative L2 cache support
-- Copyback or write-through data cache (on a page basis, or for all L2)
-- 32 byte (512K), 64 byte (1M), or 128 byte (2M) sectored line size
-- Supports pipelined (register-register) synchronous burst SRAMs and pipelined (register-

-- Core-to-L2 frequency divisors of ÷1, ÷1.5, ÷2, ÷2.5, ÷3, ÷3.5, and ÷4 supported
-- 64 bit data bus
-- Selectable interface voltages of 1.8, 2.5, and 3.3V.

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Features

Memory management unit
-- 128 entry, 2-way set associative instruction TLB
-- 128 entry, 2-way set associative data TLB
-- Hardware reload for TLBs
-- 4 instruction BATs and 4 data BATs
-- Virtual memory support for up to 4 exabytes (2

) of virtual memory

-- Real memory support for up to 4 gigabytes (2

) of physical memory

-- Snooped and invalidated for TLBI instructions

Efficient data flow
-- All data buses between VRF, load/store unit, dL1, iL1, L2, and the bus are 128-bits wide
-- dL1 is fully pipelined to provide 128 bits/cycle to/from the VRF
-- L2 is fully pipelined to provide 128 bits per L2 clock cycle to the L1s
-- Up to 8 outstanding, out-of-order, cache misses between dL1 and L2/bus
-- Up to 7 outstanding, out-of-order transactions on the bus
-- Load folding to fold new dL1 misses into older, outstanding load and store misses to the same

line

-- Store miss merging for multiple store misses to the same line. Only coherency action taken (i.e.,

address only) for store misses merged to all 32 bytes of a cache line (no data tenure needed).

-- 2-entry finished store queue and 4-entry completed store queue between load/store unit and dL1
-- Separate additional queues for efficient buffering of outbound data (castouts, write throughs,

etc.) from dL1 and L2

Bus interface
-- New MPX bus extension to 60X processor interface
-- Mode-compatible with 60x processor interface
-- 32-bit address bus
-- 64 bit data bus
-- Bus-to-core frequency multipliers of 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x,

8x supported

-- Selectable interface voltages of 1.8 and 3.3V.

Power management
-- Low-power design with thermal requirements very similar to MPC740 and MPC750.
-- 1.8 volt processor core
-- Selectable interface voltages below 3.3V can reduce power in output buffers
-- Three static power saving modes: doze, nap, and sleep
-- Dynamic power management

Testability
-- LSSD scan design
-- IEEE 1149.1 JTAG interface
-- Array built-in self test (ABIST)--factory test only.
-- Redundancy on L1 data arrays and L2 tag arrays

Reliability and serviceability
-- Parity checking on 60x and L2 cache buses

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

General Parameters

1.3 General Parameters

The following list provides a summary of the general parameters of the MPC7400:

Technology

0.20 µm CMOS, six-layer metal

Die size

7.86 mm x 10.58 mm (83 mm

)

Transistor count

10.5 million

Logic design

Fully-static

Packages

Surface mount 360 ceramic ball grid array (CBGA)

Core power supply:

1.8V ± 100 mV dc (nominal; see Table 3 for recommended operating
conditions)

I/O power supply

1.8V ± 100 mV dc or

2.5V ± 100 mV dc or

3.3V ± 5% (input thresholds are configuration pin selectable)

1.4 Electrical and Thermal Characteristics

This section provides the AC and DC electrical specifications and thermal characteristics for the MPC7400.

1.4.1 DC Electrical Characteristics

The tables in this section describe the MPC7400 DC electrical characteristics. Table 1 provides the absolute

maximum ratings.

Notes:

1. Functional and tested operating conditions are given in Table 3. Absolute maximum ratings are stress ratings only, and

functional operation at the maximums is not guaranteed. Stresses beyond those listed may affect device reliability or cause
permanent damage to the device.

2. Caution: Vin must not exceed OVdd or L2OVdd by more than 0.3V at any time including during power-on reset.
3. Caution: L2OVdd/OVdd must not exceed Vdd/AVdd/L2AVdd by more than 2.0V at any time including during power-on

reset.

Table 1. Absolute Maximum Ratings

Characteristic

Symbol

Maximum Value

Unit

Note

Core supply voltage

Vdd

0.3 to 2.1

PLL supply voltage

AVdd

0.3 to 2.1

L2 DLL supply voltage

L2AVdd

0.3 to 2.1

Processor bus supply voltage

OVdd

0.3 to 3.465

L2 bus supply voltage

L2OVdd

0.3 to 3.465

Input voltage

Processor bus

0.3 to OVdd + 0.3V

2,5

L2 Bus

0.3 to L2OVdd + 0.3V

2,5

JTAG Signals

0.3 to 3.6

Storage temperature range

stg

55 to 150

°C

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

4. Caution: Vdd/AVdd/L2AVdd must not exceed L2OVdd/OVdd by more than 0.4V at any time including during power-on

reset. In addition, operation at nominal Vdd/AVdd/L2AVdd greater than nominal L2OVdd or OVdd in the 1.8V input
threshold select mode can cause erratic operation and AC timing values worse than described in this specification.

5. V

may overshoot/undershoot to a voltage and for a maximum duration as shown in Figure 2.

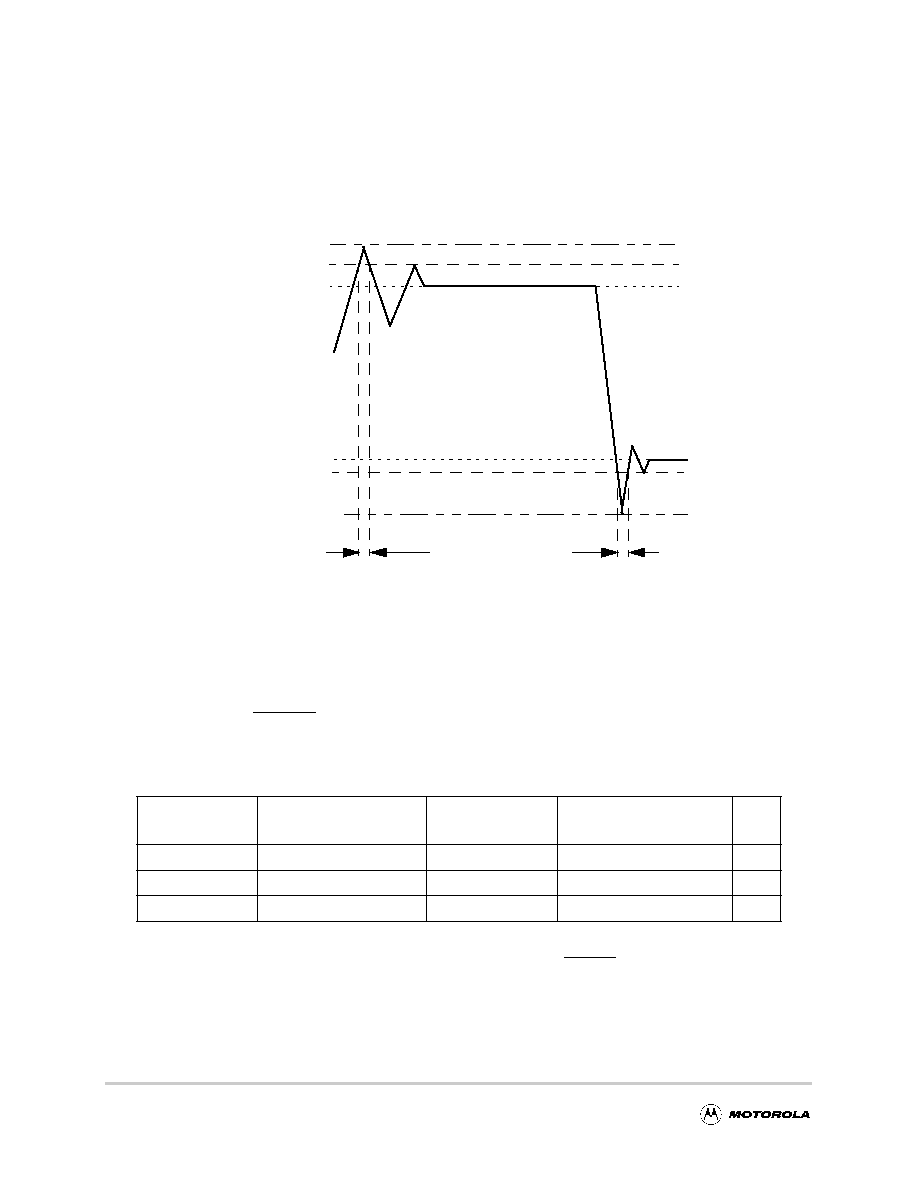

Figure 2 shows the undershoot and overshoot voltage on the MPC7400.

Figure 2. Overshoot/Undershoot Voltage

The MPC7400 provides several I/O voltages to support both compatibility with existing systems and

migration to future systems. The MPC7400 "core" voltage must always be provided at nominal 1.8V (see

Table 3 for actual recommended core voltage). Voltage to the L2 I/Os and processor interface I/Os are

provided through separate sets of supply pins and may be provided at the voltages shown in Table 2. The

input voltage threshold for each bus is selected by sampling the state of the voltage select pins at the

negation of the signal HRESET. The output voltage will swing from GND to the maximum voltage applied

to the OVdd or L2OVdd power pins.

Table 2. Input Threshold Voltage Setting

BVSEL Signal

Processor Bus Input

Threshold is Relative to:

L2VSEL Signal

L2 Bus Input Threshold is

Relative to:

Note

1.8V

1.8

HRESET

2.5V

HRESET

2.5

1,2

1 3.3V

3.3

Notes:

1. Caution: The input threshold selection must agree with the OVdd/L2OVdd voltages supplied.
2. To select the 2.5 volt threshold option, L2VSEL / BVSEL should be tied to HRESET so that the two signals

change state together.

Gnd

Gnd - .3V

Gnd - 0.7V

Not to exceed 10%

(L2)OVdd + 20%

(L2)OVdd

(L2)OVdd + 5%

of t

SYSCLK

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Table 3 provides the recommended operating conditions for the MPC7400.

Table 4 provides the package thermal characteristics for the MPC7400.

The MPC7400 incorporates a thermal management assist unit (TAU) composed of a thermal sensor, digital-
to-analog converter, comparator, control logic, and dedicated special-purpose registers (SPRs). See the
MPC7400 RISC Microprocessor User's Manual for more information on the use of this feature.
Specifications for the thermal sensor portion of the TAU are found in Table 5.

Table 3. Recommended Operating Conditions

Characteristic

Symbol

Recommended

Value

Unit

Note

Core supply voltage

Vdd

1.8v ± 100mv

PLL supply voltage

AVdd

1.8v ± 100mv

L2 DLL supply voltage

L2AVdd

1.8v ± 100mv

Processor bus supply
voltage

BVSEL = 0

OVdd

1.8v ± 100mv

BVSEL = HRESET

OVdd

2.5v ± 100mv

BVSEL = 1

OVdd

3.3v ± 165mv

L2 bus supply voltage

L2VSEL = 0

L2OVdd

1.8v ± 100mv

L2VSEL = HRESET

L2OVdd

2.5v ± 100mv

L2VSEL = 1

L2OVdd

3.3v ± 165mv

Input voltage

Processor bus

GND to OVdd

L2 Bus

GND to L2OVdd

JTAG Signals

GND to OVdd

Die-junction temperature

0 to 105

°C

Note:

1. These are the recommended and tested operating conditions. Proper device operation outside of these

conditions is not guaranteed.

2. The extended temperature parts have die-junction temperature of -40 to 105 °C.

Table 4. Package Thermal Characteristics

Characteristic

Symbol

Value

Rating

CBGA package thermal resistance, junction-to-case thermal resistance (typical)

0.03

°C/W

CBGA package thermal resistance, die junction-to-lead thermal resistance
(typical)

3.8

°C/W

Note: Refer to Section 1.8, "System Design Information," for more details about thermal management.

Table 5. Thermal Sensor Specifications

At recommended operating conditions (See Table 3)

Characteristic

Min

Max

Unit

Notes

Temperature range

127

°C

Comparator settling time

µs

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Notes:

1. The temperature is the junction temperature of the die. The thermal assist unit's raw output does not indicate an absolute

temperature, but it must be interpreted by software to derive the absolute junction temperature. For information about the
use and calibration of the TAU, see Motorola application note, "Programming the Thermal Assist Unit in the MPC750
Microprocessor," (order #: AN1800/D).

2. The comparator settling time value must be converted into the number of CPU clocks that need to be written into the

THRM3 SPR.

3. Guaranteed by design and characterization.

Table 6 provides the DC electrical characteristics for the MPC7400.

Resolution

°C

Accuracy

-12

+12

°C

Table 6. DC Electrical Specifications

At recommended operating conditions (See Table 3)

Characteristic

Nominal

Bus

Voltage

Symbol

Min

Max

Unit

Notes

Input high voltage (all inputs except
SYSCLK)

1.8

0.65 *
(L2)OVdd

(L2)OVdd + 0.3

2,3

2.5

1.7

(L2)OVdd + 0.3

2,3

3.3

2.0

(L2)OVdd + 0.3

2,3

Input low voltage (all inputs except
SYSCLK)

1.8

-0.3

0.35 * OVdd

2.5

-0.3

0.2 * (L2)OVdd

3.3

-0.3

0.8

SYSCLK input high voltage

1.8

1.5

OVdd + 0.3

3.3

2.4

OVdd + 0.3

SYSCLK input low voltage

1.8

-0.3

0.2

3.3

-0.3

0.4

Input leakage current, V

= L2OVdd/

OVdd

µA

2,3

Hi-Z (off-state) leakage current, V

L2OVdd/OVdd

TSI

µA

2,3,5

Output high voltage, I

= -6 mA

1.8

(L2)OVdd0.45 --

2.5

1.7

3.3

2.4

Table 5. Thermal Sensor Specifications

At recommended operating conditions (See Table 3)

Characteristic

Min

Max

Unit

Notes

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

4. Capacitance is periodically sampled rather than 100% tested.
5. The leakage is measured for nominal OVdd and Vdd, or both OVdd and Vdd must vary in the same direction (for example,

both OVdd and Vdd vary by either +5% or -5%).

Table 7 provides the power consumption for the MPC7400.

1.4.2 AC Electrical Characteristics

This section provides the AC electrical characteristics for the MPC7400. After fabrication, functional parts

are sorted by maximum processor core frequency as shown in Section 1.4.2.1, "Clock AC Specifications,"

and tested for conformance to the AC specifications for that frequency. The processor core frequency is

determined by the bus (SYSCLK) frequency and the settings of the PLL_CFG[03] signals. Parts are sold

by maximum processor core frequency; see Section 1.10, "Ordering Information."

Table 7. Power Consumption for MPC7400

Processor (CPU) Frequency

Unit

Notes

350 MHz

400 MHz

Full-On Mode

Typical

Maximum

4.6

5.3

1, 3

9.9

11.3

1, 2, 4

Doze Mode

Maximum

4.4

5.0

1, 2

Nap Mode

Maximum

1.75

2.0

1, 2

Sleep Mode

Maximum

1.75

2.0

1, 2

Sleep Mode--PLL and DLL Disabled

Typical

600

1, 3

Maximum

1.0

1, 2

Notes:

1. These values apply for all valid processor bus and L2 bus ratios. The values do not include

I/O Supply Power (OVdd and L2OVdd) or PLL/DLL supply power (AVdd and
L2AVdd). OVdd and L2OVdd power is system dependent, but is typically <10% of Vdd
power. Worst case power consumption for AVdd = 15 mw and L2AVdd = 15 mW.

2. Maximum power is measured at Vdd = 1.9V while running an entirely cache-resident,

contrived sequence of instructions which keep the execution units, including AltiVec,
maximally busy.

3. Typical power is an average value measured at Vdd = AVdd = L2AVdd = 1.8V, OVdd =

L2OVdd = 3.3V in a system while running a codec application that is AltiVec intensive.

4. These values include the use of AltiVec. Without AltiVec operation, estimate a 25%

decrease.

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

1.4.2.1 Clock AC Specifications

Table 8 provides the clock AC timing specifications as defined in Figure 3.

Table 8. Clock AC Timing Specifications

At recommended operating conditions (See Table 3)

Characteristic

Symbol

Maximum Processor Core

Frequency

Unit

Notes

350 MHz

400 MHz

Min

Max

Min

Max

Processor frequency

core

300

350

300

400

MHz

VCO frequency

VCO

600

700

600

800

MHz

SYSCLK frequency

SYSCLK

100

MHz

SYSCLK cycle time

SYSCLK

7.5

SYSCLK rise and fall time

1.0

0.5

SYSCLK duty cycle
measured at OVdd/2

KHKL

SYSCLK

SYSCLK jitter

±150

Internal PLL relock time

100

Notes:
1. Caution: The SYSCLK frequency and PLL_CFG[03] settings must be chosen such that the

resulting SYSCLK (bus) frequency, CPU (core) frequency, and PLL (VCO) frequency do not
exceed their respective maximum or minimum operating frequencies. Refer to the PLL_CFG[0
3] signal description in Section 1.8.1, "PLL Configuration," for valid PLL_CFG[03] settings

2. Rise and fall times for the SYSCLK input measured from 0.4V to 2.4V when OVdd = 3.3V

nominal.

3. Rise and fall times for the SYSCLK input measured from 0.4V to 1.4V when OVdd = 1.8V

nominal.

4. Timing is guaranteed by design and characterization.
5. This represents total input jitter--short term and long term combined--and is guaranteed by

design.

6. Relock timing is guaranteed by design and characterization. PLL-relock time is the maximum

amount of time required for PLL lock after a stable Vdd and SYSCLK are reached during the
power-on reset sequence. This specification also applies when the PLL has been disabled and
subsequently re-enabled during sleep mode. Also note that HRESET must be held asserted for a
minimum of 255 bus clocks after the PLL-relock time during the power-on reset sequence.

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

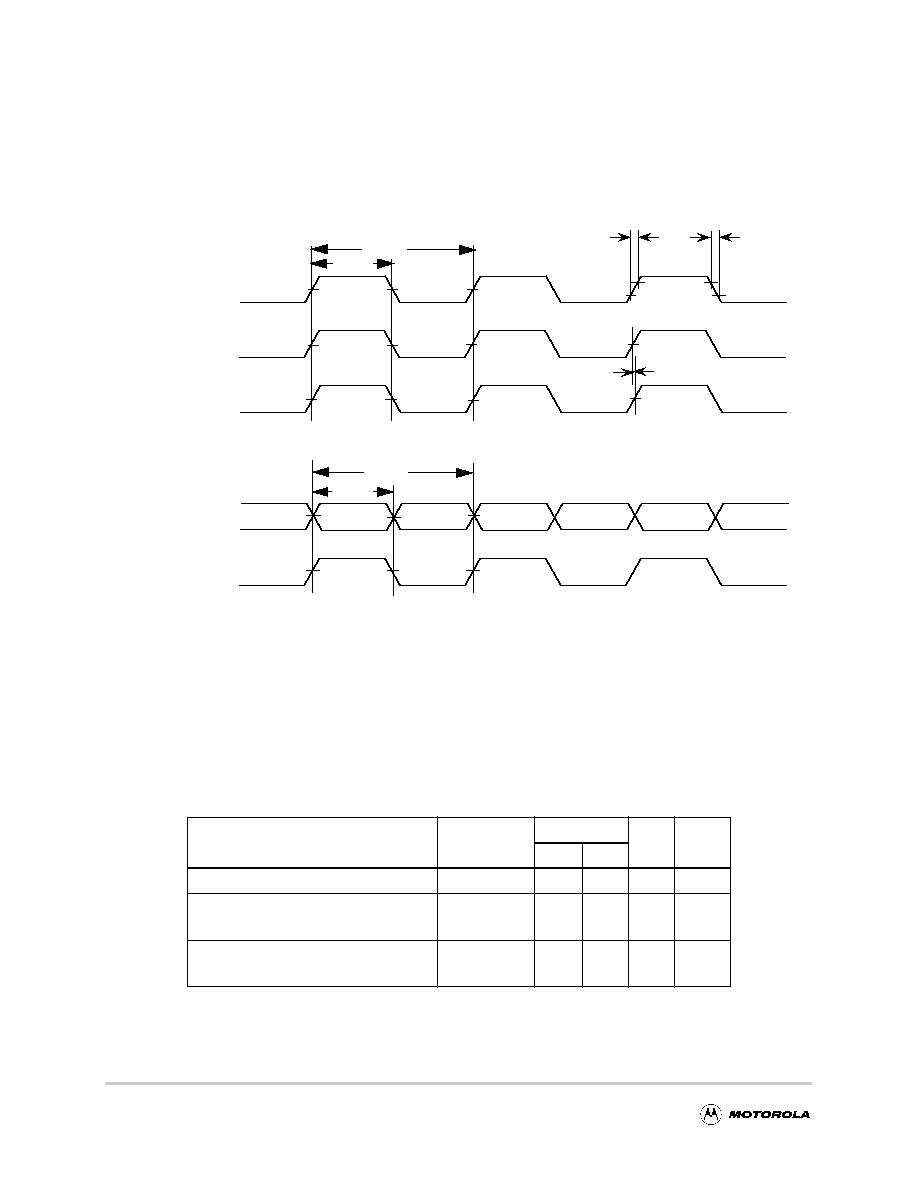

Figure 3 provides the SYSCLK input timing diagram.

Figure 3. SYSCLK Input Timing Diagram

1.4.2.2 Processor Bus AC Specifications

Table 9 provides the processor bus AC timing specifications for the MPC7400 as defined in Figure 4 and

Figure 5. Timing specifications for the L2 bus are provided in Section 1.4.2.3, "L2 Clock AC

Specifications."y

Table 9. Processor Bus AC Timing Specifications

At Vdd=AVdd=1.8V±100mV; 0 Tj 105°C, OVdd = 3.3V±165mV or OVdd = 2.5V±100mV or OVdd=1.8V±100mV

Parameter

Symbol

350, 400 MHz

Unit

Notes

Min

Max

Mode select input setup to HRESET

MVRH

sysclk

3,4,5,6

HRESET to mode select input hold

MXRH

2,3,5

Setup Times:

Address/Transfer Attribute

Transfer Start (TS)

Data/Data Parity

ARTRY/SHD0/SHD1

All Other Inputs

AVKH

TSVKH

DVKH

ARVKH

IVKH

1.6
1.6
1.6
1.6
1.6

--
--
--
--
--

7
--
8
--
9

Input Hold Times:

Address/Transfer Attribute

Transfer Start (TS)

Data/Data Parity

ARTRY/SHD0/SHD1

All Other Inputs

AXKH

TSXKH

DXKH

ARXKH

IXKH

0
0
0
0
0

--
--
--
--
--

7
--
8
--
9

Valid Times:

Address/Transfer Attribute

TS, ABB, DBB

Data

Data Parity

ARTRY/SHD0/SHD1

All Other Outputs

KHAV

KHTSV

KHDV

KHDPV

KHARV

KHOV

--
--
--
--
--
--

3.2
3.4
3.5
3.5
2.5
3.2

7
--
8
8
--
10

SYSCLK

CVIH

CVIL

VM = Midpoint Voltage (OVDD/2)

SYSCLK

KHKL

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Output Hold Times:

Address/Transfer Attribute

TS, ABB, DBB

Data/Data Parity

ARTRY/SHD0/SHD1

All Other Outputs

KHAX

KHTSX

KHDX

KHARX

KHOX

0.75
0.75

0.6

0.75
0.75

--
--
--
--
--

7
--
8
--
10

SYSCLK to Output Enable

KHOE

0.5

SYSCLK to Output High Impedance (all except TS, ABB/
AMON(0), ARTRY/SHD, DBB/DMON(0) )

KHOZ

4.0

SYSCLK to TS, ABB/AMON(0), DBB/DMON(0) High
Impedance after precharge

KHABPZ

1.0

sysclk

5,11,13

Maximum Delay to ARTRY/SHD0/SHD1 Precharge

KHARP

sysclk

5,12, 13

SYSCLK to ARTRY/SHD0/SHD1 High Impedance After
Precharge

KHARPZ

sysclk

5,12, 13

Table 9. Processor Bus AC Timing Specifications

(Continued)

At Vdd=AVdd=1.8V±100mV; 0 Tj 105°C, OVdd = 3.3V±165mV or OVdd = 2.5V±100mV or OVdd=1.8V±100mV

Parameter

Symbol

350, 400 MHz

Unit

Notes

Min

Max

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Notes:

1. All input specifications are measured from the midpoint of the signal in question to the midpoint of the rising edge of the

input SYSCLK. All output specifications are measured from the midpoint of the rising edge of SYSCLK to the
midpoint of the signal in question. All output timings assume a purely resistive 50 ohm load (See Figure 4). Input and
output timings are measured at the pin;time-of-flight delays must be added for trace lengths, vias, and connectors in the
system.

2. The symbology used for timing specifications herein follows the pattern of t

(signal)(state)(reference)(state)

for inputs and

(reference)(state)(signal)(state)

for outputs. For example, t

IVKH

symbolizes the time input signals (I) reach the valid state (V)

relative to the SYSCLK reference (K) going to the high(H) state or input setup time. And t

KHOV

symbolizes the time

from SYSCLK(K) going high(H) until outputs (O) are valid (V) or output valid time. Input hold time can be read as the
time that the input signal (I) went invalid (X) with respect to the rising clock edge (KH) - note the position of the
reference and its state for inputs -and output hold time can be read as the time from the rising edge (KH) until the output
went invalid (OX). For additional explanation of AC timing specifications in Motorola PowerPC microprocessors, see
the application note "Understanding AC Timing Specifications for PowerPC Microprocessors."

3. The setup and hold time is with respect to the rising edge of HRESET (see Figure 5).
4. This specification is for configuration mode select only. Also note that the HRESET must be held asserted for a

minimum of 255 bus clocks after the PLL re-lock time during the power-on reset sequence.

5. t

sysclk

is the period of the external clock (SYSCLK) in nanoseconds (ns). The numbers given in the table must be

multiplied by the period of SYSCLK to compute the actual time duration (in nanoseconds) of the parameter in question.

6. Mode select signals are BVSEL, EMODE, L2VSEL, PLL_CFG[0-3]
7. Address/Transfer Attribute signals are composed of the following--A[031], AP[03], TT[04], TBST, TSIZ[02],

GBL, WT, CI

8. Data signals are composed of the following--DH[031], DL[031]; Data Parity signals are composed of DP[07].
9. All other input signals are composed of the following-- AACK, BG, CKSTP_IN, DBG, DBWO/DTI[0], DTI[1-2],

HRESET, INT, MCP, QACK, SMI, SRESET, TA, TBEN, TEA, TLBISYNC.

10. All other output signals are composed of the following-- BR, CKSTP_OUT, DRDY, HIT, QREQ, RSRV
11. According to the 60x bus protocol, TS, ABB and DBB are driven only by the currently active bus master. They are

asserted low then precharged high before returning to high-Z as shown in Figure 6. The nominal precharge width for
TS, ABB or DBB is 0.5* t

SYSCLK

, i.e. less than the minimum t

SYSCLK

period, to ensure that another master asserting

TS, ABB, or DBB on the following clock will not contend with the precharge. Output valid and output hold timing is
tested for the signal asserted. Output valid time is tested for precharge.The high-Z behavior is guaranteed by design.

12. According to the 60x bus protocol, ARTRY can be driven by multiple bus masters through the clock period

immediately following AACK. Bus contention is not an issue since any master asserting ARTRY will be driving it low.
Any master asserting it low in the first clock following AACK will then go to high-Z for one clock before precharging
it high during the second cycle after the assertion of AACK. The nominal precharge width for ARTRY is 1.0 t

sysclk

; i.e.

it should be high-Z as shown in Figure 6 before the first opportunity for another master to assert ARTRY. Output valid
and output hold timing is tested for the signal asserted. Output valid time is tested for precharge.The high-Z behavior is
guaranteed by design.

13. Guaranteed by design and not tested.

Table 9. Processor Bus AC Timing Specifications

(Continued)

At Vdd=AVdd=1.8V±100mV; 0 Tj 105°C, OVdd = 3.3V±165mV or OVdd = 2.5V±100mV or OVdd=1.8V±100mV

Parameter

Symbol

350, 400 MHz

Unit

Notes

Min

Max

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

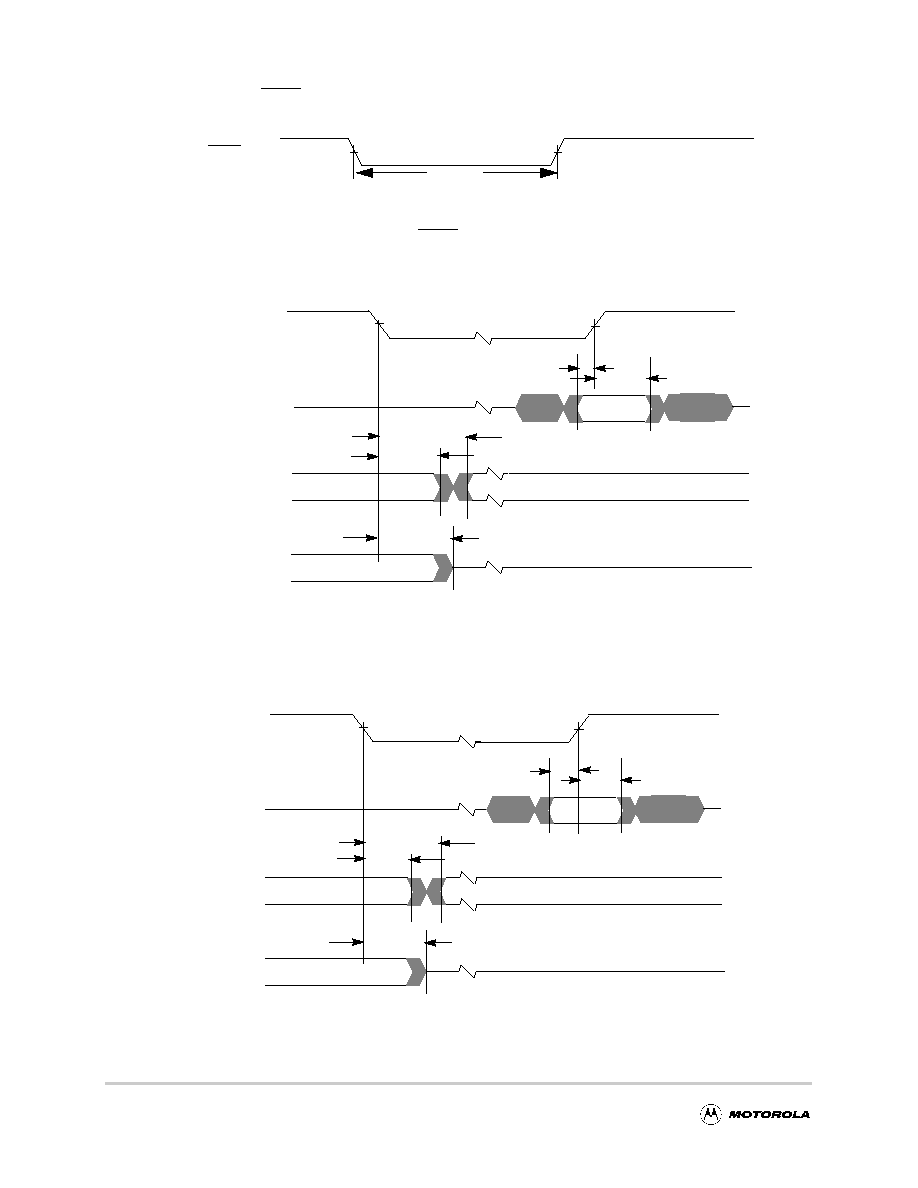

Figure 6 provides the input/output timing diagram for the MPC7400.

Figure 6. Input/Output Timing Diagram

1.4.2.3 L2 Clock AC Specifications

The L2CLK frequency is programmed by the L2 Configuration Register (L2CR[4:6]) core-to-L2 divisor
ratio. See Table 15 for example core and L2 frequencies at various divisors. Table 10 provides the potential
range of L2CLK output AC timing specifications as defined in Figure 7.

The L2SYNC_OUT signal is intended to be routed halfway out to the SRAMs and then returned to the

L2SYNC_IN input of the MPC7400 to synchronize L2CLKOUT at the SRAM with the processor's internal

clock. L2CLKOUT at the SRAM can be offset forward or backward in time by shortening or lengthening

the routing of L2SYNC_OUT to L2SYNC_IN. See Motorola Application Note AN179/D "PowerPCTM

Backside L2 Timing Analysis for the PCB Design Engineer."

SYSCLK

ALL INPUTS

VM = Midpoint Voltage (OVDD/2)

TSVKH

ARXKH

ALL OUTPUTS

KHOX

KHDV

(Except TS, ABB,

ARTRY, DBB)

ALL OUTPUTS

TS,

ARTRY,

ABB/AMON(0),

(Except TS, ABB

ARTRY, DBB)

DBB/DMON(0)

KHOE

KHOZ

KHABPZ

KHARPZ

KHARP

SHD1

SHD0,

KHOV

KHAV

KHDX

KHAX

IXKH

AXKH

DVKH

ARVKH

KHTSX

KHTSV

KHARV

KHARX

KHARV

IVKH

AVKH

TSXKH

DXKH

KHDPV

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

The minimum L2CLK frequency of Table 10 is specified by the maximum delay of the internal DLL. The
variable-tap DLL introduces up to a full clock period delay in the L2CLKOUTA, L2CLKOUTB, and
L2SYNC_OUT signals so that the returning L2SYNC_IN signal is phase aligned with the next core clock
(divided by the L2 divisor ratio). Do not choose a core-to-L2 divisor which results in an L2 frequency below
this minimum, or the L2CLKOUT signals provided for SRAM clocking will not be phase aligned with the
MPC7400 core clock at the SRAMs.

The maximum L2CLK frequency shown in Table 10 is the core frequency divided by one. Very few L2
SRAM designs will be able to operate in this mode. Most designs will select a greater core-to-L2 divisor to
provide a longer L2CLK period for read and write access to the L2 SRAMs. The maximum L2CLK
frequency for any application of the MPC7400 will be a function of the AC timings of the MPC7400, the
AC timings for the SRAM, bus loading, and printed circuit board trace length.

Motorola is similarly limited by system constraints and cannot perform tests of the L2 interface on a
socketed part on a functional tester at the maximum frequencies of Table 10. Therefore functional operation
and AC timing information are tested at core-to-L2 divisors of 2 or greater.

L2 input and output signals are latched or enabled respectively by the internal L2CLK (which is SYSCLK
multiplied up to the core frequency and divided down to the L2CLK frequency). In other words, the AC
timings of Table 11 are entirely independent of L2SYNC_IN. In a closed loop system, where L2SYNC_IN
is driven through the board trace by L2SYNC_OUT, L2SYNC_IN only controls the output phase of
L2CLKOUTA and L2CLKOUTB which are used to latch or enable data at the SRAMs. However, since in
a closed loop system L2SYNC_IN is held in phase alignment with the internal L2CLK, the signals of Table
11 are referenced to this signal rather than the not-externally-visible internal L2CLK. During manufacturing
test, these times are actually measured relative to SYSCLK.

Notes:
1. L2CLK outputs are L2CLK_OUTA, L2CLK_OUTB, and L2SYNC_OUT pins. The L2CLK frequency to core frequency

settings must be chosen such that the resulting L2CLK frequency and core frequency do not exceed their respective
maximum or minimum operating frequencies. The maximum L2LCK frequency will be system dependent..
L2CLK_OUTA and L2CLK_OUTB must have equal loading.

2. The nominal duty cycle of the L2CLK is 50% measured at midpoint voltage.
3. The DLL re-lock time is specified in terms of L2CLKs. The number in the table must be multiplied by the period of

L2CLK to compute the actual time duration in nanoseconds. Re-lock timing is guaranteed by design and characterization.

4. The L2CR[L2SL] bit should be set for L2CLK frequencies less than 110 MHz. This adds more delay to each tap of the

DLL.

Table 10. L2CLK Output AC Timing Specifications

At recommended operating conditions (See Table 3)

Parameter

Symbol

350 MHz

400 MHz

Unit

Notes

Min

Max

Min

Max

L2CLK frequency

L2CLK

100

350

133

400

MHz

1,4

L2CLK cycle time

L2CLK

2.86

2.5

7.5

L2CLK duty cycle

CHCL

L2CLK

Internal DLL-relock time

640

L2CLK

DLL capture window

L2CLKOUT output-to-
output skew

L2CSKW

L2CLKOUT output jitter

±150

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

5. Allowable skew between L2SYNC_OUT and L2SYNC_IN.
6. Guaranteed by design and not tested. This output jitter number represents the maximum delay of one tap forward or one tap

back from the current DLL tap as the phase comparator seeks to minimize the phase difference between L2SYNC_IN and
the internal L2CLK. This number must be comprehended in the L2 timing analysis. The input jitter on SYSCLK affects
L2CLKOUT and the L2 address/data/control signals equally and therefore is already comprehended in the AC timing and
does not have to be considered in the L2 timing analysis.

The L2CLK_OUT timing diagram is shown in Figure 7.

Figure 7. L2CLK_OUT Output Timing Diagram

1.4.2.4 L2 Bus AC Specifications

Table 11 provides the L2 bus interface AC timing specifications for the MPC7400 as defined in Figure 8 and

Figure 9 for the loading conditions described in Figure 10.

Table 11. L2 Bus Interface AC Timing Specifications

At Vdd=AVdd=L2AVdd=1.8V±100mV; 0

Tj 105°C, L2OVdd = 3.3V±165mV or L2OVdd = 2.5V±100mV or L2OVdd=1.8V±100mV

Parameter

Symbol

350, 400 MHz

Unit

Notes

Min

Max

L2SYNC_IN rise and fall time

L2CR

& t

L2CF

1.0

Setup Times:

Data and parity t

DVL2CH

1.5

Input Hold Times:

Data and parity t

DXL2CH

0.0

VM = Midpoint Voltage (L2OVdd/2)

L2CLK_OUTA

L2CLK_OUTB

L2 Differential Clock Mode

L2 Single-Ended Clock Mode

L2SYNC_OUT

L2CLK

CHCL

L2CLK_OUTA

L2CR

L2CF

L2CLK_OUTB

L2CLK

CHCL

L2SYNC_OUT

L2CSKW

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Figure 8 shows the L2 bus input timing diagrams for the MPC7400.

Figure 8. L2 Bus Input Timing Diagrams

Valid Times:

All outputs when L2CR[14-15] = 00
All outputs when L2CR[14-15] = 01
All outputs when L2CR[14-15] = 10

All outputs when L2CR[14-15] = 11

L2CHOV

-
-
-
-

2.5
3.0
3.5
4.0

3,4

Output Hold Times

All outputs when L2CR[14-15] = 00
All outputs when L2CR[14-15] = 01
All outputs when L2CR[14-15] = 10

All outputs when L2CR[14-15] = 11

L2CHOX

0.4
1.0
1.4
1.8

-
-
-
-

L2SYNC_IN to high impedance:

All outputs when L2CR[14-15] = 00
All outputs when L2CR[14-15] = 01
All outputs when L2CR[14-15] = 10

All outputs when L2CR[14-15] = 11

L2CHOZ

-
-
-
-

2.0
2.5
3.0
3.5

Notes:
1. Rise and fall times for the L2SYNC_IN input are measured from 20% to 80% of L2OVdd.
2. All input specifications are measured from the midpoint of the signal in question to the

midpoint voltage of the rising edge of the input L2SYNC_IN (see Figure 8). Input timings
are measured at the pins.

3. All output specifications are measured from the midpoint voltage of the rising edge of

L2SYNC_IN to the midpoint of the signal in question. The output timings are measured at
the pins. All output timings assume a purely resistive 50 ohm load (See Figure 10).

4.The outputs are valid for both single-ended and differential L2CLK modes. For pipelined

registered synchronous burst RAMs, L2CR[1415] = 00 is recommended. For pipelined
late-write synchronous burst SRAMs, L2CR[1415] = 10 is recommended.

Table 11. L2 Bus Interface AC Timing Specifications (Continued)

At Vdd=AVdd=L2AVdd=1.8V±100mV; 0

Tj 105°C, L2OVdd = 3.3V±165mV or L2OVdd = 2.5V±100mV or L2OVdd=1.8V±100mV

Parameter

Symbol

350, 400 MHz

Unit

Notes

Min

Max

L2SYNC_IN

L2 DATA AND DATA

VM = Midpoint Voltage (L2OVDD/2)

DVL2CH

DXL2CH

L2CR

L2CF

PARITY INPUTS

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Figure 9 shows the L2 bus output timing diagrams for the MPC7400.

Figure 9. L2 Bus Output Timing Diagrams

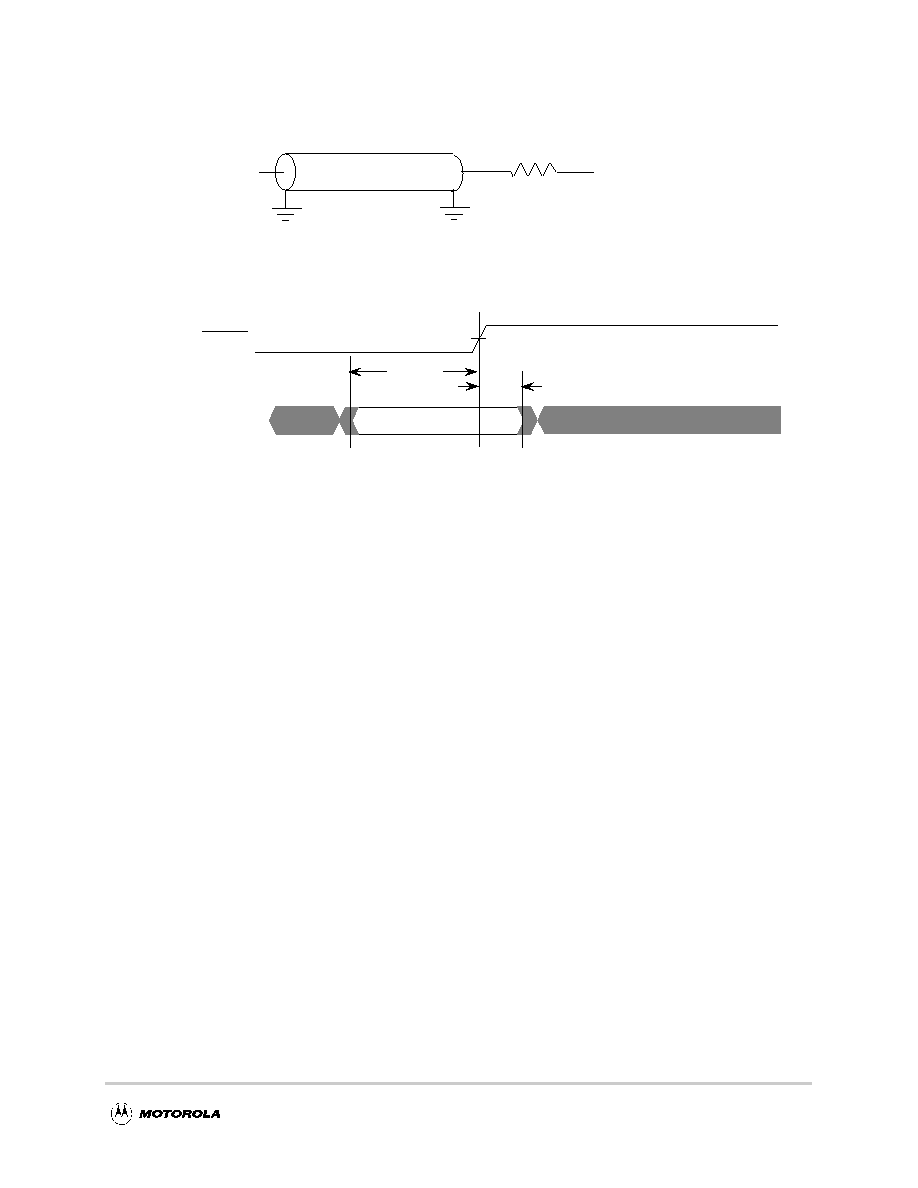

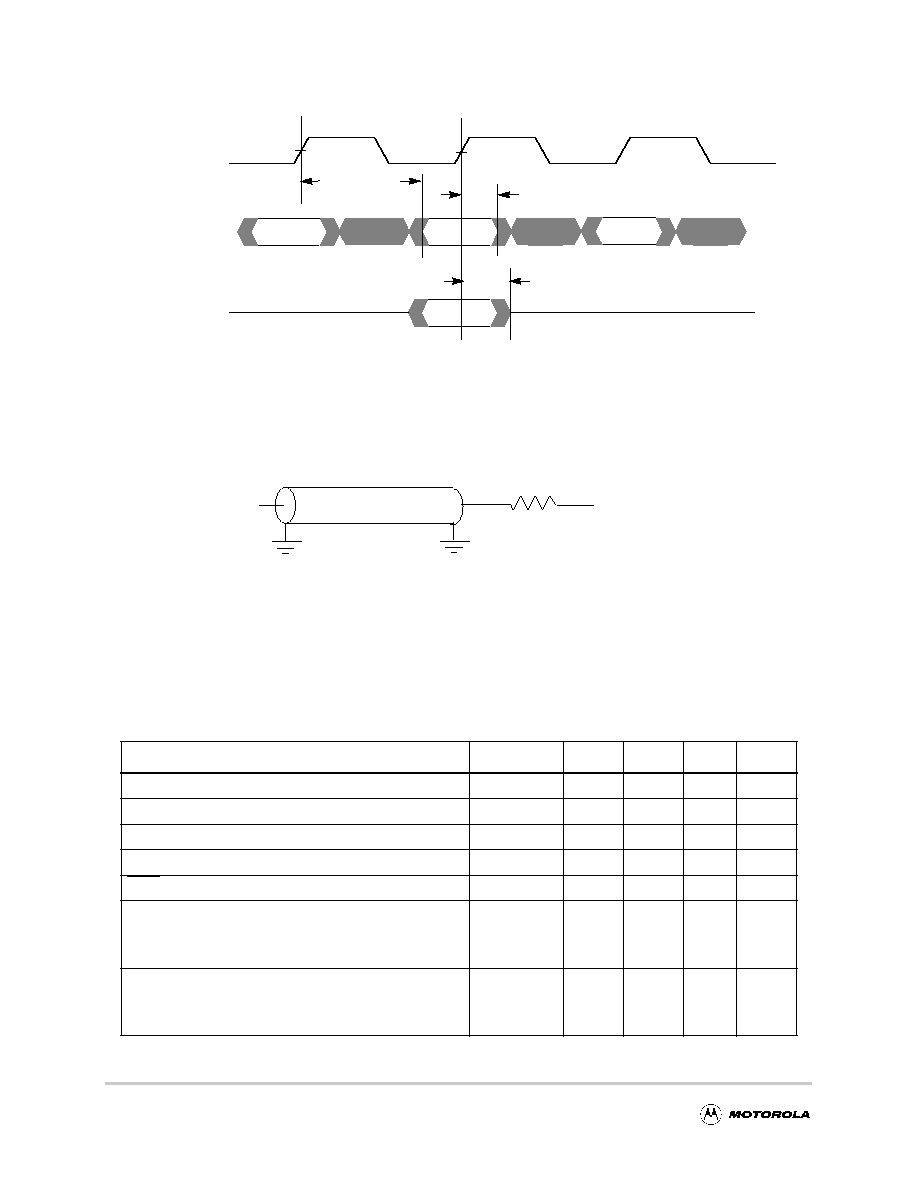

Figure 10 provides the AC test load for L2 interface of the MPC7400.

Figure 10. AC Test Load for the L2 Interface

1.4.2.5 IEEE 1149.1 AC Timing Specifications

Table 12 provides the IEEE 1149.1 (JTAG) AC timing specifications as defined in Figure 12, Figure 13,

Figure 14, and Figure 15.

Table 12. JTAG AC Timing Specifications (Independent of SYSCLK)

At recommended operating conditions (See Table 3)

Parameter

Symbol

Min

Max

Unit

Notes

TCK frequency of operation

TCLK

33.3

MHz

TCK cycle time

TCLK

TCK clock pulse width measured at 1.4V

JHJL

TCK rise and fall times

& t

TRST assert time

TRST

Input Setup Times:

Boundary-scan data

TMS, TDI

DVJH

IVJH

4
0

--
--

Input Hold Times:

Boundary-scan data

TMS, TDI

DXJH

IXJH

20
25

--
--

L2SYNC_IN

ALL OUTPUTS

VM = Midpoint Voltage (L2OVDD/2)

L2CHOV

L2CHOX

L2DATA BUS

L2CHOZ

OUTPUT

= 50

L2OVdd/2

= 50

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Figure 11

provides the AC test load for TDO and the boundary-scan outputs of the MPC7400.

Figure 11. Alternate AC Test Load for the JTAG Interface

Figure 12 provides the JTAG clock input timing diagram.

Figure 12. JTAG Clock Input Timing Diagram

Valid Times:

Boundary-scan data

TDO

JLDV

JLOV

4
4

20
25

Output Hold Times:

Boundary-scan data

TDO

JLDX

JLOX

TCK to output high impedance:

Boundary-scan data

TDO

JLDZ

JLOZ

3
3

19
9

4,5

Notes:

1. All outputs are measured from the midpoint voltage of the falling/rising edge of TCLK to the midpoint of the signal

in question. The output timings are measured at the pins. All output timings assume a purely resistive 50 ohm load
(See Figure 11). Time-of-flight delays must be added for trace lengths, vias, and connectors in the system.

2. TRST is an asynchronous level sensitive signal. The setup time is for test purposes only.
3. Non-JTAG signal input timing with respect to TCK.
4. Non-JTAG signal output timing with respect to TCK.
5. Guaranteed by design and characterization.

Table 12. JTAG AC Timing Specifications (Independent of SYSCLK)

(Continued)

At recommended operating conditions (See Table 3)

Parameter

Symbol

Min

Max

Unit

Notes

OUTPUT

= 50

OVdd/2

= 50

TCLK

VM = Midpoint Voltage (OVDD/2)

TCLK

JHJL

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Electrical and Thermal Characteristics

Figure 13 provides the TRST timing diagram.

Figure 13. TRST Timing Diagram

Figure 14 provides the boundary-scan timing diagram.

Figure 14. Boundary-Scan Timing Diagram

Figure 15 provides the test access port timing diagram.

Figure 15. Test Access Port Timing Diagram

TRST

VM = Midpoint Voltage (OVDD/2)

TCK

BOUNDARY

DATA OUTPUTS

DATA INPUTS

DATA OUTPUTS

VM = Midpoint Voltage (OVDD/2)

DXJH

DVJH

JLDV

JLDZ

INPUT

DATA VALID

OUTPUT DATA VALID

JLDX

TCK

TDI, TMS

TDO

OUTPUT DATA VALID

= Midpoint Voltage (OVDD/2)

IXJH

IVJH

JLOV

JLOZ

INPUT

DATA VALID

TDO

OUTPUT DATA VALID

JLOX

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Pinout Listings

1.6 Pinout Listings

Table 13 provides the pinout listing for the MPC7400, 360 CBGA package.

Table 13. Pinout Listing for the MPC7400, 360 CBGA Package

I/F Voltages Supported

Signal Name

Pin Number

Active

I/O

1.8v

2.5v

3.3v

Notes

A[031]

A13, D2, H11, C1, B13, F2, C13, E5,
D13, G7, F12, G3, G6, H2, E2, L3,
G5, L4, G4, J4, H7, E1, G2, F3, J7,
M3, H3, J2, J6, K3, K2, L2

High

I/O

AACK

Low

Input

ABB
AMON(0)

Low

Output

AP[03]

C4, C5, C6, C7

High

I/O

ARTRY

Low

I/O

AVDD

Input

1.8V

Low

Input

Low

Output

BVSEL

High

Input

GND

HRESET

3.3V

3, 8, 9

CHK

K11

Low

Input

4, 8, 9

Low

I/O

CKSTP_IN

Low

Input

CKSTP_OUT

Low

Output

CLK_OUT

High

Output

DBB
DMON(0)

Low

Output

DBG

Low

Input

DH[031]

W12, W11, V11, T9, W10, U9, U10,
M11, M9, P8, W7, P9, W9, R10, W6,
V7, V6, U8, V9, T7, U7, R7, U6, W5,
U5, W4, P7, V5, V4, W3, U4, R5

High

I/O

DL[0-31]

M6, P3, N4, N5, R3, M7, T2, N6, U2,
N7, P11, V13, U12, P12, T13, W13,
U13, V10, W8, T11, U11, V12, V8,
T1, P1, V1, U1, N1, R2, V3, U3, W2

High

I/O

DP[07]

L1, P2, M2, V2, M1, N2, T3, R1

High

I/O

DRDY

Low

Output

6, 8, 13

DBWO
DTI[0]

Low

Input

DTI[1-2]

H6, G1

High

Input

10, 13

EMODE

Low

Input

7, 10

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Pinout Listings

GBL

Low

I/O

GND

D10, D14, D16, D4, D6, E12, E8, F4,
F6, F10, F14, F16, G9, G11, H5, H8,
H10, H12, H15, J9, J11, K4, K6, K8,
K10, K12, K14, K16, L9, L11, M5,
M8, M10, M12, M15, N9, N11, P4,
P6, P10, P14, P16, R8, R12, T4, T6,
T10, T14, T16

GND

HIT

Low

Output

6, 8

HRESET

Low

Input

INT

C11

Low

Input

L1_TSTCLK F8

High

Input

L2ADDR[016]

L17, L18, L19, M19, K18, K17, K15,
J19, J18, J17, J16, H18, H17, J14,
J13, H19, G18

High

Output

L2ADDR[17]

K19

High

Output

L2ASPARE

W19

High Output

L2AVDD

L13

Input

1.8V

L2CE

P17

Low

Output

L2CLKOUTA

N15

High

Output

L2CLKOUTB

L16

High

Output

L2DATA[063]

U14, R13, W14, W15, V15, U15,
W16, V16, W17, V17, U17, W18,
V18, U18, V19, U19, T18, T17, R19,
R18, R17, R15, P19, P18, P13, N14,
N13, N19, N17, M17, M13, M18,
H13, G19, G16, G15, G14, G13, F19,
F18, F13, E19, E18, E17, E15, D19,
D18, D17, C18, C17, B19, B18, B17,
A18, A17, A16, B16, C16, A14, A15,
C15, B14, C14, E13

High

I/O

L2DP[07]

V14, U16, T19, N18, H14, F17, C19,
B15

High

I/O

L2OVDD

D15, E14, E16, H16, J15, L15, M16,
K13, P15, R14, R16, T15, F15

1.8V

2.5V

3.3V

L2SYNC_IN

L14

High

Input

L2SYNC_OUT

M14

High

Output

L2_TSTCLK

High

Input

L2VSEL

A19

High Input

GND

HRESET

3.3V

1, 3, 8, 9

L2WE

N16

Low Output

L2ZZ

G17

High

Output

Table 13. Pinout Listing for the MPC7400, 360 CBGA Package (Continued)

I/F Voltages Supported

Signal Name

Pin Number

Active

I/O

1.8v

2.5v

3.3v

Notes

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Pinout Listings

Notes:

1. OVdd supplies power to the processor bus, JTAG, and all control signals except the L2 cache controls (L2CE, L2WE, and

L2ZZ); L2OVDD supplies power to the L2 cache interface (L2ADDR[0-16], L2ASPARE, L2DATA[0-63], L2DP[0-7]
and L2SYNC-OUT) and the L2 control signals; and Vdd supplies power to the processor core and the PLL and DLL (after
filtering to become AVDD and L2AVDD respectively). These columns serve as a reference for the nominal voltage
supported on a given signal as selected by the BVSEL/L2VSEL pin configurations of Table 2 and the voltage supplied.
For actual recommended value of Vin or supply voltages see Table 3.

2. These are test signals for factory use only and must be pulled up to OVdd for normal machine operation.

LSSD_MODE

Low

Input

MCP

B11

Low

Input

OVDD

D5, D8, D12, E4, E6, E9, E11, F5,
H4, J5, L5, M4, P5, R4, R6, R9, R11,
T5, T8, T12

1.8V

2.5V

3.3V

PLL_CFG[03]

A4, A5, A6, A7

High

Input

QACK

Low

Input

QREQ

Low

Output

RSRV

Low

Output

SHD0

Low

I/O

SHD1

Low

I/O

5, 8

SMI

A12

Low

Input

SRESET

E10

Low

Input

SYSCLK

Input

Low

Input

TBEN

High

Input

TBST

A11

Low

Output

TCK

B10

High

Input

TDI

High

Input

TDO

High

Output

TEA

Low

Input

TMS

High

Input

TRST

A10

Low

Input

Low

I/O

TSIZ[02]

A9, B9, C9

High

Output

TT[04]

C10, D11, B12, C12, F11

High

I/O

Low

I/O

VDD

G8, G10, G12, J8, J10, J12, L8, L10,
L12, N8, N10, N12

1.8V

Table 13. Pinout Listing for the MPC7400, 360 CBGA Package (Continued)

I/F Voltages Supported

Signal Name

Pin Number

Active

I/O

1.8v

2.5v

3.3v

Notes

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Package Description

3. To allow for future I/O voltage changes, provide the option to connect BVSEL and L2VSEL independently to either

OVDD (selects 3.3v), OGND (selects 1.8v), or to HRESET (selects 2.5v). The Processor bus and L2 bus support all 3
options. (See Table 2. Input Threshold Voltage Setting)

4. Connect to HRESET to trigger post power-on-reset (por) internal memory test.
5. Ignored in 60x bus mode.
6. Unused output in 60x bus mode.
7. Deasserted (pulled high) at HRESET for 60x bus mode.
8. Uses one of 9 existing no-connects in MPC750's 360-BGA package.
9. Internal pull up on die.
10. Reuses MPC750's DRTRY, DBDIS, and TLBISYNC pins (DTI1, DTI2, and EMODE respectively).
11. The VOLTDET pin position on the MPC750 360-CBGA package is now an L2OVDD pin on the MPC7400 360-CBGA

package.

12. Output only for MPC7400, was I/O for MPC750.
13. Enhanced mode only.

1.7 Package Description

The following sections provide the package parameters and mechanical dimensions for the MPC7400, 360

CBGA packages.

1.7.1 Package Parameters for the MPC7400

The package parameters are as provided in the following list. The package type is 25 x 25 mm, 360-lead

ceramic ball grid array (CBGA).

Package outline

25 x 25 mm

Interconnects

360 (19 x 19 ball array - 1)

Pitch

1.27 mm (50 mil)

Minimum module height

2.65 mm

Maximum module height

3.20 mm

Ball diameter

0.89 mm (35 mil)

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Package Description

1.7.2 Mechanical Dimensions of the MPC7400

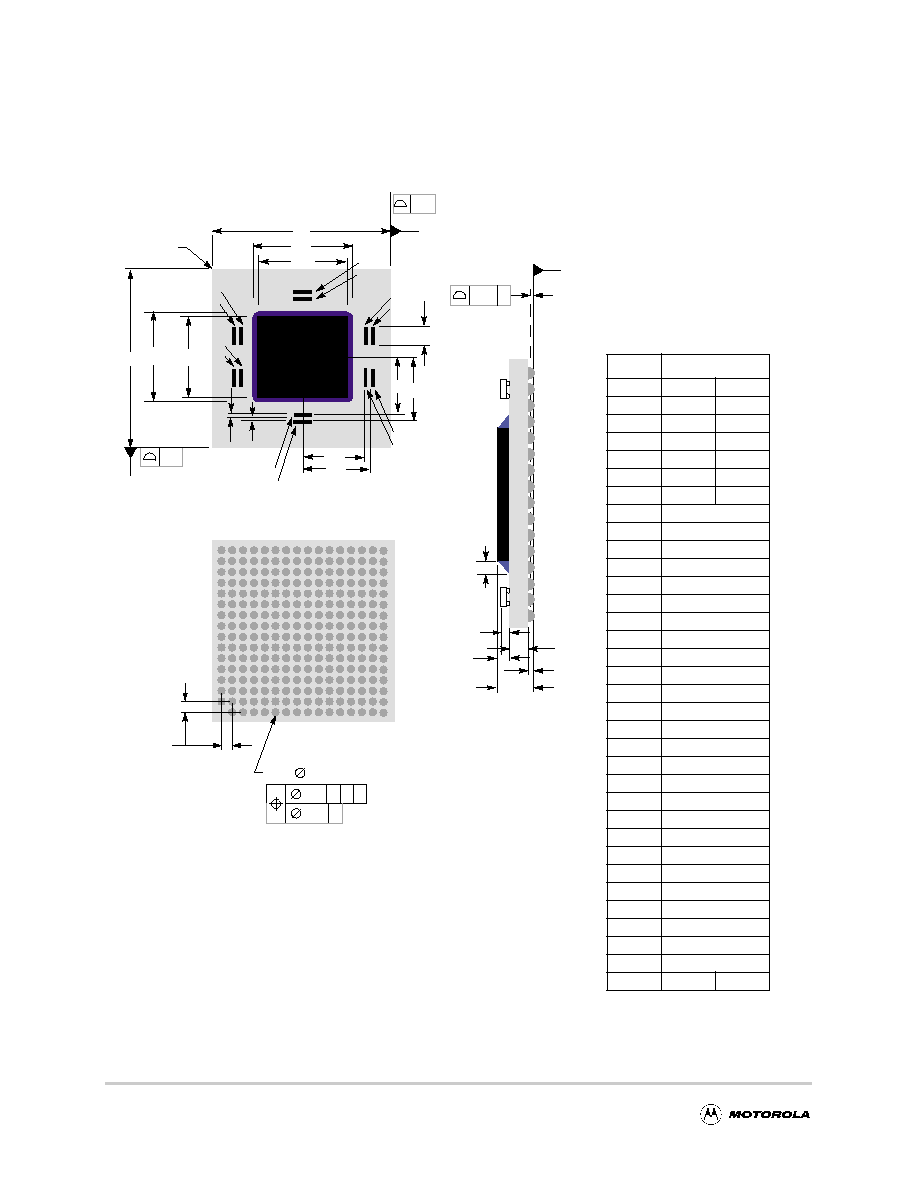

Figure 17 provides the mechanical dimensions and

bottom surface nomenclature of the MPC7400, 360

CBGA package.

Figure 17. Mechanical Dimensions and Bottom Surface Nomenclature of the MPC7400

NOTES:
1. DIMENSIONING AND TOLERANCING

PER ASME Y14.5M, 1994.

2. DIMENSIONS IN MILLIMETERS.
3. TOP SIDE A1 CORNER INDEX IS A

METALIZED FEATURE WITH
VARIOUS SHAPES. BOTTOM SIDE A1
CORNER IS DESIGNATED WITH A
BALL MISSING FROM THE ARRAY.

0.2

A1 CORNER

E E2

0.2

Millimeters

DIM

MIN

MAX

2.65

3.20

0.79

0.99

1.10

1.30

0.6

0.82

0.9

0.82

0.93

C1-1

L2OVDD

C1-2

GND

C2-1

L2OVDD

C2-2

GND

C3-1

VDD

C3-2

GND

C4-1

OVDD

C4-2

GND

C5-1

OVDD

C5-2

GND

C6-1

VDD

C6-2

GND

25.00 BSC

9.6 typ.

7.85

1.27 BSC

25.00 BSC

12.3 typ.

10.58

0.89 BSC

3.2 BSC

0.68 BSC

6.56

8.13

9.04

7.47

2.00

0.2 C

255X

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

0.3

0.15

12X

C1-1
C1-2

C2-2
C2-1

C3-1

C3-2

C4-1
C4-2

C5-2

C5-1

C6-2
C6-1

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

1.8 System Design Information

This section provides electrical and thermal design recommendations for successful application of the

MPC7400.

1.8.1 PLL Configuration

The MPC7400's PLL is configured by the PLL_CFG[03] signals. For a given SYSCLK (bus) frequency,

the PLL configuration signals set the internal CPU and VCO frequency of operation. The PLL configuration

for the MPC7400 is shown in Table 14 for example frequencies.

Table 14. MPC7400 Microprocessor PLL Configuration

PLL_CFG

[03]

Example Bus-to-Core Frequency in MHz (VCO Frequency in MHz)

Bus-to-

Core

Multiplier

Core-to

VCO

Multiplier

Bus

25 MHz

Bus

33.3

MHz

Bus

50 MHz

Bus

66.6

MHz

Bus

75 MHz

Bus

100 MHz

0100

0110

2.5x

1000

300 (600)

1110

3.5x

350 (700)

1010

300 (600) 400

(800)

0111

4.5x

300
(600)

337 (675) 450 (900)

1011

333
(666)

375 (750)

1001

5.5x

366
(733)

412
(825)

1101

300 (600) 400

(800)

450 (900)

0101

6.5x

325
(630)

433
(866)

0010

350 (700)

0001

7.5x

375
(750)

1100

400
(800)

0000

300
(600)

450
(900)

0011

PLL off/bypass

PLL off, SYSCLK clocks core circuitry directly, 1x bus-to-core

implied

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

The MPC7400 generates the clock for the external L2 synchronous data SRAMs by dividing the core clock

frequency of the MPC7400. The divided-down clock is then phase-adjusted by an on-chip delay-lock-loop

(DLL) circuit and should be routed from the MPC7400 to the external RAMs. A separate clock output,

L2SYNC_OUT is sent out half the distance to the SRAMs and then returned as an input to the DLL on pin

L2SYNC_IN so that the rising-edge of the clock as seen at the external RAMs can be aligned to the clocking

of the internal latches in the L2 bus interface.

The core-to-L2 frequency divisor for the L2 PLL is selected through the L2CLK bits of the L2CR register.

Generally, the divisor must be chosen according to the frequency supported by the external RAMs, the

frequency of the MPC7400 core, and the phase adjustment range that the L2 DLL supports. Table 15 shows

various example L2 clock frequencies that can be obtained for a given set of core frequencies. The minimum

L2 frequency target is 100MHz.

1.8.2 PLL Power Supply Filtering

The AVdd and L2AVdd power signals are provided on the MPC7400 to provide power to the clock

generation phase-locked loop and L2 cache delay-locked loop respectively. To ensure stability of the

internal clock, the power supplied to the AVdd input signal should be filtered of any noise in the 500kHz to

10MHz resonant frequency range of the PLL. A circuit similar to the one shown in Figure 18 using surface

mount capacitors with minimum Effective Series Inductance (ESL) is recommended.

1111

PLL off

PLL off, no core clocking occurs

Notes:

1. PLL_CFG[03] settings not listed are reserved.
2. The sample bus-to-core frequencies shown are for reference only. Some PLL configurations may select

bus, core, or VCO frequencies which are not useful, not supported, or not tested for by the MPC7400;
see Section 1.4.2.1, "Clock AC Specifications," for valid SYSCLK, core, and VCO frequencies.

3. In PLL-bypass mode, the SYSCLK input signal clocks the internal processor directly, the PLL is

disabled, and the bus mode is set for 1:1 mode operation. This mode is intended for factory use only.
Note: The AC timing specifications given in this document do not apply in PLL-bypass mode.

4. In PLL-off mode, no clocking occurs inside the MPC7400 regardless of the SYSCLK input.

Table 15. Sample Core-to-L2 Frequencies

Core Frequency in MHz

÷1

÷1.5

÷2

÷2.5

÷3

÷3.5

÷4

300

200

150

120

100

333

222

166

133

111

350

175

140

117

100

366

183

147

122

105

400

200

160

133

114

100

Note:

1. The core and L2 frequencies are for reference only. Some examples may represent core or L2

frequencies which are not useful, not supported, or not tested for by the MPC7400; see
Section 1.4.2.3, "L2 Clock AC Specifications," for valid L2CLK frequencies. The
L2CR[L2SL] bit should be set for L2CLK frequencies less than 110 MHz.

Table 14. MPC7400 Microprocessor PLL Configuration (Continued)

PLL_CFG

[03]

Example Bus-to-Core Frequency in MHz (VCO Frequency in MHz)

Bus-to-

Core

Multiplier

Core-to

VCO

Multiplier

Bus

25 MHz

Bus

33.3

MHz

Bus

50 MHz

Bus

66.6

MHz

Bus

75 MHz

Bus

100 MHz

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

The circuit should be placed as close as possible to the AVdd pin to minimize noise coupled from nearby

circuits. An identical but separate circuit should be placed as close as possible to the L2AVdd pin. It is often

possible to route directly from the capacitors to the AVdd pin, which is on the periphery of the 360 CBGA

footprint, without the inductance of vias. The L2AVdd pin may be more difficult to route but is

proportionately less critical.

Figure 18. PLL Power Supply Filter Circuit

1.8.3 Power Supply Voltage Sequencing

The notes in Table 1 contain cautions about the sequencing of the external bus voltages and core voltage of

the MPC7400 (when they are different). These cautions are necessary for the long term reliability of the part.

If they are violated, the ESD (Electrostatic Discharge) protection diodes will be forward biased and

excessive current can flow through these diodes. If the system power supply design does not control the

voltage sequencing, one or both of the circuits of Figure 19 can be added to meet these requirements. The

MUR420 Schottky diodes of Figure 19 control the maximum potential difference between the external bus

and core power supplies on power-up and the 1N5820 diodes regulate the maximum potential difference on

power-down.

Figure 19. Example Voltage Sequencing Circuits

1.8.4 Decoupling Recommendations

Due to the MPC7400's dynamic power management feature, large address and data buses, and high

operating frequencies, the MPC7400 can generate transient power surges and high frequency noise in its

power supply, especially while driving large capacitive loads. This noise must be prevented from reaching

other components in the MPC7400 system, and the MPC7400 itself requires a clean, tightly regulated source

of power. Therefore, it is recommended that the system designer place at least one decoupling capacitor at

each Vdd, OVdd, and L2OVdd pin of the MPC7400. It is also recommended that these decoupling

capacitors receive their power from separate Vdd, (L2)OVdd, and GND power planes in the PCB, utilizing

short traces to minimize inductance.

These capacitors should have a value of 0.01 µF or 0.1 µF. Only ceramic SMT (surface mount technology)

capacitors should be used to minimize lead inductance, preferably 0508 or 0603 orientations where

connections are made along the length of the part. Consistent with the recommendations of Dr. Howard

Vdd

AVdd (or L2AVdd)

2.2 µF

GND

Low ESL surface mount capacitors

3.3V

1.8V

MUR420

1N5820

MUR420

1N5820

2.5V

1.8V

MUR420

1N5820

MUR420

1N5820

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

Johnson in High Speed Digital Design: A Handbook of Black Magic (Prentice Hall, 1993) and contrary to

previous recommendations for decoupling PowerPC microprocessors, multiple small capacitors of equal

value are recommended over using multiple values of capacitance.

In addition, it is recommended that there be several bulk storage capacitors distributed around the PCB,

feeding the Vdd, L2OVdd, and OVdd planes, to enable quick recharging of the smaller chip capacitors.

These bulk capacitors should have a low ESR (equivalent series resistance) rating to ensure the quick

response time necessary. They should also be connected to the power and ground planes through two vias

to minimize inductance. Suggested bulk capacitors--100-330 µF (AVX TPS tantalum or Sanyo OSCON).

1.8.5 Connection Recommendations

To ensure reliable operation, it is highly recommended to connect unused inputs to an appropriate signal

level. Unused active low inputs should be tied to OVdd. Unused active high inputs should be connected to

GND. All NC (no-connect) signals must remain unconnected.

Power and ground connections must be made to all external Vdd, OVdd, L2OVdd, and GND pins of the

MPC7400.

See Section 1.4.2.3, "L2 Clock AC Specifications" for a discussion of the L2SYNC_OUT and L2SYNC_IN

signals.

1.8.6 Output Buffer DC Impedance

The MPC7400 60x and L2 I/O drivers are characterized over process, voltage, and temperature. To measure

, an external resistor is connected from the chip pad to OVdd or GND. Then, the value of each resistor is

varied until the pad voltage is OVdd/2 (see Figure 20).

The output impedance is the average of two components, the resistances of the pull-up and pull-down

devices. When Data is held low, SW2 is closed (SW1 is open), and R

is trimmed until the voltage at the

pad equals OVdd/2. R

then becomes the resistance of the pull-down devices. When Data is held high,

SW1 is closed (SW2 is open), and R

is trimmed until the voltage at the pad equals OVdd/2. R

then

becomes the resistance of the pull-up devices. R

and R

are designed to be close to each other in value.

Then Z

= (R

+ R

)/2.

Figure 20. Driver Impedance Measurement

OVdd

OGND

Pad

Data

SW1

SW2

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

Table 16 summarizes the signal impedance results. The driver impedance values were characterized at 0°C,

65 °C, and 105 °C. The impedance increases with junction temperature and is relatively unaffected by bus

voltage.

1.8.7 Pull-up Resistor Requirements

The MPC7400 requires high-resistive (weak: 10 K) pull-up resistors on several control pins of the bus

interface to maintain the control signals in the negated state after they have been actively negated and

released by the MPC7400 or other bus masters. These pins are TS, ARTRY, SHDO, and SHD1.

In addition, the MPC7400 has one open-drain style output that requires a pull-up resistor (weak or stronger:

4.7 K10 K) if it is used by the system. This pin is CKSTP_OUT.

During inactive periods on the bus, the address and transfer attributes may not be driven by any master and

may therefore float in the high-impedance state for relatively long periods of time. Since the MPC7400 must

continually monitor these signals for snooping, this float condition may cause excessive power draw by the

input receivers on the MPC7400 or by other receivers in the system. It is recommended that these signals

be pulled up through weak (10 K) pull-up resistors by the system, or that they may be otherwise driven by

the system during inactive periods of the bus. The snooped address and transfer attribute inputs are:

A[0:31], AP[0:3], TT[0:4], and GBL.

The data bus input receivers are normally turned off when no read operation is in progress and therefore do

not require pull-up resistors on the bus. Other data bus receivers in the system, however, may require

pullups, or that those signals be otherwise driven by the system during inactive periods by the system. The

data bus signals are: D[0:63], DP[0:7]

If address or data parity is not used by the system, and the respective parity checking is disabled through

HID0, the input receivers for those pins are disabled, and those pins do not require pull-up resistors and

should be left unconnected by the system. If all parity generation is disabled through HID0, then all parity

checking should also be disabled through HID0, and all parity pins may be left unconnected by the system.

The L2 interface does not normally require pull-up resistors.

1.8.8 JTAG Configuration Signals

Boundary scan testing is enabled through the JTAG interface signals. (BSDL descriptions of the MPC7400

are available on the internet at www.mot.com/PowerPC/teksupport.) The TRST signal is optional in the

IEEE 1149.1 specification but is provided on all PowerPC implementations. While it is possible to force the

TAP controller to the reset state using only the TCK and TMS signals, more reliable power-on reset

performance will be obtained if the TRST signal is asserted during power-on reset. Since the JTAG interface

is also used for accessing the common on-chip processor (COP) function of PowerPC processors, simply

tying TRST to HRESET isn't practical.

The common on-chip processor (COP) function of PowerPC processors allows a remote computer system

(typically a PC with dedicated hardware and debugging software) to access and control the internal

operations of the processor. The COP interface connects primarily through the JTAG port of the processor,

with some additional status monitoring signals. The COP port requires the ability to independently assert

Table 16. Impedance Characteristics

Vdd = 1.8V, OVdd = 3.3V, Tj = 0 - 105 °C

Impedance

Processor bus

L2 bus

Symbol

Unit

32-43

39-48

Ohms

36-48

41-50

Ohms

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

HRESET or TRST in order to fully control the processor. If the target system has independent reset sources,

such as voltage monitors, watchdog timers, power supply failures, or push-button switches, then the COP

reset signals must be merged into these signals with logic.

The arrangement shown in Figure 21 allows the COP to independently assert HRESET or TRST, while

insuring that the target can drive HRESET as well. The pull-down resistor on TRST ensures that the JTAG

scan chain is initialized during power-on if a JTAG interface cable is not attached; if it is, it is responsible

for driving TRST when needed.

Figure 21. Suggested TRST connection

The COP header shown in Figure 21 adds many benefits--breakpoints, watchpoints, register and memory

examination/modification and other standard debugger features are possible through this interface and can

be as inexpensive as an unpopulated footprint for a header to be added when needed.

The COP interface has a standard header for connection to the target system, based on the 0.025" square-

post 0.100" centered header assembly (often called a "Berg" header). The connector typically has pin 14

removed as a connector key, as shown in Figure 22.

Figure 22. COP Connector Diagram

MPC7400

HRESET

TRST

From Target

Board

Sources

COP Header

QACK

CKSTP_OUT

TOP VIEW

KEY

No pin

HRESET

SRESET

TMS

RUN/ST

TCK

TDI

TDO

Ground

TRST

VDD_SENSE

Pins 10, 12 and 14 are no-connects.

Pin 14 is not physically present

QACK

CHKSTP_IN

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

There is no standardized way to number the COP header shown in Figure 22; consequently, many different

pin numbers have been observed from emulator vendors. Some are numbered top-to-bottom then left-to-

right, while others use left-to-right then top-to-bottom, while still others number the pins counter clockwise

from pin one (as with an IC). Regardless of the numbering, the signal placement recommended in Figure

22 is common to all known emulators.

The QACK signal shown in Table 17 is usually hooked up to the PCI bridge chip in a system and is an input

to the MPC7400 informing it that it can go into the quiescent state. Under normal operation this occurs

during a low power mode selection. In order for COP to work the MPC7400 must see this signal asserted

(pulled down). While shown on the COP header, not all emulator products drive this signal. To preserve

correct power down operation, QACK should be merged so that it also can be driven by the PCI bridge.

Table 17 shows the pin definitions.

1.8.9 Thermal Management Information

This section provides thermal management information for the ceramic ball grid array (CBGA) package for
air-cooled applications. Proper thermal control design is primarily dependent upon the system-level
design--the heat sink, airflow and thermal interface material. To reduce the die-junction temperature, heat
sinks may be attached to the package by several methods--adhesive, spring clip to holes in the printed-
circuit board or package, and mounting clip and screw assembly; see Figure 23. This spring force should
not exceed 5.5 pounds of force.

Table 17. COP Pin Definitions

Pins

Signal

Connection

Special Notes

TDO

QACK

Add 2K pulldown to ground. Must be merged with on-board QACK,
if any.

TDI

TRST

Add 2K pulldown to ground. Must be merged with on-board TRST, if
any. See Figure 21

RUN/STOP

No Connect

Used on 604e; leave no-connect for all other processors.

VDD_SENSE

VDD

Add 2K pullup to OVDD (for short circuit limiting protection only).

TCK

CKSTP_IN

Optional. Add 10K pullup to OVDD. Used on several emulator
products. Useful for checkstopping the processor from a logic
analyzer of other external trigger.

TMS

N/A

SRESET

Merge with on-board SRESET, if any.

N/A

HRESET

Merge with on-board HRESET.

N/A

Key location; pin should be removed.

CKSTP_OUT

Add 10K pullup to OVDD.

Ground

Digital Ground

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

Figure 23. Package Exploded Cross-Sectional View with Several Heat Sink Options

The board designer can choose between several types of heat sinks to place on the MPC7400. There are

several commercially-available heat sinks for the MPC7400 provided by the following vendors:

Chip Coolers Inc.

800-227-0254 (USA/Canada)

333 Strawberry Field Rd.

401-739-7600

Warwick, RI 02887-6979

International Electronic Research Corporation (IERC)818-842-7277
135 W. Magnolia Blvd.
Burbank, CA 91502

Thermalloy

214-243-4321

2021 W. Valley View Lane
P.O. Box 810839
Dallas, TX 75731

Wakefield Engineering

617-245-5900

60 Audubon Rd.
Wakefield, MA 01880

Aavid Engineering

603-528-3400

One Kool Path
Laconia, NH 03247-0440

Ultimately, the final selection of an appropriate heat sink depends on many factors, such as thermal

performance at a given air velocity, spatial volume, mass, attachment method, assembly, and cost.

1.8.9.1 Internal Package Conduction Resistance

For the exposed-die packaging technology, shown in Table 3, the intrinsic conduction thermal resistance
paths are as follows:

The die junction-to-case (or top-of-die for exposed silicon) thermal resistance

The die junction-to-ball thermal resistance

Adhesive

Thermal Interface Material

Heat Sink

CBGA Package

Heat Sink

Clip

Printed-Circuit Board

Option

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

Figure 24 depicts the primary heat transfer path for a package with an attached heat sink mounted to a

printed-circuit board.

Figure 24. C4 Package with Heat Sink Mounted to a Printed-Circuit Board

Heat generated on the active side of the chip is conducted through the silicon, then through the heat sink

attach material (or thermal interface material), and finally to the heat sink where it is removed by forced-air

convection.

Since the silicon thermal resistance is quite small, for a first-order analysis, the temperature drop in the

silicon may be neglected. Thus, the heat sink attach material and the heat sink conduction/convective

thermal resistances are the dominant terms.

1.8.9.2 Adhesives and Thermal Interface Materials

A thermal interface material is recommended at the package lid-to-heat sink interface to minimize the

thermal contact resistance. For those applications where the heat sink is attached by spring clip mechanism,

Figure 25 shows the thermal performance of three thin-sheet thermal-interface materials (silicone, graphite/

oil, floroether oil), a bare joint, and a joint with thermal grease as a function of contact pressure. As shown,

the performance of these thermal interface materials improves with increasing contact pressure. The use of

thermal grease significantly reduces the interface thermal resistance. That is, the bare joint results in a

thermal resistance approximately 7 times greater than the thermal grease joint.

Heat sinks are attached to the package by means of a spring clip to holes in the printed-circuit board (see

Figure 24). This spring force should not exceed 10 pounds of force. Therefore, the synthetic grease offers

the best thermal performance, considering the low interface pressure. Of course, the selection of any thermal

interface material depends on many factors--thermal performance requirements, manufacturability, service

temperature, dielectric properties, cost, etc.

External Resistance

Internal Resistance

(Note the internal versus external package resistance)

Radiation

Convection

Radiation

Convection

Heat Sink

Printed-Circuit Board

Thermal Interface Material

Package/Leads

Die Junction

Die/Package

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

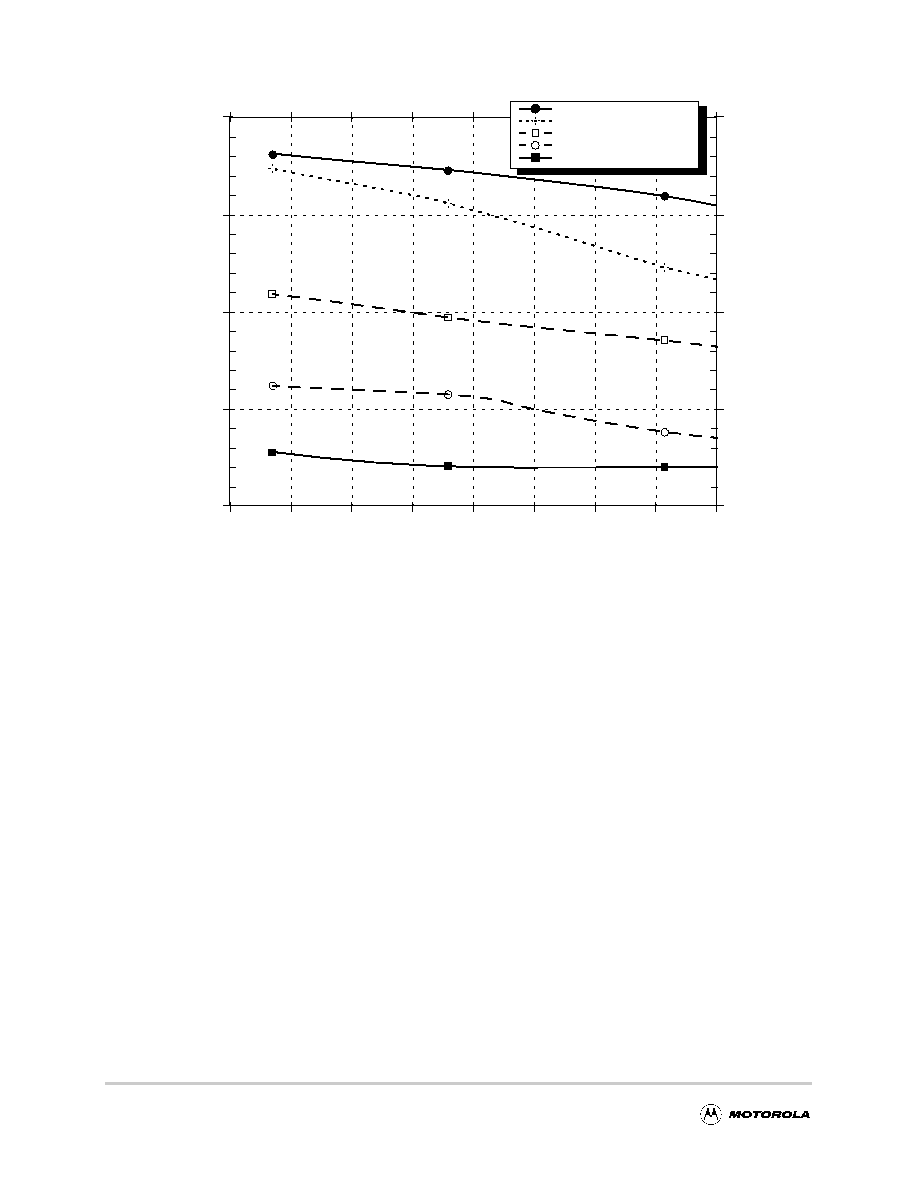

Figure 25. Thermal Performance of Select Thermal Interface Material

The board designer can choose between several types of thermal interface. Heat sink adhesive materials
should be selected based upon high conductivity, yet adequate mechanical strength to meet equipment
shock/vibration requirements. There are several commercially-available thermal interfaces and adhesive
materials provided by the following vendors:

Dow-Corning Corporation

517-496-4000

Dow-Corning Electronic Materials
PO Box 0997
Midland, MI 48686-0997

Chomerics, Inc.

617-935-4850

77 Dragon Court
Woburn, MA 01888-4850

Thermagon Inc.

216-741-7659

3256 West 25th Street
Cleveland, OH 44109-1668

Loctite Corporation

860-571-5100

1001 Trout Brook Crossing
Rocky Hill, CT 06067

AI Technology (e.g. EG7655)

609-882-2332

1425 Lower Ferry Rd.
Trent, NJ 08618

0.5

1.5

Silicone Sheet (0.006 inch)

Bare Joint

Floroether Oil Sheet (0.007 inch)

Graphite/Oil Sheet (0.005 inch)

Synthetic Grease

Contact Pressure (psi)

Specif

ic Thermal

Resistance

(Kin

/W)

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

1.8.9.3 Heat Sink Selection Example

The following section provides a heat sink selection example using one of the commercially available heat

sinks.

For preliminary heat sink sizing, the die-junction temperature can be expressed as follows:

= T

+ T

+ (

int

) * P

Where:

is the die-junction temperature

is the inlet cabinet ambient temperature

is the air temperature rise within the computer cabinet

is the junction-to-case thermal resistance

int

is the adhesive or interface material thermal resistance

is the heat sink base-to-ambient thermal resistance

is the power dissipated by the device

During operation the die-junction temperatures (T

) should be maintained less than the value specified in

Table 3. The temperature of the air cooling the component greatly depends upon the ambient inlet air

temperature and the air temperature rise within the electronic cabinet. An electronic cabinet inlet-air

temperature (T

) may range from 30 to 40 °C. The air temperature rise within a cabinet (T

) may be in the

range of 5 to 10 °C. The thermal resistance of the thermal interface material (

int

) is typically about 1 °C/

W. Assuming a T

of 30 °C, a T

of 5 °C, a CBGA package

= 0.03, and a power consumption (P

) of 5.0

watts, the following expression for T

is obtained:

Die-junction temperature: T

= 30 °C + 5 °C + (0.03 °C/W + 1.0 °C/W +

) * 5.0 W

For a Thermalloy heat sink #2328B, the heat sink-to-ambient thermal resistance (

) versus airflow

velocity is shown in Figure 26.

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

System Design Information

Figure 26. Thermalloy #2328B Heat Sink-to-Ambient Thermal Resistance Versus Airflow Velocity

Assuming an air velocity of 0.5 m/s, we have an effective R

of 7 °C/W, thus

= 30 °C + 5 °C + (0.03 °C/W +1.0 °C/W + 7 °C/W) * 5.0 W,

resulting in a die-junction temperature of approximately 75 °C which is well within the maximum operating

temperature of the component.

Other heat sinks offered by Chip Coolers, IERC, Thermalloy, Wakefield Engineering, and Aavid

Engineering offer different heat sink-to-ambient thermal resistances, and may or may not need air flow.

Though the die junction-to-ambient and the heat sink-to-ambient thermal resistances are a common figure-

of-merit used for comparing the thermal performance of various microelectronic packaging technologies,

one should exercise caution when only using this metric in determining thermal management because no

single parameter can adequately describe three-dimensional heat flow. The final die-junction operating

temperature, is not only a function of the component-level thermal resistance, but the system-level design

and its operating conditions. In addition to the component's power consumption, a number of factors affect

the final operating die-junction temperature--airflow, board population (local heat flux of adjacent

components), heat sink efficiency, heat sink attach, heat sink placement, next-level interconnect technology,

system air temperature rise, altitude, etc.

Due to the complexity and the many variations of system-level boundary conditions for today's

microelectronic equipment, the combined effects of the heat transfer mechanisms (radiation, convection and

conduction) may vary widely. For these reasons, we recommend using conjugate heat transfer models for

the board, as well as, system-level designs.

0.5

1.5

2.5

3.5

Thermalloy #2328B Pin-fin Heat Sink

Approach Air Velocity (m/s)

Heat Sink

Thermal Resistance (ºC/W)

(25 x28 x 15 mm)

MPC7400 RISC Microprocessor Hardware Specifications

PRELIMINARY--SUBJECT TO CHANGE WITHOUT NOTICE

Document Revision History

1.9 Document Revision History

Table 18 provides a revision history for this hardware specification.

1.10 Ordering Information

Figure 27 provides the Motorola part numbering nomenclature for the MPC7400. Note that the individual

part numbers correspond to a maximum processor core frequency. For available frequencies, contact your

local Motorola sales office. In addition to the processor frequency, the part numbering scheme also consists

of a part modifier and application modifier. The part modifier indicates any enhancement(s) in the part from

the original production design. The bus divider may specify special bus frequencies or application

conditions. Each part number also contains a revision code. This refers to the die mask revision number and

is specified in the part numbering scheme for identification purposes only.

Figure 27. Motorola Part Number Key

Table 18. Document Revision History

Document Revision

Substantive Change(s)

Rev 0

Initial release

Rev 1

Added 2.5 V support for Processor Bus
Raised Min Core Frequency and lowered Max Sysclk Frequency in Table 8.
Reduced L2 Output Hold Time for L2CR[14-15] = 00 from 0.6ns to 0.4ns in
Table 11.
Reduced 400 MHz SYSCLK from 133 MHz to 100MHz in Table 8.

Rev 1.1

Table 3 adds notes on extended temperature parts.
Figure 27 adds Application Modifier for extended temperature.
Figure 17 adds capacitor pad dimensions.
Fixed Table 13 to reflect 2.5 V Processor Bus support added in previous rev of
document.

MPC 7400 RX XXX X X

Product Code

Part Identifier

Package

(RX = BGA)

Processor Frequency

(Contact Local Motorola Sales Office)

Revision Level

Application Modifier

(L = Full Spec, 1.8V±100mV, 0-105°C T

)

(T = Ext. Temp Spec, 1.8V±100mV, -40-105°C T

)

Information in this document is provided solely to enable system and software implementers to use PowerPC microprocessors. There are no express or implied

copyright licenses granted hereunder to design or fabricate PowerPC integrated circuits or integrated circuits based on the information in this document.
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the

suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and

specifically disclaims any and all liability, including without limitation consequential or incidental damages. "Typical" parameters can and do vary in different

applications. All operating parameters, including "Typicals" must be validated for each customer application by customer's technical experts. Motorola does not

convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in systems

intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Motorola

product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such unintended or unauthorized

application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages,

and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized

use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.
Motorola and

are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.

Motorola Literature Distribution Centers:
USA/EUROPE: Motorola Literature Distribution; P.O. Box 5405; Denver, Colorado 80217; Tel.: 1-800-441-2447 or 1-303-675-2140;

World Wide Web Address: http://ldc.nmd.com/
JAPAN: Nippon Motorola Ltd SPD, Strategic Planning Office 4-32-1, Nishi-Gotanda Shinagawa-ku, Tokyo 141, Japan Tel.: 81-3-5487-8488
ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd Silicon Harbour Centre 2, Dai King Street Tai Po Industrial Estate Tai Po, New Territories, Hong Kong

MfaxTM: RMFAX0@email.sps.mot.com; TOUCHTONE 1-602-244-6609; US & Canada ONLY (800) 774-1848;

World Wide Web Address: http://sps.motorola.com/mfax
INTERNET: http://motorola.com/sps

Technical Information: Motorola Inc. SPS Customer Support Center 1-800-521-6274; electronic mail address: crc@wmkmail.sps.mot.com.
Document Comments: FAX (512) 895-2638, Attn: RISC Applications Engineering.
World Wide Web Addresses: http://www.motorola.com/PowerPC

http://www.motorola.com/netcomm

http://www.motorola.com/Coldfire

MPC7400EC/D

Mfax is a trademark of Motorola, Inc.
The PowerPC name, the PowerPC logotype, and PowerPC 603e are trademarks of International Business Machines Corporation used by Motorola under license from

International Business Machines Corporation.

Document Outline

Ð­Ð»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: XPC7400RX466SK

Document Outline

ÐÐ»ÐµÐºÑ‚Ñ€Ð¾Ð½Ð½Ñ‹Ð¹ ÐºÐ¾Ð¼Ð¿Ð¾Ð½ÐµÐ½Ñ‚: XPC7400RX466SK
