TTL/CMOS Compatible
Tri-State Feature for Auto Test Systems
Tape & Reel Packaging
20ppm Available - Please Contact Factory
2553 N. Edgington Street, Franklin Park, IL 60131 Phone: 847.451.1000 Fax: 847.451.7585
800-888-1499 or www.champtech.com
1
MODEL
CMO5
Frequency Range (MHz)
1.5 to 156.250
Frequency Stability (ppm)
Overall (Typical)
Inclusive of calibration, temperature, voltage, load, shock,vibration, aging
0C to 70C
25
-40C to +85C
50
Temperature Range (C)
Operating
-40C to +85C
Storage
-40C to +125C
Supply Voltage (V)
+5.0 10%
Input Current (mA)
1.5MHz to 30MHz
Symmetry (%) TTL/CMOS
45/55
ELECTRICAL SPECIFICATIONS
Start up Time (ms)
<10
PART NUMBERING GUIDE
CMO5XXXX - Specify Frequency
"C" = CMOS
"T" = TTL
"Blank" = 0oC to 70oC Operating Temp.
"M" = -40oC to 85oC Operating Temp.
"A" = 25ppm (-40oC to 85oC Excluding Aging)
"B" = 50ppm
"C" = 100ppm
"D" = 20ppm Excluding Aging (Contact Factory)
"Blank" = Fixed Frequency
"E" = Tri-State
CMO5 Series
5V 5x7mm Surface Mount Crystal Clock Oscillators
<10
10TTL/15pF
Load
Transistion Times
Rise Time (ns)
Fall Time (ns)
<5
<5
"0" Level (VOL)
"1" Level (VOH)
0.5V
2.4V/4.5V
>30MHz to 50MHz
<30
>50MHz to 156.250MHz
<50
1.5MHz to 50MHz
>50MHz to 156.250MHz
<3
<3
2553 N. Edgington Street, Franklin Park, IL 60131 Phone: 847.451.1000 Fax: 847.451.7585
800-888-1499 or www.champtech.com
2

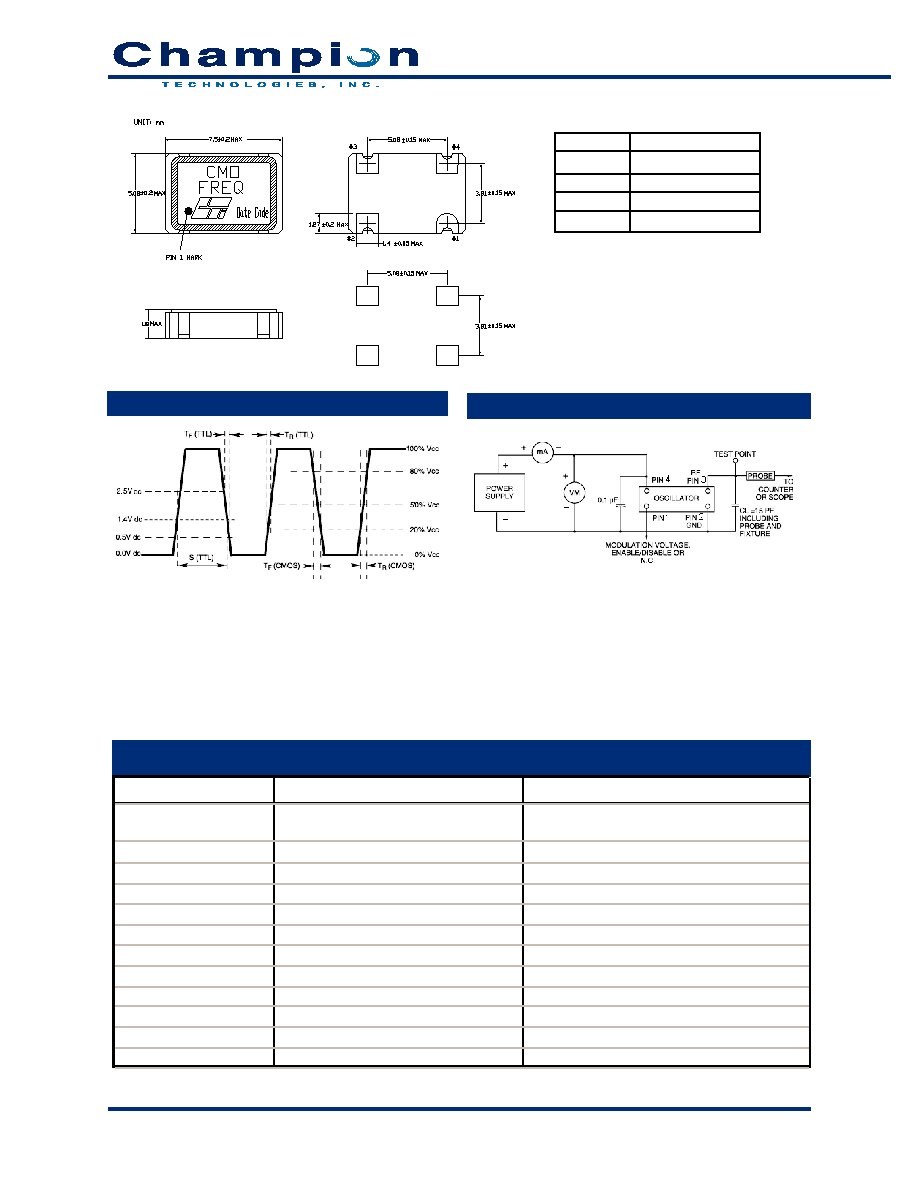

OUTPUT WAVEFORM
TEST CIRCUIT DIAGRAM
PIN
FUNCTION
N/C / Tri-State
1
2
3
Ground
Output
4
+ VCC
CMO5 Series
5V 5x7mm Surface Mount Crystal Clock Oscillators
TEST METHODS
REFERENCE PROCEDURES
DESCRIPTION
Temperature Cycle
MIL-STD-833, Mtd 1010, Cond. B
Mechanical Shock
MIL-STD-883, Mtd 2002, Cond. B
-55C to +125C; Air-to-Air; 100 cycles; 10
min. dwell
Vibration
MIL-STD 883, Mtd 2007, Cond. B
20-2000 Hz; 0.06 inch; 15g's; 3 planes
Humidity Steady State
MIL-STD-202, Mtd 103
40C; 90%-95% R.H.; 56 days
Thermal Shock
MIL-STD-883, Mtd 1011.7 Cond. B
Electrostatic Discharge
Solderability
Hermeticity
Resistance to Soldering
Lead Integrity
Marking Permanence
Life Test
100C to 0C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Mass spectro. 2 x 10-8 atmos. CC/sec He
235C; 30 seconds
Lead tension & bend stress
Resistance to solvents
1500 g's
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 1005.6
MIL-STD-883, Mtd 2022.2
MIL-STD-883, Mtd 1014.8, Cond. A1
MIL-STD-202, Mtd 210D, Cond. J
MIL-STD-883, Mtd 2004.5, Cond. A, B1
MIL-STD-883, Mtd 2015.8
125
C, powered, 1000 hours minimum
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
