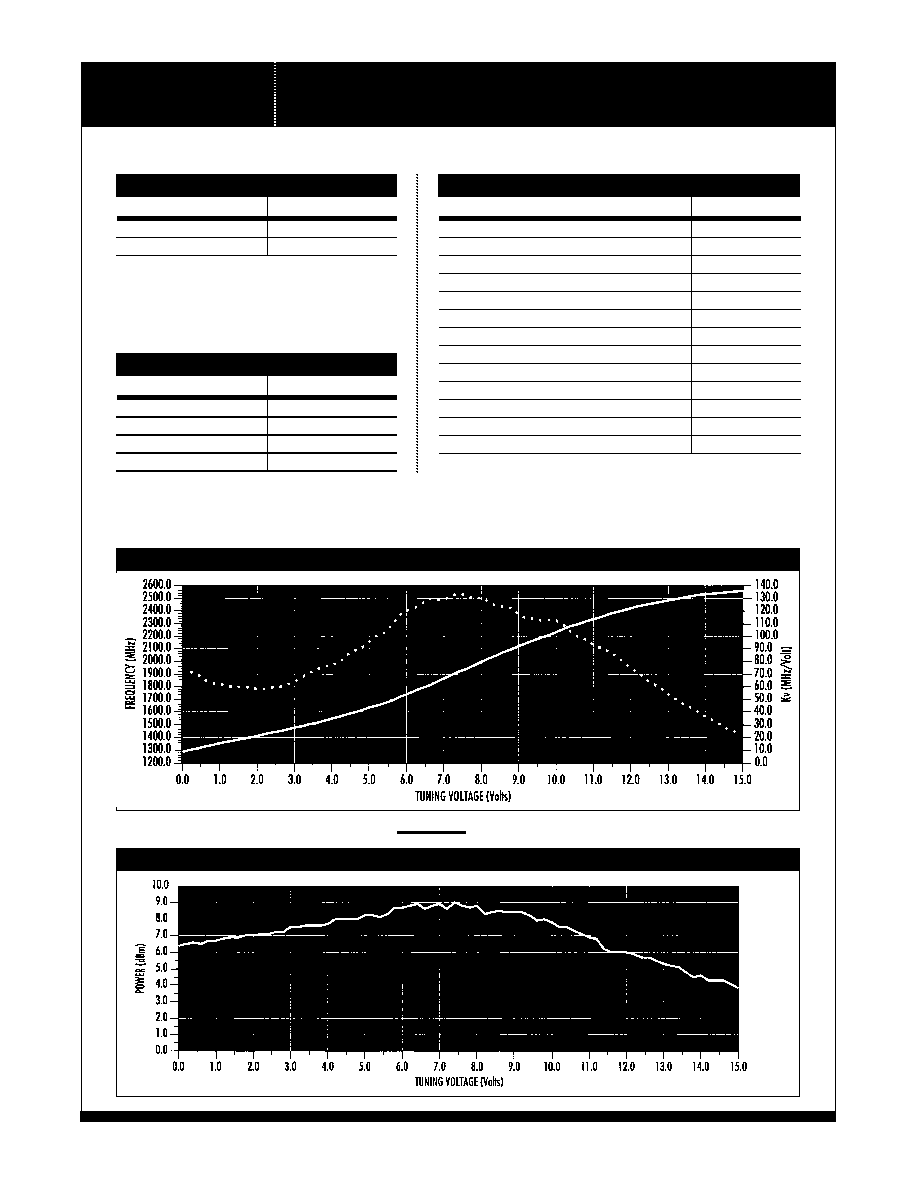

M3500-1324 (1350-2400 MH
Z
)
20
1K. M3500-1324 VCO T
ECHNICAL
S
PECIFICATIONS
2K. P
ERFORMANCE
C
URVES FOR
M3500-1324
A
BSOLUTE
M
AXIMUM
/ M
INIMUM
R
ATINGS
G
UARANTEED
P
ERFORMANCE
(0-70 C)
T
YPICAL
P
ERFORMANCE
(0-70 C)
PARAMETER
RATING
Maximum Supply Voltage
+15.0V
Tuning Voltage Min/Max
0/20V
PARAMETER
DATA
Nominal Supply Voltage
+12V
Power Output (50
)
+7 dBm
Typical Current
20mA
Tuning Voltage
1.0-12.0 V
FM(Phase)Noise:
10 kHz Offset
<- 85 dBc/Hz
100 kHz Offset
<-106 dBc/Hz
1 MHz Offset
<-124 dBc/Hz
Frequency Pushing
4.0 MHz/V for 12 1V
Frequency Pulling (12dB Return Loss)
34 MHz peak-peak
Harmonic Spurious (Average)
-12 dBc
Tuning Port Bandwidth:
@ Tuning Voltage = 2.0V
9.6 MHz
@ Tuning Voltage = 8.0V
34.7 MHz
@ Tuning Voltage = 12.0V
36.0 MHz
PARAMETER
DATA
Power Dissipation
300 mW max
(25 mA @ +12V)
Frequency Tuning Range
1350 to 2400 MHz min
Power Output (50
)
5 dBm min
1350-2400 MH
Z
T
YPICAL
O
UTPUT
F
REQUENCY
/ M
ODULATION
S
ENSITIVITY
V
ERSUS
T
UNING
V
OLTAGE
1350-2400 MH
Z
VCO T
YPICAL
O
UTPUT
P
OWER
V
ERSUS
T
UNING
V
OLTAGE
MICRONETICS / 26 HAMPSHIRE DRIVE / HUDSON, NH 03051 / TEL: 603-883-2900 / FAX: 603-882-8987 / CUSTOMER HOTLINE: 1-800-963-3382 / WEB: WWW.MWIRELESS.COM
