PRELIMINARY DATA SHEET
GaAs MES FET
15 W C-BAND POWER GaAs FET NEZ SERIES
15 W C-BAND POWER GaAs FET
N-CHANNEL GaAs MES FET
DESCRIPTION
The NEZ Series of microwave power GaAs FETs offer
high output power, high gain and high efficiency at C-band
for microwave and satellite communications.
Internal input and output circuits matched to 50
are
designed to provide good flatness of gain and output
power in allocated band.
To reduce the thermal resistance, the device has a
PHS (Plated Heat Sink) structure.
NEC's strigent quality assurance and test procedures
guarantee the highest reliability and performance.
SELECTION CHART
NEZ PART NUMBER
FREQUENCY BAND (GHz)
NEZ3642-15D, 15DD
3.6 to 4.2
NEZ4450-15D, 15DD
4.4 to 5.0
NEZ5964-15D, 15DD
5.9 to 6.45
NEZ6472-15D, 15DD
6.4 to 7.2
NEZ7785-15D
7.7 to 8.5
FEATURES
Internally matched to 50
High power output
High linear gain
High reliability
Low distortion
Document No. P10982EJ1V0DS00 (1st edition)
Date Published June 1996 P
Printed in Japan
PACKAGE DIMENSIONS (unit: mm)
C1.0 4PLACES
R1.2 4PLACES
SOURCE
0.5 0.1
2.5 MIN.
17.4 0.2
2.5 MIN.
2.4
5.6
20.4 0.2
20.4 0.3
DRAIN
GATE
8.0 0.1
16.0
16.0
5.0 MAX.
2.4 0.2
0.1
+0.1
0.05
0.2 MAX.
1.6
15 W C-BAND Po GaAs FET NEZ SERIES
2
NEZ-15D/15DD
ABSOLUTE MAXIMUM RATINGS (T
A
= 25 C)
CHARACTERISTIC
SYMBOL
RATINGS
UNIT
Drain to Source Voltage
V
DS
15
V
Gate to Source Voltage
V
GS
12
V
Gate to Drain Voltage
V
GD
18
V
Drain Current
I
D
18
A
Gate Current
I
G
100
mA
Total Power Dissipation
P
T
*
100
W
Channel Temperature
T
ch
175
C
Storage Temperature
T
stg
65 to +175
C
* T
C
= 25 C
ELECTRICAL CHARACTERISTICS (T
A
= 25 C)
CHARACTERISTIC
SYMBOL
Part No.
MIN.
TYP.
MAX.
UNIT
TEST CONDITIONS
Saturated Drain Current
I
DSS
NEZ-15D
4.0
9.2
14.0
A
V
DS
= 2.5 V, V
GS
= 0 V
NEZ-15DD
Pinch-off Voltage
V
P
NEZ-15D
3.5
2.2
0.5
V
V
DS
= 2.5 V, I
DS
= 60 mA
NEZ-15DD
Trans-Conductance
gm
NEZ-15D
5200
mS
V
DS
= 2.5 V, I
DS
= 4 A
NEZ-15DD
Gate to Drain Voltage
B
VGDO
NEZ-15D
20
22
V
I
GD
= 60 mA
NEZ-15DD
Thermal Resistance
R
th
NEZ-15D
1.3
1.5
C/W
Channel to Case
NEZ15DD
15 W C-BAND Po GaAs FET NEZ SERIES
3
15W PERFORMANCE SPECIFICATIONS (T
A
= 25 C, Zs = ZL = 50
)
p1dB
G
L
I
DS
G
L
IM
3
add
TEST CONDITIONS
PART NUMBER
(dBm)
(dB)
(A)
(dB)
(dBc)
(%)
V
DS
I
DS
FREQUENCY
IM
3
TEST
*1
*2
*3,4
*4
*5
BAND
FREQ.
MIN.
TYP.
MIN.
TYP.
TYP. MAX. MAX. TYP. MAX. TYP.
(V)
(A)
(GHz)
(GHz)*6
NEZ3642-15D
41.5
42.5
9.0
10.0
4.8
6.0
35
10
4.0
3.6 to 4.2
NEZ3642-15DD
41.5
42.5
9.0
10.0
4.8
6.0
1.0
42
35
10
4.0
3.6 to 4.2
4.2
NEZ4450-15D
41.5
42.5
9.0
10.0
4.8
6.0
35
10
4.0
4.4 to 5.0
NEZ4450-15DD
41.5
42.5
9.0
10.0
4.8
6.0
1.0
42
35
10
4.0
4.4 to 5.0
5.0
NEZ5964-15D
41.5
42.5
8.0
9.0
4.8
6.0
33
10
4.0
5.9 to 6.45
NEZ5964-15DD
41.5
42.5
8.0
9.0
4.8
6.0
1.0
42
33
10
4.0
5.9 to 6.45
6.45
NEZ6472-15D
41.5
42.5
6.5
7.5
4.8
6.0
31
10
4.0
6.4 to 7.2
NEZ6472-15DD
41.5
42.5
6.5
7.5
4.8
6.0
1.0
42
31
10
4.0
6.4 to 7.2
7.2
NEZ7785-15D
41.5
42.5
6.0
7.0
4.8
6.0
27
10
4.0
7.7 to 8.5
Notes *1
Output power at 1 dB gain compression point
*2
I
DS
values are specified at P1dB point.
*3
Gain flatness
*4
Applies to 15DD option only
*5
RF OFF
*6
IM
3
test conditions:
f = 10 MHz, 2 tones test, P
O
= 31.5 dBm (single carrier level)
MAXIMUM OPERATING LIMITS
Rg max. (
)
V
DS
max. (V)
50
10
Rg max is the maximum series resistance between the gate supply and the FET gate.
15 W C-BAND Po GaAs FET NEZ SERIES
4

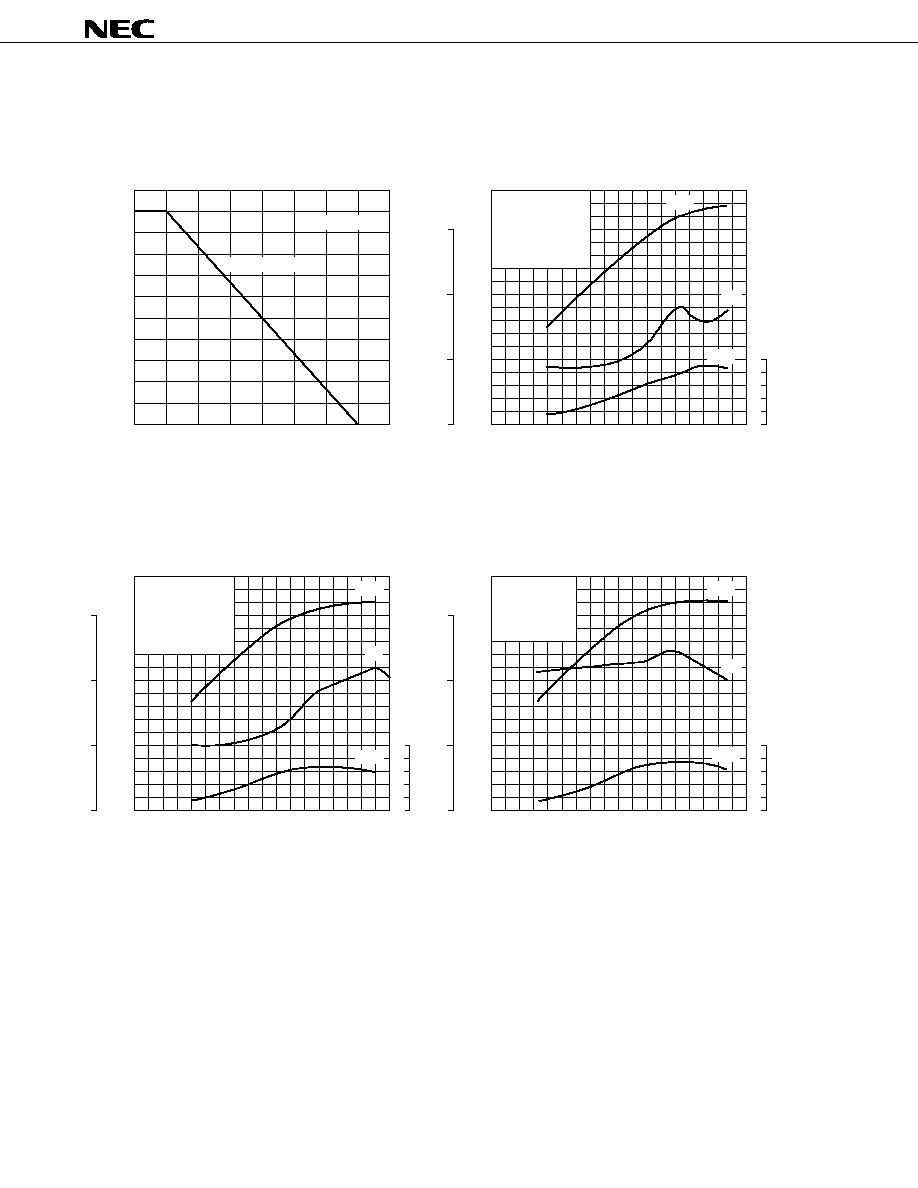

TYPICAL CHARACTERISTICS (T
A
= 25 C)
TOTAL POWER DISSIPATION vs.
CASE TEMPERATURE
P
T
- Power Dissipation - W
0
110
T
C
- Case Temperature - C
OUTPUT POWER vs. INPUT POWER
P
out
(dBm)
20
45
P
in
- Input Power - dBm

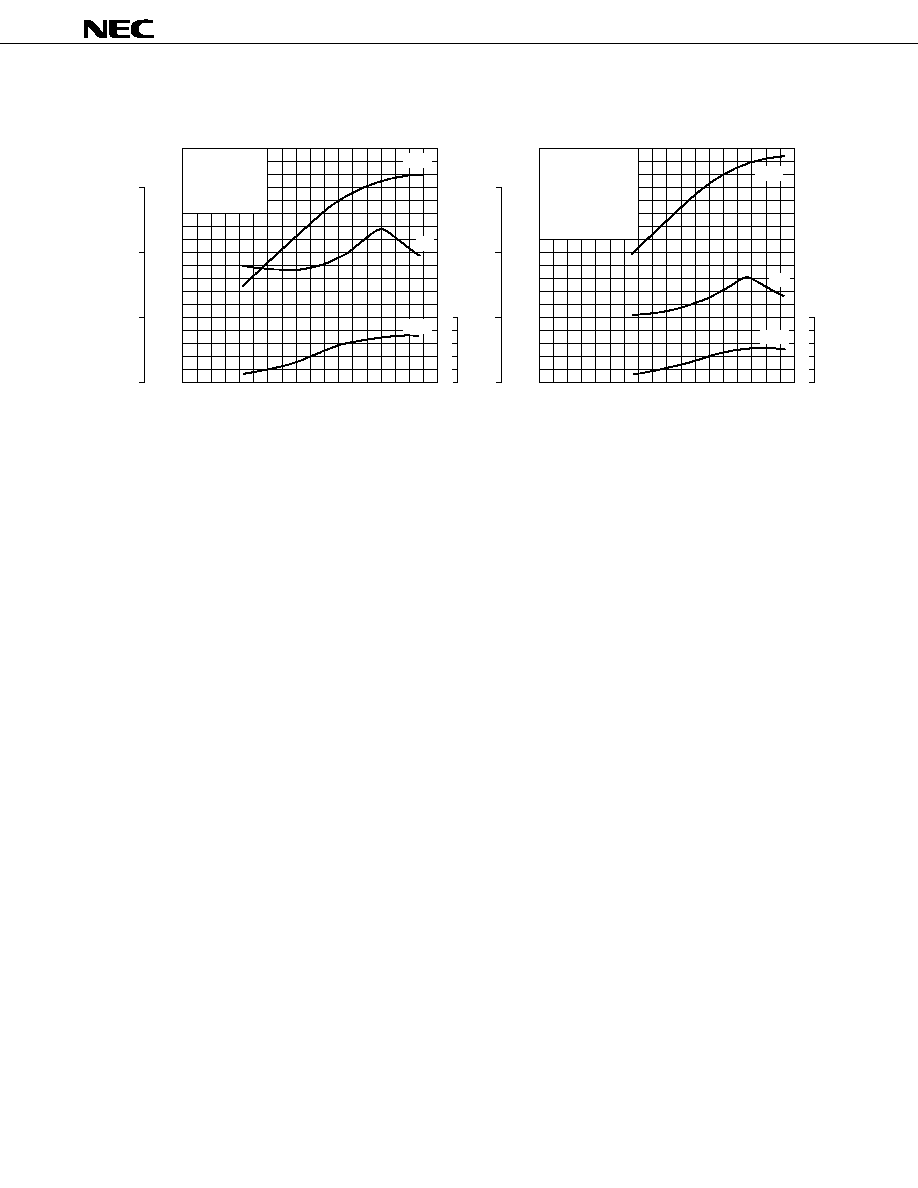

OUTPUT POWER vs. INPUT POWER
20
45
P
in
- Input Power - dBm
100
90
80
70
60
50
40
30
20
10
0
25
50
75
100 125 150 175 200
15D/15DD
Infinite Heat sink
P
out
I
D
40
35
30
I
D
(A)
6
5
4
3
EFF
(%)
25
30
35
50
40
30
20
10
0
40
35
30
P
out
(dBm)
I
D
(A)
6
5
4
3
EFF
(%)
50
40
30
20
10
0
P
out
I
D
EFF
EFF
25
30
35
OUTPUT POWER vs. INPUT POWER
P
out
(dBm)
25
45
P
in
- Input Power - dBm
P
out
I
D
40
35
30
I
D
(A)
5
4
3
2
EFF
(%)
30
35
40
50
40
30
20
10
0
EFF
NEZ3642-15D/15DD
Test Conditions:
Freq = 3.9 (GHz),
V
DS
= 10.0 (V),
I
DS
= 4.0 (A)
P
out
: P
in
= 35.0 (dBm),
G
L
: P
in
= 24.0 (dBm),
R
g
= 50 (
)
Test Conditions:
Freq = 4.7 (GHz),
V
DS
= 10.0 (V),
I
DS
= 4.0 (A)
P
out
: P
in
= 37.0 (dBm),
G
L
: P
in
= 26.0 (dBm),
R
g
= 50 (
)
NEZ4450-15D/15DD
NEZ5964-15D/15DD
Test Conditions:
Freq = 6.2 (GHz),
V
DS
= 10.0 (V),
I
D
= 4.0 (A)
R
g
= 50 (
)
15 W C-BAND Po GaAs FET NEZ SERIES
5
OUTPUT POWER vs. INPUT POWER
20
45
P
in
- Input Power - dBm
40
35
30
P
out
(dBm)
I
D
(A)
5
4
3
2
EFF
(%)
50
40
30
20
10
0
P
out
I
D
EFF
25
30
35
OUTPUT POWER vs. INPUT POWER
P
out
(dBm)
25
40
P
in
- Input Power - dBm
P
out
I
D
35
30
25
I
D
(A)
6
5
4
3
EFF
(%)
30
35
50
40
30
20
10
0
EFF
Test Conditions:
Freq = 6.8 (GHz),
V
DS
= 10.0 (V),
I
D
= 4.0 (A)
R
g
= 50 (
)
NEZ6472-15D/15DD
Test Conditions:
Freq = 8.1 (GHz),
V
DS
= 10.0 (V),
I
DS
= 4.0 (A)
P
out
: P
in
= 38.5 (dBm)
G
L
: P
in
= 26.0 (dBm)
R
g
= 50 (
)
NEZ7785-15D/15DD
15 W C-BAND Po GaAs FET NEZ SERIES
6
S-PARAMETER
NEZ3642-15D
V
DS
= 10 V, I
DS
= 4 000 mA, V
GS
= 1.472 V, I
G
= 0.0 mA, R
G
= 50
, I
DSS
= 10 900 mA
FREQUENCY
S
11
S
21
S
12
S
22
GHz
MAG
ANG
MAG
ANG
MAG
ANG
MAG
ANG
1.000
0.966
143.9
0.721
23.4
0.009
26.6
0.875
148.4
1.100
0.957
139.5
0.692
12.2
0.009
15.6
0.861
140.4
1.200
0.959
135.3
0.680
4.6
0.009
11.4
0.853
136.6
1.300
0.953
130.8
0.672
3.4
0.011
6.8
0.843
132.5
1.400
0.949
126.2
0.672
11.6
0.012
0.9
0.833
128.6
1.500
0.943
121.3
0.679
20.0
0.013
1.0
0.824
124.4
1.600
0.936
116.3
0.695
28.6
0.015
8.9
0.813
120.2
1.700
0.929
111.0
0.715
37.5
0.016
16.6
0.800
115.8
1.800
0.919
105.4
0.743
46.9
0.018
22.5
0.786
110.9
1.900
0.912
99.5
0.780
56.5
0.019
31.3
0.775
106.3
2.000
0.901
93.3
0.827
66.5
0.020
38.1
0.760
101.3
2.100
0.889
86.7
0.879
77.0
0.022
48.2
0.743
95.8
2.200
0.877
79.6
0.945
88.1
0.025
57.8
0.727
90.1
2.300
0.865
71.9
1.023
99.3
0.026
66.8
0.713
84.5
2.400
0.850
63.6
1.106
111.2
0.027
78.8
0.693
78.8
2.500
0.833
54.8
1.209
123.8
0.029
89.2
0.676
72.4
2.600
0.816
45.1
1.336
137.2
0.031
102.8
0.662
65.8
2.700
0.797
34.4
1.486
150.8
0.033
113.9
0.650
59.1
2.800
0.775
22.7
1.650
164.9
0.034
127.8
0.630
52.0
2.900
0.749
9.4
1.846
179.4
0.036
144.5
0.611
43.7
3.000
0.721
5.3
2.071
162.8
0.038
160.6
0.596
34.0
3.100
0.690
21.9
2.351
145.4
0.039
178.0
0.578
23.5
3.200
0.653
41.0
2.639
126.8
0.042
162.5
0.551
10.8
3.300
0.614
62.8
2.950
106.7
0.043
139.9
0.517
5.0
3.400
0.575
87.3
3.264
85.2
0.044
115.2
0.484
24.2
3.500
0.537
114.4
3.537
62.7
0.043
88.3
0.450
46.1
3.600
0.503
142.4
3.741
39.5
0.042
59.5
0.419
71.7
3.700
0.472
170.7
3.855
15.8
0.041
29.2
0.404
99.2
3.800
0.444
162.4
3.913
7.6
0.040
0.4
0.414
126.1
3.900
0.414
137.3
3.904
29.4
0.040
31.9
0.433
148.6
4.000
0.381
113.5
3.839
50.9
0.040
60.5
0.447
168.1
4.100
0.349
89.3
3.843
72.0
0.040
89.4
0.459
175.5
4.200
0.314
59.2
4.033
93.8
0.043
114.0
0.467
163.2
4.300
0.253
30.7
4.105
117.3
0.051
142.5
0.488
151.9
4.400
0.244
12.2
4.236
141.3
0.055
169.7
0.449
142.8
4.500
0.283
62.8
4.309
168.4
0.059
160.8
0.384
137.7
4.600
0.377
109.7
4.223
161.6
0.060
130.2
0.327
143.9
4.700
0.483
149.4
3.910
131.3
0.060
100.3
0.363
159.4
4.800
0.557
176.1
3.382
102.5
0.055
72.4
0.474
164.4
4.900
0.585
145.1
2.809
75.4
0.048
45.5
0.577
159.6
5.000
0.571
115.5
2.332
49.6
0.042
19.0
0.666
150.4
5.100
0.531
84.8
1.946
25.7
0.037
6.9
0.746
142.2
5.200
0.480
50.6
1.604
2.2
0.031
31.8
0.804
133.8
5.300
0.448
10.8
1.277
21.7
0.022
56.2
0.834
123.7
5.400
0.458
31.8
0.971
47.7
0.017
83.8
0.882
110.5
5.500
0.518
71.9
0.950
33.8
0.010
106.5
1.097
100.3
5.600
0.602
104.7
0.409
164.5
0.004
40.7
0.953
140.5
5.700
0.674
131.7
0.348
99.5
0.004
174.2
0.981
112.7
5.800
0.735
153.7
0.289
124.1
0.003
116.9
0.978
91.9
5.900
0.780
172.2
0.220
143.3
0.006
64.8
1.022
78.7
6.000
0.810
171.8
0.158
159.7
0.003
42.1
1.023
71.5
15 W C-BAND Po GaAs FET NEZ SERIES
7
NEZ4450-15D
V
DS
= 10 V, I
DS
= 4 000 mA, V
GS
= 1.386 V, I
G
= 0.0 mA, R
G
= 50
FREQUENCY
S
11
S
21
S
12
S
22
GHz
MAG
ANG
MAG
ANG
MAG
ANG
MAG
ANG
0.100
0.978
162.7
5.179
89.1
0.002
0.2
0.872
177.1
0.200
0.980
176.5
2.446
74.6
0.002
21.8
0.879
174.5
0.500
0.984
167.3
0.926
42.1
0.002
12.8
0.892
164.2
0.700
0.982
158.9
0.646
23.2
0.003
14.9
0.895
156.9
1.000
0.983
146.9
0.453
2.6
0.004
28.8
0.884
145.0
1.500
0.976
126.4
0.360
42.2
0.006
6.7
0.894
121.3
2.000
0.963
104.2
0.395
82.6
0.010
19.4
0.864
95.3
2.500
0.945
77.9
0.611
132.2
0.015
57.0
0.777
53.6
2.600
0.944
71.7
0.688
144.0
0.017
71.0
0.739
43.2
2.700
0.939
65.0
0.778
156.7
0.018
80.4
0.690
30.8
2.800
0.937
58.1
0.891
170.0
0.019
91.4
0.638
17.5
2.900
0.935
50.2
1.019
175.1
0.021
105.0
0.572
1.9
3.000
0.934
42.1
1.168
159.4
0.023
116.4
0.502
15.8
3.100
0.932
33.8
1.349
143.8
0.024
132.0
0.441
38.0
3.200
0.924
23.2
1.530
124.8
0.025
147.8
0.379
64.5
3.300
0.918
12.3
1.731
106.7
0.026
159.7
0.355
92.9
3.400
0.912
0.7
1.963
87.4
0.027
171.9
0.354
122.8
3.500
0.889
15.3
2.195
67.8
0.025
150.0
0.371
149.7
3.600
0.863
31.5
2.444
47.3
0.024
126.3
0.392
175.6
3.700
0.809
50.2
2.683
26.0
0.020
91.7
0.423
160.5
3.800
0.750
71.4
2.914
4.0
0.018
57.4
0.446
138.1
3.900
0.693
93.9
3.131
17.7
0.014
12.9
0.458
117.9
4.000
0.645
118.4
3.351
39.9
0.013
34.2
0.456
97.2
4.100
0.613
145.4
3.547
62.9
0.014
77.5
0.449
77.2
4.200
0.585
173.2
3.630
86.3
0.020
106.0
0.439
53.9
4.300
0.565
160.5
3.716
108.6
0.027
146.6
0.403
32.8
4.400
0.550
135.6
3.826
131.6
0.033
172.4
0.373
8.8
4.500
0.521
111.2
3.918
153.8
0.042
160.6
0.359
15.5
4.600
0.476
87.8
3.990
177.5
0.048
136.7
0.350
47.1
4.700
0.412
63.2
3.963
159.4
0.054
112.3
0.337
78.1
4.800
0.350
37.0
3.897
135.8
0.058
87.9
0.338
107.2
4.900
0.293
4.5
3.808
112.6
0.060
66.1
0.334
135.7
5.000
0.259
32.6
3.679
89.8
0.061
43.4
0.330
160.4
5.100
0.280
71.7
3.539
67.4
0.062
23.2
0.326
175.6
5.200
0.326
104.9
3.378
45.6
0.063
2.0
0.310
154.9
5.300
0.395
130.2
3.226
23.3
0.062
18.5
0.281
135.8
5.400
0.476
151.3
3.098
1.2
0.062
39.5
0.233
115.4
5.500
0.539
170.0
2.922
21.0
0.060
60.4
0.173
92.0
5.600
0.600
172.9
2.764
43.3
0.058
81.8
0.105
57.4
5.700
0.643
157.2
2.597
66.3
0.055
103.6
0.081
28.7
5.800
0.673
142.3
2.401
88.9
0.052
126.3
0.171
87.6
5.900
0.688
129.0
2.184
112.1
0.049
149.4
0.296
113.5
6.000
0.688
116.1
1.957
134.7
0.044
172.4
0.424
133.5
6.100
0.681
105.5
1.729
156.8
0.040
167.8
0.534
150.4
6.200
0.665
95.4
1.506
178.4
0.037
146.4
0.636
165.8
6.300
0.649
86.1
1.304
160.7
0.032
125.5
0.718
179.9
6.400
0.634
78.6
1.124
141.3
0.030
106.7
0.789
166.9
6.500
0.611
71.5
0.968
123.0
0.028
89.4
0.835
155.4
7.000
0.522
49.0
0.518
40.6
0.018
14.3
0.975
110.1
7.500
0.549
43.4
0.322
38.8
0.013
44.0
0.948
79.3
8.000
0.635
4.8
0.224
114.7
0.005
121.1
0.935
52.0
8.100
0.625
8.8
0.218
131.3
0.006
137.9
0.949
45.8
8.200
0.613
24.9
0.213
148.5
0.006
172.1
0.941
39.7
8.300
0.592
44.9
0.211
166.8
0.006
135.4
0.933
33.1
8.400
0.572
67.8
0.208
174.0
0.007
104.2
0.932
25.7
8.500
0.575
94.3
0.208
154.5
0.009
87.2
0.916
18.6
9.000
0.776
152.2
0.288
25.6
0.028
28.6
0.324
82.4
9.500
0.906
86.8
0.058
69.2
0.046
36.2
0.950
27.2
10.000
0.896
34.5
0.065
92.4
0.065
85.2
0.960
3.2
15 W C-BAND Po GaAs FET NEZ SERIES
8
NEZ5964-15DD
V
DS
= 10 V, I
DS
= 4 000 mA, V
GS
= 1.662 V, I
G
= 0.0 mA
FREQUENCY
S
11
S
21
S
12
S
22
GHz
MAG
ANG
MAG
ANG
MAG
ANG
MAG
ANG
0.100
0.989
155.7
5.839
95.3
0.001
30.9
0.901
177.3
0.200
0.989
171.6
2.801
81.8
0.002
25.6
0.901
175.0
0.500
0.989
172.2
1.092
54.9
0.003
20.6
0.906
165.7
1.000
0.989
154.4
0.556
16.9
0.003
11.3
0.917
150.0
1.500
0.988
137.8
0.412
16.7
0.007
10.9
0.927
131.6
2.000
0.986
119.0
0.379
52.0
0.008
5.4
0.922
108.4
2.500
0.983
99.0
0.421
89.3
0.011
28.2
0.884
78.9
3.000
0.977
77.9
0.556
132.0
0.015
62.4
0.771
40.9
3.200
0.972
68.2
0.642
152.5
0.018
81.2
0.681
20.8
3.400
0.967
59.2
0.748
174.7
0.019
100.8
0.560
5.6
3.600
0.959
48.6
0.861
160.9
0.021
123.9
0.435
40.7
3.800
0.950
37.0
0.959
134.8
0.026
153.2
0.354
87.9
4.000
0.937
24.2
1.057
108.4
0.027
164.4
0.374
138.1
4.200
0.921
10.5
1.134
82.2
0.019
126.5
0.438
177.9
4.400
0.900
4.2
1.243
57.3
0.017
104.2
0.510
150.9
4.600
0.874
20.8
1.366
32.3
0.015
71.5
0.569
125.5
4.800
0.837
40.5
1.551
5.9
0.013
28.2
0.602
101.2
5.000
0.787
62.8
1.760
22.0
0.015
13.5
0.614
77.1
5.200
0.741
88.4
2.020
51.4
0.019
59.4
0.609
52.1
5.400
0.687
117.3
2.278
82.4
0.026
97.1
0.570
25.1
5.600
0.640
149.4
2.548
114.7
0.037
139.6
0.521
4.9
5.800
0.594
176.2
2.798
148.3
0.048
177.8
0.431
39.0
6.000
0.546
140.6
3.061
177.3
0.059
144.6
0.344
79.8
6.200
0.478
103.0
3.263
140.8
0.070
106.9
0.264
130.2
6.400
0.389
60.7
3.425
103.3
0.079
69.4
0.251
170.4
6.600
0.298
8.6
3.373
63.5
0.085
32.1
0.272
114.4
6.800
0.266
54.6
3.154
24.4
0.086
6.6
0.268
62.9
7.000
0.317
109.4
2.821
12.4
0.082
43.1
0.218
1.9
15 W C-BAND Po GaAs FET NEZ SERIES
9
NEZ6472-15DD
V
DS
= 10 V, I
DS
= 4 000 mA, V
GS
= 1.452 V, I
G
= 0.0 mA, R
G
= 50
FREQUENCY
S
11
S
21
S
12
S
22
GHz
MAG
ANG
MAG
ANG
MAG
ANG
MAG
ANG
0.100
0.981
154.0
6.310
96.6
0.004
21.8
0.886
175.4
0.200
0.980
171.8
3.032
81.3
0.002
1.0
0.888
174.9
0.500
0.985
171.4
1.160
52.7
0.002
7.3
0.896
165.8
1.000
0.983
153.2
0.549
13.4
0.003
9.9
0.887
149.1
1.500
0.979
135.7
0.381
19.5
0.005
8.7
0.904
132.5
2.000
0.974
119.1
0.327
51.1
0.006
0.5
0.904
112.8
2.500
0.966
101.9
0.345
82.8
0.010
22.6
0.892
87.4
3.000
0.965
82.2
0.428
118.9
0.012
49.5
0.831
56.7
3.500
0.966
59.6
0.634
163.3
0.019
84.0
0.696
10.8
4.000
0.958
33.3
0.977
138.5
0.029
149.1
0.512
66.4
4.500
0.904
3.9
1.354
69.6
0.019
131.6
0.503
171.1
5.000
0.794
59.9
1.838
0.2
0.015
29.9
0.604
115.2
5.100
0.765
74.8
1.953
15.1
0.015
3.6
0.624
103.2
5.200
0.732
91.1
2.066
30.7
0.017
24.9
0.637
91.6
5.300
0.701
108.7
2.175
46.3
0.020
45.2
0.643
80.2
5.400
0.672
127.3
2.266
62.3
0.022
67.6
0.645
68.8
5.500
0.645
146.5
2.345
78.5
0.026
91.2
0.644
56.9
5.600
0.626
166.4
2.419
94.6
0.030
110.9
0.634
45.3
5.700
0.616
174.0
2.480
110.9
0.034
131.5
0.619
33.0
5.800
0.608
154.7
2.519
126.6
0.038
150.6
0.588
20.9
5.900
0.604
136.4
2.547
142.8
0.044
170.3
0.564
7.7
6.000
0.604
119.4
2.562
158.2
0.046
171.5
0.528
5.3
6.100
0.608
103.7
2.576
173.4
0.048
154.8
0.499
17.7
6.200
0.606
88.5
2.609
171.6
0.050
139.1
0.461
31.0
6.300
0.607
73.6
2.663
156.3
0.053
124.3
0.427
44.4
6.400
0.604
59.5
2.748
141.0
0.056
109.8
0.390
59.2
6.500
0.581
45.2
2.794
125.4
0.060
94.2
0.354
75.9
6.600
0.553
31.3
2.859
109.2
0.064
79.6
0.319
93.8
6.700
0.512
17.0
2.901
92.5
0.067
64.4
0.287
114.5
6.800
0.463
1.5
2.935
75.5
0.071
49.1
0.263
138.0
6.900
0.406
15.0
2.947
58.9
0.074
32.5
0.247
162.9
7.000
0.345
33.9
2.950
41.7
0.077
16.9
0.238
171.2
7.100
0.288
58.7
2.950
23.6
0.081
0.1
0.233
147.2
7.200
0.255
87.6
2.943
6.2
0.084
18.8
0.216
124.5
7.300
0.256
122.9
2.932
11.3
0.083
35.4
0.197
105.6
7.400
0.299
154.8
2.882
29.5
0.083
53.1
0.160
84.7
7.500
0.371
179.6
2.826
48.0
0.082
70.5
0.113
67.2
7.600
0.455
159.1
2.723
66.7
0.081
90.3
0.050
41.9
7.700
0.537
141.6
2.605
85.7
0.078
107.0
0.036
119.9
7.800
0.616
126.2
2.434
104.9
0.073
124.9
0.125
147.9
7.900
0.678
113.0
2.251
123.4
0.069
143.6
0.224
165.9
8.000
0.724
100.4
2.041
142.1
0.064
162.9
0.318
178.3
8.100
0.754
89.2
1.843
160.1
0.059
179.4
0.416
162.7
8.200
0.775
79.2
1.637
177.2
0.052
162.4
0.498
148.3
8.500
0.791
53.1
1.090
135.3
0.037
113.8
0.675
110.2
9.000
0.784
18.3
0.561
71.2
0.023
37.9
0.846
62.6
9.500
0.757
16.4
0.324
19.8
0.017
40.2
0.929
30.0
10.000
0.663
55.1
0.221
26.6
0.021
152.9
0.921
1.8
15 W C-BAND Po GaAs FET NEZ SERIES
10
NEZ7785-15D
V
DS
= 10 V, I
DS
= 4 000 mA, V
GS
= 1.472 V, I
G
= 0.0 mA, R
G
= 50
FREQUENCY
S
11
S
21
S
12
S
22
GHz
MAG
ANG
MAG
ANG
MAG
ANG
MAG
ANG
4.000
0.967
44.0
0.750
177.7
0.023
125.5
0.438
3.8
4.500
0.956
19.9
0.963
125.3
0.024
174.9
0.136
55.0
5.000
0.931
9.3
1.167
69.9
0.023
109.5
0.217
120.5
5.500
0.878
47.9
1.403
13.1
0.022
34.4
0.459
74.8
6.000
0.770
99.3
1.707
46.6
0.033
50.7
0.574
34.2
6.200
0.706
124.6
1.827
71.9
0.037
82.7
0.594
15.7
6.400
0.636
152.7
1.932
96.6
0.043
111.8
0.596
1.2
6.500
0.615
168.0
1.983
109.4
0.047
129.6
0.952
10.8
6.600
0.595
176.2
2.028
122.2
0.050
143.9
0.585
19.2
6.800
0.570
144.7
2.112
147.9
0.050
166.2
0.559
37.4
7.000
0.566
115.2
2.231
173.6
0.056
166.7
0.551
56.4
7.200
0.570
89.5
2.284
162.0
0.063
147.5
0.529
77.5
7.400
0.545
64.6
2.322
135.7
0.069
120.8
0.494
100.4
7.500
0.524
52.5
2.384
122.8
0.072
112.5
0.482
113.0
7.600
0.512
40.9
2.398
109.7
0.073
95.4
0.459
127.0
7.700
0.482
28.1
2.454
96.9
0.079
86.3
0.451
140.7
7.800
0.456
16.3
2.474
83.2
0.079
71.9
0.427
156.2
7.900
0.424
2.7
2.515
70.0
0.082
59.0
0.410
171.6
8.000
0.389
9.7
2.539
56.1
0.083
44.6
0.397
171.9
8.100
0.354
27.6
2.573
42.4
0.086
33.3
0.385
154.9
8.200
0.320
42.2
2.571
28.3
0.089
18.9
0.373
137.8
8.300
0.278
63.1
2.568
13.4
0.086
5.6
0.368
120.0
8.400
0.250
84.3
2.579
0.3
0.086
7.9
0.364
103.7
8.500
0.248
111.0
2.571
14.6
0.086
20.7
0.364
88.4
8.600
0.239
135.3
2.551
29.6
0.087
34.2
0.370
72.1
8.700
0.259
162.1
2.492
43.5
0.089
50.7
0.365
58.2
8.800
0.289
175.8
2.467
58.3
0.086
62.5
0.365
43.6
8.900
0.325
156.2
2.393
72.3
0.082
75.7
0.355
32.1
9.000
0.369
136.3
2.313
87.2
0.087
92.2
0.329
18.2
9.200
0.455
106.0
2.157
115.8
0.082
120.0
0.264
7.8
9.400
0.549
80.8
2.005
142.4
0.078
141.9
0.180
37.0
9.500
0.587
70.4
1.962
155.4
0.079
155.5
0.143
60.7
9.600
0.633
58.6
1.920
169.5
0.079
169.0
0.111
98.3
9.800
0.714
37.2
1.763
161.5
0.076
162.2
0.151
176.7
10.000
0.773
15.2
1.599
133.2
0.072
135.6
0.266
142.2
15 W C-BAND Po GaAs FET NEZ SERIES
11
[MEMO]
2
15 W C-BAND Po GaAs FET NEZ SERIES
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
"Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on
a customer designated "quality assurance program" for a specific application. The recommended applications
of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
device before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special:
Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices in "Standard" unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact NEC Sales Representative in advance.
Anti-radioactive design is not implemented in this product.
M4 94.11
PDF
ZIP
