TFT COLOR LCD MODULE
NL8060BC31-17
Document No. EN0510EJ1V0DS00
Date Published July 2000 P CP (N)
Printed in Japan
31 cm (12.1 inches), 800
600 pixels, 262144 colors
High luminance, Wide viewing angle, Reversible scan direction
DATA SHEET
2000
DESCRIPTION
NL8060BC31-17 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising
amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight.
NL8060BC31-17 has a built-in backlight. The backlight includes long-life-lamps and the lamps are replaceable
with a holder.
The 31 cm diagonal display area contains 800
600 pixels and can display 262144 color simultaneously.
NL8060BC31-17 is suitable for industrial application use, because the viewing angle is wide and the luminance
is high. Also, the viewing direction is selectable either upper or lower side by changing scan direction.
FEATURES
High luminance (350 cd/m
2
, at I
L
= 5mArms/lamp)
Wide viewing angle (with Retardation film)
Low reflection
Reversible scan direction
6-bit digital RGB input signals
Data enable (DE) function
Smooth polarizer surface (no antiglare treatment)
Edge type backlight with two long-life-time lamps (one lamp holder)
Lamp holder replaceable
APPLICATIONS
Display terminals for control system
Monitors for process controller
Data Sheet EN0510EJ1V0DS00
2
NL8060BC31-17
STRUCTURE AND FUNCTIONS
A color TFT (thin film transistor) LCD module is comprised of a TFT liquid crystal panel structure, LSIs for driving
the TFT array, and a backlight assembly. The TFT panel structure is created by sandwiching liquid crystal material
in the narrow gap between a TFT array glass substrate and a color filter glass substrate. After the driver LSIs are
connected to the panel, the backlight assembly is attached to the backside of the panel.
RGB (red, green, blue) data signals from a source system is modulated into a form suitable for active matrix
addressing by the onboard signal processor and sent to the driver LSIs which in turn addresses the individual TFT
cells.
Acting as an electro-optical switch, each TFT cell regulates light transmission from the backlight assembly when
activated by the data source. By regulating the amount of light passing through the array of red, green, and blue
dots, color images are created with clarity.
OUTLINE OF CHARACTERISTICS (at room temperature)
Item
Description
Display area
246.0 (H)
184.5 (V) mm
Drive system
a-Si TFT active matrix
Display colors
262,144 colors
Number of pixels
800
600 pixels
Pixel arrangement
RGB vertical stripe
Pixel pitch
0.3075 (H)
0.3075 (V) mm
Module size
280.0 (H)
210.0 (V)
13.0 (D) mm (typ.)
Weight
750 (typ.)
Contrast ratio
350:1 (typ.)
Viewing angle
(more than the contrast ratio of 10:1)
Horizontal: 55
(typ. left side, right side)
Vertical: 40
(typ. up side), 50
(typ. down side)
Designed viewing direction
Wider viewing angle with contrast ratio
: down side
(6 o'clock, normal scan)
up side
(12 o'clock, reverse scan)
Wider viewing angle without image reversal: up side
(12 o'clock, normal scan)
down side
(6 o'clock, reverse scan)
Optimum grayscale (
= 2.2)
: perpendicular
Color gamut
43% (typ'. at center, to NTSC)
Response time
15 ms (typ.), "white 100%" to "black 10%"
Luminance
350 cd/m
2
(typ.) (Lamp current: I
L
= 5 mArms per lamp)
Signal system
6-bit signals for each of RGB primary colors, synchronous signals (Hsync,
Vsync), dot clock (CLK)
Supply voltage
3.3 V [5.0 V] (Logic, LCD driving)
Backlight
Edge light type, two cold cathode fluorescent lamp in a holder
Lamp holder : Part No.121LHS15
Recommended invertor: Part No. 121PW111
Power consumption
7.0 W (typ. at 3.3 V, with a recommended inverter)
Data Sheet EN0510EJ1V0DS00
3
NL8060BC31-17

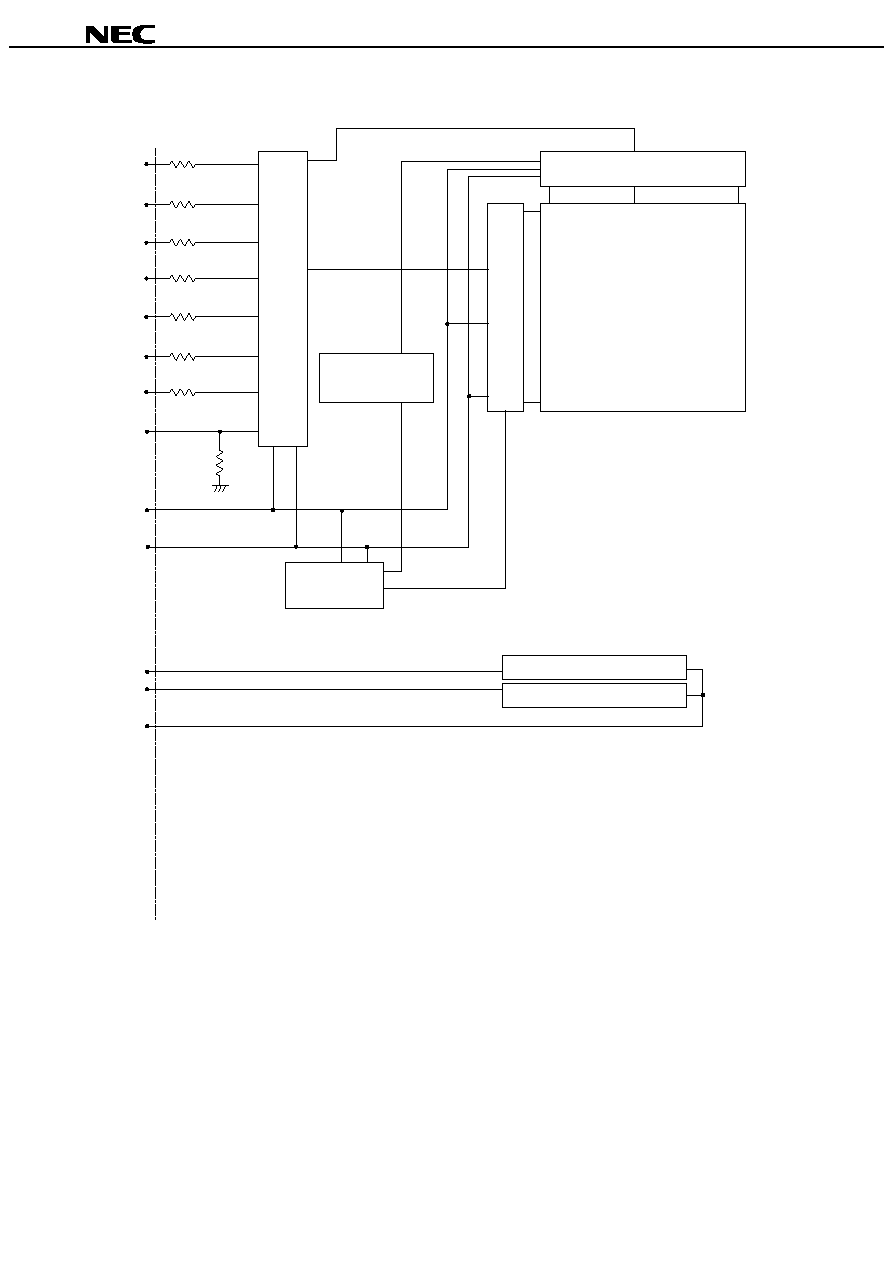

BASIC STRUCTURE
200
R0 - R5
200
G0 - G5
200
B0 - B5
47
CLK
200
H sync
200
V sync
DE
DPS
V
CC
GND
V
H
V
H
V
L
Backlight
Backlight
V-driver
Controller
600 lines
2400 lines
TFT LCD panel
H: 800
3 (R, G, B)
V: 600
200
4.7 k
H-driver
DC/DC
Converter
Power supply
for drivers
Note 1:
GND is not connected to FG (Frame Ground) in the LCD module.
Data Sheet EN0510EJ1V0DS00
4
NL8060BC31-17
GENERAL SPECIFICATIONS
Item
Specification
Unit
Module size
280.0
0.5 (H)
210.0
0.5 (V)
13.7 max. (D)
mm
Display area
246.0 (H)
184.5 (V) [Diagonal display area: 31 cm (Type 12.1)]
mm
Number of pixels
800
3 (H)
600 (V)
pixel
Dot pitch
0.1025 (H)
0.3075 (V)
mm
Pixel pitch
0.3075 (H)
0.3075 (V)
mm
Pixel arrangement
RGB (Red, Green, Blue) vertical stripe
-
Display colors
262,144
color
Weight
780 (max.)
g
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Rating
Unit
Remarks
Supply voltage
V
CC
-
0.3 to 6.5
V
Input voltage
V
I
-
0.3 to V
CC
+ 0.3
V
Lamp voltage
V
L
1800
V
rms
T
a
= 25
C
Storage temp.
T
ST
-
20 to 60
C
-
Operating temp.
T
OP
0 to 50
C
Module surface*
95
%
T
a
40
C
Relative Humidity (RH)
85
%
40 < T
a
50
C
Absolute humidity
Absolute humidity shall not
exceed T
a
= 50
C, RH=85%
g/m
3
T
a
> 50
C
No condensation
* Measured at the panel surface (including self-heat)
ELECTRICAL CHARACTERISTICS
(1) Logic LCD driving
T
a
= 25
C
Parameter
Symbol
Min.
Typ.
Max.
Unit
Remarks
Supply voltage
V
CC
3.0
(4.75)
3.3
(5.0)
3.6
(5.25)
V
V
CC
= 3.3 V
(V
CC
= 5.0 V)
Logic input "L" voltage
V
IL
0
-
V
CC
0.3
V
Logic input "H" voltage
V
IH
V
CC
0.7
-
V
CC
V
CMOS level
Supply current
I
CC
-
-
* 320
(240)
600
(500)
mA
V
CC
= 3.3 V
(V
CC
= 5.0 V)
* Checker flag pattern (in EIAJ ED-2522)
Data Sheet EN0510EJ1V0DS00
5
NL8060BC31-17

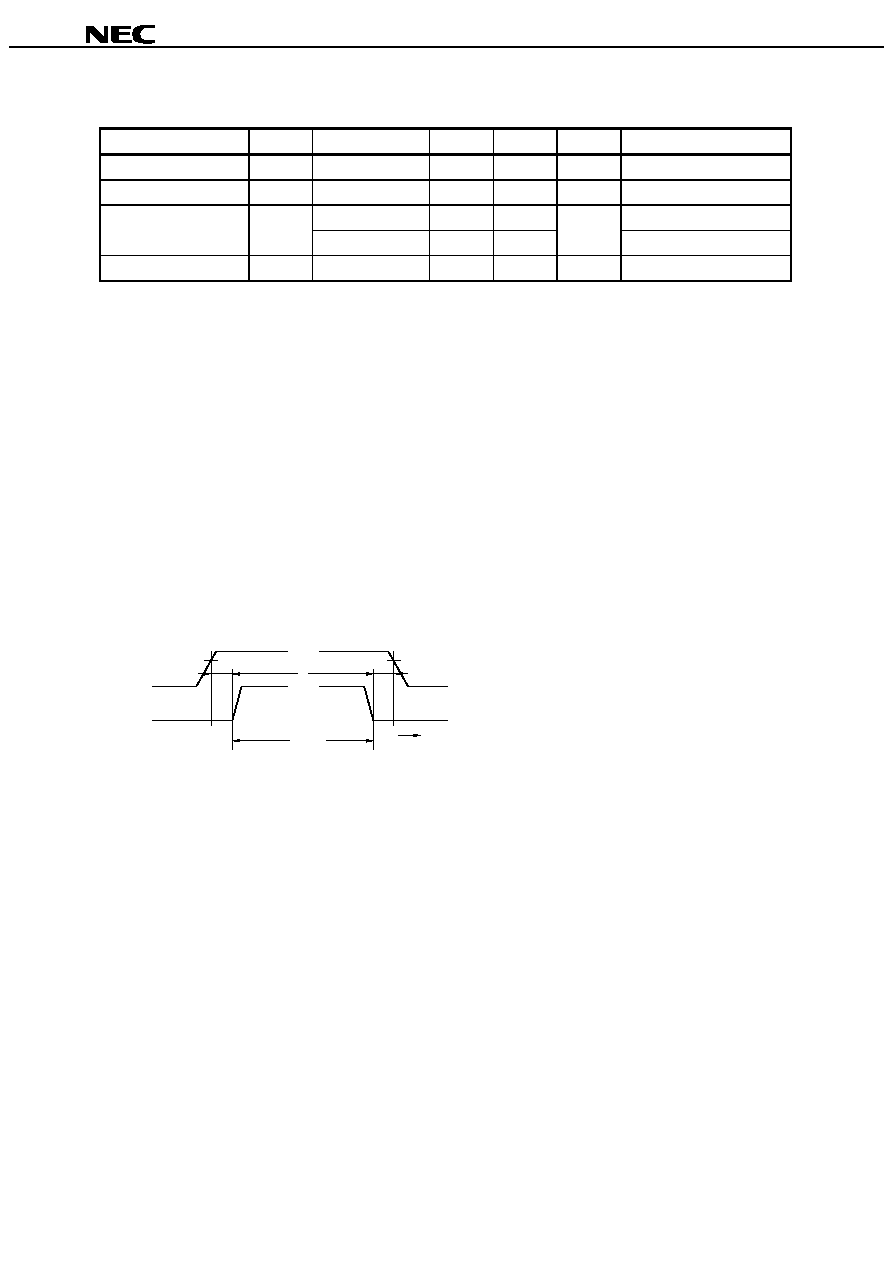

(2) Backlight
Ta = 25
C
Parameter
Symbol
Min.
Typ.
Max.
Unit
Remarks
Lamp current
I
L
2.0 Note 1
5.0
5.5
mArm
at a lamp
Lamp voltage
V
L
-
600
-
Vrms
I
L
= 5mA
960
-
-
Ta = 25
C
Lamp turn on voltage
Note 2
V
S
1200
-
-
Vrms
Ta = 0
C
Oscillator frequency
Ft
58
65
69
kHz
Note 3
Note 1:
In an atmosphere of below 10
C, keep the lamp current more than 3.0 mArms in order to prevent the
lamp from blinking.
Note 2:
The phase of the supply voltage for lamps must keep same one.
Note 3:
Recommended value of "Ft".
Ft is within the specification.
and
Ft = 1/4th
(2n-1)
th:
Hsync period
n:
a natural number (1, 2, 3
...
)
If Ft is out of the recommended value, interference between Ft frequency and Hsync frequency may
cause beat on the display.
SUPPLY VOLTAGE SEQUENCE
3.0 (4.75 V)
3.0 (4.75 V)
Time
0<t<35 ms
0<t<35 ms
V
CC
V
CC
- ON
Signals: CLK, Hsync, Vsync, DE, R0-R5, G0-G5, B0-B5
V
CC
- OFF
Signals
VALID
Notes1. The supply voltage for input signals
should be the same as V
CC
.
2. Turn on the backlight within the LCD
operation period. When the backlight
turns on before LCD operation or the
LCD operation turns off before the
backlight turns off, the display may
momentarily become white.
3. When the power is off, please keep
whole signals (Hsync, Vsync, CLK,
DE, R0-R5, G0-G5, B0-B5) low level
or high impedance.
4. Wrong power sequence may dam-
age to the module.
5. The signal should not be down dur-
ing operation. Even if signal could
recover, LCD module can not be
operated correctly, the display may
be un-uniformity. In case signal is
down, V
CC
should be turned off, and
then turn V
CC
and signal on as above
sequence.
