The V
RC
4172
TM
companion chip to NEC's V
R
4121
TM
MIPS
RISC microprocessor is designed for high-end
Windows
CE Handheld PC Professional applications. The V
R
4121 microprocessor functions as the host
CPU, while the V
RC
4172 supplies the SDRAM interface, USB interface, host- and peripheral-selectable
IEEE-1284 parallel interface, 16550-compliant serial interface, PS/2 interface, general-purpose I/O ports,
general-purpose chip select signal, and pulse-width modulation for the LCD back light.
In combination, the V
R
4121 and V
RC
4172 offer an excellent performance/cost solution for next-generation
Windows CE applications, forming a superior engine for most, if not all, high-performance Windows
CE-based handheld products.
V
R C
4 1 7 2 C O M P A N I O N C H I P
F O R V
R
4 1 2 1 M I C R O P R O C E S S O R

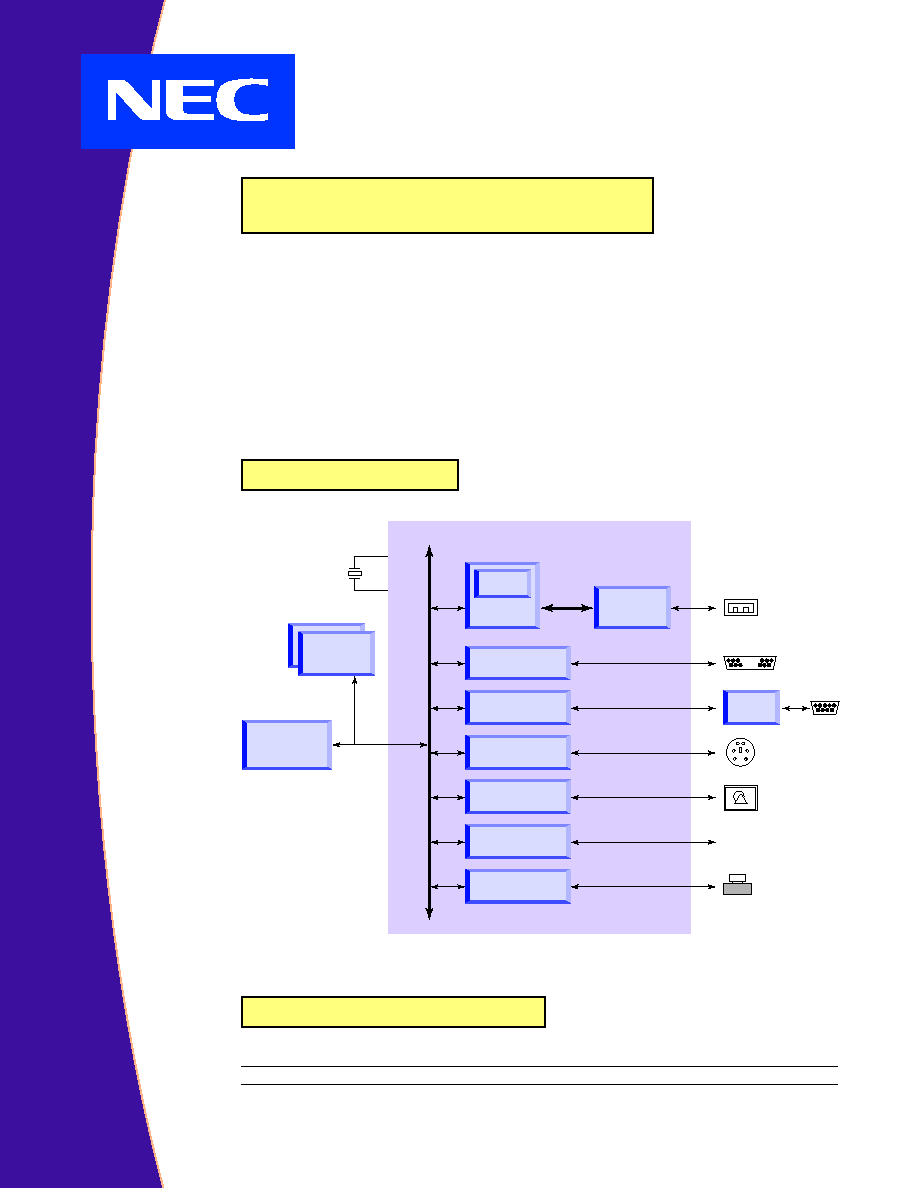

B L O C K D I A G R A M
SDRAM
V
R
4121
SDRAM
48 MHz
System
Bus
V
RC
4172
General-Purpose
I/O (24-Bit)
Programmable
Chip Select (6-Bit)
Pulse-Width
Modulator Controller
LCD Backlight
Keyboard/Mouse
Dual Port
Dual Port
PS/2 Controller
16550 Serial
Controller 1 and 2
RS-232-C
IEEE-1284
Parallel Controller
PCI Bus
Controller
USB
Host Controller
(OpenHCI 1.0)
Internal
PCI Bus
DRAM
Controller
98YL-0227C (12/98)
O R D E R I N G I N F O R M A T I O N
PART NUMBER
PACKAGE
V
RC
4172
256-pin TBGA
F E A T U R E S
PROCESSOR INTERFACE
--
32-bit LCD interface
--
16-bit mini-ISA bus interface (as defined by V
R
4121)
--
DRAM interface and SDRAM controller for
DMA/master mode
USB HOST CONTROLLER
--
OpenHCI USB 1.0 compliant
--
Standard communication with USB device;
asynchronous communication with host CPU
--
Full-speed (12 Mbps) and low-speed (1.5 Mbps)
operation
--
48-MHz system clock
--
On-chip FIFO
PCI read: 4 x 4 Dword
PCI write: 4 x 4 Dword
USB side: 64 x 1byte
--
Two downstream ports
--
No support for legacy interface
IEEE1284 PARALLEL PORT INTERFACE
--
ECP, EPP, SPP, and P1284 host function with DMA
operation
--
Device function operation
SERIAL PORT INTERFACE
--
Two 16550-compatible serial interfaces
PROGRAMMABLE CHIP SELECT AND
GENERAL-PURPOSE I/O
--
Six chip selects
--
24 general-purpose I/O (GPIO) signals
PS/2 INTERFACE
--
PS/2 keyboard and mouse support
PULSE-WIDTH MODULATION (PWM) FOR
LCD BACKLIGHT
PACKAGE
--
256-pin TBGA (27 mm square)

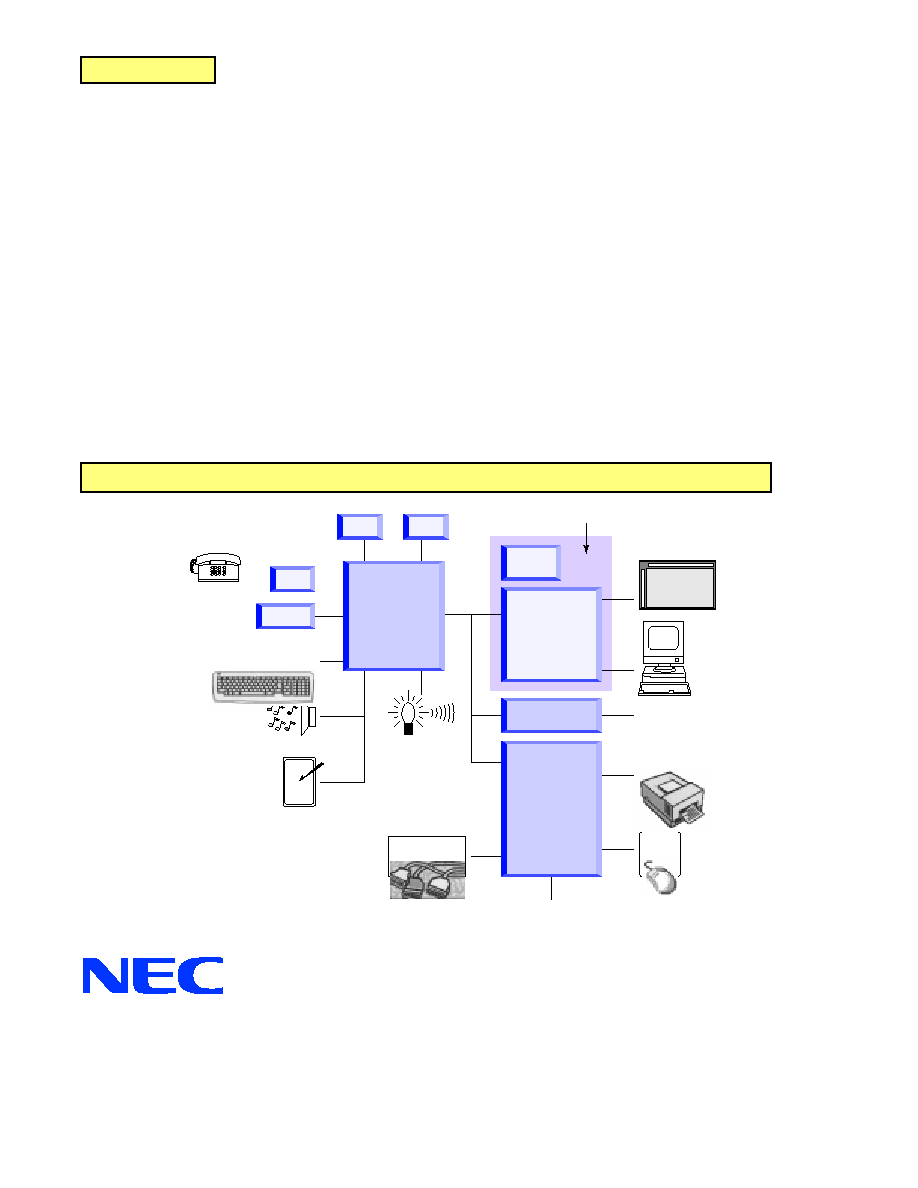

S A M P L E W I N D O W S C E H / P C P R O F E S S I O N A L I M P L E M E N T A T I O N
LCD Panel
Touch Panel
Soft Modem
Serial Connections
PS/2 Mouse
98YL-0228C (12/98)
Frame
Buffer
USB Devices
RAM
DAA
CODEC
ROM
Graphic Chip Vender
LCD Controller
with Accelerator
VGA Output
RAMDAC
Up to 1024 x 768
V
RC
4172
USB (Host)
Two Serial
Interfaces
One Parallel
Interface
PS/2 Keyboard
PS/2 Mouse
Pulse-Width
Modulator
PC Card
Controller
PC Card
CompactFlash
V
R
4121
131 MHz
168 MHz
Fast IR
CRT
