THYRISTOR
Type
30KRC60
30KRC60
30KRC60
30KRC60
Cnstruction : Center Gate Planner Type
Application : AC Power Conrol For General Use
Absolute Maximum Ratings
Voltage Ratings
Rating Symbol
30KRC60
Unit
Repetitive Peak off-state Voltage
V
DRM
600
V
Non-repetitive Peak off-state Voltage
V
DSM
700
V
Repetitive Peak Reverse Voltage
V
RRM
600
V
Non-repetitive Peak Reverse Voltage
V
RSM
700
V
Rating
Symbol
Conditions
Max. Rated Value
Unit

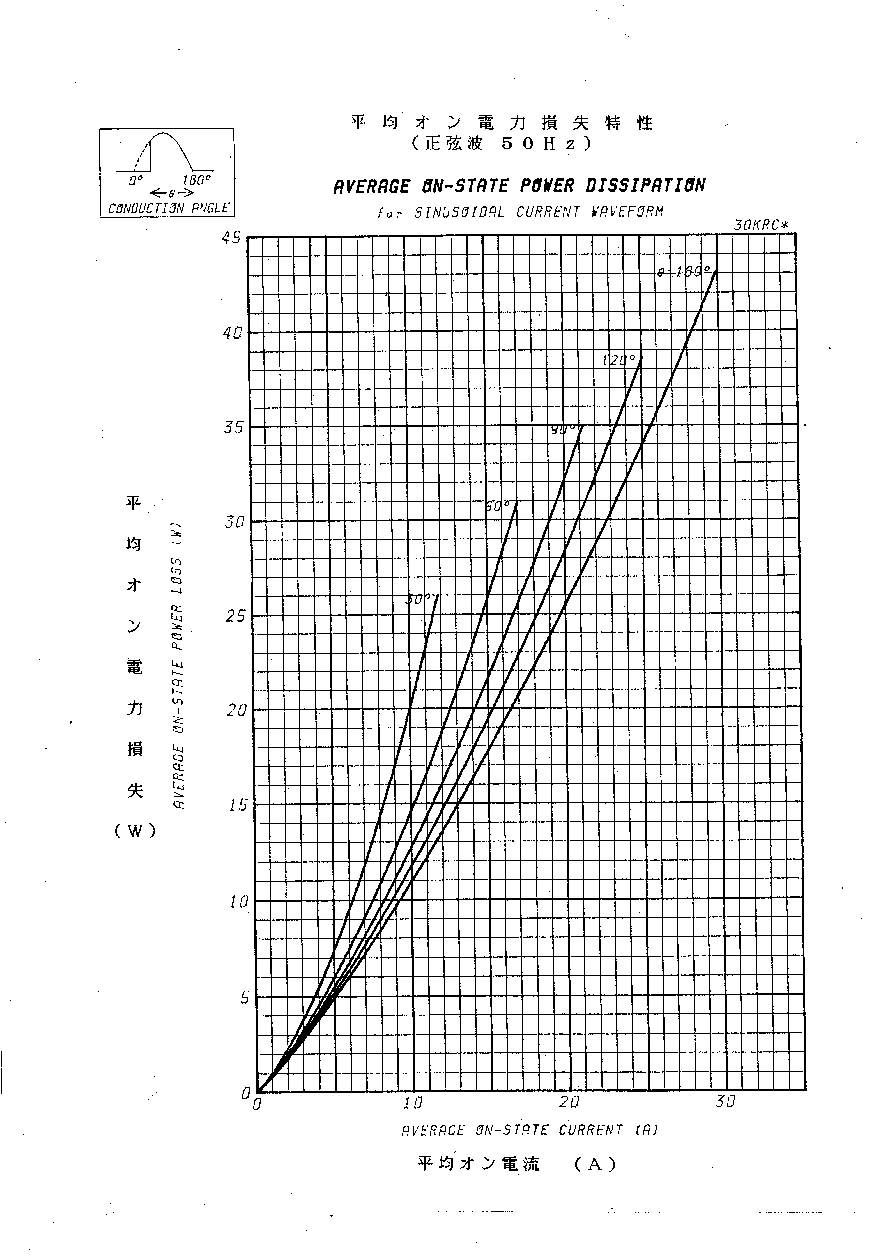

Average On-State Current
Io
(AV)
180
Conduction, Tc=80
C
30
A
RMS On-State Current
I
T(RMS)
47
A
Surge On-State Current
I
TSM
50Hz Half Sine Wave, 1Pulse, Non-Repetitive
600
A
I Squared t
I
2
t
2 to 10 ms
1800
A
2
s
Peak Gate Power
P
GM(
5
W
Average Gate Power
P
G(AV)
1
W
Peak Forward Gate Current
I
GM
2
A
Peak Forward Gate Voltage
V
GM
10
V
Peak Reverse Gate Voltage
V
RGM
5
V
Operating Junction Temperature Range
Tjw
-40 to +125
C
Storage Temperature Range
Tstg
-40 to +150
C
Mounting Force
Recommended Value
0.5
N
m
Electrical Characteristics
Characteristics
Symbol
Conditions
Min.
Typ. Max. Unit
Tj=25
C
0.5
Peak Off-State Current
I
DM
V
DM
= V
DRM
Tj=125
C 10
mA
Tj=25
C 0.5
Peak Reverse Current
I
RM
V
RM
= V
RRM
Tj=125
C 10
mA

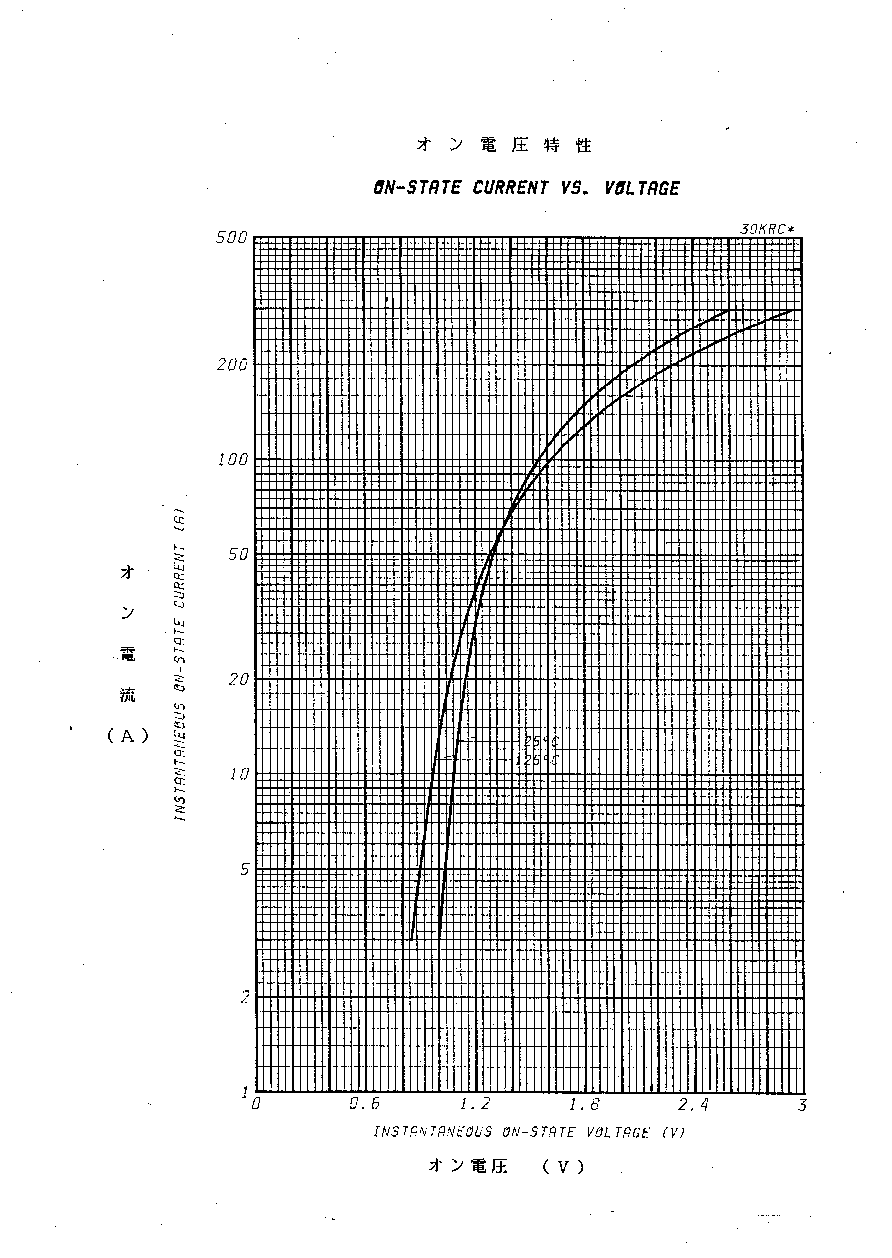

Peak On-State Voltage
V
TM
Tj=25
C , I
TM
=90A
1.5
V
Tj= - 40
C
220
Tj=25
C
100
Gate Trigger Current
I
GT
V
D
= 6V, I
T
= 1A
Tj=125
C
50
mA
Tj= - 40
C 4.0
Tj=25
C 2.5
Gate Trigger Voltage
V
GT
V
D
= 6V, I
T
= 1A
Tj=125
C
2.0
V
Gate Non-Trigger Current
V
GD
Tj=125
C, V
D
= 2/3
V
DRM
0.25
V
Turn-On Time
t
gt
6
s
Delay Time
t
d
2
s
Rise Time
t
r
Tj=125
C, V
D
= 2/3
V
DRM
4
s
Latching Current
I
L
Tj=25
C
100 mA
Holding Current
I
H
Tj=25
C
50 mA
Thermal Resistance
Rth(j-c)
Junction to Case
1.0
C/W
30A, 600V, TO-247
