OUTLINE DRAWING
Maximum Ratings
Approx Net Weight:0.35g
Rating
Symbol
EA31FS6 Unit
Repetitive Peak Reverse Voltage
V
RRM
600 V
P.C.Board
mounted *
1.2
Ta=29
C
Average Rectified
Output Current
-
I
O
3.0 Tc=119
C
50Hz Half Sine Wave
Resistive Load
A
RMS Forward Current
I
F(RMS)
4.71 A
Surge Forward Current
I
FSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range
Tjw
- 40 to + 150
C
Storage Temperature Range
Tstg
- 40 to + 150
C
Electrical
Thermal Characteristics
Characteristics Symbol
Conditions
Min Typ
Max
Unit
Peak Reverse Current
I
RM
Tj=25
C,V
RM
=V
RRM
per Arm
- - 20
A
Peak Forward Voltage
V
FM
Tj=25
C,I
FM
= 3 A per Arm
- - 1.7 V
Reverse Recovery Time
trr
I
FM
= 3
A,
-di/dt= 50 A/
s, Ta= 25
C
- - 35 ns
Junction to Ambient Rth(j-a) P.C.Board mounted *
-
-
80
C/W
Thermal
Resistance
Junction to Case
Rth(j-c)
-
-
-
6
C/W
* Print Land = 20x20 mm
FRD
Type :
EA
EA
EA
EA33331F
1F
1F
1FS6
S6
S6
S6
FEATURES
* TO-251AA Case
* Ultra Fast Recovery
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 200 Volts thru 600 Volts Types Available

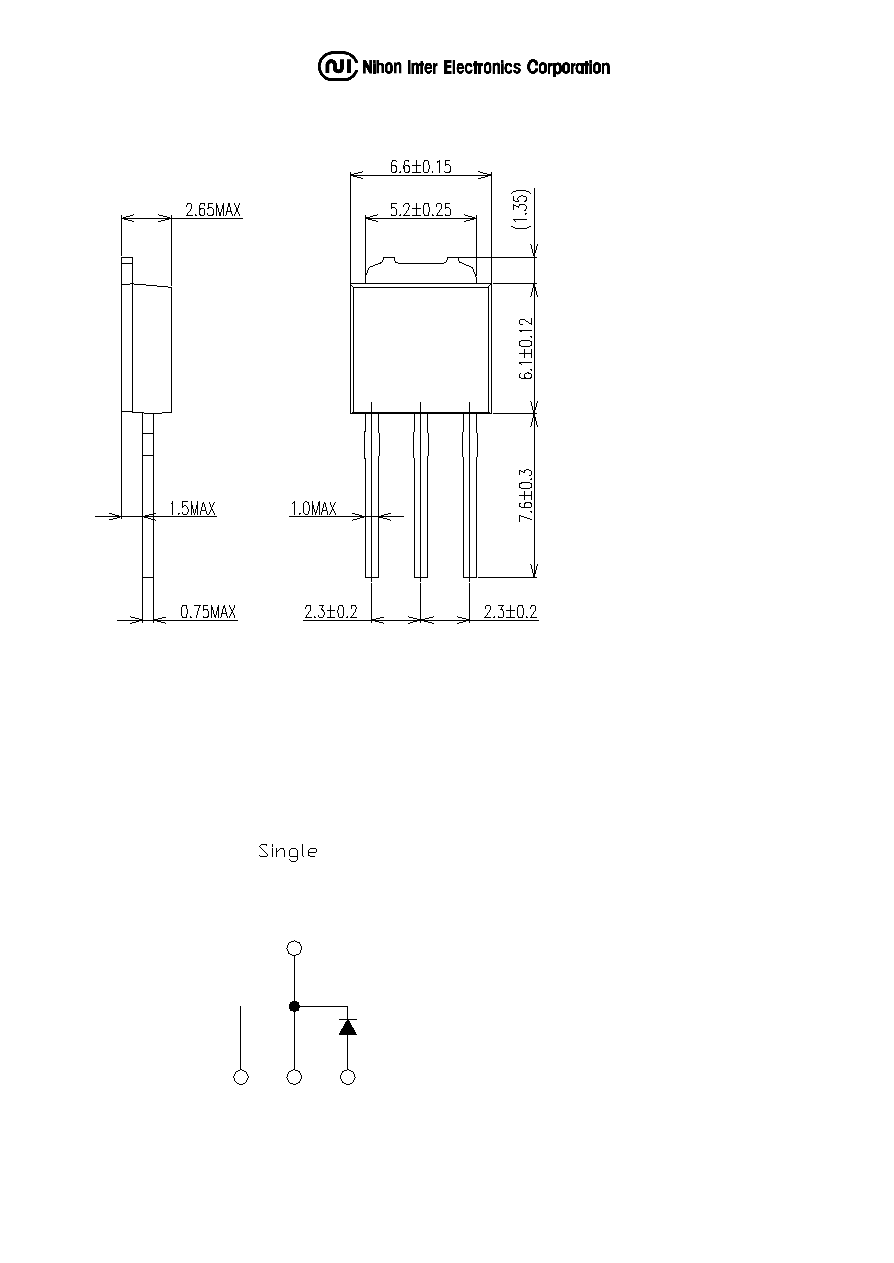

EA31FS6 OUTLINE DRAWING (Dimensions in mm)
1
4
3
2
1
4
3
2
FORWARD CURRENT VS. VOLTAGE
EA31FS6/EA31FS6-F
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
INSTANTANEOUS FORWARD VOLTAGE (V)
0.2
0.5
1
2
5
10
20
50
INSTANTANEOUS FORWARD CURRENT (A)
10ms Sine Wave Single Pulse
Tj=25C
Tj=150C
AVERAGE FORWARD POWER DISSIPATION
0
1
2
3
4
5
AVERAGE FORWARD CURRENT (A)
0
1
2
3
4
5
6
7
AVERAGE FORWARD POWER DISSIPATION (W)
EA31FS6/EA31FS6-F
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE
EA31FS6/EA31FS6-F
0
25
50
75
100
125
150
CASE TEMPERATURE (C)
0
1
2
3
4
5
AVERAGE FORWARD CURRENT (A)
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
EA31FS6/EA31FS6-F
P.C. Board mounted Print land=2020mm
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (C)
0
0.4
0.8
1.2
1.6
2.0
AVERAGE FORWARD CURRENT (A)
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
SURGE CURRENT RATINGS
EA31FS6/EA31FS6-F
f=50Hz,Half Sine Wave,Non-Repetitive,No Load
0.02
0.05
0.1
0.2
0.5
1
2
TIME (s)
0
10
20
30
40
50
SURGE FORWARD CURRENT (A)
0.02s
IFSM
