Электронный компонент: EC8FS6

Скачать:  PDF   ZIP

Document Outline

OUTLINE DRAWING








Maximum Ratings
Approx Net Weight:0.06g
Rating Symbol
EC8FS6 Unit
Repetitive Peak Reverse Voltage
V
RRM
600
V
0.65 Ta=25
C *1
Average Rectified Output Current
I
O
0.8 Ta=35
C *2
50Hz Half Sine
Wave Resistive Load
A
RMS Forward Current
I
F(RMS)
1.256
A
Surge Forward Current
I
FSM
20 50Hz Half Sine Wave,1cycle
Non-repetitive
A
Operating JunctionTemperature Range
T
jw
-40 to +150
C
Storage Temperature Range
T
stg
-40 to +150
C
FRD
Type
:
EC8FS6
FEATURES
* Miniature Size,Surface Mount Device
* Ultra-Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* Packaged in 12mm Tape and Reel
* Not Rolling During Assembly

Electrical
Thermal Characteristics
Characteristics Symbol
Conditions Min.
Typ.
Max.
Unit
Peak Reverse Current
I
RM
Tj= 25
C, V
RM
= V
RRM
- - 20
A
Peak Forward Voltage
V
FM
Tj= 25
C, I
FM
= 0.8A
- -
1.32 V
I
FM
= 1A, -di/dt= 50A/
s, Ta= 25C
80 ns
Reverse Recovery Time
trr
I
F
=I
R
=10mA, Ta= 25
C
- -
0.4
s
*1 -
-
157
Thermal Resistance
Rth
(j-a)
Junction to Ambient
*2 -
-
108
C
/W
*1 Glass Epoxy Substrate Mounted (Soldering Lands=2x2mm,Both Sides)
*2 Alumina Substrate Mounted (Soldering Lands=2x2mm,Both Sides)

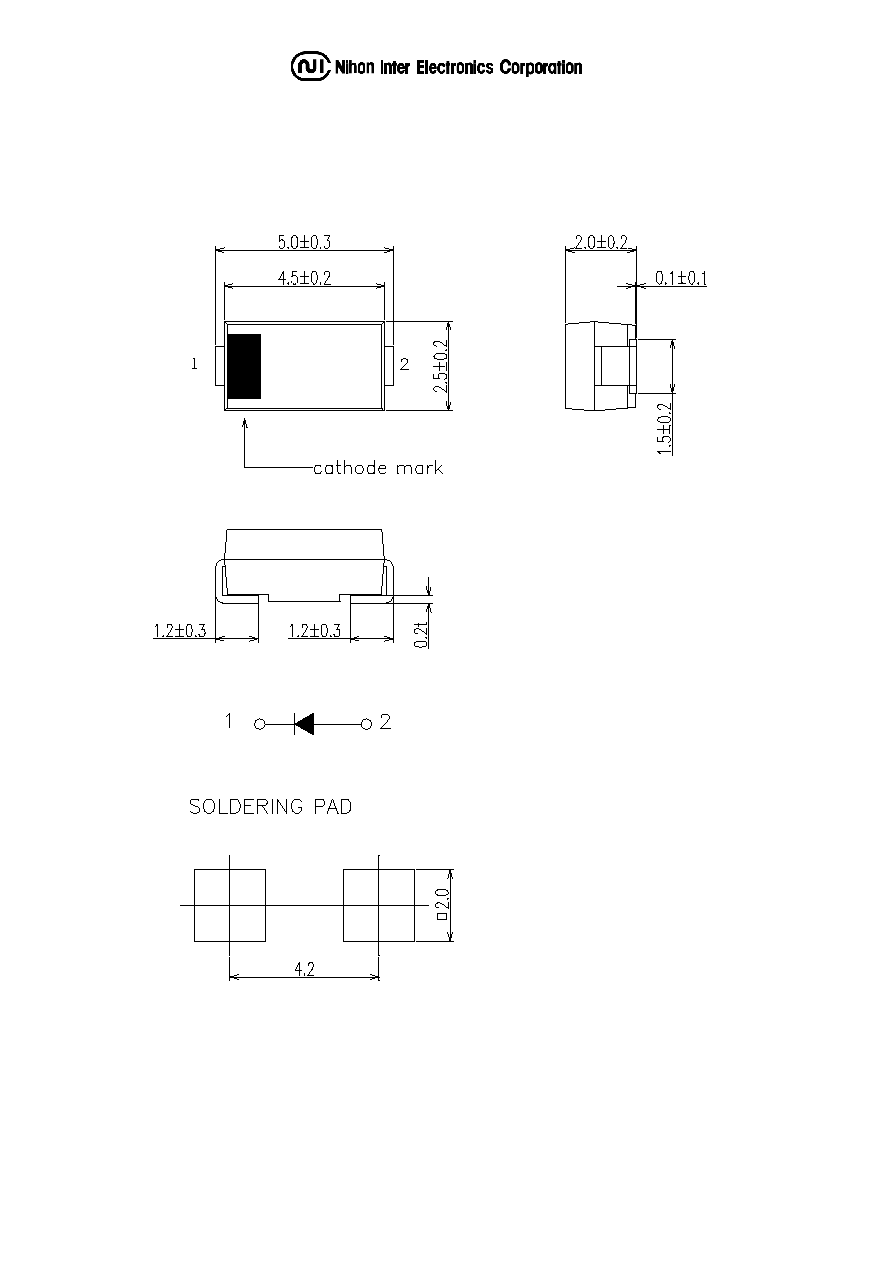

EC_FS_ OUTLINE DRAWING (Dimensions in mm)
FORWARD CURRENT VS. VOLTAGE
EC8FS6
0
0.5
1.0
1.5
2.0
2.5
3.0
INSTANTANEOUS FORWARD VOLTAGE (V)
0.1
0.2
0.5
1
2
5
10
INSTANTANEOUS FORWARD CURRENT (A)
Tj=25C
Tj=150C
AVERAGE FORWARD POWER DISSIPATION
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
AVERAGE FORWARD CURRENT (A)
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
AVERAGE FORWARD POWER DISSIPATION (W)
EC8FS6
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
EC8FS6
Glass-Epoxy Substrate Mounted(Soldering Land=22mm)
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (C)
0
0.2
0.4
0.6
0.8
1.0
1.2
AVERAGE FORWARD CURRENT (A)
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
AVERAGE FORWARD CURRENT VS. AMBIENT TEMPERATURE
EC8FS6
Alumina Substrate Mounted(Soldering Land=22mm)
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (C)
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
AVERAGE FORWARD CURRENT (A)
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
SURGE CURRENT RATINGS
EC8FS6
f=50Hz,Half Sine Wave,Non-repetitive,No Load
0.02
0.05
0.1
0.2
0.5
1
2
TIME (s)
0
4
8
12
16
20
SURGE FORWARD CURRENT (A)
0.02s
IFSM
