F R D
T y p e :
K
K
K
KS
S
S
SF30
F30
F30
F30A
A
A
A60E
60E
60E
60E

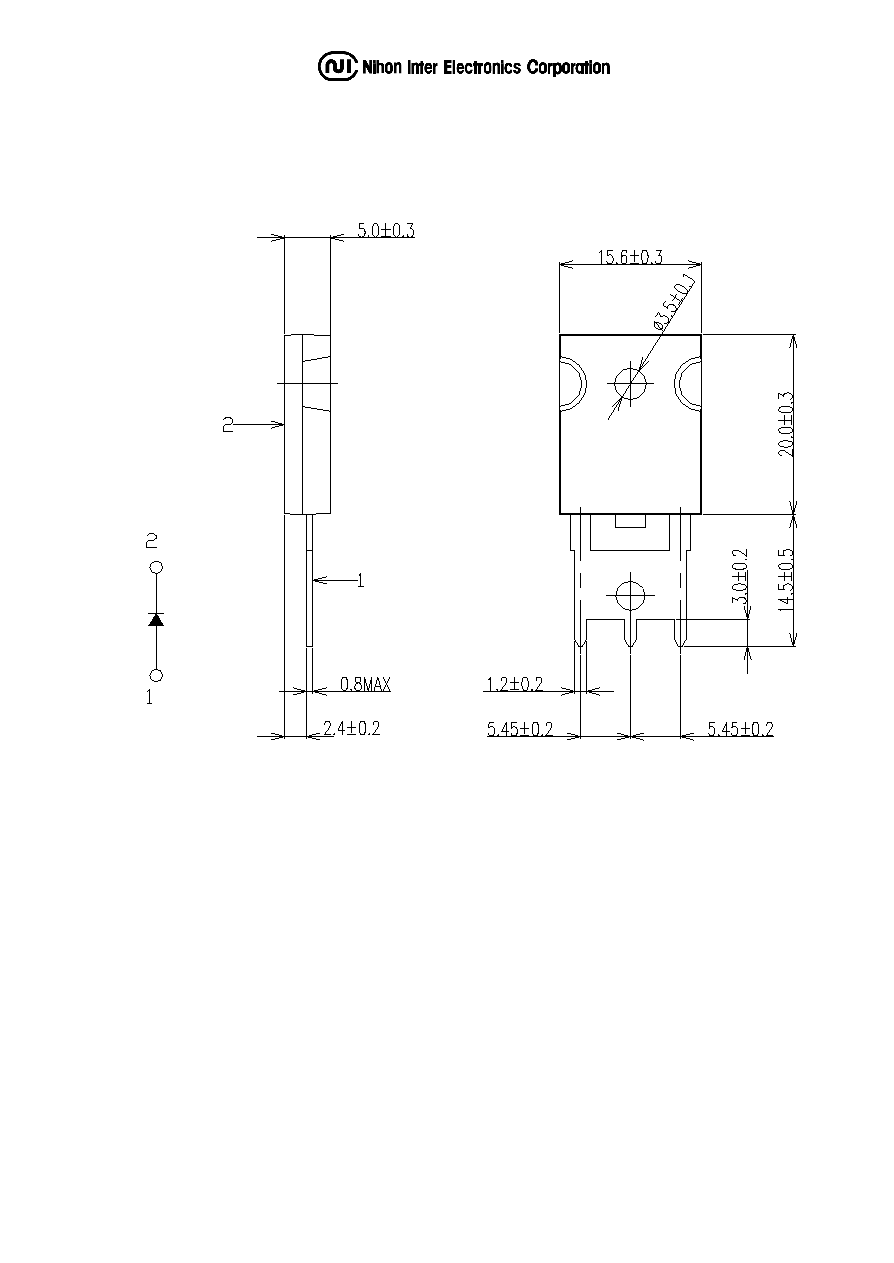

OULINE DRAWING
Maximum Ratings
Approx Net Weight:
6.0g
Rating Symbol
KSF30A60E
Unit
Repetitive Peak Reverse Voltage
V
RRM
600
V
Average Rectified Output Current
I
O
30
Tc=64
C
50 Hz half Sine Wave
Resistive Load
A
RMS Forward Current
I
F(RMS)
47
A
Surge Forward Current
I
FSM
400
50Hz Half Sine Wave ,1cycle
Non-repetitive
A
Operating JunctionTemperature Range
T
jw
-40 to +150
C
Storage Temperature Range
T
stg
-40 to +150
C
Mounting torque
Ftor
recommended torque = 0.5
Nm
Electrical
Thermal Characteristics
Characteristics Symbol
Conditions
Min.
Typ.
Max.
Unit
Peak Reverse Current
I
RM
Tj= 25
C, V
RM
= V
RRM
- - 50
A
Peak Forward Voltage
V
FM
Tj= 25
C, I
FM
= 30 A
- - 1.7 V
Reverse Recovery Time
trr
I
FM
= 10A,
-di/dt=50A/
s, Ta=25
C
60
ns
Thermal Resistance
Rth(j-c) Junction to Case
-
-
1.4
C
/W
FEATURES
FEATURES
FEATURES
FEATURES
* Similar to TO-247AC(TO-3P)Case
* Ultra-Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss,High Efficiency
* High Surge Current Capability
* 200Volts thru 600Volts Type Available
FORWARD CURRENT VS. VOLTAGE
KSF30A60B/KSF30A60E
0
0.5
1.0
1.5
2.0
2.5
3.0
INSTANTANEOUS FORWARD VOLTAGE (V)
2
5
10
20
50
100
200
INSTANTANEOUS FORWARD CURRENT (A)
Tj=25C
Tj=150C
AVERAGE FORWARD POWER DISSIPATION
0
10
20
30
40
50
AVERAGE FORWARD CURRENT (A)
0
10
20
30
40
50
60
70
80
AVERAGE FORWARD POWER DISSIPATION (W)
KSF30A60B/KSF30A60E
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE
KSF30A60B/KSF30A60E
0
25
50
75
100
125
150
CASE TEMPERATURE (C)
0
10
20
30
40
50
AVERAGE FORWARD CURRENT (A)
0
180
CONDUCTION ANGLE
HALF SINE WAVE
D.C.
RECT 180
RECT 120
RECT 60
SURGE CURRENT RATINGS
KSF30A60B/KSF30A60E
f=50Hz,Half Sine Wave,Non-Repetitive,No Load
0.02
0.05
0.1
0.2
0.5
1
2
TIME (s)
0
100
200
300
400
SURGE FORWARD CURRENT (A)
0.02s
IFSM
