S B D
T y p e :
K
K
K
KS
S
S
SQ3
Q3
Q3
Q30A0
0A0
0A0
0A06666

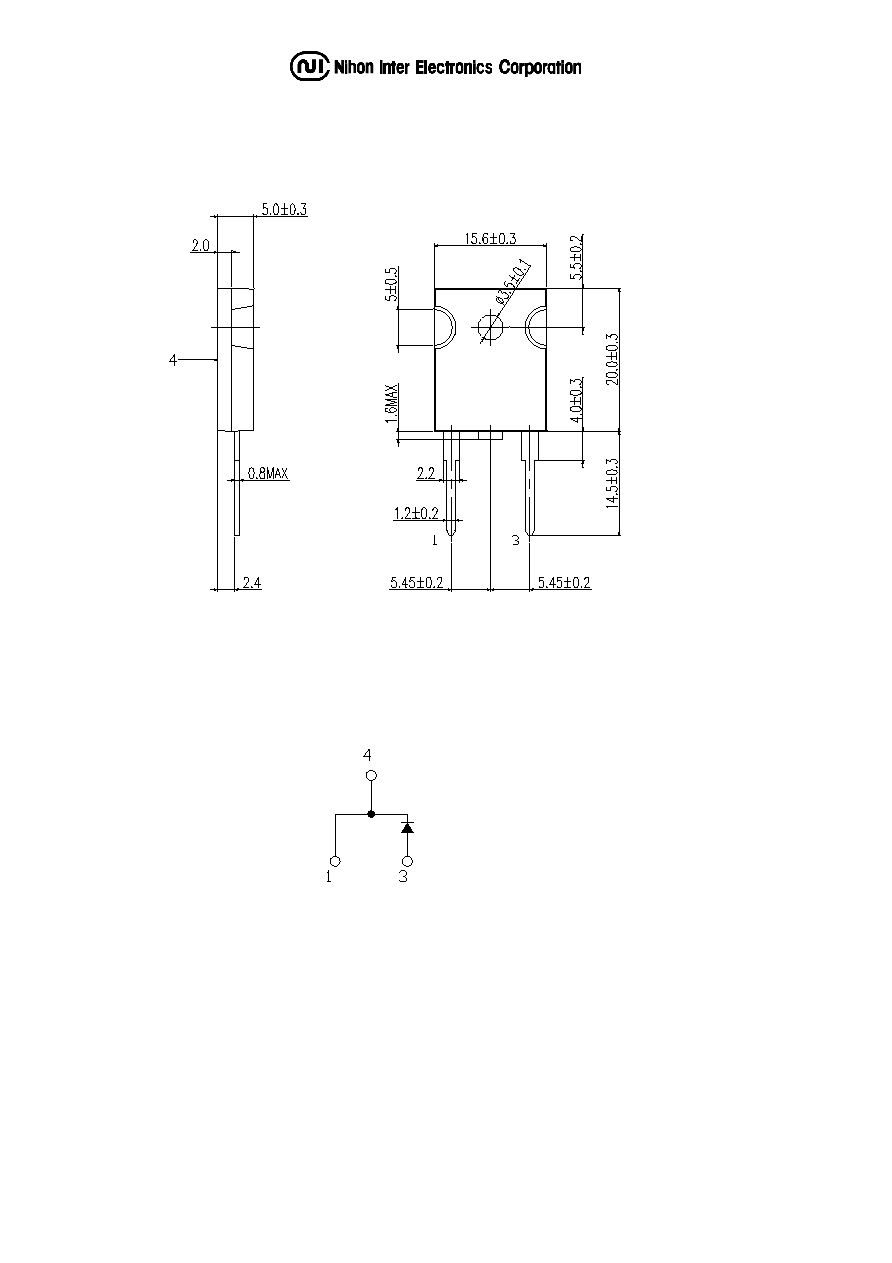

OULINE DRAWING
Maximum Ratings
Approx Net Weight:
5.5g
Rating Symbol
KSQ30A06
Unit
Repetitive Peak Reverse Voltage
V
RRM
60
V
Average Rectified Output Current
I
O
30
Tc=98
C
50 Hz half Sine Wave
Resistive Load
A
RMS Forward Current
I
F(RMS)
47.1
A
Surge Forward Current
I
FSM
400
50Hz Half Sine Wave ,1cycle
Non-repetitive
A
Operating JunctionTemperature Range
T
jw
-40 to +150
C
Storage Temperature Range
T
stg
-40 to +150
C
Mounting torque
Ftor
recommended torque = 0.5
Nm
Electrical
Thermal Characteristics
Characteristics Symbol
Conditions
Min.
Typ.
Max.
Unit
Peak Reverse Current
I
RM
Tj= 25
C, V
RM
= V
RRM
- - 25
mA
Peak Forward Voltage
V
FM
Tj= 25
C, I
FM
= 30 A
- -
0.67
V
Thermal Resistance Junction to Case
Rth(j-c) Junction to Case
-
-
1.3
C
/W
FEATURES
FEATURES
FEATURES
FEATURES
* Similar to TO-247AC(TO-3P)Case
* Low Forward Voltage Drop
* Low Power Loss,High Efficiency
* High Surge Current Capability
* 40 Volts thru 60 Volts Types Available
