NSVS680 Jul-03
Application
European keyless
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Maximum Rating: (Table 2)
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm
3
] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Table 1. Electrical Specifications
Item Spec.
Input and Output Impedance
50
Nominal Center Frequency (f0)
447 MHz
Insertion Loss
446~448MHz
3.0dB max.
Response Variation
446~448MHz
1.5dB max.
Input and Output VSWR
446~448MHz
2.5 max.
Out of Band Rejection
(Relative to Through Level)
425.3MHz 45dB
min.
(Operating Temperature Range: -20~+70C)
Table 2. Maximum Ratings
Item Rating
Maximum Input Power
+20dBm
Maximum DC Voltage
7.5V
Operating Temperature Range
-20~+70C
Storage Temperature
-30~+80C
JRC SAW FILTER
NSVS680
Communications and Device Group
Communications Equipment Marketing Department
10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,
Tokyo, 160-8328 Japan
Tel. +81 3-3348-3845
Fax. +81 3-3348-3935
http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)
http://www.jrc.co.jp/eng/product/comm/device/saw/saw_top_e.html (English)
NSVS680 Jul-03
Marking
(1) Manufacture's Mark
(2) Lot Number
(a)
Year
(b)
Month
*Oct.---
X
Nov.---
Y
Dec.---
Z
(3) Part number Mark
Pin no.
Connection
1 GND
2 IN/OUT
3 GND
4 GND
5 GND
6 OUT/IN
7 GND
8 GND
3.50.2
3.
5
0.
2
1.
0
0.
2
(0.95)
(0.8)
[5x]
(
2
.
54)
(
1
.
2
7
)
(0
.
6
)
[8
x
]
(0.6)
2
3
4
5
6
7
8
1
(1
.0
)
(3)
(2)
(b)
(a)
(1)
[2
x
]
Fig.1 Measuring circuit

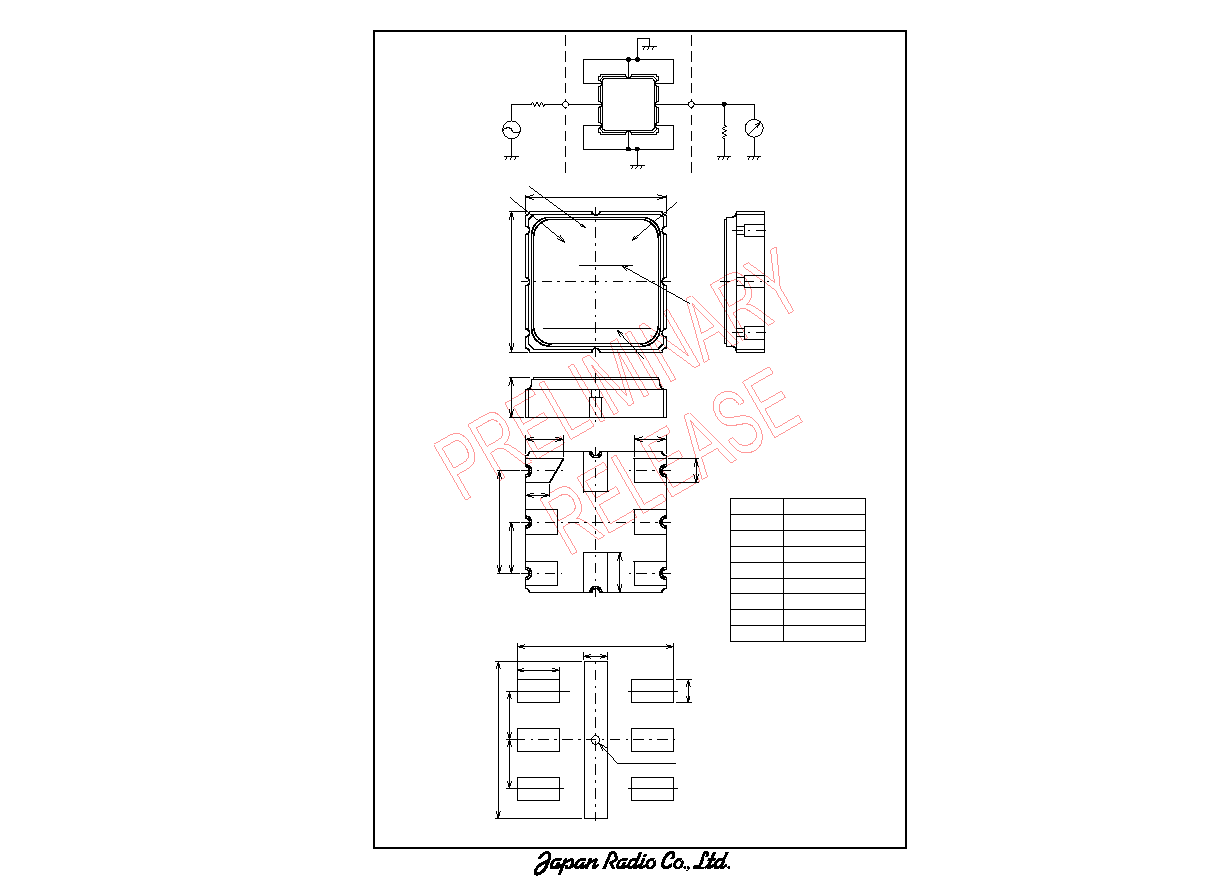

Fig.2 Package dimensions (in mm)
Fig.3 Desirable land area (in mm)
J17
HK
1
2
3
4
5
6
7
8
SAW
IN
50
OUT
50
Via-Hole(
0.3)
1.
27
1.
27
1.2
0.6
4.
3
4.3
0.
6
[6x]
[6
x
]
NSVS680 Jul-03
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -20C or more than +70C, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of soldering
iron: 350C max., the time of soldering: 10 seconds max., the power of
soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature of
this component goes down to room temperature.
5. Confirm that there are not any influence for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity to
this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
