NSVS783 Dec-01
Application
1575.42MHz GPS
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Maximum Rating: (Table 2)
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.0x3.0x1.15[mm
3
] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Table 1. Electrical Specifications
Item Spec.
Typical
Input and Output Impedance
-
50
Nominal Center Frequency (f0)
-
1575.42MHz
Insertion Loss
1574.42~1576.42MHz
3.5dB max.
3.0dB
Response Variation
1574.42~1576.42MHz
1.5dB max.
1.0dB
1475.42MHz 40dB
min. 45dB
1535.42MHz 30dB
min. 35dB
1615.42MHz 20dB
min. 28dB
Out of Band Rejection
(Relative to
Through Level)
1675.42MHz 40dB
min. 44dB
(Operating Temperature Range: -40~+85C)
Table 2. Maximum Ratings
Item Rating
Maximum Input Power
+20dBm
Maximum DC Voltage
7.5V
Operating Temperature Range
-40~+85C
Storage Temperature
-50~+100C
JRC SAW FILTER
NSVS783
Communications Equipment Division
Communications Equipment Marketing Department
17-22 Akasaka 2-chome minato-ku,
Tokyo. 107-0052 Japan
Tel. +81 3-3584-8811
Fax. +81 3-3584-8876
http://www.jrc.co.jp/product/comm/deveice/saw/saw_top.html (Japanese)
http://www.jrc.co.jp/product/comm/device/saw/saw_top_e.html (English)
NSVS783 Dec-01
Marking
(1) Manufacture's Mark
(2) Lot Number
(a)
Year
(b)
Month
*Oct.---
X
Nov.---
Y
Dec.---
Z
(3) Part number Mark
Pin no.
Connection
1 GND
2 IN,Unbalanced
3 GND
4 GND
5 OUT,Balanced
6 GND
7 OUT,Balanced
8 GND
(0
.
5
5
)
(0
.
6
)
[4
x
]
(0
.
5
3
)
[4
x
]
(0.75)
1
2
3
4
5
6
1.
1
5
0
.
1
5
3.00.15
3.
0
0.
1
5
(1)
(3)
(a)
(b)
(2)
7
(1
.
2
)
8
[6x]
Fig.1 Measuring circuit
Fig.2 Package dimensions (in mm)
Fig.3 Desirable land area (in mm)
JUB
18
1
2
3
4
5
6
7
8
SAW
0.
9
3
0.
6
0.
93
3.
8
1.15
0.6
1.15
3.8
Via-Hole(
0.3)
IN
50
OUT
50
NSVS783 Dec-01
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -40C or more than +85C, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of soldering
iron: 350C max., the time of soldering: 10 seconds max., the power of
soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature of
this component goes down to room temperature.
5. Confirm that there are not any influence for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity to
this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
NSVS783
GPS 1575.42MHz SAW FILTER

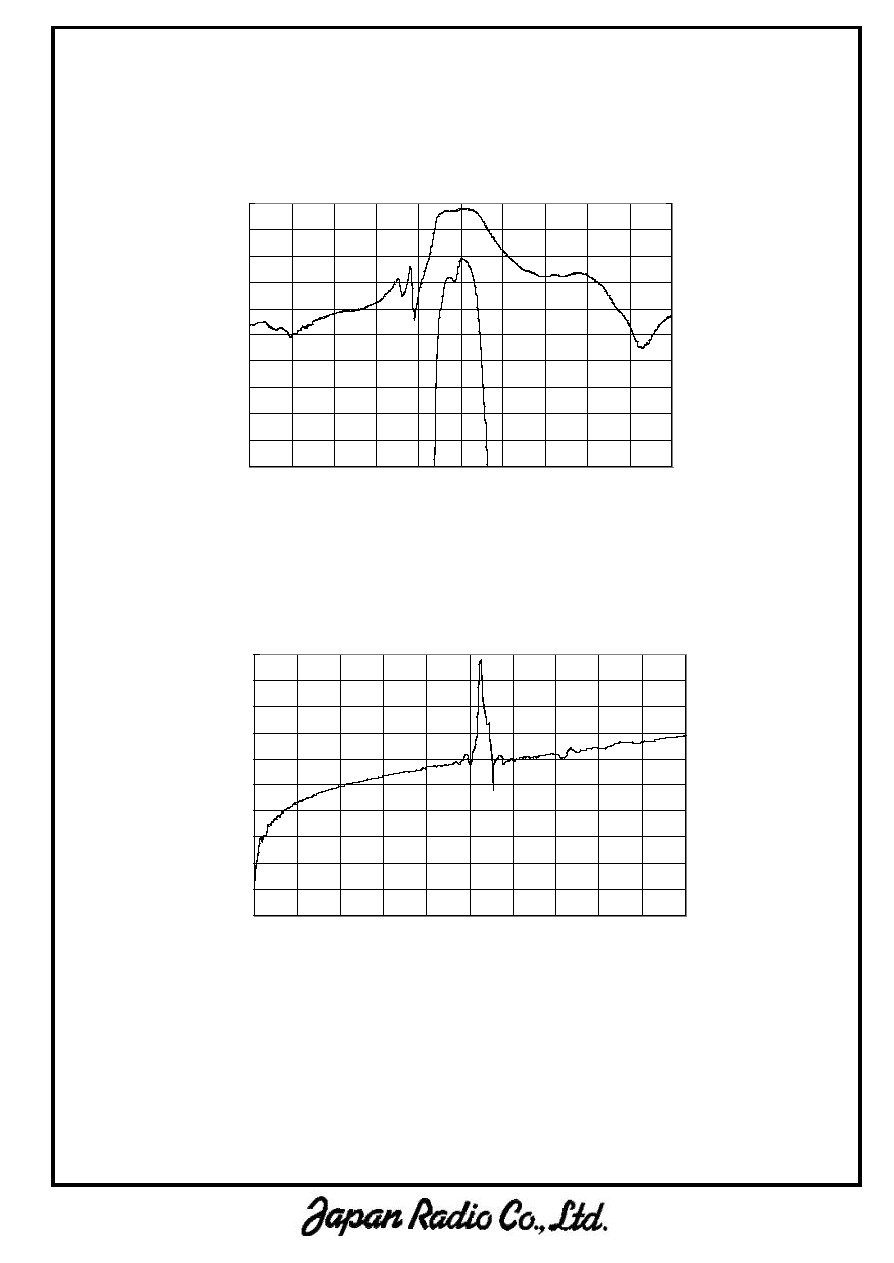

FREQUENCY CHARACTERISTICS
S21
0
10
20
30
40
50
60
70
80
90
100
0
300
600
900
1200 1500 1800 2100 2400 2700 3000
Frequency [MHz]
Insertion Loss [dB]
S21
0
10
20
30
40
50
60
70
80
90
100
1475.4
1575.4
1675.4
Frequency [MHz]
Insertion Loss [dB]
0
1
2
3
4
5
6
7
8
9
10
PDF
ZIP
