10 kHz to 18 GHz
OEM CALIBRATED
COAXIAL NOISE
SOURCES
General Specifications:
Noise output rise
Less than 1 s
and fall times
(NC3208K)
VSWR
Less than 3:1
Noise output variation Less than 0.01 dB/C
with temperature
Noise output variation Less than 0.1 dB/1%
V
with voltage
Operating
-55 to +85C
temperature
Storage temperature
-65 to +125C
Input power
+28 VDC
20 mA typical
Noise output
23 to 27 dB ENR
Specifications subject to change without notice.
Noise Com's
NC3200 Series
offers a high
ENR output over a wide frequency
range. These calibrated
noise sources have
excellent stability
with temperature
and voltage for
tough environ-
ments. The
compact package
is designed for severe
environments such as
military EW RWR systems.
Specials are available upon
request.
Applications:
Radar warning receivers (RWR)
Built-in test equipment (BITE)
Military aircraft
2 0
www.noisecom.com
nc3200 series
2 1
To order call 201-261-8797
NC3200 SERIES
COMPONENTS
OPTIONS
Option Number
Description
NC3Kopt01
+15 VDC input voltage
NC3Kopt02 MIL-STD-883
screening
HIGH NOISE OUTPUT IMPEDANCE-MATCHED TYPES
MODEL
FREQUENCY
NOISE OUTPUT
VSWR
CALIBRATION
I (max)
RANGE ENR
(dB)
FLATNESS(dB)
FREQUENCIES
(mA)
NC3201K
10 kHz - 1 GHz
23 - 27
1
3:1
10, 100, 500, and 1000 MHz
30
NC3208K
1 GHz - 18 GHz
23 - 27
1
3:1
1 GHz steps
30

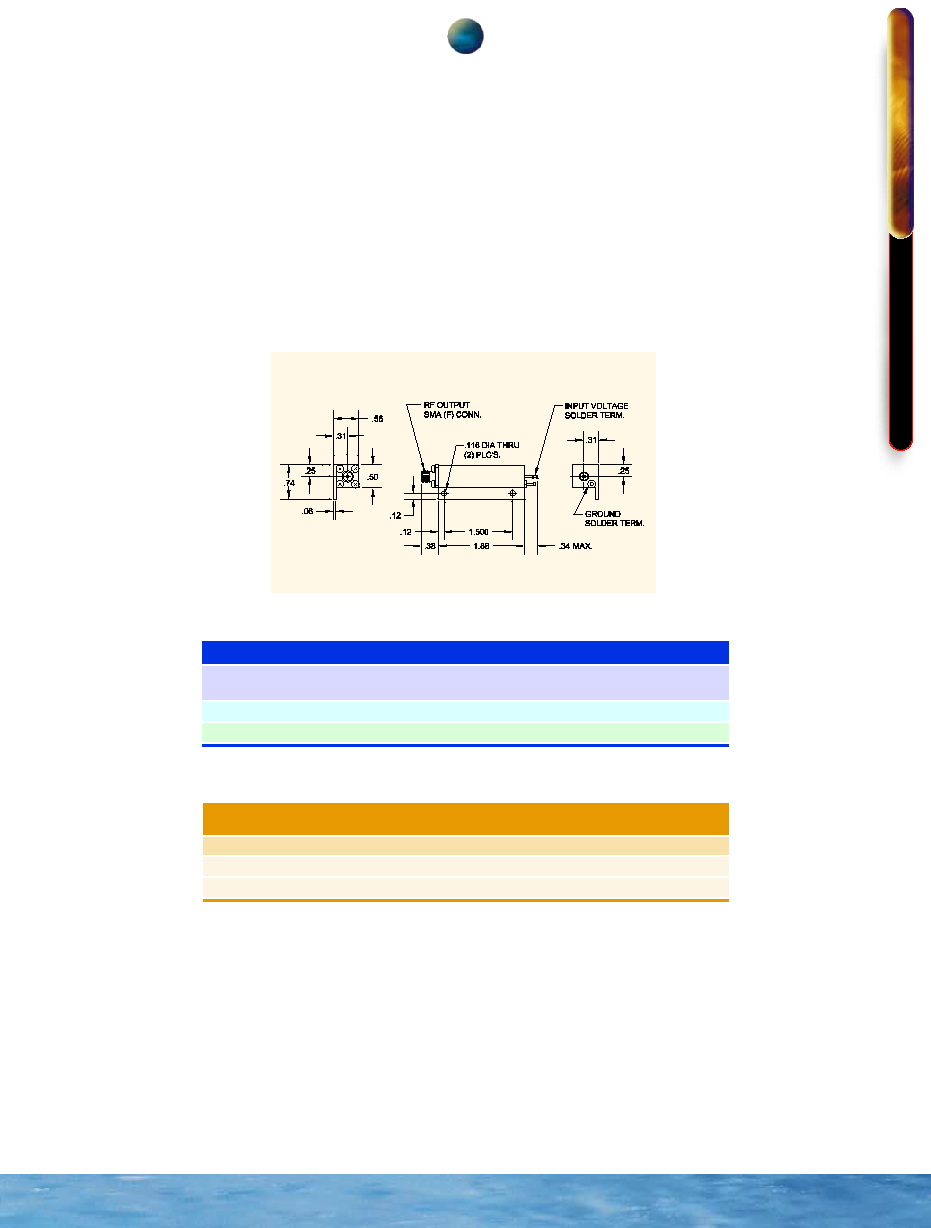

NC3200 Series K Package Dimensions (inches)
