DS90CF363
+3.3V LVDS Transmitter 18-Bit Flat Panel Display (FPD)
Link-- 65 MHz
General Description
The DS90CF363 transmitter converts 21 bits of CMOS/TTL
data into three LVDS (Low Voltage Differential Signaling)
data streams. A phase-locked transmit clock is transmitted in
parallel with the data streams over a fourth LVDS link. Every
cycle of the transmit clock 21 bits of input data are sampled
and transmitted. At a transmit clock frequency of 65 MHz, 18
bits of RGB data and 3 bits of LCD timing and control data
(FPLINE, FPFRAME, DRDY) are transmitted at a rate of 455
Mbps per LVDS data channel. Using a 65 MHz clock, the
data throughputs is 170 Mbytes/sec.
This chipset is an ideal means to solve EMI and cable size
problems associated with wide, high speed TTL interfaces.
Features
n
20 to 65 MHz shift clock support
n
Single 3.3V supply
n
Chipset (Tx + Rx) power consumption
<
250 mW (typ)
n
Power-down mode (
<
0.5 mW total)
n
Single pixel per clock XGA (1024x768) ready
n
Supports VGA, SVGA, XGA and higher addressability.
n
Up to 170 Megabytes/sec bandwidth
n
Up to 1.3 Gbps throughput
n
Narrow bus reduces cable size and cost
n
290 mV swing LVDS devices for low EMI
n
PLL requires no external components
n
Low profile 48-lead TSSOP package
n
Falling edge data strobe Transmitter
n
Compatible with TIA/EIA-644 LVDS standard
n
ESD rating
>
7 kV
n
Operating Temperature: -40C to +85C

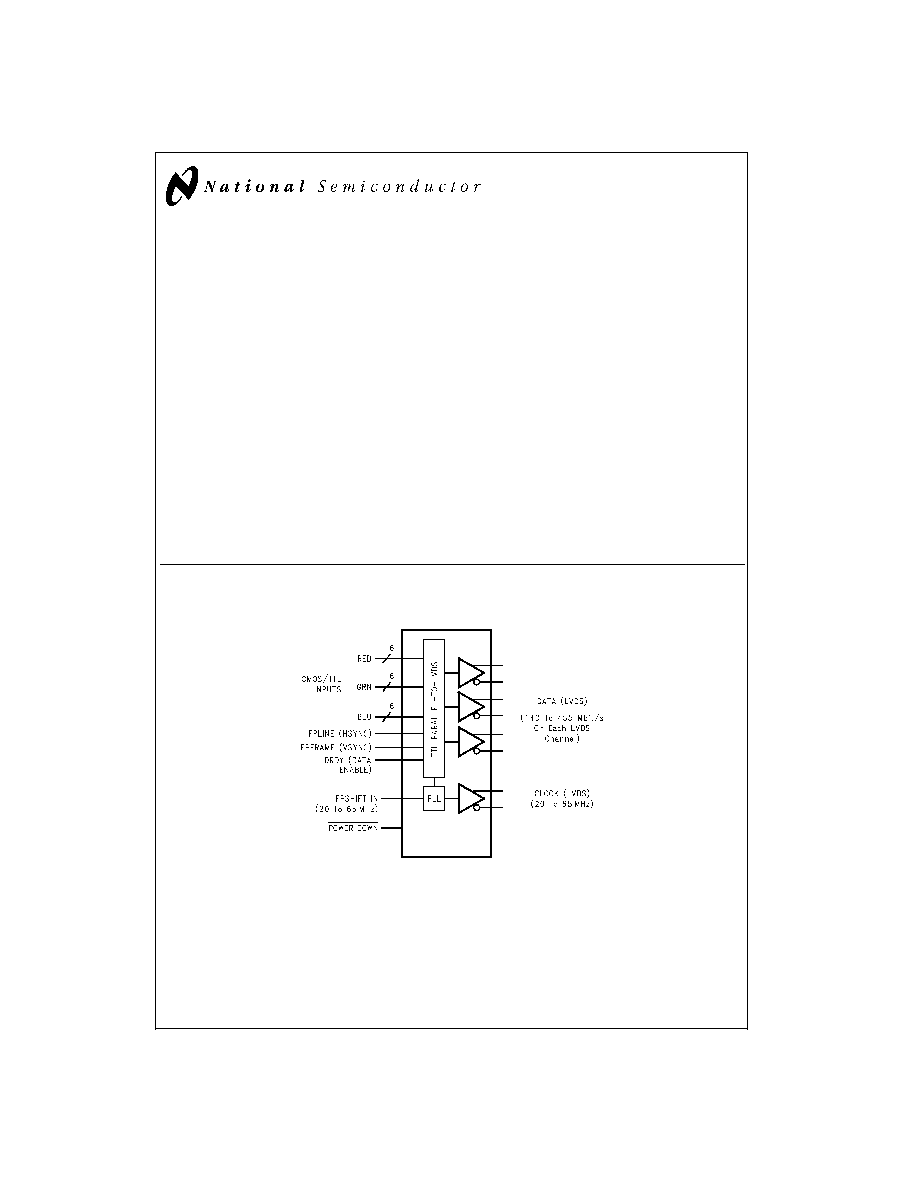

Block Diagram
TRI-STATE
is a registered trademark of National Semiconductor Corporation.
DS90CF363
DS100032-1
Order Number DS90CF363MTD
See NS Package Number MTD48
January 2000
DS90CF363
+3.3V
L
VDS
T
ransmitter
18-Bit
Flat
Panel
Display
(FPD)
Link
--
6
5
MHz
2000 National Semiconductor Corporation
DS100032
www.national.com
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
)
-0.3V to +4V
CMOS/TTL Input Voltage
-0.3V to (V
CC
+ 0.3V)
LVDS Driver Output Voltage
-0.3V to (V
CC
+ 0.3V)
LVDS Output Short Circuit
Duration
Continuous
Junction Temperature
+150C
Storage Temperature
-65C to +150C
Lead Temperature
(Soldering, 4 sec)
+260C
Maximum Package Power Dissipation Capacity
@
25C
MTD48 (TSSOP) Package:
DS90CF363
1.98 W
Package Derating:
DS90CF363
16 mW/C above +25C
ESD Rating
(HBM, 1.5 k
, 100 pF)
>
7 kV
Recommended Operating
Conditions
Min
Nom
Max
Units
Supply Voltage (V
CC
)
3.0
3.3
3.6
V
Operating Free Air
Temperature (T
A
)
-40
+25
+85
C
Receiver Input Range
0
2.4
V
Supply Noise Voltage (V
CC
)
100
mV
PP
Electrical Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Units
CMOS/TTL DC SPECIFICATIONS
V
IH
High Level Input Voltage
2.0
V
CC
V
V
IL
Low Level Input Voltage
GND
0.8
V
V
OH
High Level Output Voltage
I
OH
= -0.4 mA
2.7
3.3
V
V
OL
Low Level Output Voltage
I
OL
= 2 mA
0.1
0.3
V
V
CL
Input Clamp Voltage
I
CL
= -18 mA
-0.79
-1.5
V
I
IN
Input Current
V
IN
= V
CC
, GND, 2.5V or 0.4V
5.1
10
A
I
OS
Output Short Circuit Current
V
OUT
= 0V
-60
-120
mA
LVDS DC SPECIFICATIONS
V
OD
Differential Output Voltage
R
L
= 100
250
345
450
mV
V
OD
Change in V
OD
between
complimentary output states
35
mV
V
OS
Offset Voltage (Note 4)
1.125
1.25
1.375
V
V
OS
Change in V
OS
between
complimentary output states
35
mV
I
OS
Output Short Circuit Current
V
OUT
= 0V, R
L
= 100
-3.5
-5
mA
I
OZ
Output TRI-STATE
Current
Power Down = 0V,
V
OUT
= 0V or V
CC
1
10
A
V
TH
Differential Input High Threshold
V
CM
= +1.2V
+100
mV
V
TL
Differential Input Low Threshold
-100
mV
I
IN
Input Current
V
IN
= +2.4V, V
CC
= 3.6V
10
A
V
IN
= 0V, V
CC
= 3.6V
10
A
TRANSMITTER SUPPLY CURRENT
ICCTW
Transmitter Supply Current
Worst Case
R
L
= 100
,
C
L
= 5 pF,
Worst Case Pattern
(Figures 1, 3)
f = 32.5 MHz
31
45
mA
f = 37.5 MHz
32
50
mA
f = 65 MHz
42
55
mA
ICCTG
Transmitter Supply Current
16 Grayscale
R
L
= 100
,
C
L
= 5 pF,
16 Grayscale Pattern
(Figures 2, 3)
f = 32.5 MHz
23
35
mA
f = 37.5 MHz
28
40
mA
f = 65 MHz
31
45
mA
ICCTZ
Transmitter Supply Current
Power Down
Power Down = Low
Driver Outputs in TRI-STATE
under
Power Down Mode
10
55
A
Note 1: "Absolute Maximum Ratings" are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the device
should be operated at these limits. The tables of "Electrical Characteristics" specify conditions for device operation.
DS90CF363
www.national.com
2
Electrical Characteristics
(Continued)
Note 2: Typical values are given for V
CC
= 3.3V and T
A
= +25C.
Note 3: Current into device pins is defined as positive. Current out of device pins is defined as negative. Voltages are referenced to ground unless otherwise speci-
fied (except V
OD
and
V
OD
).
Note 4: V
OS
previously referred as V
CM
.
Transmitter Switching Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified
Symbol
Parameter
Min
Typ
Max
Units
LLHT
LVDS Low-to-High Transition Time
(Figure 3 )
0.75
1.5
ns
LHLT
LVDS High-to-Low Transition Time
(Figure 3 )
0.75
1.5
ns
TCIT
TxCLK IN Transition Time
(Figure 4 )
5
ns
TCCS
TxOUT Channel-to-Channel Skew
(Figure 5 )
250
ps
TPPos0
Transmitter Output Pulse Position for Bit 0
(Figure 12)
f = 65 MHz
-0.4
0
0.3
ps
TPPos1
Transmitter Output Pulse Position for Bit 1
1.8
2.2
2.5
ns
TPPos2
Transmitter Output Pulse Position for Bit 2
4.0
4.4
4.7
ns
TPPos3
Transmitter Output Pulse Position for Bit 3
6.2
6.6
6.9
ns
TPPos4
Transmitter Output Pulse Position for Bit 4
8.4
8.8
9.1
ns
TPPos5
Transmitter Output Pulse Position for Bit 5
10.6
11.0
11.3
ns
TPPos6
Transmitter Output Pulse Position for Bit 6
12.8
13.2
13.5
ns
TCIP
TxCLK IN Period
(Figure 6)
15
T
50
ns
TCIH
TxCLK IN High Time
(Figure 6)
0.35T
0.5T
0.65T
ns
TCIL
TxCLK IN Low Time
(Figure 6)
0.35T
0.5T
0.65T
ns
TSTC
TxIN Setup to TxCLK IN
(Figure 6)
f = 65 MHz
2.5
ns
THTC
TxIN Hold to TxCLK IN
(Figure 6)
0
ns
TCCD
TxCLK IN to TxCLK OUT Delay 25C, V
CC
= 3.3V
(Figure 7 )
3
5.5
ns
TPLLS
Transmitter Phase Lock Loop Set
(Figure 8 )
10
ms
TPDD
Transmitter Power Down Delay
(Figure 11)
100
ns

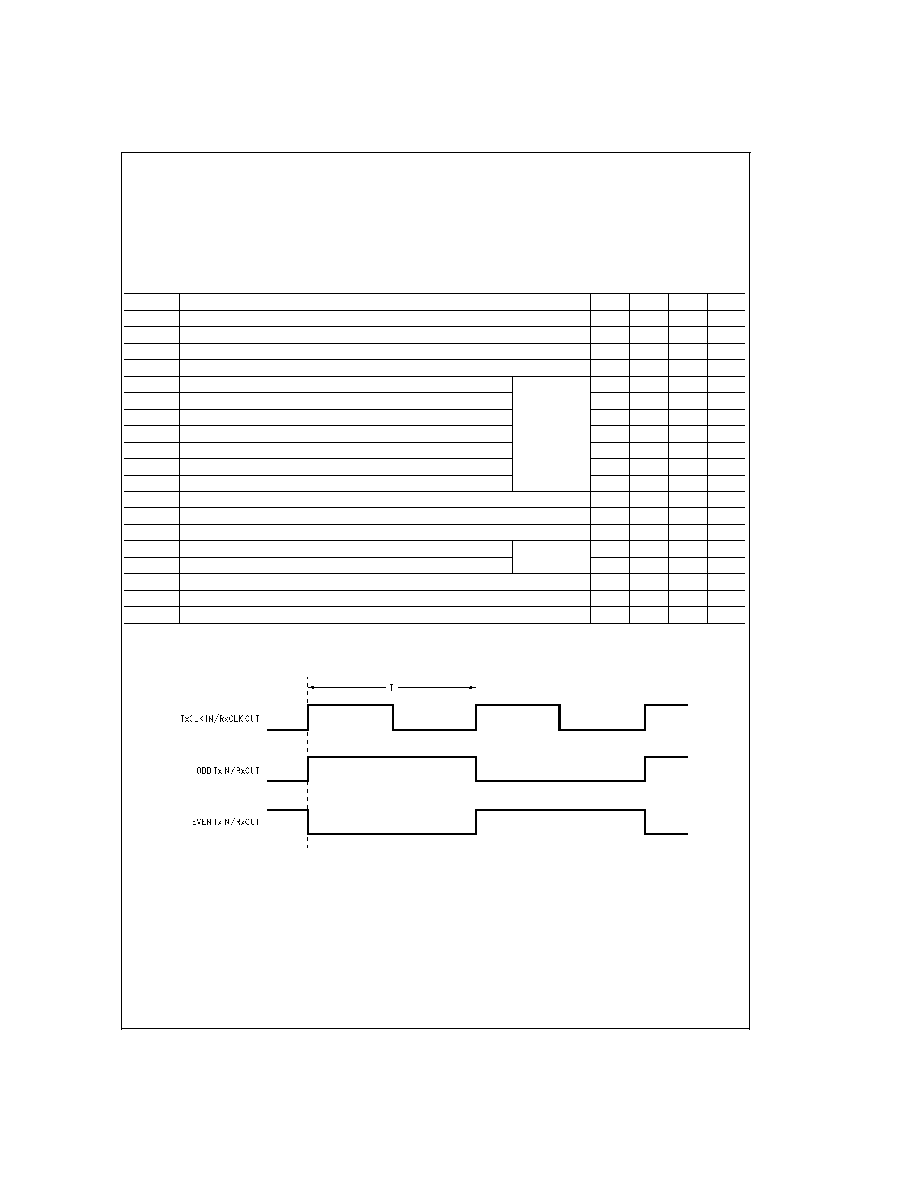

AC Timing Diagrams
DS100032-4
FIGURE 1. "Worst Case" Test Pattern
DS90CF363
www.national.com
3

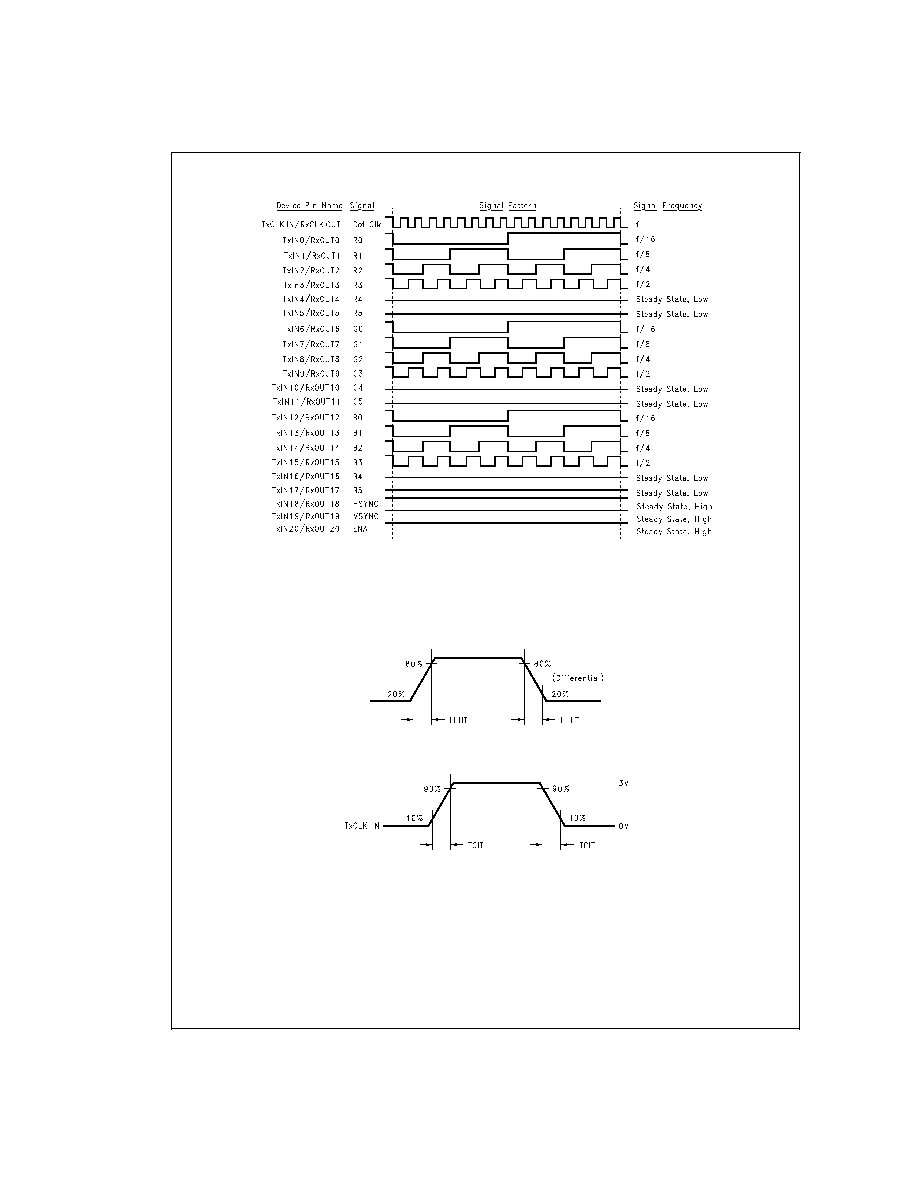

AC Timing Diagrams
(Continued)
Note 5: The worst case test pattern produces a maximum toggling of digital circuits, LVDS I/O and CMOS/TTL I/O.
Note 6: The 16 grayscale test pattern tests device power consumption for a "typical" LCD display pattern. The test pattern approximates signal switching needed
to produce groups of 16 vertical stripes across the display.
Note 7:
Figures 1, 2 show a falling edge data strobe (TxCLK IN/RxCLK OUT).
Note 8: Recommended pin to signal mapping. Customer may choose to define differently.
DS100032-5
FIGURE 2. "16 Grayscale" Test Pattern (Notes 5, 6, 7, 8)
DS100032-6
FIGURE 3. DS90CF363 (Transmitter) LVDS Output Load and Transition Times
DS100032-8
FIGURE 4. DS90CF363 (Transmitter) Input Clock Transition Time
DS90CF363
www.national.com
4

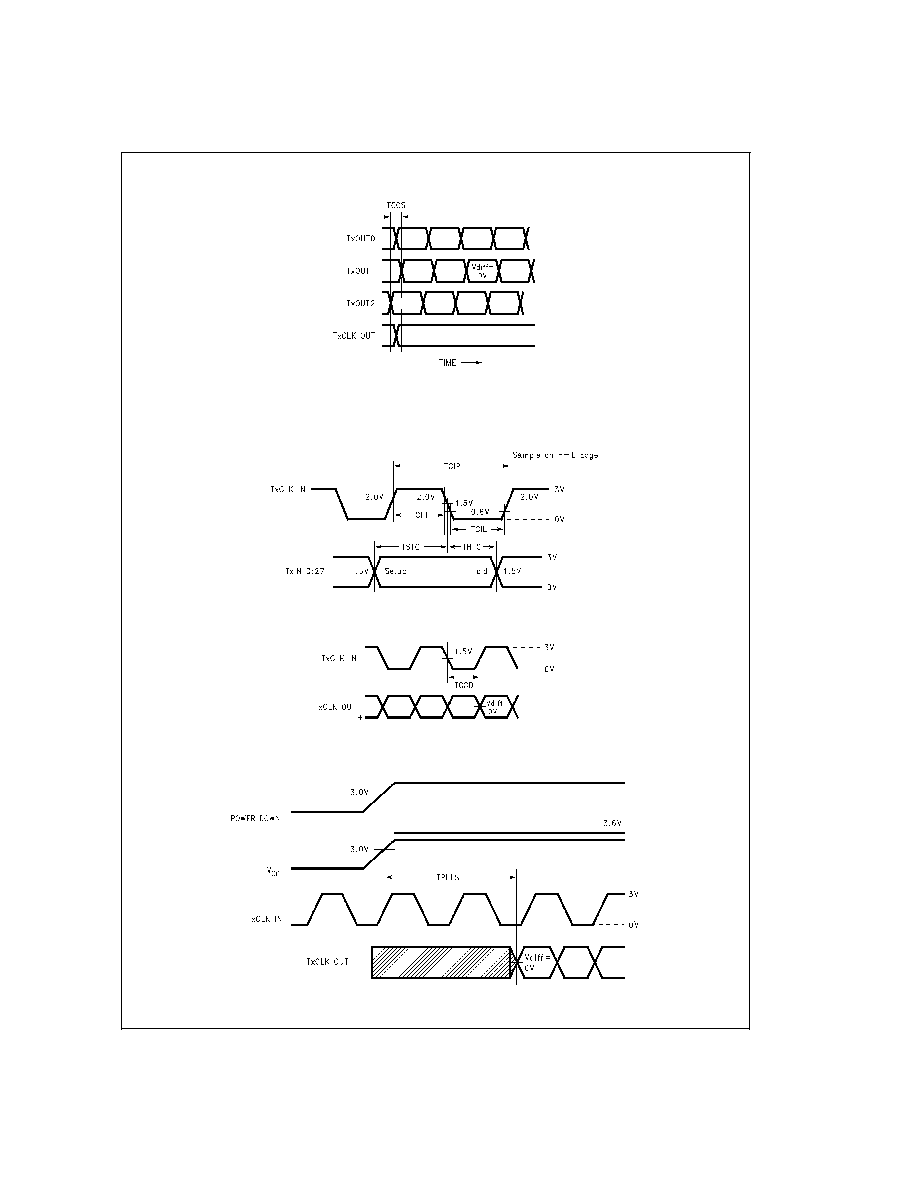

AC Timing Diagrams
(Continued)
DS100032-9
Measurements at V
diff
= 0V
TCCS measured between earliest and latest LVDS edges
TxCLK Differential Low
High Edge
FIGURE 5. DS90CF363 (Transmitter) Channel-to-Channel Skew
DS100032-10
FIGURE 6. DS90CF363 (Transmitter) Setup/Hold and High/Low Times
DS100032-12
FIGURE 7. DS90CF363 (Transmitter) Clock In to Clock Out Delay
DS100032-14
FIGURE 8. DS90CF363 (Transmitter) Phase Lock Loop Set Time
DS90CF363
www.national.com
5
