LM2733
0.6/1.6 MHz Boost Converters With 40V Internal FET
Switch in SOT-23
General Description
The LM2733 switching regulators are current-mode boost
converters operating fixed frequency of 1.6 MHz ("X" option)
and 600 kHz ("Y" option).
The use of SOT-23 package, made possible by the minimal
power loss of the internal 1A switch, and use of small induc-
tors and capacitors result in the industry's highest power
density. The 40V internal switch makes these solutions per-
fect for boosting to voltages of 16V or greater.
These parts have a logic-level shutdown pin that can be
used to reduce quiescent current and extend battery life.
Protection is provided through cycle-by-cycle current limiting
and thermal shutdown. Internal compensation simplifies de-
sign and reduces component count.
Switch Frequency
X
Y
1.6 MHz
0.6 MHz
Features
n
40V DMOS FET switch
n
1.6 MHz ("X"), 0.6 MHz ("Y") switching frequency
n
Low R
DS
(ON) DMOS FET
n
Switch current up to 1A
n
Wide input voltage range (2.7V14V)
n
Low shutdown current (
<
1 A)
n
5-Lead SOT-23 package
n
Uses tiny capacitors and inductors
n
Cycle-by-cycle current limiting
n
Internally compensated
Applications
n
White LED Current Source
n
PDA's and Palm-Top Computers
n
Digital Cameras
n
Portable Phones and Games
n
Local Boost Regulator
Typical Application Circuit
20055424
20055457
20055401
20055458
February 2003
LM2733
0.6/1.6
MHz
Boost
Converters
W
ith
40V
Internal
FET
Switch
in
SOT
-23
2003 National Semiconductor Corporation
DS200554
www.national.com

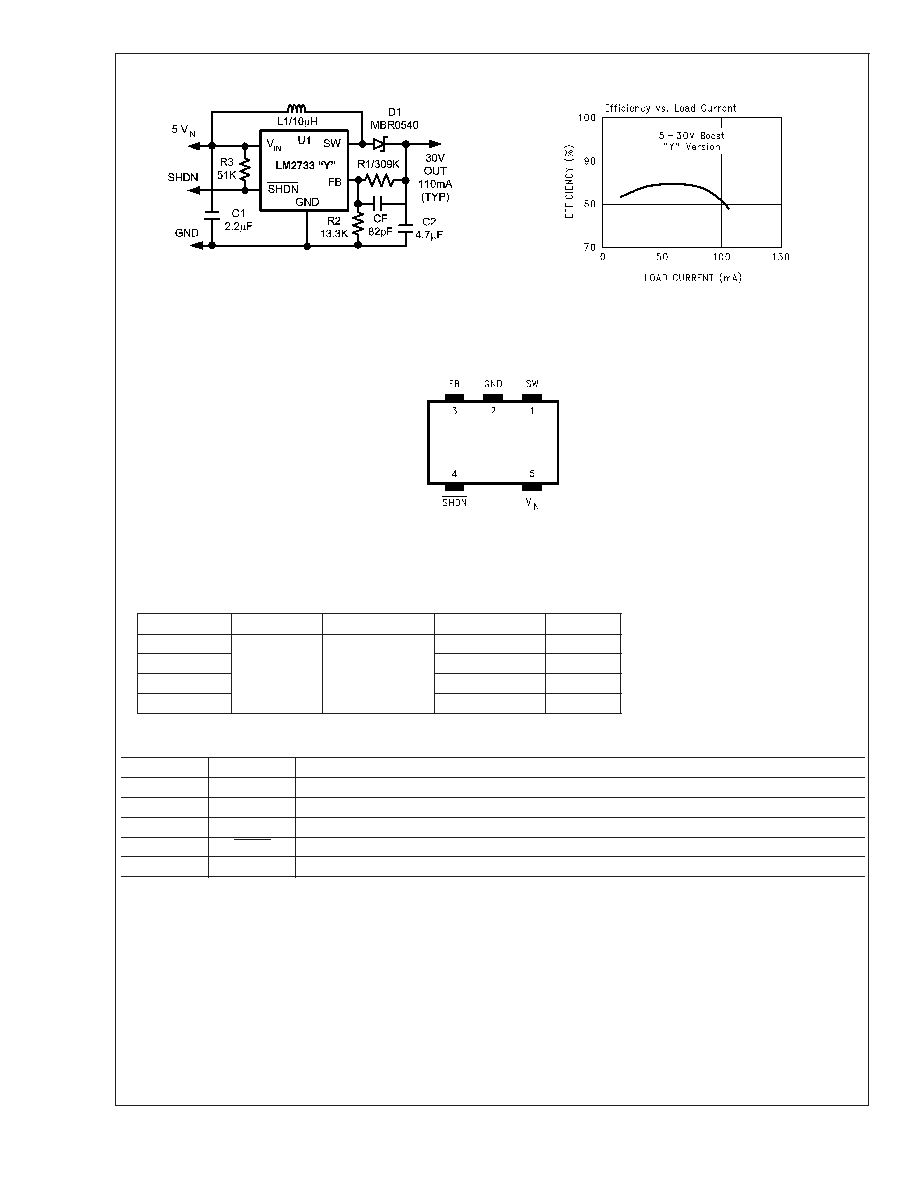

Typical Application Circuit
(Continued)
20055440
20055459
Connection Diagram
Top View
20055402
5-Lead SOT-23 Package
See NS Package Number MF05A
Ordering Information
Order Number Package Type Package Drawing
Supplied As
Package ID
LM2733XMF
SOT23-5
MF05A
1K Tape and Reel
S52A
LM2733XMFX
3K Tape and Reel
S52A
LM2733YMF
1K Tape and Reel
S52B
LM2733YMFX
3K Tape and Reel
S52B
Pin Description
Pin
Name
Function
1
SW
Drain of the internal FET switch.
2
GND
Analog and power ground.
3
FB
Feedback point that connects to external resistive divider.
4
SHDN
Shutdown control input. Connect to V
IN
if this feature is not used.
5
V
IN
Analog and power input.
LM2733
www.national.com
2
Block Diagram
20055403
Theory of Operation
The LM2733 is a switching converter IC that operates at a
fixed frequency (0.6 or 1.6 MHz) using current-mode control
for fast transient response over a wide input voltage range
and incorporate pulse-by-pulse current limiting protection.
Because this is current mode control, a 50 m
sense resis-
tor in series with the switch FET is used to provide a voltage
(which is proportional to the FET current) to both the input of
the pulse width modulation (PWM) comparator and the cur-
rent limit amplifier.
At the beginning of each cycle, the S-R latch turns on the
FET. As the current through the FET increases, a voltage
(proportional to this current) is summed with the ramp com-
ing from the ramp generator and then fed into the input of the
PWM comparator. When this voltage exceeds the voltage on
the other input (coming from the Gm amplifier), the latch
resets and turns the FET off. Since the signal coming from
the Gm amplifier is derived from the feedback (which
samples the voltage at the output), the action of the PWM
comparator constantly sets the correct peak current through
the FET to keep the output volatge in regulation.
Q1 and Q2 along with R3 - R6 form a bandgap voltage
reference used by the IC to hold the output in regulation. The
currents flowing through Q1 and Q2 will be equal, and the
feedback loop will adjust the regulated output to maintain
this. Because of this, the regulated output is always main-
tained at a voltage level equal to the voltage at the FB node
"multiplied up" by the ratio of the output resistive divider.
The current limit comparator feeds directly into the flip-flop,
that drives the switch FET. If the FET current reaches the
limit threshold, the FET is turned off and the cycle terminated
until the next clock pulse. The current limit input terminates
the pulse regardless of the status of the output of the PWM
comparator.
LM2733
www.national.com
3
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Storage Temperature Range
-65C to +150C
Operating Junction
Temperature Range
-40C to +125C
Lead Temp. (Soldering, 5 sec.)
300C
Power Dissipation (Note 2)
Internally Limited
FB Pin Voltage
-0.4V to +6V
SW Pin Voltage
-0.4V to +40V
Input Supply Voltage
-0.4V to +14.5V
Shutdown Input Voltage
(Survival)
-0.4V to +14.5V
J-A
(SOT23-5)
265C/W
ESD Rating (Note 3)
Human Body Model
Machine Model
2 kV
200V
Electrical Characteristics
Limits in standard typeface are for T
J
= 25C, and limits in boldface type apply over the full operating temperature range
(-40C
T
J
+125C). Unless otherwise specified: V
IN
= 5V, V
SHDN
= 5V, I
L
= 0A.
Symbol
Parameter
Conditions
Min
(Note 4)
Typical
(Note 5)
Max
(Note 4)
Units
V
IN
Input Voltage
2.7
14
V
I
SW
Switch Current Limit
(Note 6)
1.0
1.5
A
R
DS
(ON)
Switch ON Resistance
I
SW
= 100 mA
500
650
m
SHDN
TH
Shutdown Threshold
Device ON
1.5
V
Device OFF
0.50
I
SHDN
Shutdown Pin Bias Current
V
SHDN
= 0
0
A
V
SHDN
= 5V
0
2
V
FB
Feedback Pin Reference
Voltage
V
IN
= 3V
1.205
1.230
1.255
V
I
FB
Feedback Pin Bias Current
V
FB
= 1.23V
60
nA
I
Q
Quiescent Current
V
SHDN
= 5V, Switching "X"
2.1
3.0
mA
V
SHDN
= 5V, Switching "Y"
1.1
2
V
SHDN
= 5V, Not Switching
400
500
A
V
SHDN
= 0
0.024
1
FB Voltage Line Regulation
2.7V
V
IN
14V
0.02
%/V
F
SW
Switching Frequency
"X" Option
1.15
1.6
1.85
MHz
"Y" Option
0.40
0.60
0.8
D
MAX
Maximum Duty Cycle
"X" Option
87
93
%
"Y" Option
93
96
I
L
Switch Leakage
Not Switching V
SW
= 5V
1
A
Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the component may occur. Electrical specifications do not apply when operating the
device outside of the limits set forth under the operating ratings which specify the intended range of operating conditions.
Note 2: The maximum power dissipation which can be safely dissipated for any application is a function of the maximum junction temperature, T
J
(MAX) = 125C,
the junction-to-ambient thermal resistance for the SOT-23 package,
J-A
= 265C/W, and the ambient temperature, T
A
. The maximum allowable power dissipation
at any ambient temperature for designs using this device can be calculated using the formula:
If power dissipation exceeds the maximum specified above, the internal thermal protection circuitry will protect the device by reducing the output voltage as required
to maintain a safe junction temperature.
Note 3: The human body model is a 100 pF capacitor discharged through a 1.5 k
resistor into each pin. The machine model is a 200 pF capacitor discharged
directly into each pin.
Note 4: Limits are guaranteed by testing, statistical correlation, or design.
Note 5: Typical values are derived from the mean value of a large quantity of samples tested during characterization and represent the most likely expected value
of the parameter at room temperature.
Note 6: Switch current limit is dependent on duty cycle (see Typical Performance Characteristics). Limits shown are for duty cycles
50%.
LM2733
www.national.com
4
Typical Performance Characteristics
Unless otherwise specified: V
IN
= 5V, SHDN pin is tied to V
IN
.
Iq V
IN
(Active) vs Temperature - "X"
Iq V
IN
(Active) vs Temperature - "Y"
20055410
20055442
Oscillator Frequency vs Temperature - "X"
Oscillator Frequency vs Temperature - "Y"
20055408
20055443
Max. Duty Cycle vs Temperature - "X"
Max. Duty Cycle vs Temperature - "Y"
20055455
20055456
LM2733
www.national.com
5
