OL5300N-03
Surface Mount Laser Diode Module
(1550 nm, 0.3 mW)
November 1999
O K I L A S E R P R O D U C T S
D
ATA
S
HEET
s
s
Oki Semiconductor
1
Oki Semiconductor
OL5300N-03 Laser Diode Module
Surface Mount LD Module for Single-Mode Fiber
INTRODUCTION
Oki Semiconductor's OL5300N-03 surface mount laser diode module feature a 1.5-m, InGaAsP/InP
laser diode providing 1550-nm output at 0.3 mW. These low-cost laser diodes is available in an 8-pin
Mini-Dil package, has a built-in monitor photodiode, and is coupled to a single-mode fiber pigtail.
FEATURES
InGaAsP/InP laser diode
Fiber output: 1550-nm output at 0.3 mW
1.5-m technology
Single-mode fiber
8-pin Mini-Dil package
Includes a photodiode for power monitoring
APPLICATION
Optical transmission systems
Digital video systems
LAN systems
Optical measurement / OTDRs
s
OL5300N-03 Laser Diode Module
s
2
Oki Semiconductor
ELECTRICAL CHARACTERISTICS
Exceeding these maximum ratings could cause immediate damage or lead to permanent deterioration of the device.
Absolute Maximum Ratings (ambient temperature Ta=25C unless otherwise noted)
Parameter
Symbol
Ratings
Units
Fiber Output Power
Pf
2
mW
Laser diode reverse voltage
V
R(LD)
2
V
Photo diode forward current
I
F(PD)
10
mA
Photo diode forward voltage
V
F(PD)
15
V
Operating Temperature (Ta)
Topr
-40 to +85
C
Storage Temperature
Tstg
-40 to +85
C
Lead Soldering Temperature (1O sec)
Tsol
260
C
Optical and Electrical Characteristics
(Ta=25C)
Parameter
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Fiber output power
Pf
CW
0.3
-
-
mW
Threshold current
Ith
-
-
-
40
mA
Laser diode forward voltage
V
OP(LD)
Pf =0.3 mW
---
---
1.5
V
Center wavelength
c
Pf =0.3 mW, RMS
Ta=40 to 65C
1430
1550
1570
nm
RMS Spectral width
Pf =1 mW, RMS (
)
5
nm
Tracking error
TER
Im=constant@
Pf =0.3 mW (25C)
1.5
dB
Rise and fall time
10 to 90 %
0.5
ns
Monitor current
Im
Pf =0.3 mW
100
600
uA
Fiber Pigtail Specifications
Parameter
Specifications
Units
Type
SM
---
Mode Field Diameter
10 +/-1
m
Cladding Diameter
125 +/-2
m
Jacket Diameter
900
m
Length
1.0 (Minimum)
m
Connector
FC
---
Connector and Fiber Specifications
Connector
FC-PC, SC-PC, MUJ-PC etc
Fiber
1.31-m single-mode fiber
Bending Radius: 20 mm (minimum)
Diameter: 0.9 mm
Heat resistant
Color: Dark blue
Length: Options (contact Oki Semiconductor)
s
OL5300N-03 Laser Diode Module
s
3
Oki Semiconductor

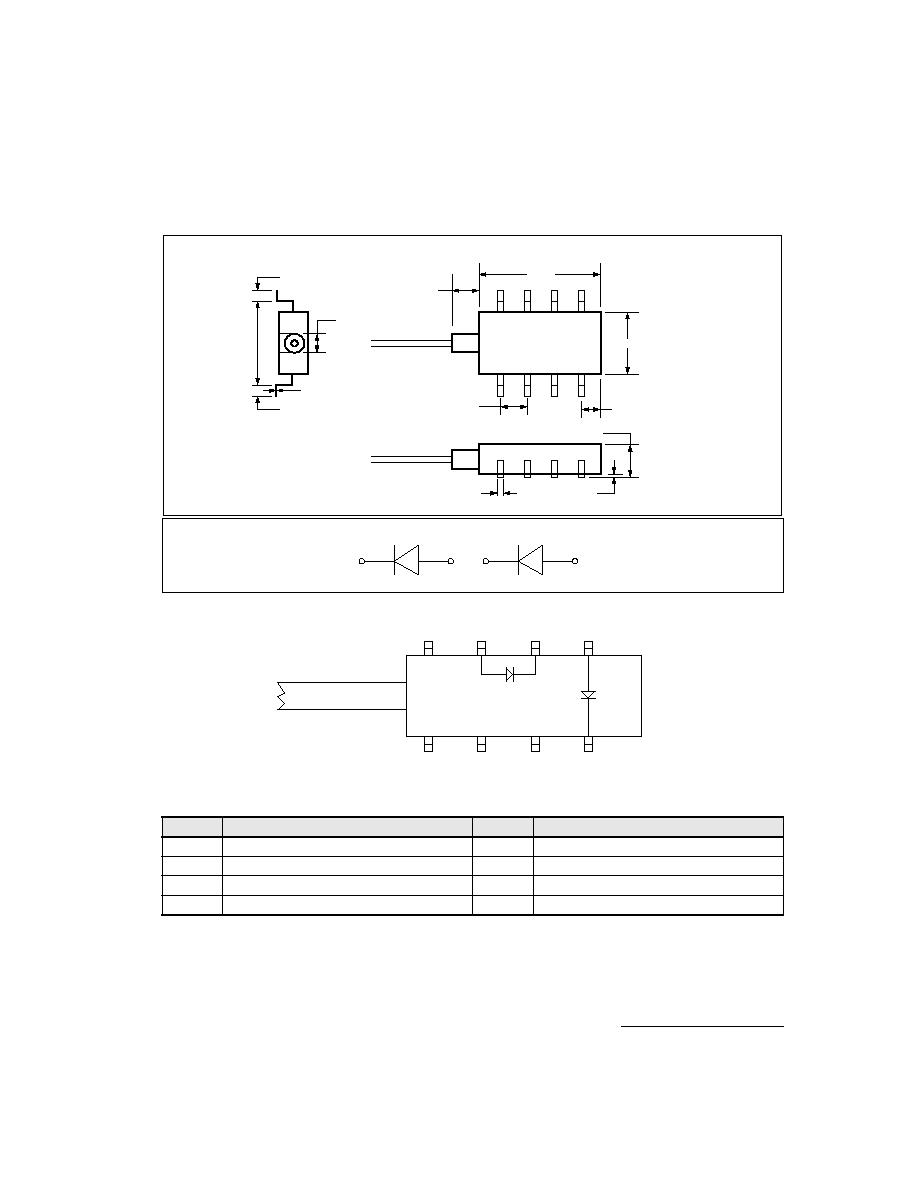

PACKAGE DIMENSIONS (UNITS: MM)
Pin Configuration
Pin Mo.
Description
Pin No.
Description
01
Case Ground
05
PD Anode
02
Case Ground
06
LD Cathode
03
Case Ground
07
LD Anode
04
PD Cathode
08
Case Ground
7.62
1.0
1.0
0.25
1.8
2.54 Typ
1.75
11.20
2.50
5.60
1
4
5
8
3.0 Max
0.17
0.46 Typ
All dimensions in millimeters (Typical)
(TOP VIEW)
Photo Diode
Laser Diode
4
5
6
7
PD
CASE
#8
#1
FIBER
LEAD CONNECTIONS (TOP VIEW)
CASE
CASE
#2
#3
#4
#5
#7
#6
CASE
LD
