JOG-01015
OKI Electronics Components
Rev. 1 [10. 2002]
OL5413L
Preliminary
Transmitter optical sub-assembly for SFP/SFF
Drawing No: JOG-01015
OL5413L
- 1 -
Oki Electric Industry Co., Ltd.
1.DESCRIPTION
The OL5413L consists of a1.55
m MQW-DFB laser diode, a monitor PD, a single-stage
optical isolator, a single-mode fiber-stub, a split sleeve for the optical connector with
1.25 mm
ferrule
and a coaxial package.
This module is a transmitter optical sub-assembly for 2.5Gbit/s transmission with high power at high
temperature.


2. FEATURES

Fiber output power: Pf=1.1mW
Multi-quantum-well (MQW) DFB structure
Includes monitor PD for power control
Coaxial Package
Wide operation range: Ta=0 to +85
C
Side mode suppression: 32dB



3. APPLICATION

STM-16 (40km)
OC-48 (40km)















JOG-01015
OKI Electronics Components
OL5413L
Drawing No: JOG-01015
OL5413L
- 2 -
Oki Electric Industry Co., Ltd.
4.OPTICAL AND ELECTRICAL CHARACTERISTICS
(Ta = 0 to +85C, unless otherwise specified)
Parameter
Symbol
Test Conditions
Min.
Typ.
Max.
Unit
Fiber Output Power
Pf
CW
1.1
mW
Ta=+25C,CW
15
Threshold Current
Ith
Ta=+85C,CW
60
mA
Operation Current
Iop
Pf=1.1mW,CW
90
mA
Slope efficiency
Pf=1.1mW,CW,Ta=+25C
0.035
W/A
Peak Wavelength
p
Pf= 1.1mW,CW
1500
1580
nm
Spectral Wideth
Pf=1.1mW,CW, -20dB
0.5
nm
Side-mode suppression ratio
SMSR
Pf=1.1mW,CW
32
dB
Pf=1.1mW,CW,Ta=+25C
1.3
LD Forward Voltage
Vf
Pf=1.1mW,CW
1.6
V
Rise/Fall times
Tr/Tf
P
peak
=1.1
mW
0.15
ns
Monitor Current
Im
Pf=1.1mW,CW
VRD=1.5V,Ta=+25C
120
2200
A
Photodiode Dark Current
Id
VRD=1.5V,Ta=+25C
20
nA
Photodiode Capacitance
Ct
VRD=1.5V,
f=1MHz,Ta=+25C
10
pF
Tracking Error
TRE
(RT to WCT)
-1
+1
dB
Connector repetability
-
master pigtail
-0.5
+0.5
dB



5.ABSOLUTE MAXIMUM RATING
(Ta = +25C, unless otherwise specified)
Parameter
Symbol
Rating
Unit
Fiber Output Power
Pf
5
mW
LD Reverse Voltage
V
R
2
V
Monitor PD Forward Current
I
F
10
mA
Monitor PD Reverse Current
I
R
2
mA
Monitor PD Reverse Voltage
V
R
30
V
Operating Ambient Temperature (Ta)
Ta
0 to +85
C
Storage Temperature
Tstg
-40 to +85
C
Lead Soldering Temperature (10s)
-
260
C



JOG-01015
OKI Electronics Components
OL5413L
Drawing No: JOG-01015
OL5413L
- 3 -
Oki Electric Industry Co., Ltd.

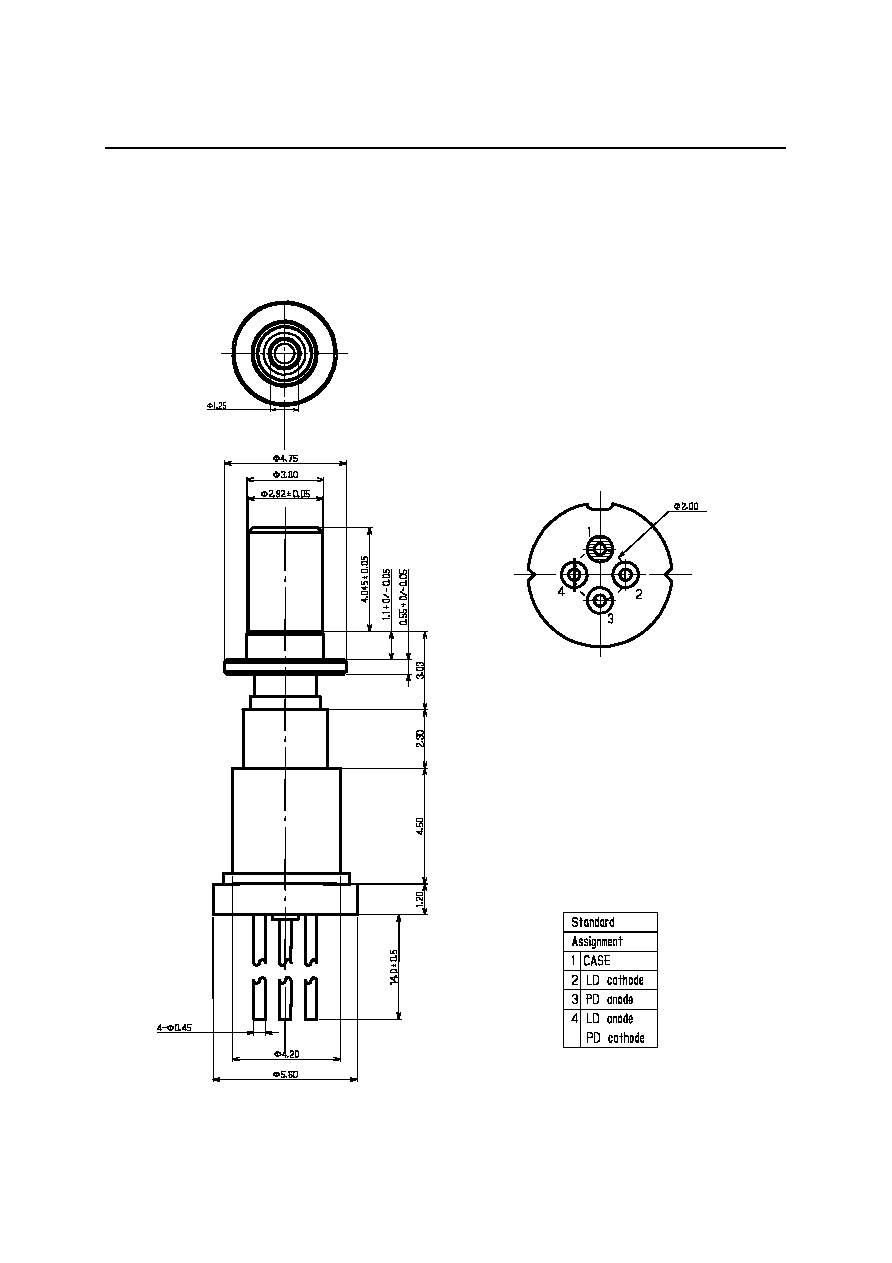

6.OUTLINE DRAWING
All dimensions in millimeters
Package No. (Unit: mm)











































Bottom view
ORP
ORP: Optical reference plane
JOG-01015
OKI Electronics Components
OL5413L
Drawing No: JOG-01015
OL5413L
- 4 -
Oki Electric Industry Co., Ltd.
7. SAFETY INFORMATION ON THIS PRODUCT
Warning
Laser Beam
A laser beam is emitted from this laser diode during operation.
The invisible or visible laser beam, directly or indirectly, may cause injury to
the eye
or loss of eyesight.
Do not look directly into the laser beam.
Avoid exposure to the laser beam, any reflected or collimated beam.
Caution
GaAs
Product
The product contains gallium arsenide, GaAs.
GaAs vapor and powder are hazardous to human health if inhaled, ingested or
swallowed.
Do not destory or burn the product.
Do not crush or chemically dissolve the product.
Do not put the product in the mouth.
Observe related laws and company regulations when discarding this product.
The product should be excluded from general industrial waste or household
garbage.
Caution
Optical Fiber
A glass-fiber is attached on the product. Handle with care.
When the fiber is broken or damaged, handle carefully to avoid injury from
the damaged part or fragments.
All specifications described herein are subject to change without notice.



Copyright 2002 Oki Electric Industry Co., Ltd
