PCB Relay G5J
Ideal for Microwave Oven Magnetrons
and Heater Switching
Dual tab/PCB terminals.
Small, space-saving bottom surface area..
High impulse withstand voltage: 10 kV
Ordering Information
Enclosure rating
Contact form
Model
Unsealed
SPST-NO
G5J-1-TP-M
Rated coil voltage
Note: When ordering, add the rated coil voltage to the model number.
Example: G5J-1-TP-M 12 VDC
Model Number Legend:
G5J - - -
1
2
3
4
1.
Number of Poles
1: 1 pole (SPST-NO contact)
2.
Terminals
TP: Relays with #187, Tab/PCB
3.
Others
M: Standard
4.
Rated Coil Voltage
12, 18, 24 VDC
Specifications
Coil Ratings
Rated voltage
12 VDC
18 VDC
24 VDC
Rated current
58.3 mA
38.9 mA
29.2 mA
Coil resistance
206
463
822
Must operate voltage
70% max. of rated voltage
Must release voltage
10% min. of rated voltage
Maximum voltage
110% of rated voltage
Power consumption
Approx. 700 mW
Back
G5J
G5J
2
Contact Ratings
Rated load
16 A at 250 VAC/30 VDC (cos
= 1)
Rated carry current
16 A
Max. switching voltage
250 VAC; 30 VDC
Note:
1. The rated current and coil resistance are measured at a coil temperature of 23
C with a tolerance of
10%.
2.
=
indicates DC (IEC 417 publications).
Characteristics
Contact resistance
30 m
max.
Operate time
20 ms max.
Release time
5 ms max.
Insulation resistance
1,000 M
min. (at 500 VDC)
Dielectric strength
4,000 VAC between coil and contacts (1 min.)
1,000 VAC between contacts of same pole (1 min.)
Impulse withstand voltage
10 kV (1.2 x 50
s) between coil and contacts
Vibration resistance
Destruction: 10 to 55 Hz, 1.5-mm double amplitude
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance
Destruction: 1,000 m/s
2
Malfunction: 150 m/s
2
Life expectancy
Mechanical: 2,000,000 operations min. (18,000 operations/hr)
Electrical:
100,000 operations min. (1,800 operations/hr)
Ambient temperature
Operating: 25
C to 70
C (with no icing)
Ambient humidity
45% to 85%
Weight
Approx. 22.5 g
Approved by Standards
UL508 (File No. E41643)
Coil ratings
Contact ratings
5 to 48 VDC
16 A 250 VAC
16 A 30 VDC
1/2 HP 125 VAC
1 HP 250 VAC
CSA C22.2 No. 14 (File No. LR31928)
Coil ratings
Contact ratings
5 to 48 VDC
16 A 250 VAC
16 A 30 VDC
1/2 HP 125 VAC
1 HP 250 VAC
VDE0435, IEC255, (IEC355-1)
Coil ratings
Contact ratings
Approved conditions
5 to 24 V
=
16 A at 250 V
~
(cos
= 1)
16 A at 30 V
=
(0 ms)
Duty level: class III
Operative range: class 2
Pick-up class: class a
Pollution degree: 2
Overvoltage category: II
Material group: IIIa
Ambient temperature: 25
C to 70
C
Note:
~
indicates AC and
=
indicates DC (IE417 publications).
G5J
G5J
3

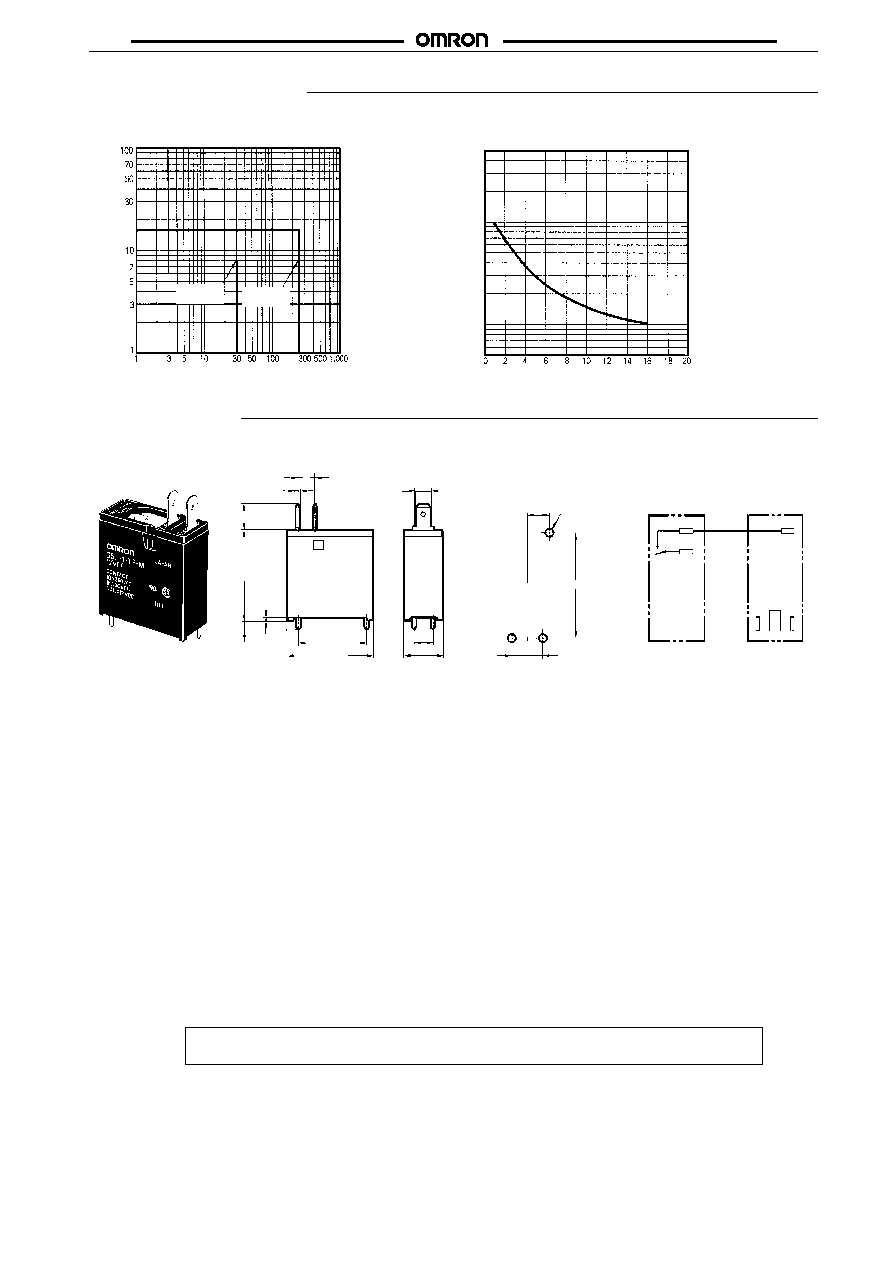

Engineering Data
Max. Switching Capacity
Life Expectancy
Switching voltage (V)
Switching current (A)
Switching current (A)
Life expectancy (x10 operations)
3
5000
3000
1000
700
500
300
100
70
50
DC resis-
tive load
AC resis-
tive load
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
Mounting Holes
(Bottom View)
Terminal Arrangement/
Internal Connections
(Top View)
(Bottom View)
Tolerance:
0.1
4.8
0.1
23.9
0.1
7.5
0.1
6
0.5
8.85
30 max.
0.5
23.9
29 max.
4.75
7.5
13 max.
Three 1.7 dia.
4
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
