1

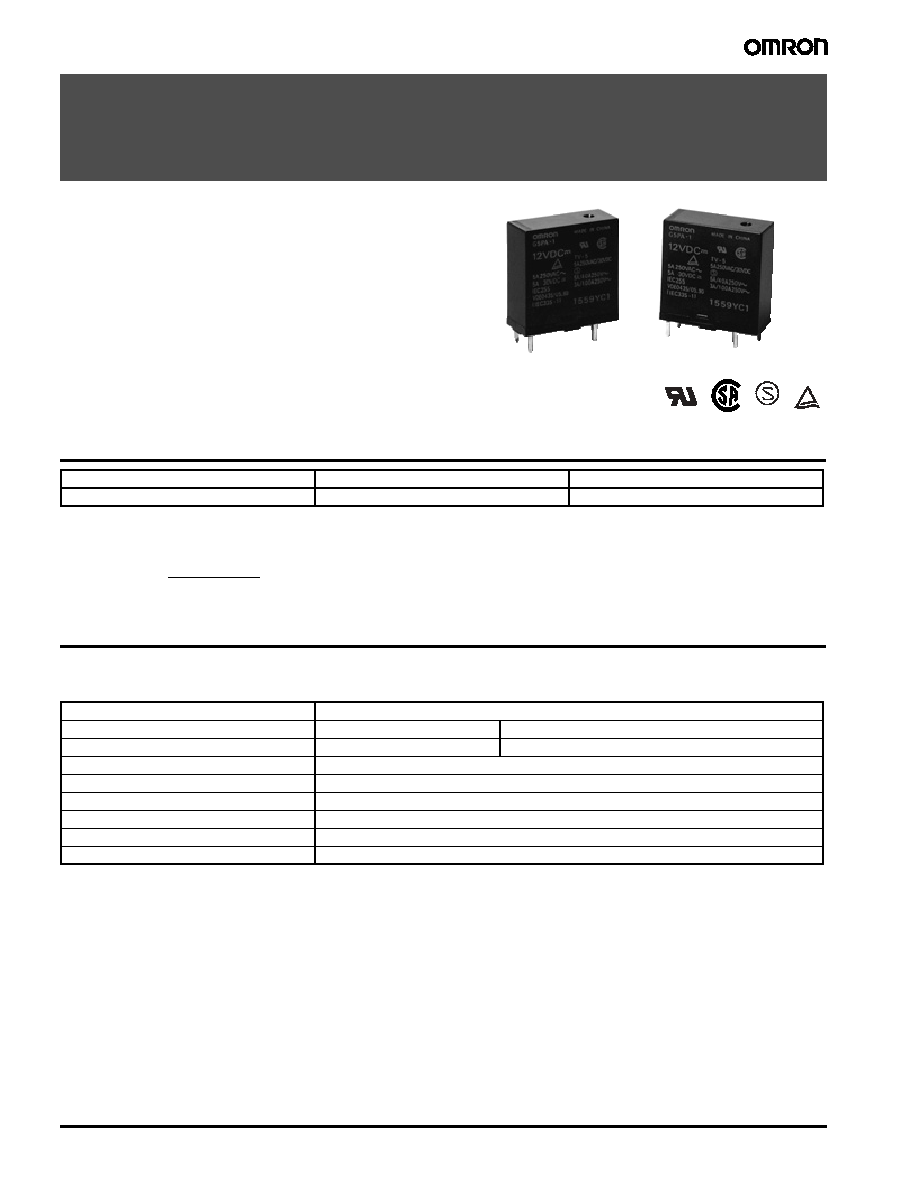

Power PCB Relay
G5PA
Power PCB Relay
G5PA
G5PA Relay Is Ideal for TV and Audio
Equipment Power Supplies
Meets TV-5 standards required for TV and audio equipment
power supplies.
High sensitivity coil with low 250 mW power consumption.
High impulse withstand surge of 10,000V.
Double insulation construction assures high insulation
capability.
UL, CSA, SEMKO, and TUV approved.
Ordering Information
How to Order
G5PA-1-8-DC__ add coil rating
Specifications
Contact Data
Type
Contact form
Model (semi-sealed)
Standard
SPST-NO
G5PA-1-8
Type
Standard
Load
Resistive (p.f. = 1)
Capacitive (TV) Load
Rated load
5A at 250 VAC; 5A at 30 VDC
100 A inrush (0.3-0.35 ms)/3 A steady state at 125 VAC
Contact material
AgSnO
Carry current
5A
Max. operating voltage
250 VAC, 30 VDC
Max. operating current
5A
Max. switching capacity
1,250 VA, 150 W
Min. permissible load
100mA, 5 VDC
Power PCB Relay
G5PA
2
Coil Data Standard
Characteristics
Characteristic Data
Rated
voltage
(VDC)
Rated
current
(mA)
Coil
resistance
(
)
Pickup
voltage
Dropout
voltage
Maximum
voltage
Power
consumption
(approx.)
( - - - - - - - - - - % of rated voltage - - - - - - - - - - - - - )
5
50.8
100
80% max.
10% min.
110% max.
250mW
9
27.8
324
80% max.
10% min.
110% max.
250mW
12
20.8
577
80% max.
10% min.
110% max.
250mW
24
10.4
2,310
80% max.
10% min.
110% max.
250mW
Contact resistance
100 m
max.
Operate time
15 ms max.
Release time
5 ms max.
Insulation resistance
1,000 M
min. (at 500 VDC)
Dielectric withstand voltage
4,000 VAC, 50/60 Hz for 1 minute between coil and contact
1,000 VAC, 50/60 Hz for 1 minute between contacts of same polarity
Impulse withstand voltage
10,000 V, 1.2x50s between coil and contact
Vibration resistance
Destruction
10 to 55 Hz, 1.5-mm double amplitude for 2 hours
Malfunction
10 to 55 Hz, 1.5-mm double amplitude for 5 minutes
Shock resistance
Destruction
1,000 m/s
2
(approx. 100G)
Malfunction
200 m/s
2
(approx. 20G)
Life expectancy
Mechanical
1,000,000 operations min. (at 18,000 operations/hr)
Electrical
80,000 operations min. with resistive load (reference value)
40,000 operations min. (under rated TV-Capacitive Load)
Ambient temperature
Operating
-40C to 70C (with no icing)
Ambient humidity
Operating
35% to 85%
Weight
Approx. 10g
3
AC
resistive
load
DC
resistive
load
Max switching capacity
Ambient temperature vs. max. voltage
Note: The maximum voltage is the permissable peak
voltage that can be imposed on the coil. The
maximum voltage must not be imposed on the
coil continuously.
Ambient temperature (
C)
Max.
v
o
l
t
ag
e (
%
)
Switching voltage (V)
S
w
i
t
chin
g cur
rent
(A)
3
Power PCB Relay
G5PA
Dimensions
Unit: mm (inch)
SPST-NO Type
G5PA-1
Approved Standards
UL (File No. E41515, UL508)
CSA (File No. LR31928, C22.2 No. 14)
SEMKO (Certificate No. 9732043; EN60065)
TUV (Certificate No. R9650435, IEC255/VDE0435)
0.4
(0.015)
20 (0.787)
1
Mounting Holes
(Bottom view)
Tolerance:
0.1 mm
Terminal Arrangement/
Internal Connections
(Bottom view)
4
2
16.5
(0.650)
7.5 (0.295)
Two holes
1.3 (0.051) dia.
0.4
(0.015)
10 (0.394) Max.
[9.85 (0.388)]*
24 (0.945)
Max.
[23.85 (0.939)]*
1
(0.039)
1
(0.039)
0.8
(0.03)
4 (0.157)
0.50
(0.020)
25 (0.984)
Max.
[24.8 (0.976)]*
*Average
Two holes
1.0 (0.039) dia.
2
3
Model
Coil
ratings
Contact
ratings
No. of test
operations
G5PA-1
5 to 24 VDC
5 A, 277 VAC
30,000
5 A, 30 VDC
6,000
TV-5 rating
25,000
Model
Coil
ratings
Contact
ratings
No. of test
operations
G5PA-1
5 to 28 VDC
5 A/40 A, 250 VAC
3 A/100A, 250 VAC
10,000
Model
Coil
ratings
Contact
ratings
No. of test
operations
G5PA-1
5 to 24 VDC
5 A, 250 VAC
(cos=1)
5 A, 30 VDC
(L/R : 0 ms)
100,000
Power PCB Relay
G5PA
4
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.omron.com/oei
Canada - http://www.omron.ca
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, divide by 25.4
Cat. No. GC RLY8
5/03 Specifications subject to change without notice Printed in USA
