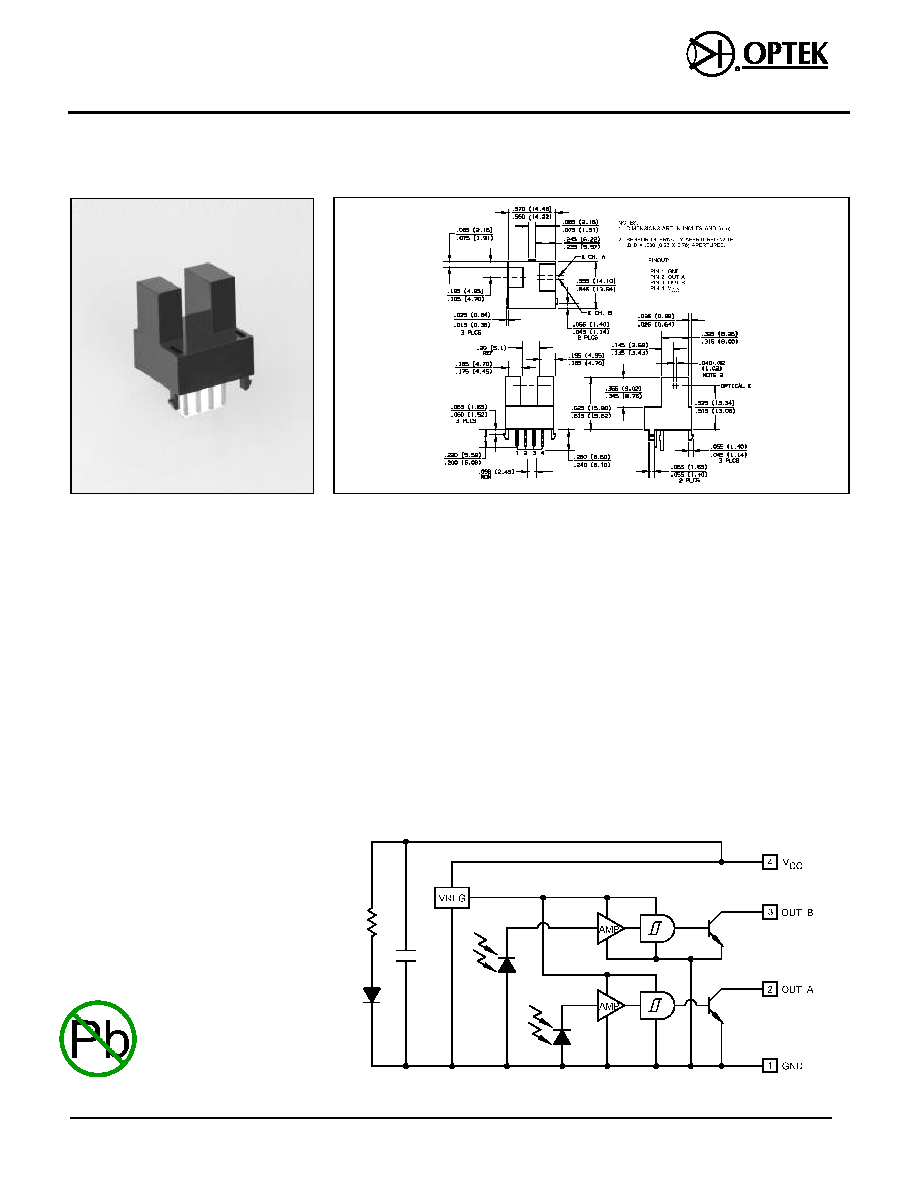

Fea tures
Dual channel outputs
0.010" (0.254 mm) sensor apertures
for high resolution
Open collector inverter outputs
Snap mount
4-pin connector ( Ho Tien 2560-04),
Molex compatible connector 5102
series housing and 5103 series
terminal
De scrip tion
The OPB950 consists of an infrared
emitting diode and a monolithic
integrated circuit which incorporates two
independent photodiodes, linear
amplifiers, Schmitt trigger circuits and
output transistors. The outputs are
TTL/LSTTL compatible and can drive 8
TTL loads.
Applications include linear and rotary
encoders with high resolution provided
by internal 0.010" (0.254 mm) apertures
located in front of Photologic
sensor on
0.040" (1.02 mm) center line spacing.
Ab so lute Maxi mum Rat ings (T
A
= 25
o
C un less oth er wise noted)
Stor age Tem pera ture Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40
o
C to +85
o
C
Op er at ing Tem pera ture Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40
o
C to +85
o
C
In put Di ode
For ward DC Cur rent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Peak For ward Cur rent (1
s Pulse Width, 300 pps) . . . . . . . . . . . . . . . . . . . . . . . 3.0 A
Re verse D. C. Volt age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 V
Power Dis si pa tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
(1)
Out put Pho tologic
Sup ply Volt age, V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 V
Volt age at Out put. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 V
Power Dis si pa tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mW
(2)
Low Level Out put Cur rent (Sink ing) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA
Notes:
(1) Derate linearly 1.67 mW/
o
C above 25
o
C.
(2) Derate linearly 3.33 mW/
o
C above 25
o
C.
Sche matic
Prod uct Bul le tin OPB950
July 1996
Dual Chan nel En coder
Type OPB950
Op tek Tech nol ogy, Inc. 1215 W. Crosby Road Car roll ton, Texas 75006 (972) 323- 2200 Fax (972) 323- 2396
12-152
RoHS
January 2006
For RoHS compliant devices
add "Z" to the end of the part
number: OPB950Z
Type OPB950
Optek reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Op tek Tech nol ogy, Inc. 1215 W. Crosby Road Car roll ton, Texas 75006 (972) 323- 2200 Fax (972) 323- 2396
Elec tri cal Char ac ter is tics (T
A
= 25
o
C un less oth er wise noted)
SYM BOL
PA RAME TER
MIN TYP MAX UNITS
TEST CON DI TIONS
V
CC
Operating D.C. Supply Voltage
4.75
5.0
5.25
V
V
OH
High Level Output Voltage (per channel)
2.4
V
V
CC
= 5.0 V, Blocked Condition
V
OL
Low Level Output Voltage (per channel)
0.4
V
V
CC
= 5.0 V, Unblocked Condition
