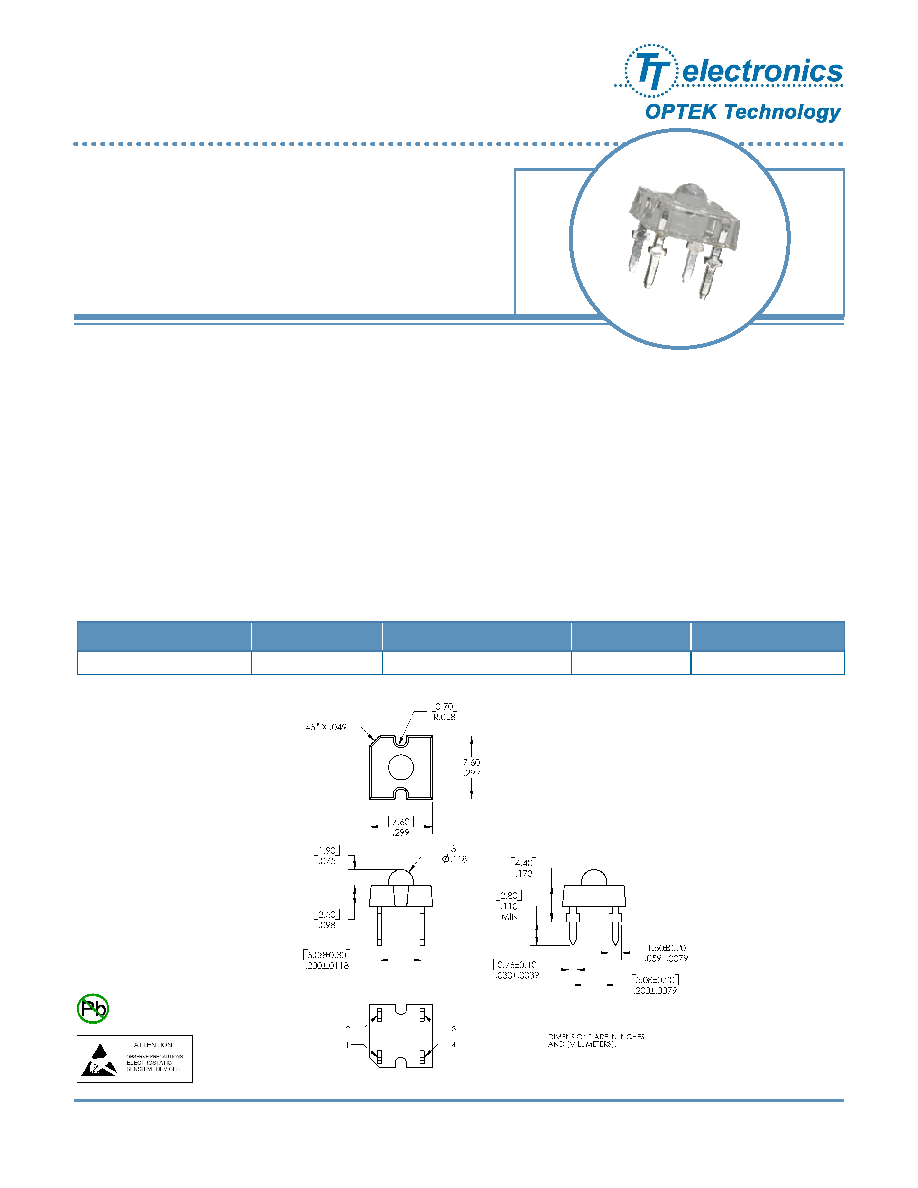

4-Pin Red-Orange LED Lamp
(7.6mm)
OVFSQ4C8
x
Packaged in tubes
x
Compatible with automatic placement equipment
x
Compatible with infrared and vapor phase reflow solder process
x
Mono-color type
x
Pb-free
The OVFSQ4C8
is designed with higher forward voltage to maximize brightness and incorporates a low-profile
lens to enhance efficient light distribution. Response time is fast and it consumes less power resulting in low cur-
rent requirements from circuit power supply. Tubular arrays replace neon in outdoor and indoor signs. This square
package allows high-density arrays to form light engines.
Applications
x
Automotive: Rear Stop/Turn Signal Lamps/Truck Marker Lamps
x
Mood-setting Decoration and Landscape Lighting
x
Special Decorative Interior/Exterior Lighting
x
Special Effects Stage Lighting
x
Illumination for Signs and Channel Letters
x
Traffic Signals, Pedestrian and Walkway Signs
Product Photo Here
Part Number
Material
Emitted Color
Flux Typ. mlm
OVFSQ4C8
AlInGaP
Red-Orange
4500
Lens Color
Water Clear
RoHS
Data is subject to change without prior notice.
2,3 ANODE
1,4 CATHODE
Issue 1.0 0505
Page 2
OPTEK Technology Inc. --
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
4-Pin Red-Orange LED Lamp (7.6mm)
OVFSQ4C8
Storage Temperature Range
-40 ~ +100C
Operating Temperature Range
-40 ~ +100C
Lead Soldering Temperature (3mm from the base of the epoxy bulb)
1
260C
Reverse Voltage
5 V
Continuous Forward Current
2
70 mA
Peak Forward Current (10% Duty Cycle, PW
VHF
200 mA
Power Dissipation
220 mW
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Notes:
1. Solder time less than 5 seconds at temperature extreme.
2. Heat sink is adequate if the device is operated at ambient temperature higher than 25C. For long term performance the drive currents
between 10mA and 50mA are recommended. Please contact an Optek sales representative for more information on recommended drive
conditions.
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
CONDITIONS
lumen
Luminous Flux
3000
4500
----
mlm
I
F
= 70mA
V
F
Forward Voltage
----
2.6
3.2
V
I
F
= 70mA
I
R
Reverse Current
----
----
100
A
V
R
= 5V
D
Dominant Wavelength
612
618
628
nm
I
F
= 70mA
2
50% Power Angle
----
40
----
deg
I
F
= 70mA
Standard Bins
(I
F
= 70mA)
Lamps are sorted to luminous flux (
V
), forward voltage (V
F
), and dominant wavelength (
D
) bins shown.
Orders for OVFSQ4C8 may be filled with any or all bins contained as below.
Rank
V4
V5
V6
V7
V8
Voltage (V)
2.22.4
2.42.6
2.62.8
2.83.0
3.03.2
Forward Voltage (V
F
)
Important Notes:
1. All ranks will be included per delivery, rank ratio will be based on the chip distribution.
2. To designate luminous intensity ranks, please contact OPTEK.
5000-7300
M
4000-6100
L
3500-4800
K
3000-4200
J
Luminous flux is at
J bin or above.
612
Dominant Wavelength (nm)
628
L
u
m
i
n
o
u
s
F
l
u
x
m
l
m
)
Issue 1.0 0505
Page 3
OPTEK Technology Inc. --
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
4-Pin Red-Orange LED Lamp (7.6mm)
OVFSQ4C8

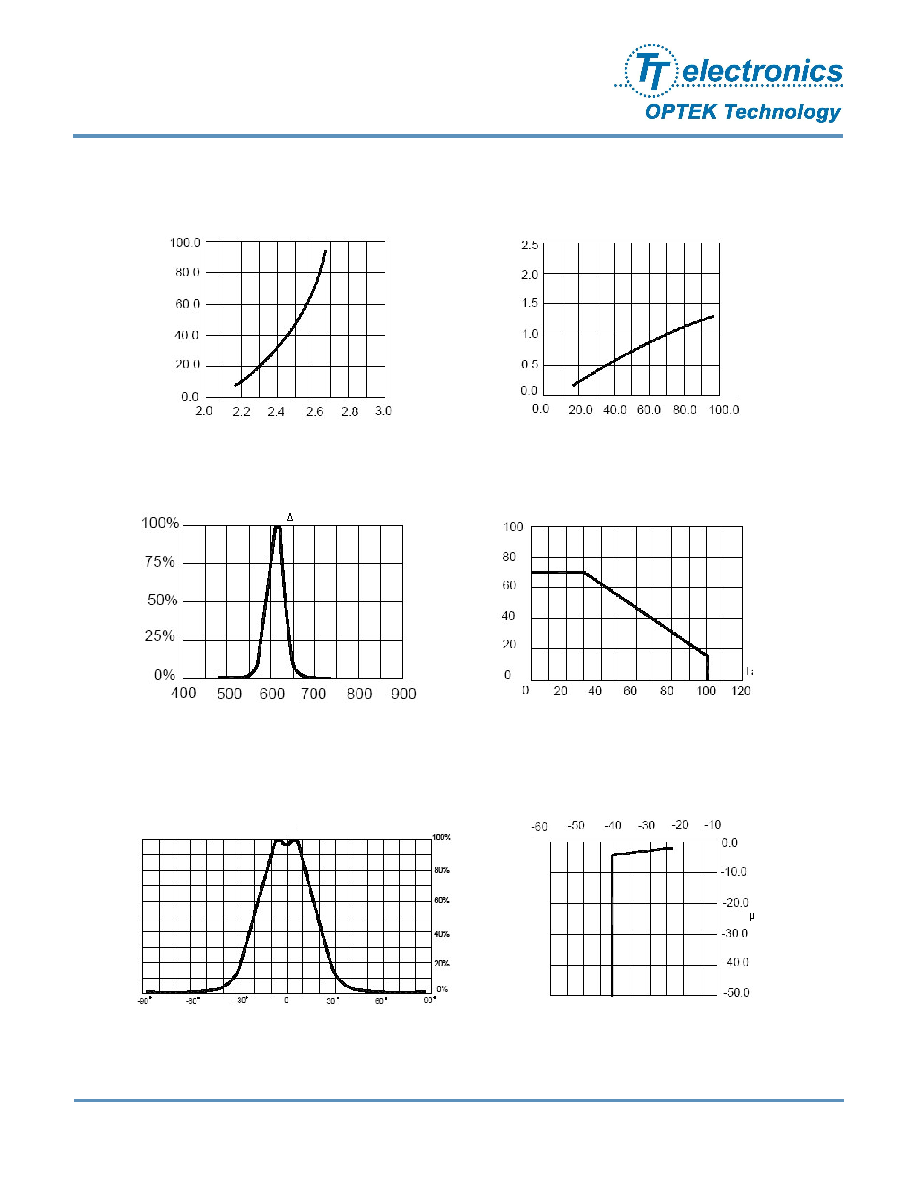

Typical Electro-Optical Characteristics Curves
