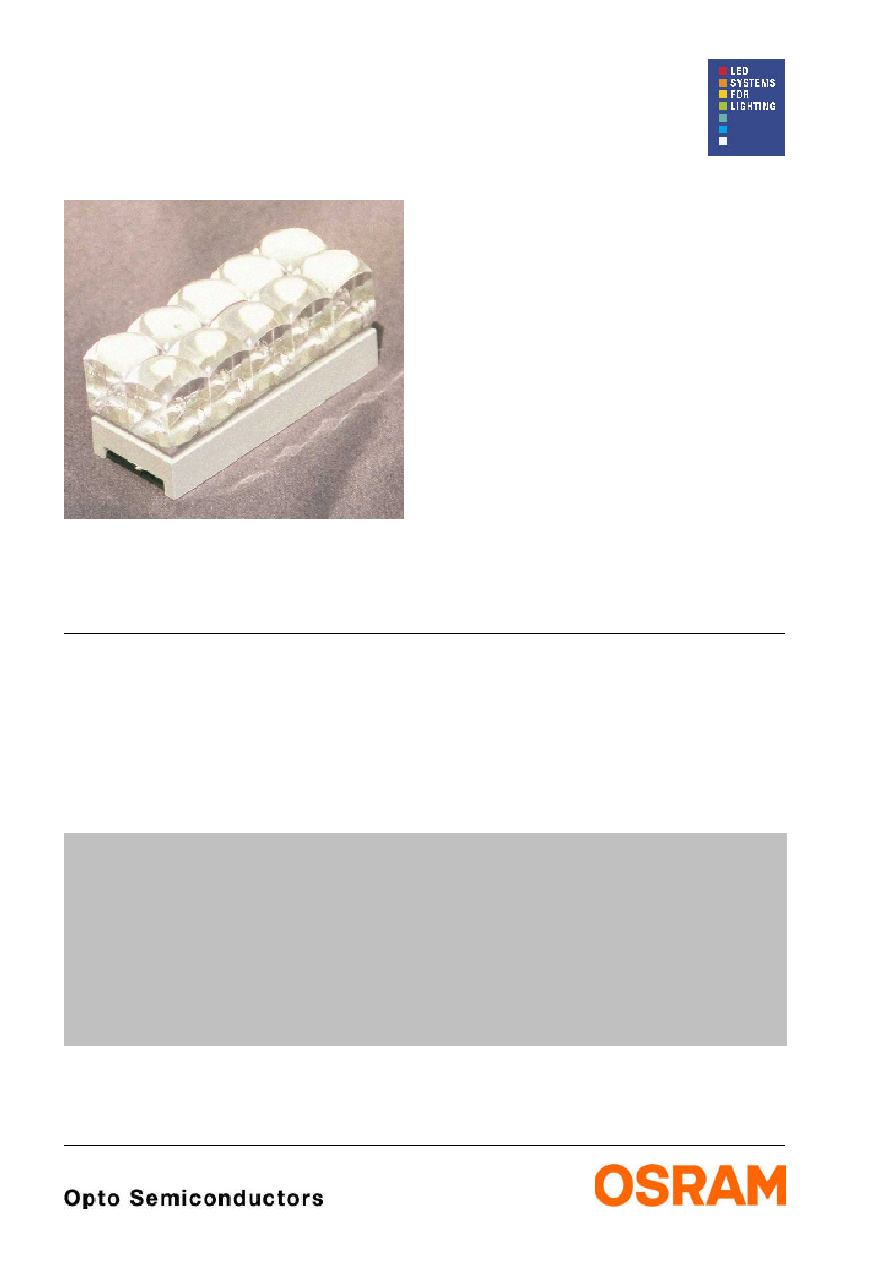

OS-WL01A
EFFECTlight
Data Sheet
Benefits
LED-Module with condensed beam
pattern
Extremly small viewing angle
Available in various colors
Applications
Grazing angle accent lighting in
architectural settings
Signals without security requirements
Specialized spotlighting
Color
Voltage
[V DC]*
Power
[W]*
Radiance
Angle []*
Wavelength [nm]
Color Temp [K]*
Lum. Intensity
[cd]*
Current
[A]*
Product
Number
of LEDs
Technical Operating Data
red
24
1,1
4
617 nm
3500
0,047
OS-WL01A-A1
10
yellow
24
1,1
4
587 nm
2500
0,047
OS-WL01A-Y1
10
verde
24
1,3
4
503 nm
2000
0,054
OS-WL01A-V1
10
blue
24
1,3
4
469 nm
350
0,054
OS-WL01A-B1
10
All Data are related to the entire module
Due to the special conditions of the manufacturing processes of LED the typical data of technical parameters can only reflect statistical figures and do not necessarily
correspond to the actual parameters of each single product which could differ from the typical data.
*)
Technical Features
Modules optimized for use with OSRAM
OPTOTRONIC power supplies.
Dimmable by Pulse width modulation (PWM)
with the electronic controller OT DIM
Parallel connection up to fourteen modules
Connecting possible by OSRAM Connect
System
Easily combined with supplementary optics
OS-WL01A -
Seite 1 von 4
Drawing
Operating Temperature
at Tc-Point [ C ] *
Storage Temperature
[ C ] *
Product
Voltage Range
[ V dc ] *
Reverse Voltage
[ V dc ] *
Minimum and Maximum Ratings
OS-WL01A-A1
23
25
25
...
-30
65
-40
85
...
...
OS-WL01A-Y1
23
25
25
...
-30
65
-40
85
...
...
OS-WL01A-V1
23
25
25
...
-30
65
-40
85
...
...
OS-WL01A-B1
23
25
25
...
-30
65
-40
85
...
...
Exceeding maximum ratings for operation and storage temperature will reduce expected life time or destroy the LED Module.
Exceeding maximum ratings for operation voltage will cause hazardous overload and will likely destroy the LED Module.
The temperature of the LED module has to measured at the Tc-point according to EN60598-1 in a thermally constant status with a temperature sensor or a temperature
sensitive label (available e.g. at RS-Components). For exact location of the Tc-point see drawing below.
*)
OS-WL01A -
Seite 2 von 4
Safety Information
The LED module itself and all its components may not be mechanical stressed.
Assembly must not damage or destroy conducting paths on the circuit board.
The LED Module incorporates no protection against: Short circuits, Overload, Overheating. Therefore it is absolutely necessary to
operate the modules with a electronically stabilised power supply offering protection against the above mentioned safety risks.
For dimming applications attention should be paid to specific references in "OPTOTRONIC Technical Guide".
Parallel connection is highly recommended as safe electrical operation mode.
Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and demage the LED module.
Installation of LED modules (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
Correct electrical polarity needs to be observed. Wrong polarity will result in no light emission.
OSRAM OPTOTRONIC power supplies are specifically designed with the necessary protection features for
safe operation.
When using other power supplies other than OPTOTRONIC the following basic safety features are required, in addition to any other
application specific concerns and local safety codes:
Short circuit protection
Overload protection
Overheat protection
Correct output voltage
When do you use more than one EFFECTlight and the OSRAM Connect System the construction of fixtures has to line up exactly
the EFFECTlight- modules.
Maximum of 14 modules can be connected together without supplemental power feed due to voltage drop and current carrying
capacity.
The EFFECTligth should be protected against UV- radiation in outdoor- applications.
The module, as manufactured, has no conformal coating and therefore offers no inherent protection against corrosion.
Damage by corrosion will not be honored as a materials defect claim. It is the users responsibility to provide suitable protection
against corrosive agents such as moisture and condensation and other harmful elements.
OS-WL01A -
Seite 3 von 4
Assembly Information
The electrical contact can be performed by OSRAM Connect System OS-WL-PIN, OS-WL-CONN ( Connector block) and OS-WL-
WIRE. Two wires can be soldered at the designated 2 soldering pads. 0,5 mm.
Solder connections should only be performed on designated solder pads ( marked "24V +/-"). During soldering, do not exceed the
maximum soldering time of 10 seconds and the maximum soldering temperature of 260C.
EFFECTlight can be mounted by construction either a guide rail or clamping fixture which matches with the existing mounting
groove of the module.
Small scratches, bubbles or cavitations in lenses are production related and do not affect the optical functions of the EFFECTlight.
Production related tolerances may cause a difference of the optical and mechanical axes. For sensitive applications there is
important a possibility to adjust the modules by the fixture.
Productgroup
Productname
EAN *
S-Unit *
Ordering Guide
EFFECTlight
OS-WL01A-A1
4050300774824
10
EFFECTlight
OS-WL01A-Y1
4050300774886
10
EFFECTlight
OS-WL01A-V1
4050300774800
10
EFFECTlight
OS-WL01A-B1
4050300787923
10
EAN: Ordering number per single module
S-Unit: Modules per shipping unit
*)
Note: Typical performance data are subject to change without any further notice, particularly as LED technology evolves.
Related and Further Information
The new dimension of light
(in preparation)
OPTOTRONIC Technical Guide
130 T08 E
OPTOTRONIC Data Sheets
www.osram.com
Sales and Technical Support
OSRAM
Opto Semiconductors GmbH
Wernerwerkstrasse 2
D - 93049 Regensburg
Germany
www.osram-os.com
OSRAM GmbH
Hellabrunner Strasse 1
D - 81536 Mnchen
Germany
www.osram.com
+49 (0)89 6213-0
See web-page for local phone numbers
OS-WL01A -
Seite 4 von 4
