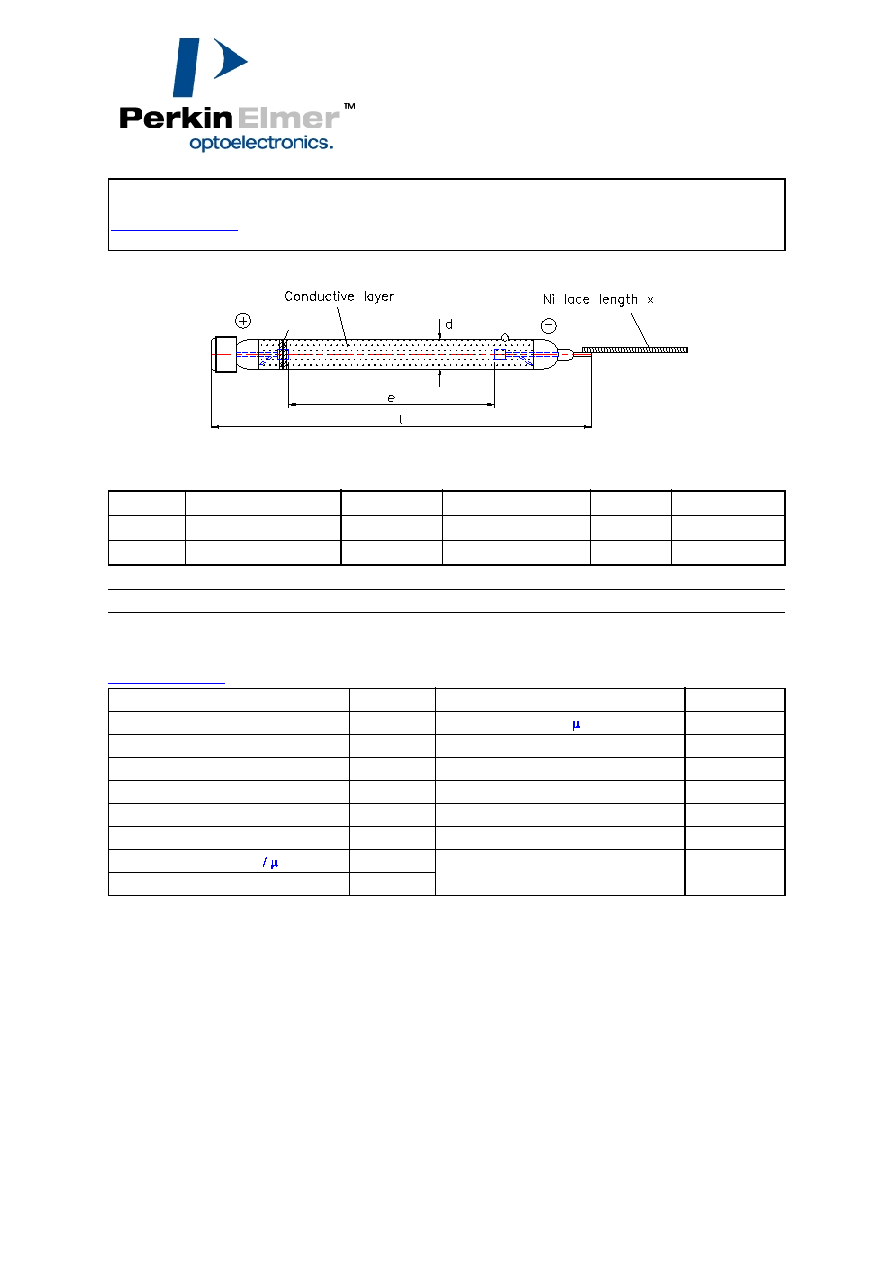

DEVICE NAME : EGL 3840
Date :
22/09/98
Mechanical Data :
ISSUED BY : Joan Low Poh Chee
Rev Date : Index #:
Dimension(mm)
e
40 1
l
90 2
d
8 0.5 dia
r
g
x
30 3
Polarity :
Without Colour Corrective Coating :
Remarks:
1. Envelope material : Q1, Q2 or Q3
Operating Data :
Max. Power Pmax/W
Trigger coil TR
STS 44/33
Nom. Power Pnom / W
40
Trigger capacitor Cz/ F
0.22
Max. flashenergy Emax/Ws
Min. trigger voltage Uz min/V
200
Nom. flashenergy Enom/Ws
40
Trigger contact S
SCR
Max. anode voltage Uamax/V
550
Flash frequency/Hz
Nom. anode voltage Uanom/V
500
Life/Number of flashes/N
1 x 10p7
Min. anode voltage Uamin/V
400
Repetition rate trep/ s
Nom.flash capacitor CB
F
Sec trigger voltage Uz sec
/ KV
6.8
Light reduction
after life/ %
(Unloaded)
Remarks :
HS-DDC-H24-0003
