PE175B-10F and PE175B-10UV
CERMAX FOCUSED
XENON ARC LAMPS
Lighting
Imaging
Telecom
Cermax
Xenon Arc Lamps
Applications
Medical and industrial fiber optic illu-
minators
Machine vision
Infrared and visible spotlights/beacons
Spectroscopy
Microscopy
UV Curing
Video projection
Description
The Cermax xenon arc lamp is an innova-
tive lamp design in the specialty lighting
industry. These lamps were introduced in
the early 1980's and are now used in endo-
scopes in most major hospitals worldwide,
in high brightness projection display sys-
tems, and for a wide variety of other high
performance applications.
The PE175B-10F and PE175B-10UV
Cermax lamps have an integrated elliptical
reflector, enabling high intensity, focused
output of ultraviolet, visible, and infrared
radiation. With their internal reflector and
rugged ceramic body construction, Cermax
lamps are the safest and most compact alter-
native to conventional quartz xenon lamps.
This makes them ideal for applications that
require a high degree of illumination control.
Current-regulated or power-regulated power
supplies with output ripples of less than 5%
are recommended. Single shot ignition
pulses are advised because radio frequency
starters may damage the lamps internal
reflector.
In addition to lamps, PerkinElmer
Optoelectronics manufactures Cermax arc
lamp power supplies, lamp holders, OEM
lighting systems, and fiber optic light
sources.
PerkinElmer welcomes inquiries about special lamps. We would be pleased to discuss the requirements of your application and the feasibility of
designing a lamp specifically suited to your needs.
For more information e-mail us at opto@perkinelmer.com or visit our web site at www.perkinelmer.com/opto.
All values are nominal; specifications subject to change without notice.
2000 PerkinElmer inc. All rights reserved.
.
www.perkinelmer.com/opto
USA:
PerkinElmer Optoelectronics
44370 Christy St.
Fremont, CA 94538
Phone: (510) 979-6500
Fax: (510) 687-1140
Toll Free: (800) 775-6786
Europe:
PerkinElmer Optoelectronics GmbH
Wenzel-Jaksch-Str. 31
65199 Wiesbaden
Germany
Phone: +49 611 492 0
Fax: +49 611 492 369
Asia:
PerkinElmer Optoelectronics
47 Ayer Rajah Crescent #06-12
Singapore 139947
Phone: +65 775 2022
Fax: +65 775 1008

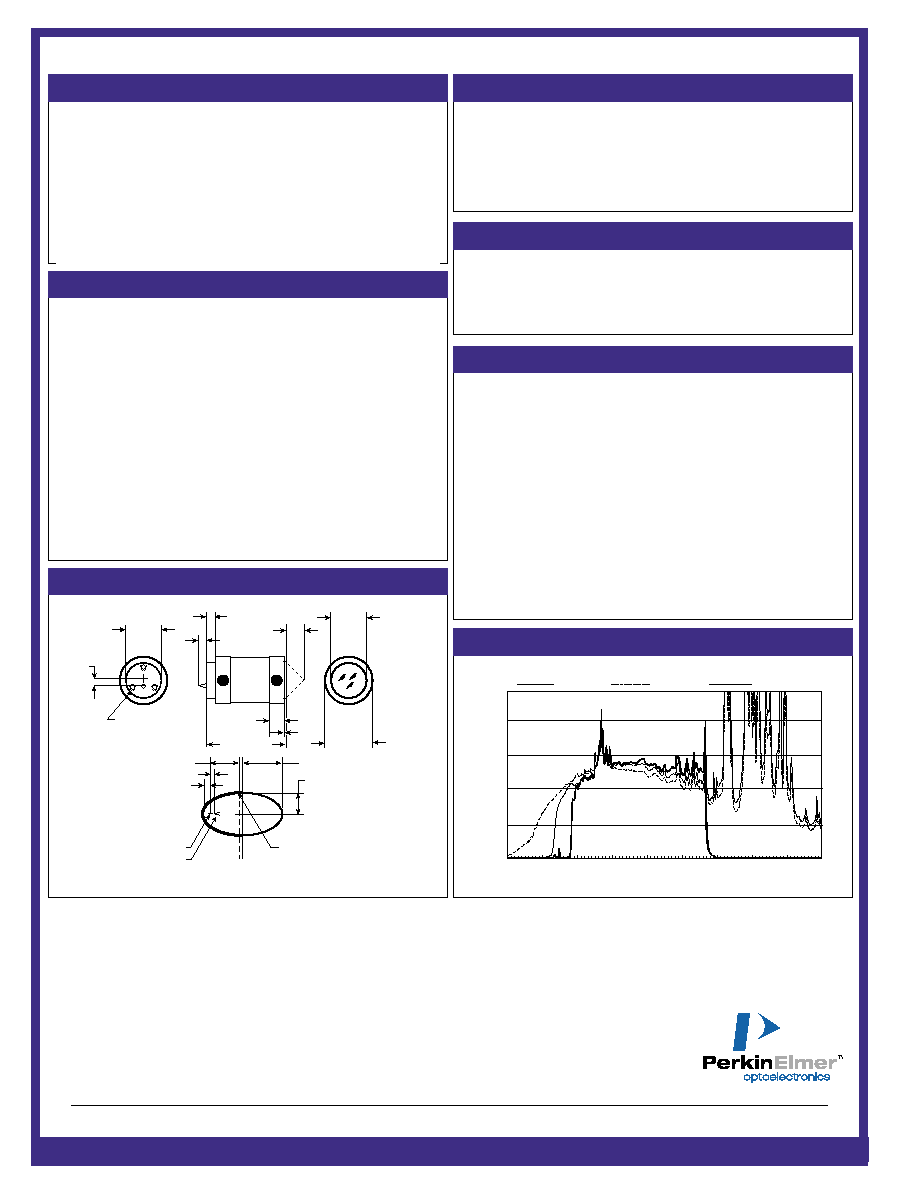

Description Nominal Range
Power 175 watts 150-200 watts
Current 14 amps (DC) 12-16 amps (DC)
Operating Voltage 12.5 volts (DC) 10.5-13.5 volts (DC)
Ignition Voltage 23 kilovolts (recommended minimum)
Temperature 150 C (maximum)
Lifetime* 1000 hours (500 hour warranty)
* End of lamp life is defined as 50% of initial output.
Operational Specifications
Output at Nominal Power
PE175B-10F and PE175B-10UV
Physical Specifications
Description Specification
Arc Gap .038 inch (0.96mm)
Reflector Geometry Ellipsoidal 1= X2/M2 +Y2/N2
Weight 150 grams
Window Diameter 1 inch (25.4 mm)
Focused Output
F= UV Filtered Output/ UV = UV Enhanced Output
Description PE175B-10F
Radiant Output* 34 watts
UV Output* 1.5 watts
IR Output* 18.8 watts
Visible Output* 2740 Lumens
Color Temperature 5900 Kelvin
Peak Instabilities 4%
Spot Size at Crossover .09" at 50% pts
Spot Size at Crossover .23" at 10% pts
*These values indicate total output in all directions.
Wavelengths = UV<390nm, IR>770nm, Visible 390nm to 770nm.
** Beam Geometry defined as half angle at 10% PTS after 01/100/1000 hours.
Notes
1.
Lamp must not be operated with window facing upwards within
45 of vertical.
2.
Seal temperature must not exceed 150 C.
3.
Current/power regulated power supplies and PerkinElmer lamp
housing units are recommended.
4.
Lamp must be operated within recommended current and power
range. Over powering may lead to arc instability, hard starting
and premature aging.
5.
Hot mirror assembly is available for IR filtering.
6.
CERMAX lamps are much safer lamps to use than their quartz
xenon arc lamp equivalents. However, caution must be practiced
when operating lamps because they are under high pressure,
require high voltage, reach temperatures up to 200 C, and their
IR and UV radiation can cause skin burns and eye damage.
Read hazard sheet included with each lamp shipment.
Dimensions
Focal Point
Cathode
CL Ellipse
Dimensions in parentheses are in millimeters.
Reflector Edge
1.298
(32.97)
M=1.059
N=0.50
.866 (21.99)
.008 (.203)
.126 (3.2)
6-32 UNC 2B x .156 DP
3 Holes EQ SP on A
.750 (19.05) BC
2 x .40 (10.2)
.035 (.899)
2.167 (55.04)
1.00
(25.4)
1.00
(25.4)
.165
(4.19)
.250 (6.35)
.55 (13.97)
.250 (6.35)
PE175B-10UV
34 watts
4.9 watts
18 watts
2460 Lumens
5050 Kelvin
4%
0.9" at 50% pts
.23" at 10% pts
Description Visible Output* Total Output
6mm aperture 1930 Lumens 18.5 watts
3mm aperture 1170 Lumens 9 watts
* Nominal values at 175 watts after 2 hour burn-in
Spectral Output
RELA
TIVE OUTPUT
F
UV
F + HOT MIRROR
WAVELENGTH (NM)
200 300 400 500 600 700 800 900 1000 1100
100
80
40
20
0
60
