36

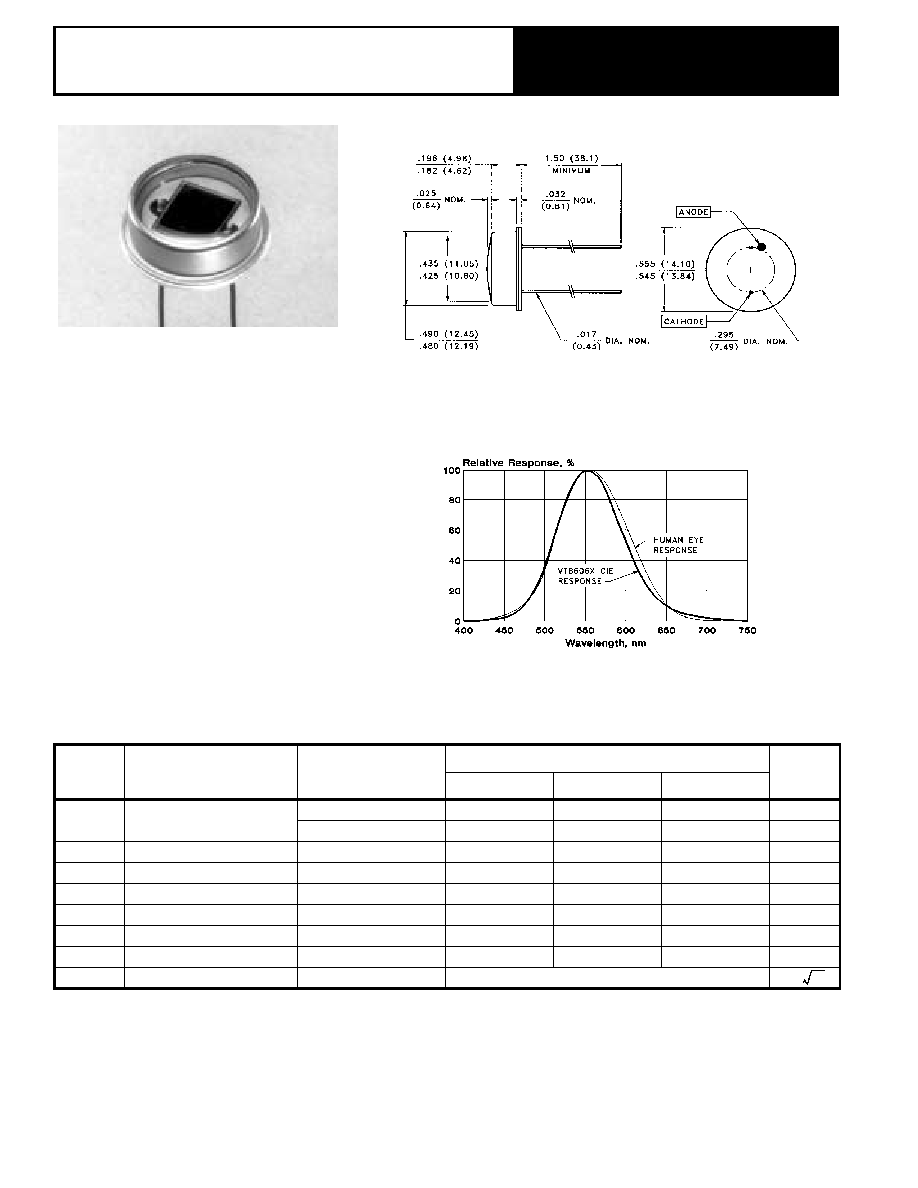

VTB Process Photodiodes
VTB6061CIE
PRODUCT DESCRIPTION
Large area planar silicon photodiode in a "flat"
window, dual lead TO-8 package. This photodiode is
a spectrally modified VTB6061B with a spectral
response closely resembling that of the human eye,
making it an ideal choice for photometric calibrations.
Its high shunt impedance permits accurate
measurement of low illuminations.
ABSOLUTE MAXIMUM RATINGS
Storage Temperature:
-55C to 50C
Operating Temperature:
-55C to 50C
PACKAGE DIMENSIONS
inch (mm)
CASE 15 TO-8 HERMETIC
CHIP ACTIVE AREA: .058 in
2
(37.7 mm
2
)
VTB6061CIE vs HUMAN EYE RESPONSE
ELECTRO-OPTICAL CHARACTERISTICS @ 25C
(See also VTB curves, pages 21-22)
SYMBOL
CHARACTERISTIC
TEST CONDITIONS
VTB6061CIE
UNITS
Min.
Typ.
Max.
S
P
Photometric Sensitivity
H = 1.0 fc
75
120
nA/fc
H = 1.0 lux
7
11
nA/lux
R
SH
Shunt Resistance
H = 0, V -10 mV
.10
G
TC R
SH
R
SH
Temperature Coefficient
H = 0, V -10 mV
-8.0
%/C
I
D
Dark Current
H = 0, VR = 2.0 V
2.0
nA
C
J
Junction Capacitance
H = 0, V = 0
8.0
11
nF
p
Spectral Response - Peak
555
nm
1/2
Angular Resp. - 50% Resp. Pt.
55
Degrees
NEP
Noise Equivalent Power
1.3 x 10
-13
(Typ.)
W
Hz
/
PerkinElmer Optoelectronics, 10900 Page Ave., St. Louis, MO 63132 USA Phone: 314-423-4900 Fax: 314-423-3956 Web: www.perkinelmer.com/opto
